Livolo

Livolo Glass Touch Light Switch – 2 Gang 2-Way / Intermediate (Cross), Wireless, Italian Standard

SKU: VL-FC2SR-2G-3W

AED 148

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 2 gang 2-way/intermediate wireless touch switch in crystal glass, Italian standard, with remote, app and voice control options.

Product details

The Livolo 2 gang 2-way / intermediate (cross) wireless touch light switch in crystal glass, resistant to scratches, moisture and dust, gives your home an extra touch of refinement and comfort.

Compatible with the wireless remote control, so you can control the switch from wherever you are.

It can be operated:

– Directly at the switch, on/off by touch;

– From a Livolo remote control, one of 2 models:

– Livolo key fob remote control

– Livolo glass Touch Screen remote control (remote controls are sold separately);

– From your smartphone using the BroadLink RM4 PRO hub + Livolo remote control, via the Ihc for Eu app.

– By voice with Google Home or Amazon Alexa. The BroadLink RM4 PRO hub is required as the intermediary between the switch and Google Home or Amazon Alexa.

Highlights

Livolo Glass Touch Light Switch – 2 Gang 2-Way / Intermediate (Cross), Wireless, Italian Standard – Overview
01

Overview

A double wireless touch switch from Livolo for two-way and intermediate (cross) wiring, built to the Italian standard. Simple design, outstanding mechanism, available in a range of panel colours.

  • 2 gang touch control
  • Two-way / intermediate (cross) switching
  • Wireless
  • Italian standard
Livolo Glass Touch Light Switch – 2 Gang 2-Way / Intermediate (Cross), Wireless, Italian Standard – Compatibility Notice
02

Compatibility Notice

Two-way switches only work when installed and synchronised with other Livolo two-way products. Livolo products DO NOT WORK with other brands.

Livolo Glass Touch Light Switch – 2 Gang 2-Way / Intermediate (Cross), Wireless, Italian Standard – Structure
03

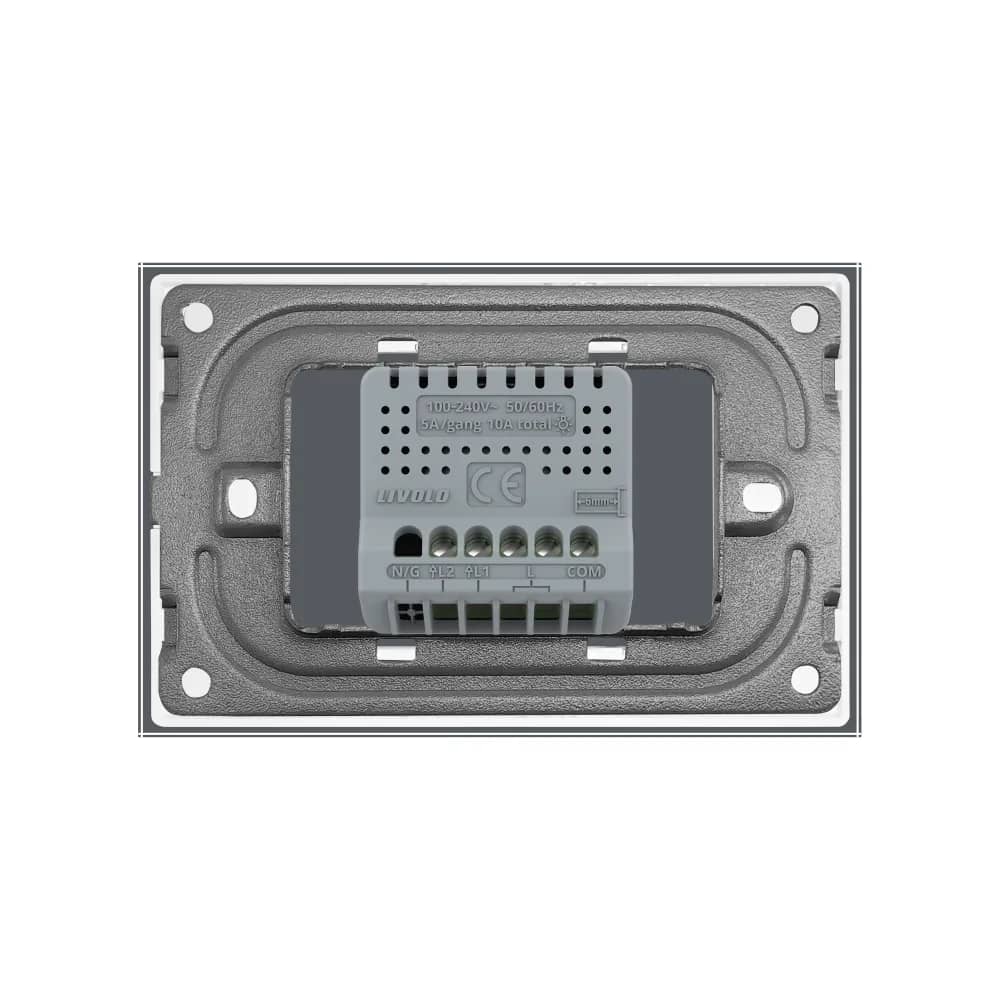

Structure

The switch is made up of three main parts and is secured with a screw fixing system.

  • Elegant glass panel
  • Switch module
  • Metal frame
  • Screw fixing system: 85 mm spacing
Livolo Glass Touch Light Switch – 2 Gang 2-Way / Intermediate (Cross), Wireless, Italian Standard – Dimensions
04

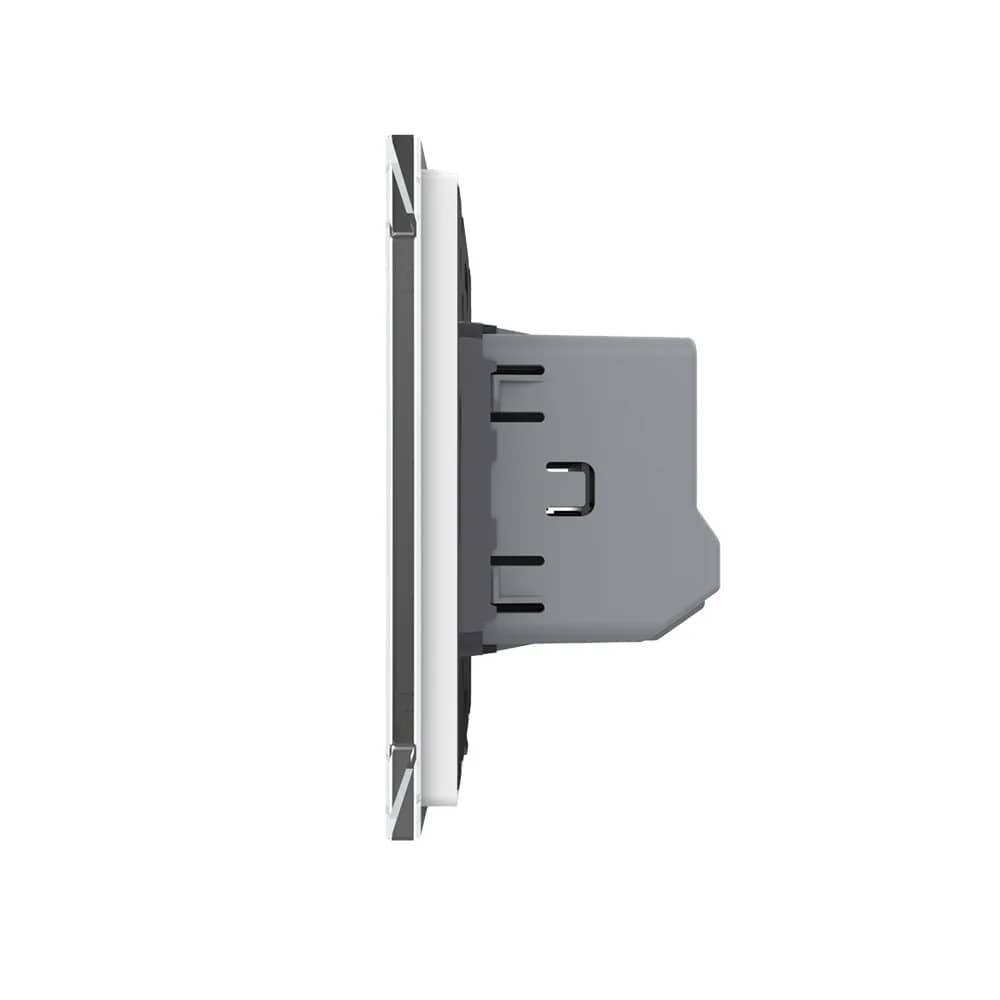

Dimensions

  • Width: 119 mm
  • Height: 78 mm
  • Depth (module): 33 mm
  • Panel thickness: 4 mm
  • 8 mm (side profile)
Livolo Glass Touch Light Switch – 2 Gang 2-Way / Intermediate (Cross), Wireless, Italian Standard – Wiring Diagram
05

Wiring Diagram

The two switches connect to the lamps and neutral (N) and live (L) lines, and are linked to each other by a two-way/intermediate connection.

  • Neutral (N)
  • Live (L)
  • Two-way / intermediate link between switches
Livolo Glass Touch Light Switch – 2 Gang 2-Way / Intermediate (Cross), Wireless, Italian Standard – Installation Steps
06

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (it clicks into place).
