Livolo Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, Zigbee EC

SKU: VL-FC1SZ2-2G-2W

AED 105

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 1 gang 2-way/intermediate glass touch switch with Zigbee EC, app and voice control via the Livolo hub, resistant to moisture and dust.

Product details

Livolo 1 gang 2-way / intermediate touch light switch with Zigbee EC protocol, resistant to moisture and dust. Give your home an extra touch of refinement and comfort.

It can be operated:

– Directly from the switch, on/off by touch;

– From your smartphone using the Livolo Zigbee EC Hub via the Livolo app (hub sold separately);

– By voice with Google Home or Amazon Alexa. The Livolo Zigbee EC Hub is required as the intermediary between the switch and Google Home or Amazon Alexa.

A maximum of 3 switches can be connected in the circuit (intermediate)

Highlights

Livolo Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, Zigbee EC – Overview
01

Overview

A Livolo single touch light switch for two-way and intermediate (cross) wiring, using the ZigBee EC protocol. Simple design, extraordinary mechanism, available in a variety of finishes.

  • 1 gang touch switch
  • Two-way / intermediate (cross) operation
  • ZigBee EC protocol
Livolo Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, Zigbee EC – Compatible Bulbs
02

Compatible Bulbs

  • LED: 5~300W max.
  • Incandescent: 1000W max.
  • Halogen: 1000W max.
  • Smart RGB bulbs: not compatible
Livolo Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, Zigbee EC – App Control
03

App Control

Change the atmosphere of your home with a simple press of a button. Open the Livolo app to personalise the lighting in your home just the way you like it.

  • Important: Livolo ZigBee switches work only with the Livolo ZigBee hub.
Livolo Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, Zigbee EC – Structure
04

Structure

  • Elegant crystal glass panel
  • Switch module
  • Metal frame
  • Screw fixing system (60 mm spacing)
Livolo Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, Zigbee EC – Dimensions
05

Dimensions

  • Panel: 80 mm x 80 mm
  • Glass panel thickness: 4 mm
  • Module depth: 33 mm
  • Fixing hole spacing: 60 mm

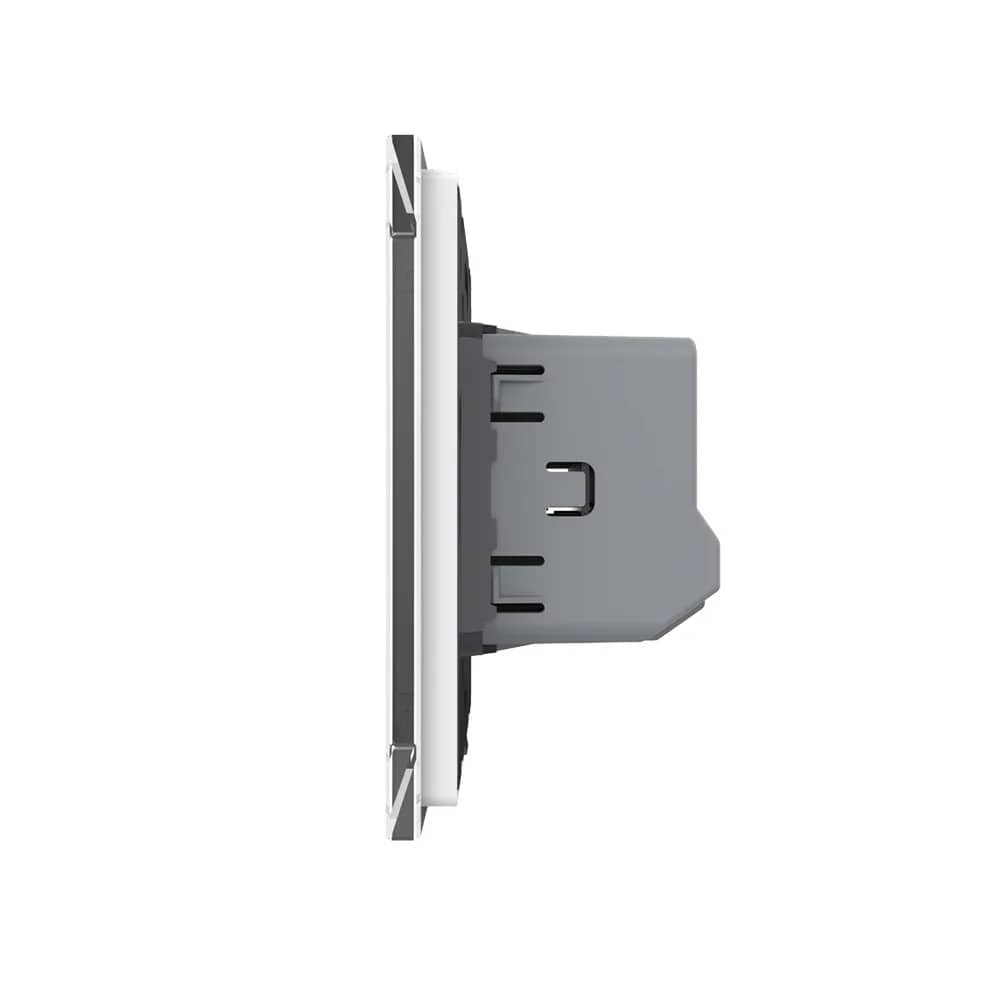

  • 8 mm (as shown on side profile)
Livolo Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, Zigbee EC – Wiring Diagram
06

Wiring Diagram

Two switches are wired together to control one light from two locations (two-way / intermediate connection), using Neutral (N), Live (L) and the COM terminal.

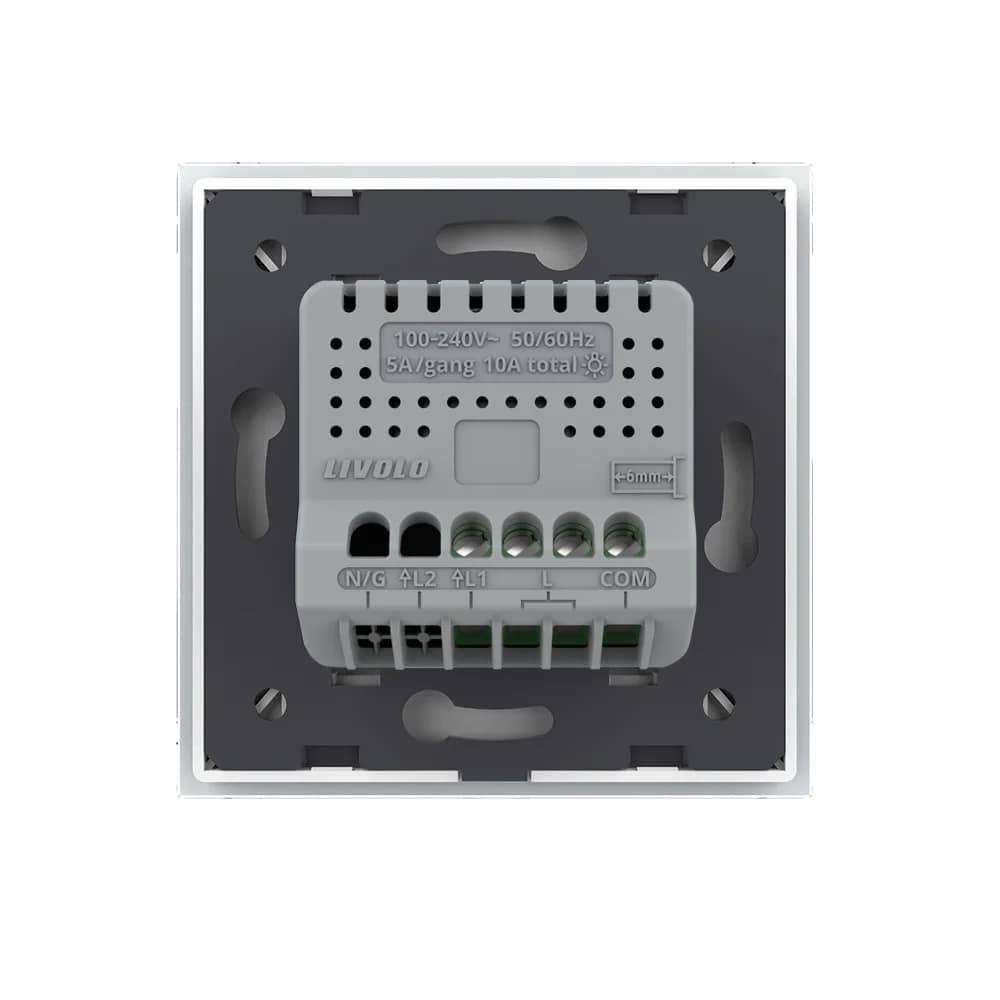

  • Module rating: 100-240V~ 50/60Hz
  • 5A/gang, 10A total
  • Terminals: N/G, L2, L1, L, COM
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).
