Livolo

Livolo Glass Touch Light Switch – 4 Gang, Italian Standard

SKU: VL-FC4-3G-11

AED 140

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 4 gang glass touch light switch, Italian standard, with tempered glass panel, 100ms touch response and red/blue status LED.

Product details

The Livolo 4 gang glass touch light switch – Italian standard VL-C304 – features a contemporary design that suits the interior of any modern or classic home.

Livolo switches use a touch sensor with a 100ms response time, similar to the technology used in smartphones. The switch panel is made of fire-resistant tempered glass. The red/blue LED indicates the on/off status of the switch and is easy to locate in the dark.

Italian standard switches are compatible with 3-module modular back boxes with 85mm screw spacing.

Flush-mount back box: GEWISS 3M

Plasterboard back box: GEWISS 3M

Please note: back boxes are ordered separately!

Highlights

Livolo Glass Touch Light Switch – 4 Gang, Italian Standard – Livolo 4-Gang Touch Switch – Italian Standard
01

Livolo 4-Gang Touch Switch – Italian Standard

A new-series quadruple touch light switch from Livolo, built to the Italian standard. Simple design, outstanding mechanism, available in a range of finishes.

  • 4-gang touch control
  • Italian standard format
  • New series
  • Available in white, black, grey and gold
Livolo Glass Touch Light Switch – 4 Gang, Italian Standard – Key Features
02

Key Features

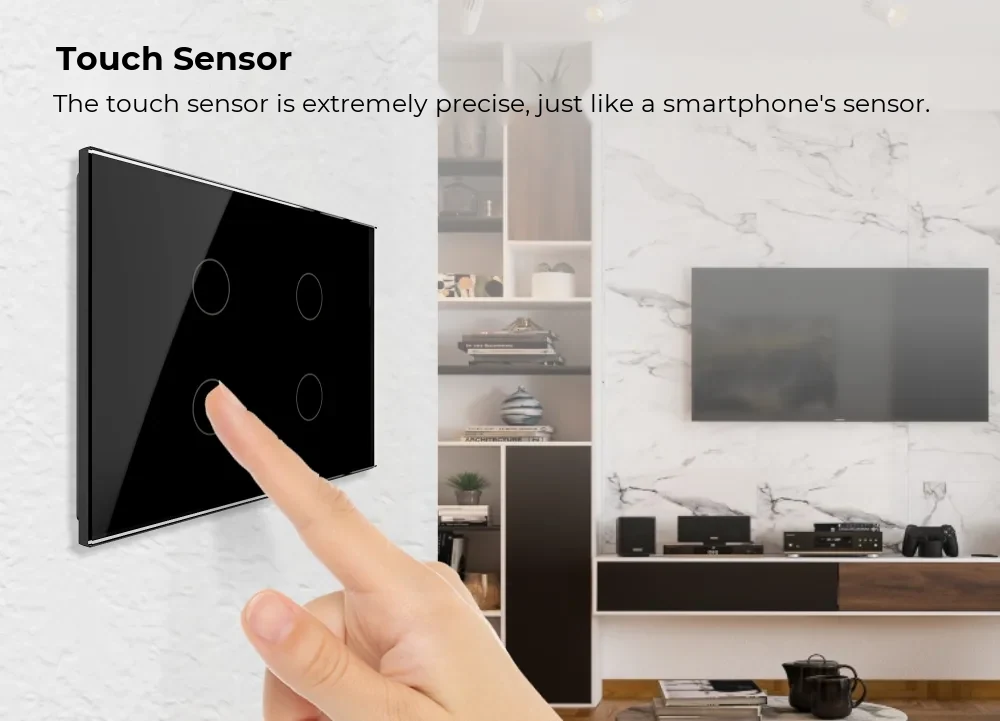

  • Highly precise touch sensor, just like a smartphone's

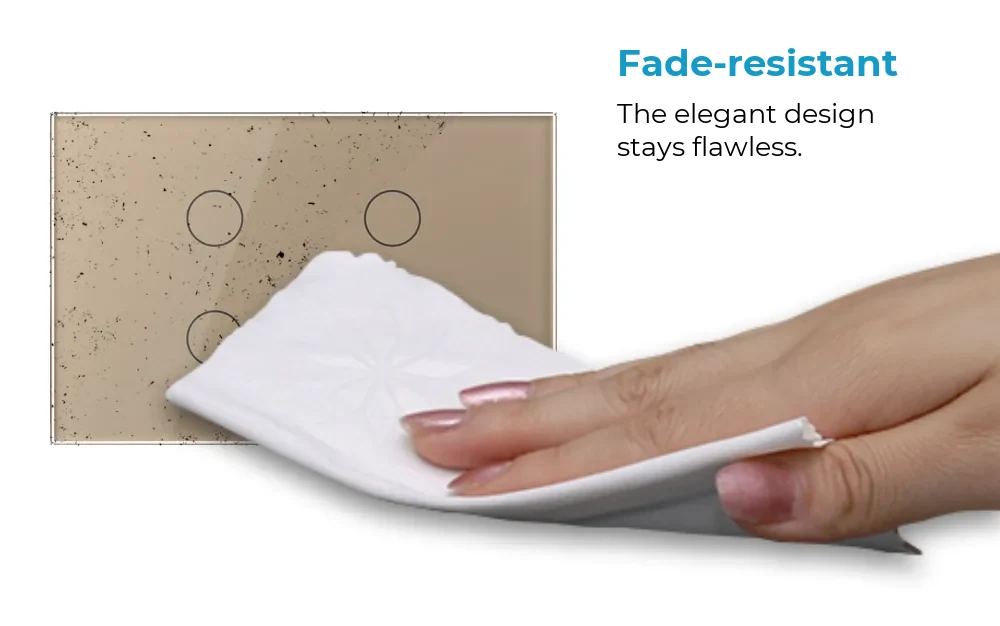

  • Fade-resistant: the elegant design stays intact
  • Moisture-resistant: can be used in damp environments

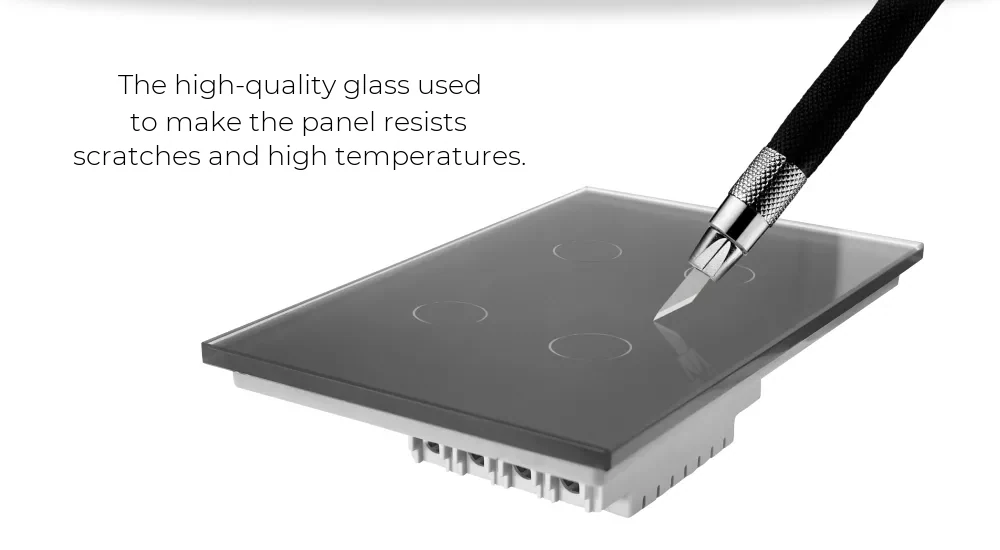

  • High-quality glass panel resists scratches and high temperatures
Livolo Glass Touch Light Switch – 4 Gang, Italian Standard – LED Indicator – Easy to Find in the Dark
03

LED Indicator – Easy to Find in the Dark

Red and blue LEDs show whether the switch is on or off. The LED lights up clearly and the switch gives a clear sound on touch.

  • Red LED: switch is on
  • Blue LED: switch is off
  • MCU smart chip with built-in microchip technology
Livolo Glass Touch Light Switch – 4 Gang, Italian Standard – Technical Data
04

Technical Data

  • Panel dimensions: 119 mm x 78 mm
  • Panel thickness: 4 mm

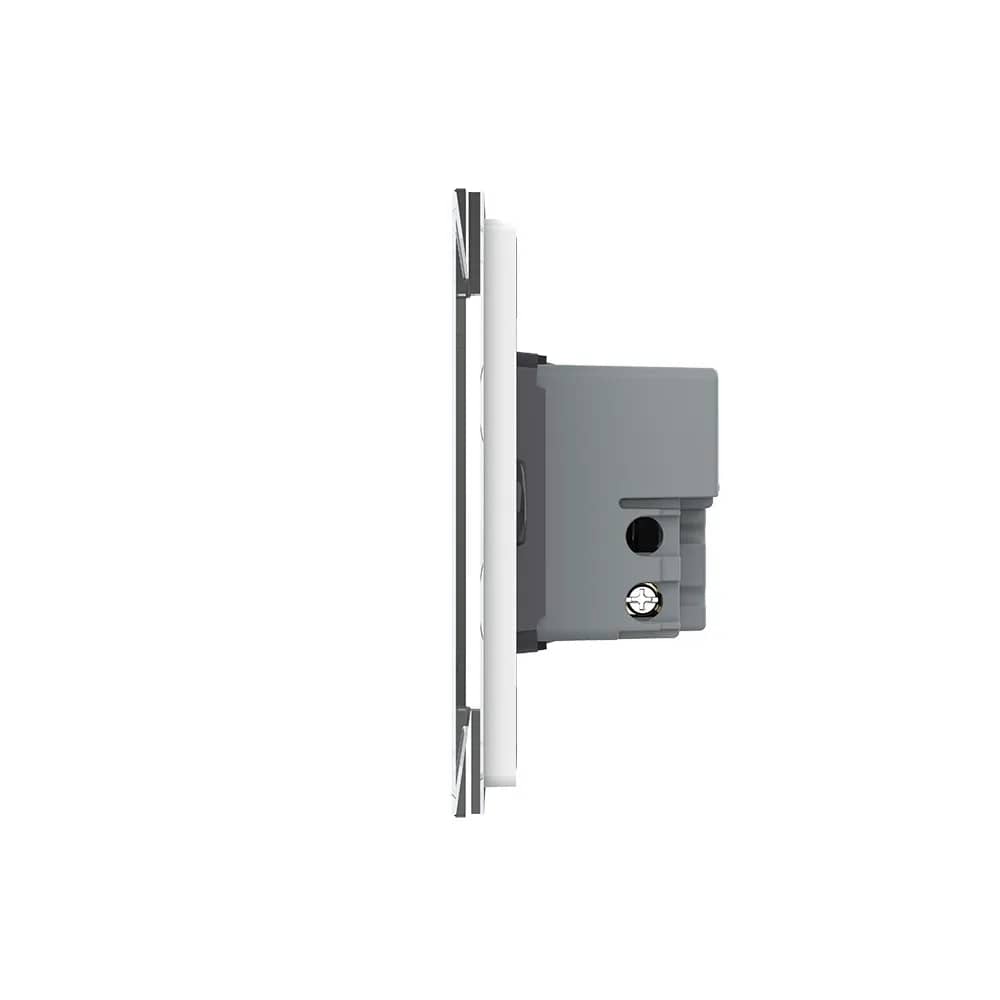

  • Depth behind panel: 34 mm
  • Frame: 8 mm
  • Fixing screw spacing: 85 mm
  • Rated voltage: 100-240V~, 50/60Hz
  • Load: 5A/gang, 10A total
  • Glass panel with metal frame
  • Screw fixing system
Livolo Glass Touch Light Switch – 4 Gang, Italian Standard – Wiring
05

Wiring

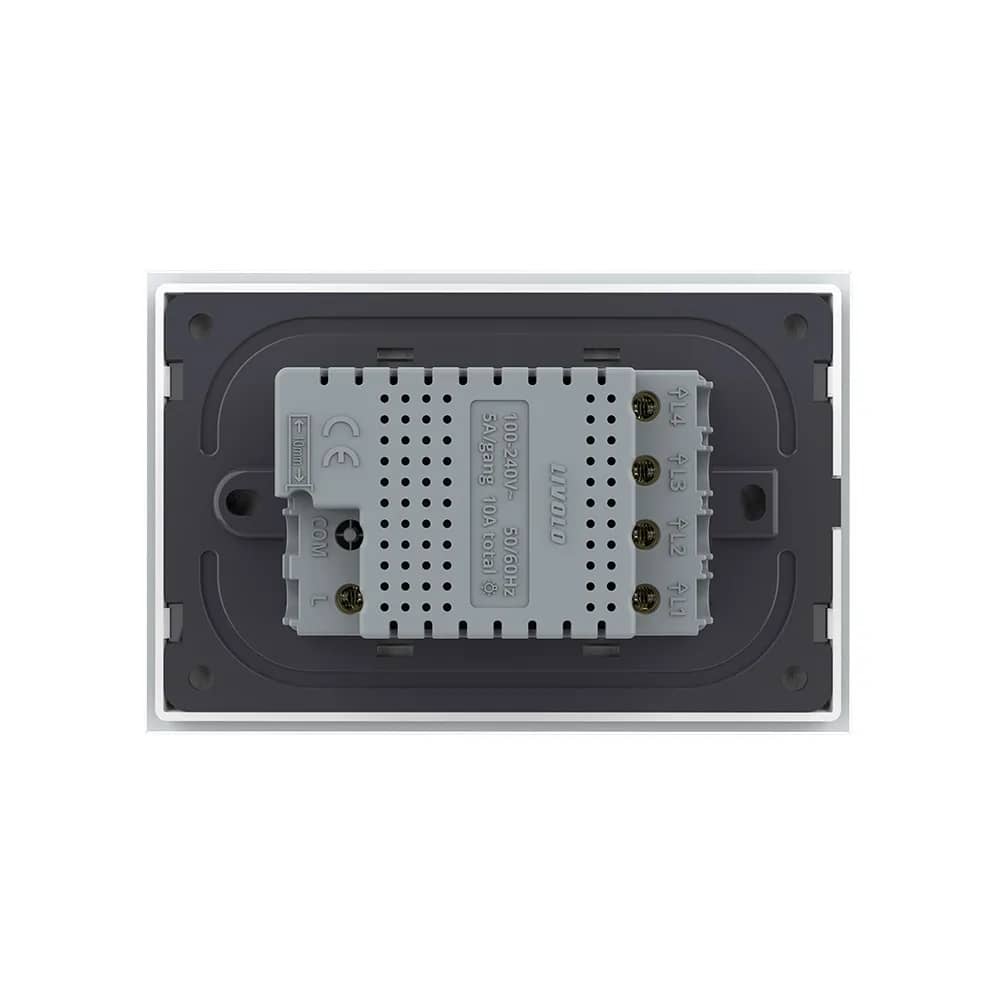

Connect the live (phase) wire to the COM terminal and each light to outputs L1, L2, L3 and L4. The neutral runs directly to the lights.

  • Live (phase): COM terminal
  • Lights: L1, L2, L3, L4
  • Neutral: connected to the lights
Livolo Glass Touch Light Switch – 4 Gang, Italian Standard – Installation Steps
06

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.

In detail

Livolo Glass Touch Light Switch – 4 Gang, Italian Standard – detail 1Livolo Glass Touch Light Switch – 4 Gang, Italian Standard – detail 2Livolo Glass Touch Light Switch – 4 Gang, Italian Standard – detail 3
