Livolo

Livolo Glass Touch Light Switch – 3 Gang, Italian Standard, Zigbee EC – New Series

SKU: VL-FC3Z2-3G-11

AED 182

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 3 gang tempered glass touch switch, Italian standard, Zigbee EC, with LED indicator and app or voice control via the Livolo hub.

Product details

Livolo 3 gang glass touch light switch, Zigbee EC protocol, with a crystal texture, light indicator, moisture and scratch resistant, refinement at its finest.

Livolo switches use a touch sensor with a 100 ms response time, similar to the technology used in smartphones. The switch panel is made of tempered, fire-resistant glass. The red/blue LED indicates the on/off status of the switch.

It can be operated:

– Directly at the switch, on/off by touch;

– From your smartphone using the Livolo Zigbee EC Hub via the Livolo app (hub sold separately);

– By voice with Google Home or Amazon Alexa. The Livolo Zigbee EC Hub is required as an intermediary between the switch and Google Home or Amazon Alexa.

Highlights

Livolo Glass Touch Light Switch – 3 Gang, Italian Standard, Zigbee EC – New Series – Change the Mood of Your Home at the Touch of a Button
01

Change the Mood of Your Home at the Touch of a Button

Open the Livolo app to customise the lighting in your home exactly as you like.

  • Important: Livolo switches with the ZigBee protocol work only with the ZigBee hub.
Livolo Glass Touch Light Switch – 3 Gang, Italian Standard, Zigbee EC – New Series – Compatible with Amazon Alexa
02

Compatible with Amazon Alexa

With a simple voice command you can control the Livolo ZigBee switch to turn your lights on or off.

  • Example: "Alexa, turn on the light!"
Livolo Glass Touch Light Switch – 3 Gang, Italian Standard, Zigbee EC – New Series – Fade-Resistant Design
03

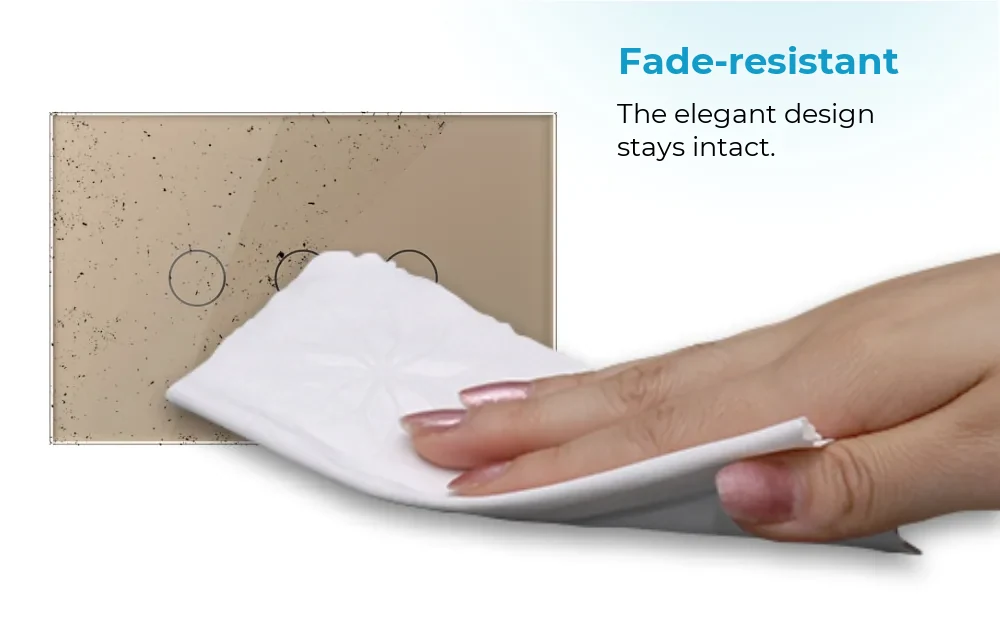

Fade-Resistant Design

The panel does not discolour, so its elegant design stays intact.

Livolo Glass Touch Light Switch – 3 Gang, Italian Standard, Zigbee EC – New Series – LED Indicator – Easy to Find in the Dark
04

LED Indicator – Easy to Find in the Dark

Red and blue LEDs show whether the switch is on or off. The LED lights up clearly and the switch emits a clear sound.

  • Red LED: switch is on
  • Blue LED: switch is off
  • MCU smart chip with built-in microchip technology
Livolo Glass Touch Light Switch – 3 Gang, Italian Standard, Zigbee EC – New Series – Technical Data
05

Technical Data

  • Width: 119 mm
  • Height: 78 mm
  • Front panel thickness: 4 mm
  • Rear module depth: 24 mm
  • Frame offset: 8 mm
  • Screw fixing spacing: 85 mm
  • Front: glass panel
  • Frame: metal
  • Fixing: screw mounting system
  • Rating printed on module: 100-240V~, 50/60Hz
Livolo Glass Touch Light Switch – 3 Gang, Italian Standard, Zigbee EC – New Series – Structure
06

Structure

  • Crystal glass panel
  • Switch protection
  • Touch module
  • Electronic chipset
  • Polycarbonate support
  • Metal frame
07

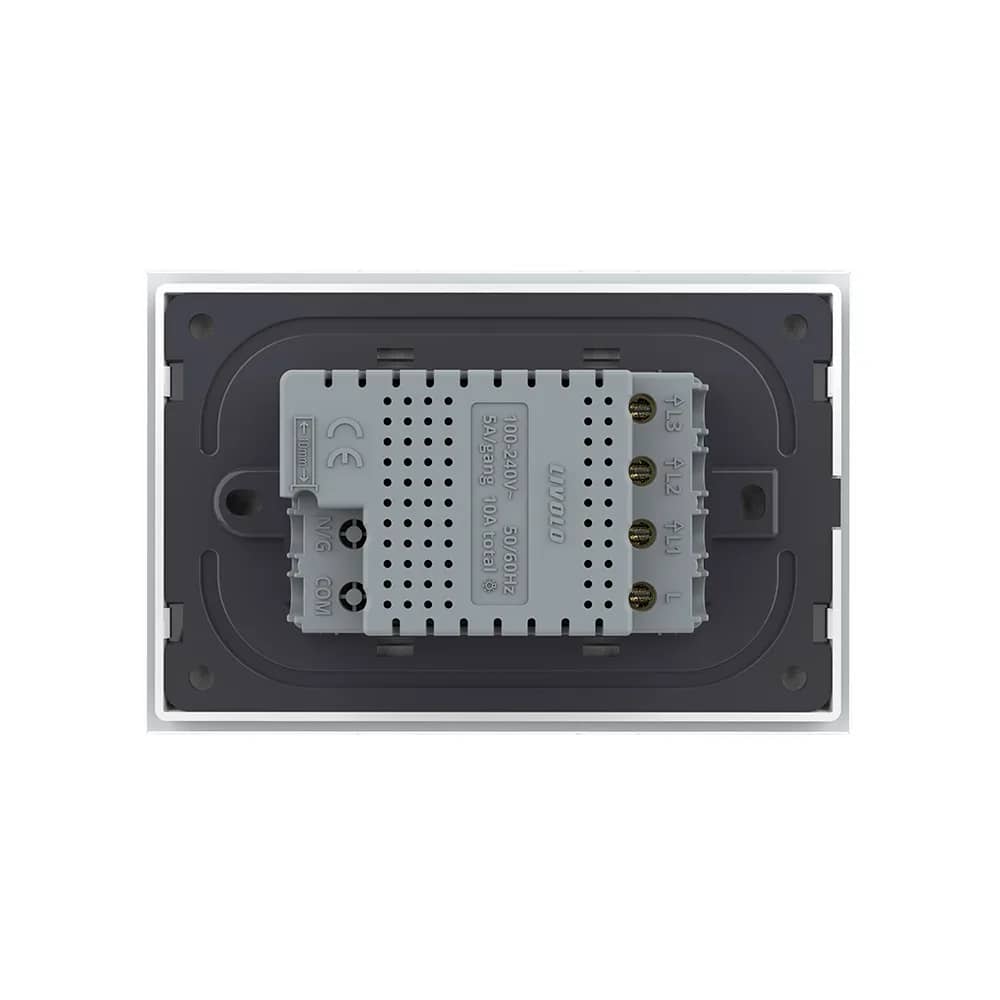

Wiring Diagram

Connect the live (phase) wire to the L terminal and each light to outputs L1, L2 and L3; the lamps return to the neutral wire.

08

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (it clicks into place).

In detail

Livolo Glass Touch Light Switch – 3 Gang, Italian Standard, Zigbee EC – New Series – detail 1

The Livolo touch panel in action

Official Livolo video
