Livolo

Livolo Glass Touch Light Switch – 2 Gang, Italian Standard

SKU: VL-FC2-2G-3W

AED 101

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 2 gang touch light switch in crystal glass, resistant to scratches, moisture and dust, for Italian standard wall boxes.

Product details

The Livolo 2 gang touch light switch in crystal glass, resistant to scratches, moisture and dust, brings extra refinement and comfort to your home. This switch from the new series is an improved, innovative product, the result of technology developed over years of study and research. It is a practical product, made from quality materials and built to last, offering functionality and comfort for your home.

Highlights

Livolo Glass Touch Light Switch – 2 Gang, Italian Standard – Wiring Diagram
01

Wiring Diagram

Installation instructions showing how to wire the 2-gang switch to two lights.

  • Neutral (N) connects directly to the lights
  • Live (L) connects to the switch module
  • Each light is connected to its own switch output

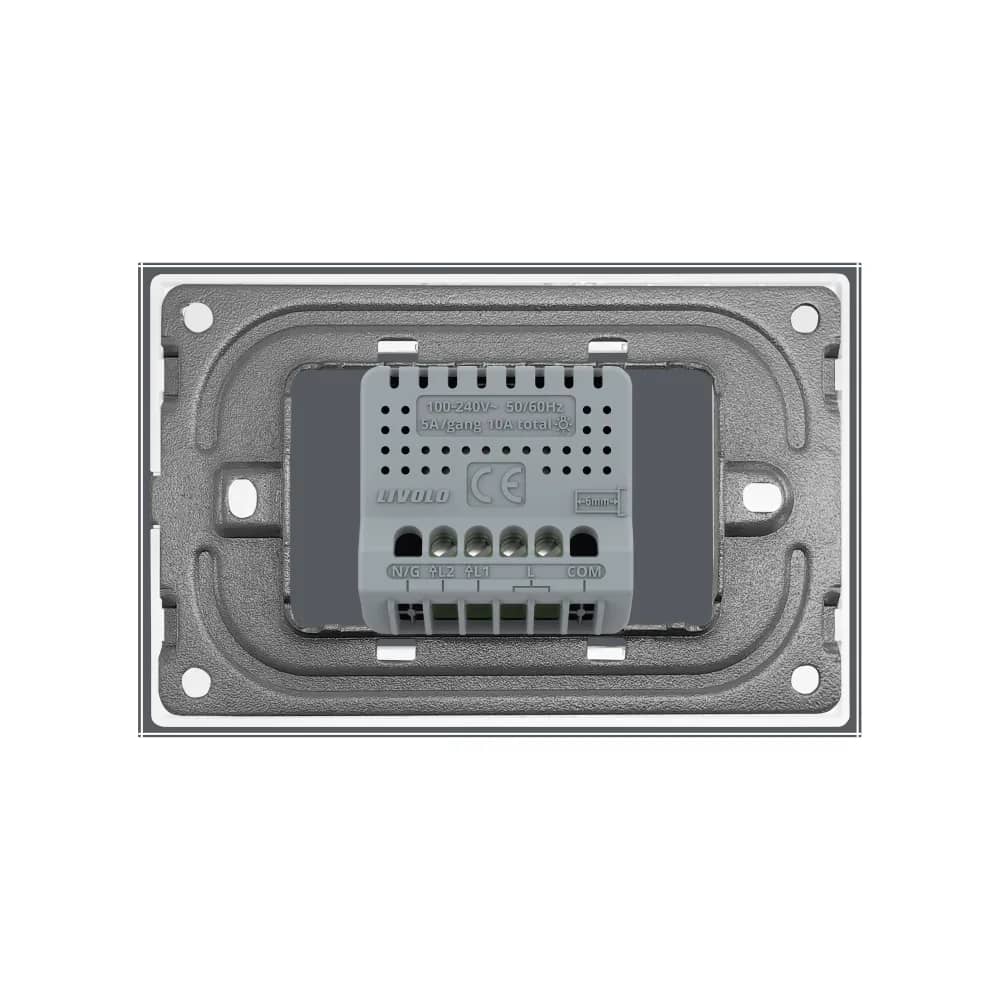

Livolo Glass Touch Light Switch – 2 Gang, Italian Standard – Structure
02

Structure

The switch is made up of three main components.

  • Elegant glass panel
  • Switch module
  • Metal frame
  • Screw mounting system (85 mm fixing distance)
Livolo Glass Touch Light Switch – 2 Gang, Italian Standard – Dimensions
03

Dimensions

  • Width: 119 mm
  • Height: 78 mm
  • Glass panel thickness: 4 mm
  • Module depth: 33 mm
  • Profile: 8 mm
Livolo Glass Touch Light Switch – 2 Gang, Italian Standard – Installation Steps
04

Installation Steps

Install the switch in four simple steps.

  • 1. Open the package.
  • 2. Connect the cables and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.
