01

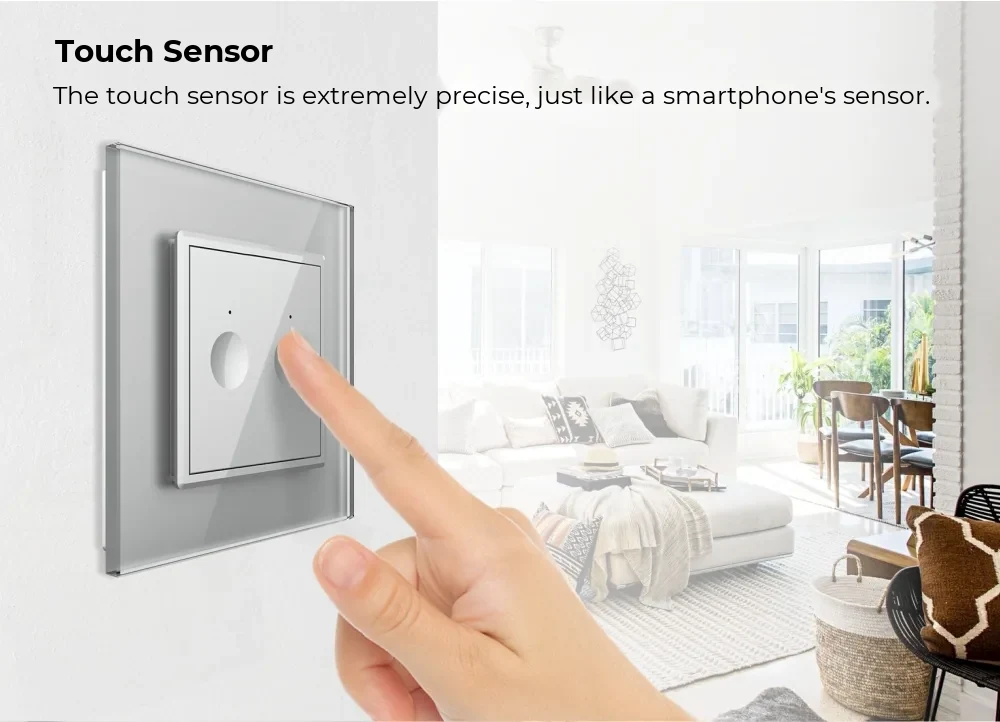

Touch Sensor
The touch sensor is extremely precise, identical to the sensor of a smartphone.
Livolo
Livolo Glass Touch Light Switch – 2 Gang 2-Way / Intermediate, Zigbee EC
SKU: VL-FC2SZ2-2W-11
AED 125
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 2 gang 2-way/intermediate touch light switch with tempered glass frame, Zigbee EC, app and Alexa/Google Home control via hub.
Product details
Livolo 2 gang 2-way (staircase) / intermediate light switch, Zigbee protocol, resistant to moisture and dust. It brings an extra touch of refinement and comfort to your home.
It can be operated:
– Directly from the switch, on/off by touch;
– From your smartphone using the Livolo Zigbee EC Hub via the Livolo app (hub sold separately);
– By voice with Google Home or Amazon Alexa. To connect the switch to Google Home or Amazon Alexa, you need the Livolo Zigbee EC Hub.
Highlights
02
App Control
Change the atmosphere of your home with a simple press of a button! Open the Livolo app to customise the lighting in your home just the way you like it.
- Important: Livolo switches with the ZigBee protocol work only with the ZigBee hub.
03

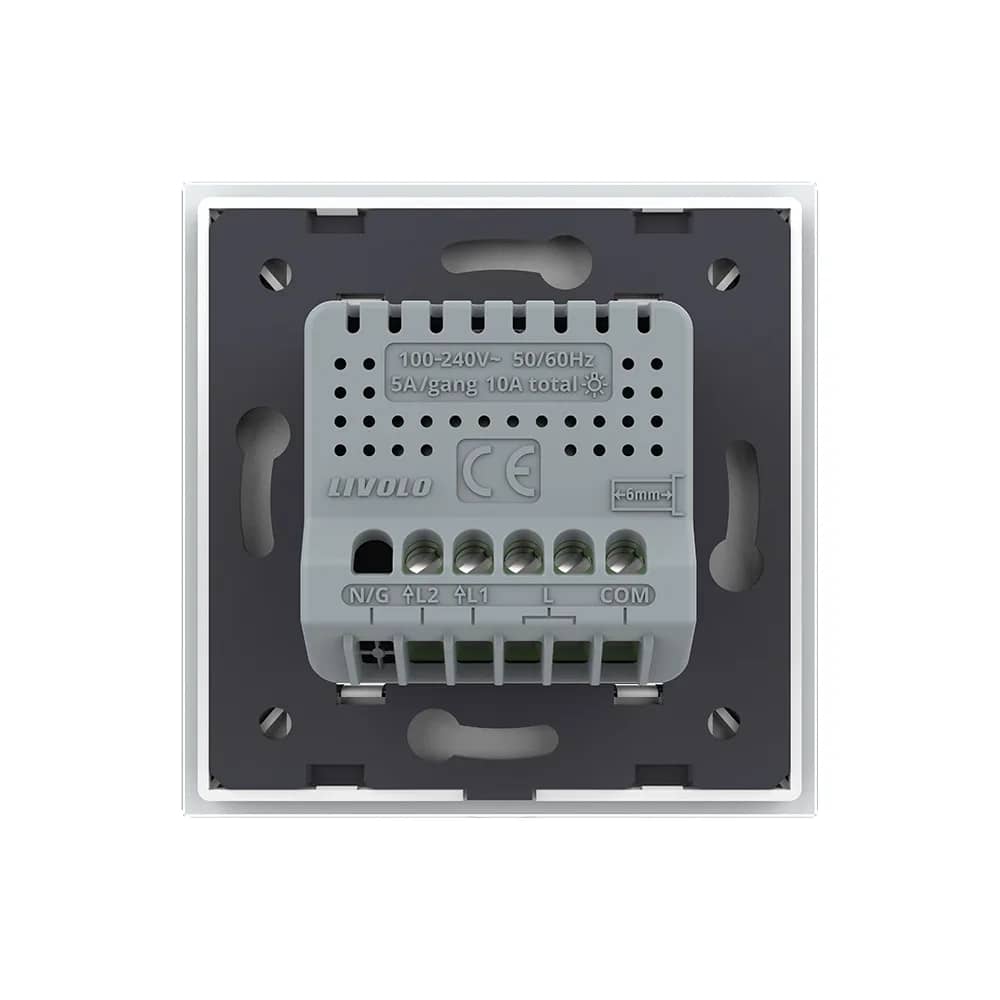

Structure
The switch is made up of three parts.
- Glass frame
- Switch module
- Metal frame
- Screw fixing system: 60 mm
04
Dimensions
- Front panel: 80 mm x 80 mm
- Depth behind panel: 33 mm
- Panel thickness: 4 mm
- Glass frame thickness: 8 mm
- Screw fixing spacing: 60 mm
05
Technical Data
As printed on the switch module.
- Voltage: 100–240V~ 50/60Hz
- Load: 5A/gang, 10A total
- Terminals: N/G, L2, L1, L, COM
06
Wiring Diagram
Two switches are wired together for two-way / intermediate control of two lights.
- Neutral (N) connects to the lights
- Live (L) connects to the L terminal of both switches
- COM terminals are linked between the two switches (two-way / intermediate)
- L1 and L2 outputs connect to the lights
07
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click into place).
In detail
