Livolo

Livolo Glass Touch Light Switch – 2 Gang + 2 Gang, Italian Standard, 4M

SKU: VL-FC2/2-4W

AED 188

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 2 gang + 2 gang touch light switch with tempered glass frame, Italian standard, fits 4-module back boxes with 108 mm screw spacing.

Product details

Livolo glass touch light switch, Italian standard, 2 gang + 2 gang, compatible with 4-module modular back boxes with 108 mm screw spacing. It is resistant to scratches, moisture and dust, and adds a touch of elegance and refinement to your home.

Highlights

Livolo Glass Touch Light Switch – 2 Gang + 2 Gang, Italian Standard, 4M – Overview
01

Overview

LIVOLO Double + Double touch light switch, Italian standard. Simple design, outstanding mechanism, available in a range of colours.

  • 2 gang + 2 gang touch control
  • Italian standard
  • Available in white, black, grey and gold finishes

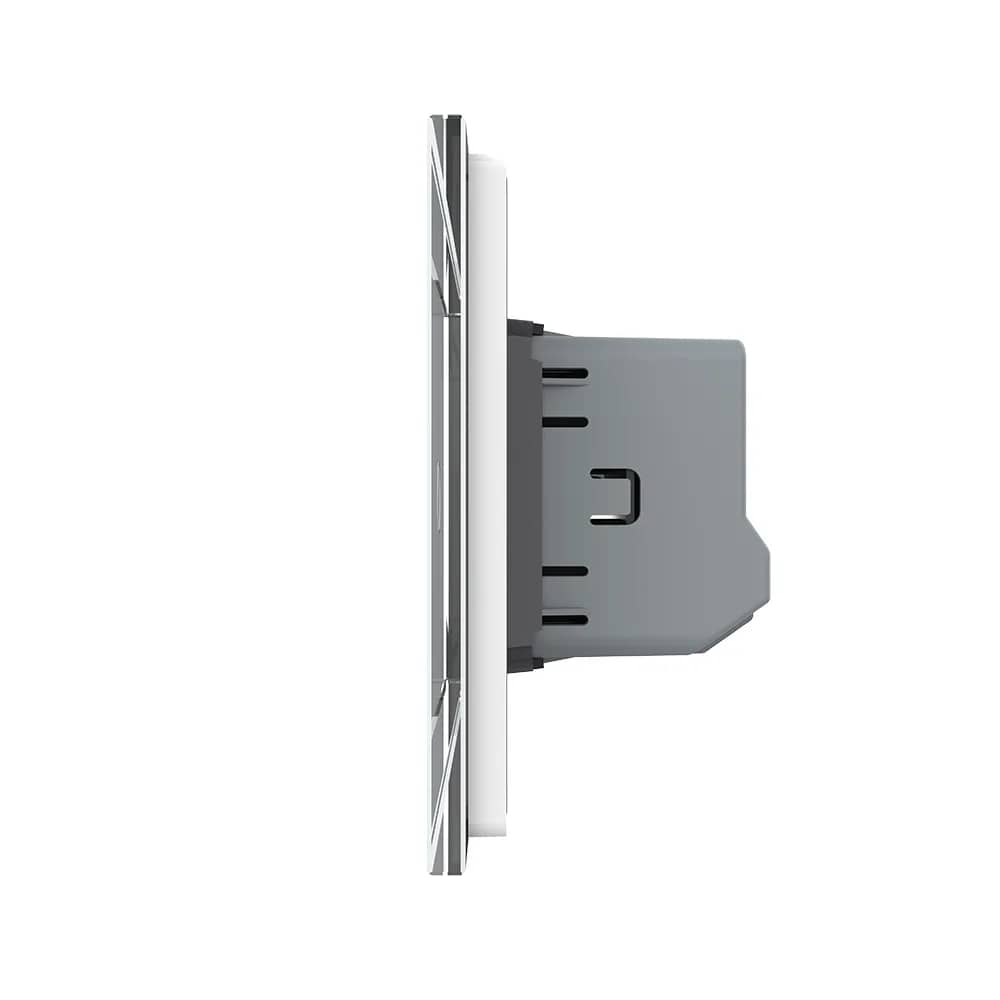

Livolo Glass Touch Light Switch – 2 Gang + 2 Gang, Italian Standard, 4M – Fade-Resistant Design
02

Fade-Resistant Design

The panel does not discolour, so its elegant design stays intact.

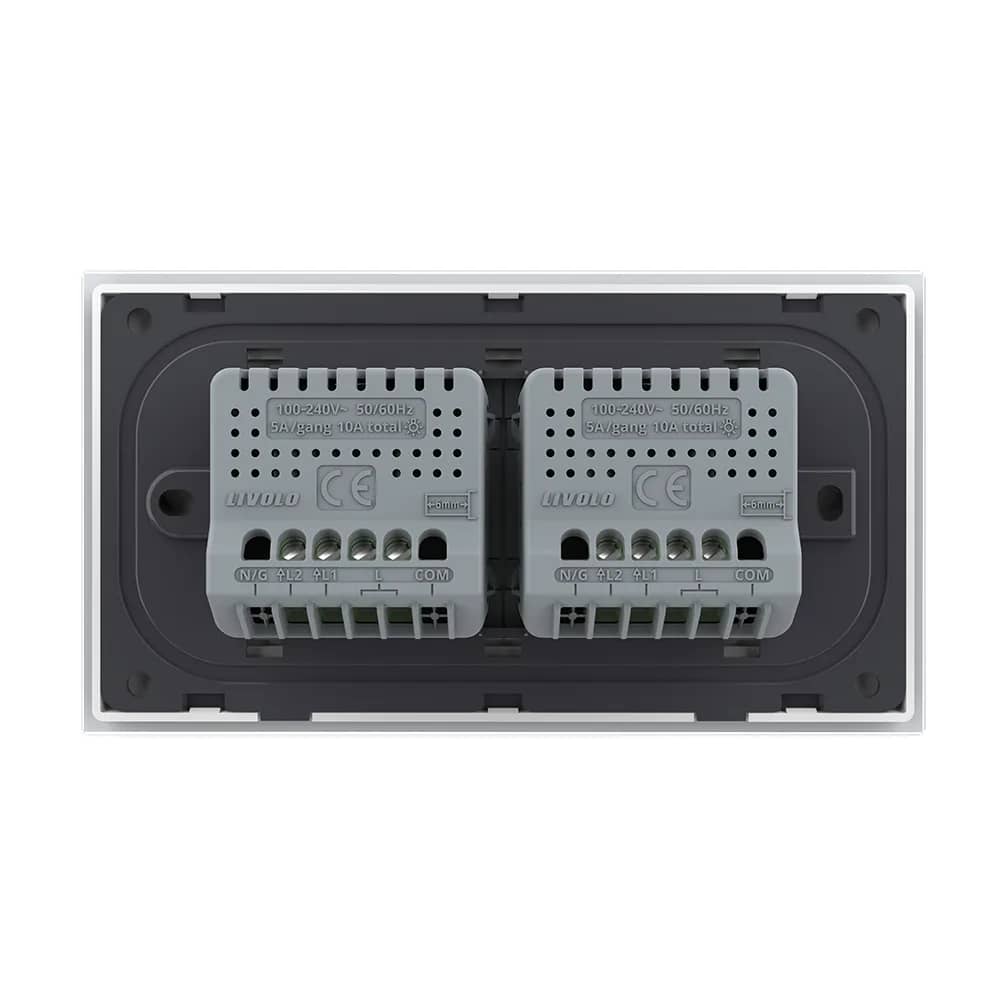

Livolo Glass Touch Light Switch – 2 Gang + 2 Gang, Italian Standard, 4M – Construction
03

Construction

The switch is made up of three main parts.

  • Elegant crystal glass panel
  • Switch modules (2 pcs)
  • Metal frame
  • Screw fixing system with 108 mm spacing
Livolo Glass Touch Light Switch – 2 Gang + 2 Gang, Italian Standard, 4M – Dimensions
04

Dimensions

  • Width: 143 mm
  • Height: 78 mm
  • Panel thickness: 4 mm
  • Depth behind panel: 33 mm
  • Frame depth: 8 mm
  • Screw fixing spacing: 108 mm
Livolo Glass Touch Light Switch – 2 Gang + 2 Gang, Italian Standard, 4M – Technical Data (printed on module)
05

Technical Data (printed on module)

  • Input: 100–240V~ 50/60Hz
  • Load: 5A/gang, 10A total
  • Terminals: N/G, L2, L1, L, COM
  • CE marking
Livolo Glass Touch Light Switch – 2 Gang + 2 Gang, Italian Standard, 4M – Wiring Diagram
06

Wiring Diagram

Connect the live (L) wire to the L terminal of each module and the outgoing wires from the L1 and L2 terminals to the lamps. The neutral (N) wire goes directly to the lamps.

  • Red: Live (L)
  • Blue: Neutral (N)
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.

In detail

Livolo Glass Touch Light Switch – 2 Gang + 2 Gang, Italian Standard, 4M – detail 1
