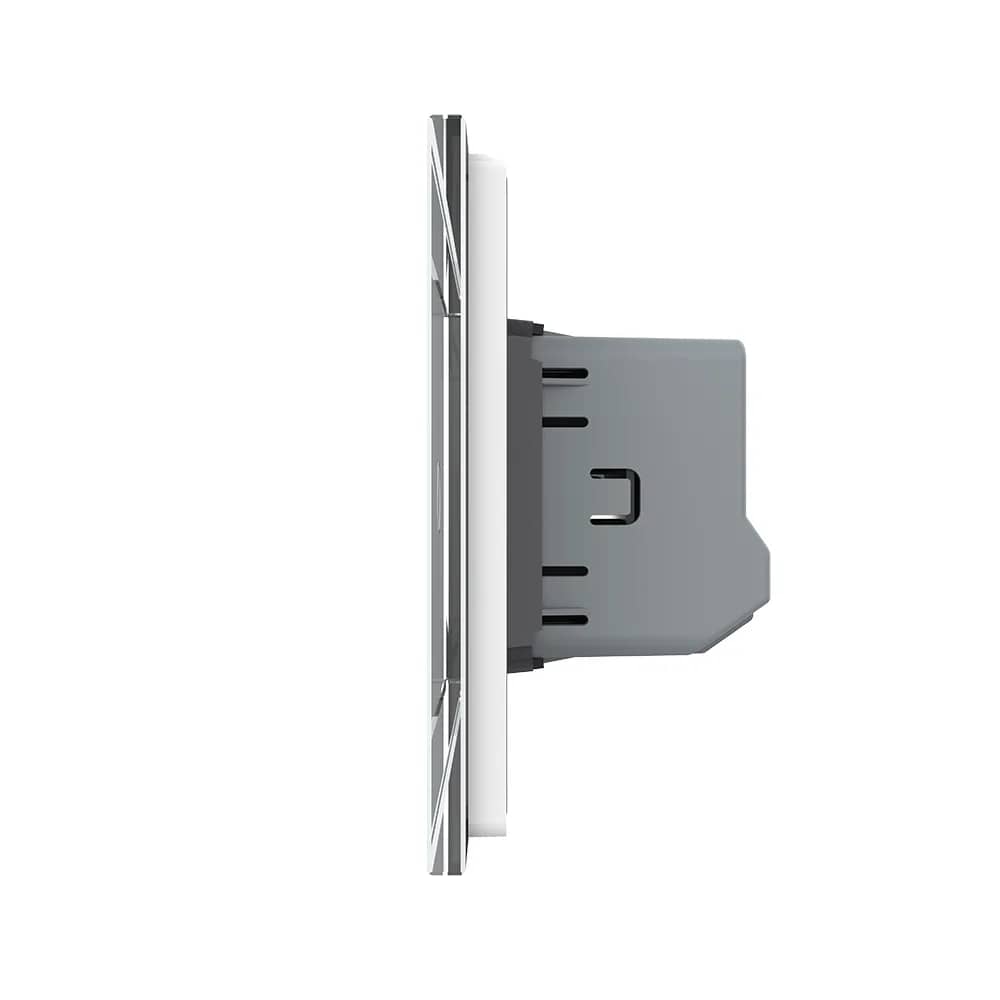

Livolo Glass Touch Light Switch – 2 Gang + 2 Gang + 2 Gang, Italian Standard, 6M – White — image 3

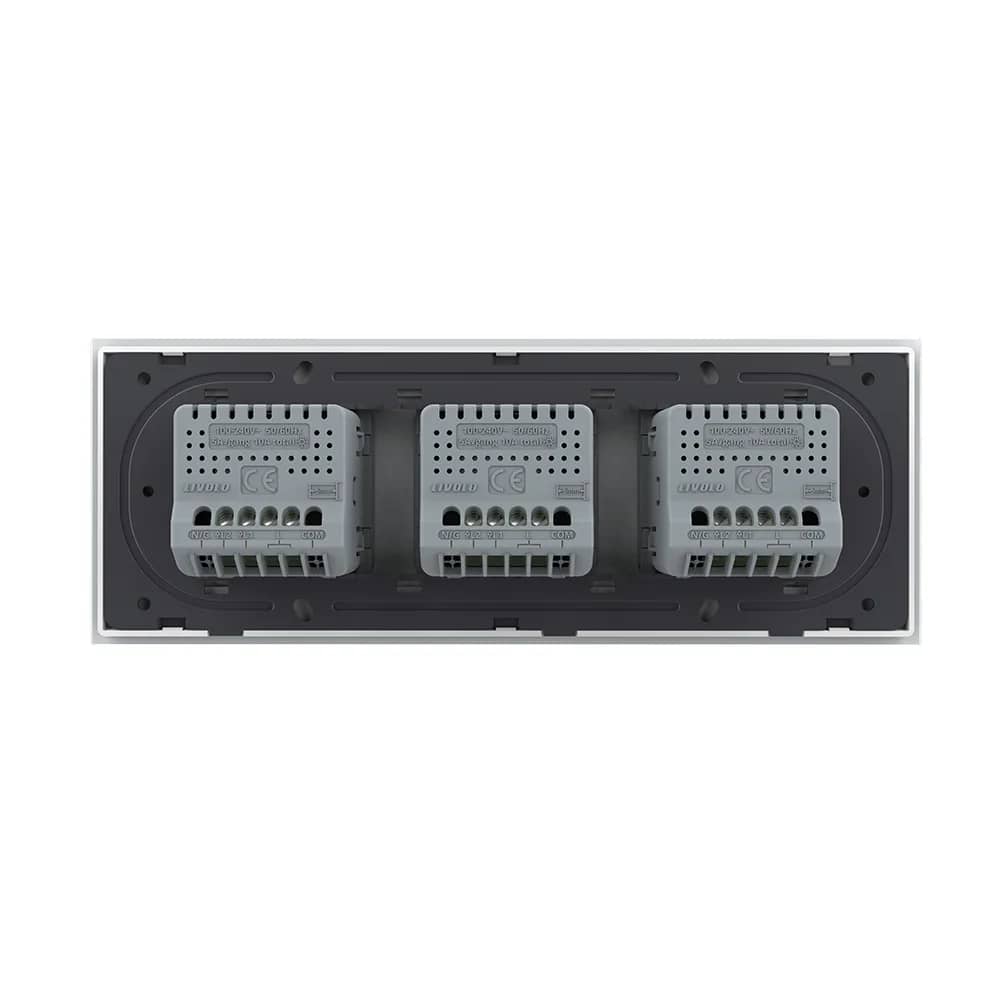

Livolo Glass Touch Light Switch – 2 Gang + 2 Gang + 2 Gang, Italian Standard, 6M – White — image 4
1/4
Livolo

Livolo Glass Touch Light Switch – 2 Gang + 2 Gang + 2 Gang, Italian Standard, 6M

SKU: VL-FC2/2/2-6W

AED 300

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo tempered glass touch switch with three 2-gang sections, Italian standard, for 6-module back boxes with 102 mm screw spacing.

Product details

Livolo glass touch light switch, Italian standard, 2 gang + 2 gang + 2 gang, compatible with a 6-module modular back box with 102 mm screw spacing. It is resistant to scratches, moisture and dust, and adds a touch of elegance and refinement to your home.

Highlights

Livolo Glass Touch Light Switch – 2 Gang + 2 Gang + 2 Gang, Italian Standard, 6M – Livolo Double + Double + Double Touch Switch
01

Livolo Double + Double + Double Touch Switch

A LIVOLO touch light switch with three double (2-gang) modules in one panel, built to the Italian standard. Simple design, extraordinary mechanism.

  • 2 Gang + 2 Gang + 2 Gang touch configuration (6 touch buttons)
  • Italian standard
  • Available in a variety of panel colours
Livolo Glass Touch Light Switch – 2 Gang + 2 Gang + 2 Gang, Italian Standard, 6M – Fade-Resistant Design
02

Fade-Resistant Design

The panel does not discolour, so its elegant design stays intact.

Livolo Glass Touch Light Switch – 2 Gang + 2 Gang + 2 Gang, Italian Standard, 6M – Structure
03

Structure

  • Elegant crystal glass panel
  • Switch modules (3 pcs)
  • Metal frame
  • Screw fixing system with 102 mm fixing distance
Livolo Glass Touch Light Switch – 2 Gang + 2 Gang + 2 Gang, Italian Standard, 6M – Dimensions
04

Dimensions

  • Width: 210 mm
  • Height: 78 mm
  • Front depth: 4 mm
  • Module depth: 33 mm
  • Glass panel thickness: 8 mm
  • Screw fixing distance: 102 mm
Livolo Glass Touch Light Switch – 2 Gang + 2 Gang + 2 Gang, Italian Standard, 6M – Wiring Diagram
05

Wiring Diagram

Each of the three modules connects to the live (L) line, with each output L1 and L2 controlling a separate light; the lights are connected to the neutral (N) line.

  • Live: L
  • Neutral: N
  • Module terminals: N/G, L2, L1, L, COM
Livolo Glass Touch Light Switch – 2 Gang + 2 Gang + 2 Gang, Italian Standard, 6M – Installation Steps
06

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the screws to fix the frame.
  • 4. Click the front panel into place.

In detail

Livolo Glass Touch Light Switch – 2 Gang + 2 Gang + 2 Gang, Italian Standard, 6M – detail 1
