Livolo

Livolo Glass Touch Light Switch – 1 Gang + 1 Gang + 1 Gang, Italian Standard, 6M

SKU: VL-FC1/1/1-6W

AED 252

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 6-module Italian standard touch switch with three 1 gang circuits and a scratch-resistant tempered crystal glass frame.

Product details

Livolo glass touch light switch, Italian standard, with 6 modules, made of heat-resistant tempered crystal glass, compatible only with Livolo modules. It is resistant to scratches, moisture and dust, and adds an extra touch of elegance and refinement to your home. Compatible with a 6-module modular back box with 102 mm screw spacing.

Highlights

Livolo Glass Touch Light Switch – 1 Gang + 1 Gang + 1 Gang, Italian Standard, 6M – LIVOLO Touch Switch – 1 Gang + 1 Gang + 1 Gang
01

LIVOLO Touch Switch – 1 Gang + 1 Gang + 1 Gang

A triple single-gang touch light switch built to the Italian standard. Simple design, outstanding mechanism, available in a range of finishes.

  • Three independent single-gang touch switches on one panel
  • Italian standard
  • Offered in several colour options
Livolo Glass Touch Light Switch – 1 Gang + 1 Gang + 1 Gang, Italian Standard, 6M – Fade-Resistant Finish
02

Fade-Resistant Finish

The panel does not discolour, so its elegant design stays intact over time.

Livolo Glass Touch Light Switch – 1 Gang + 1 Gang + 1 Gang, Italian Standard, 6M – Structure
03

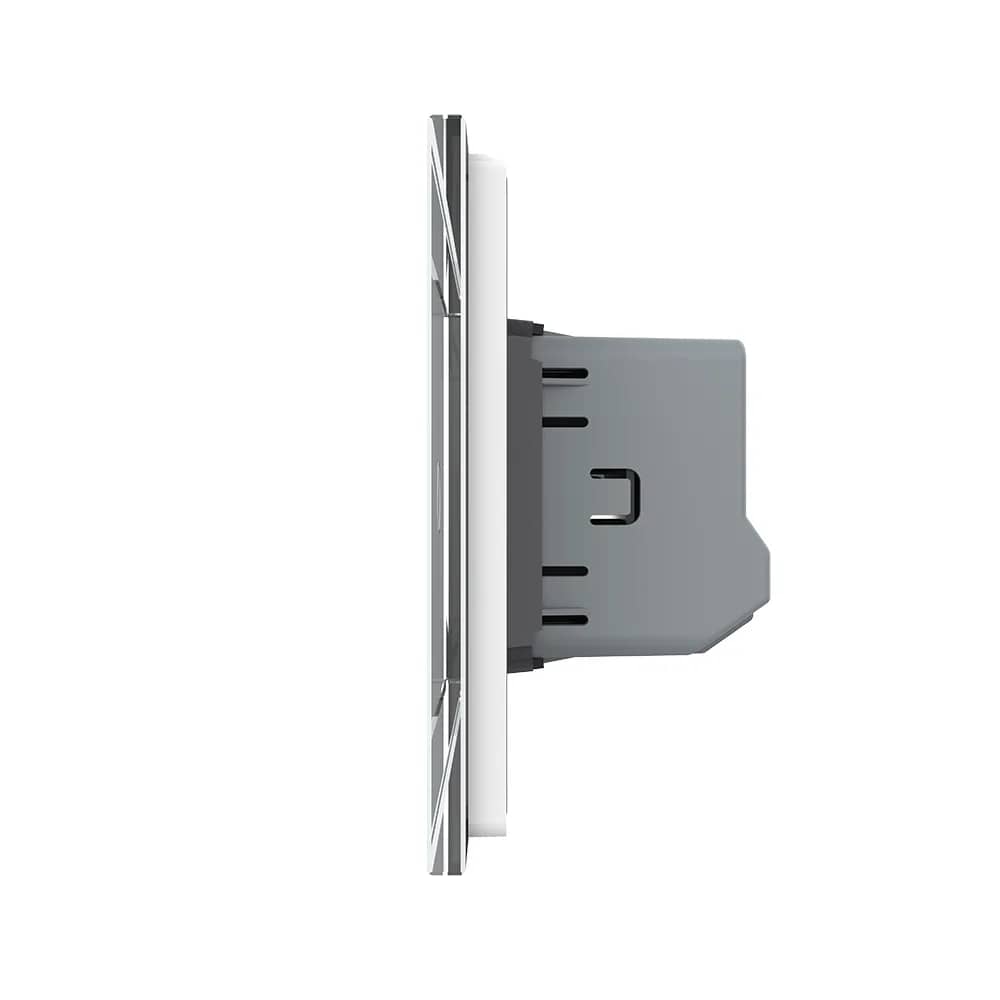

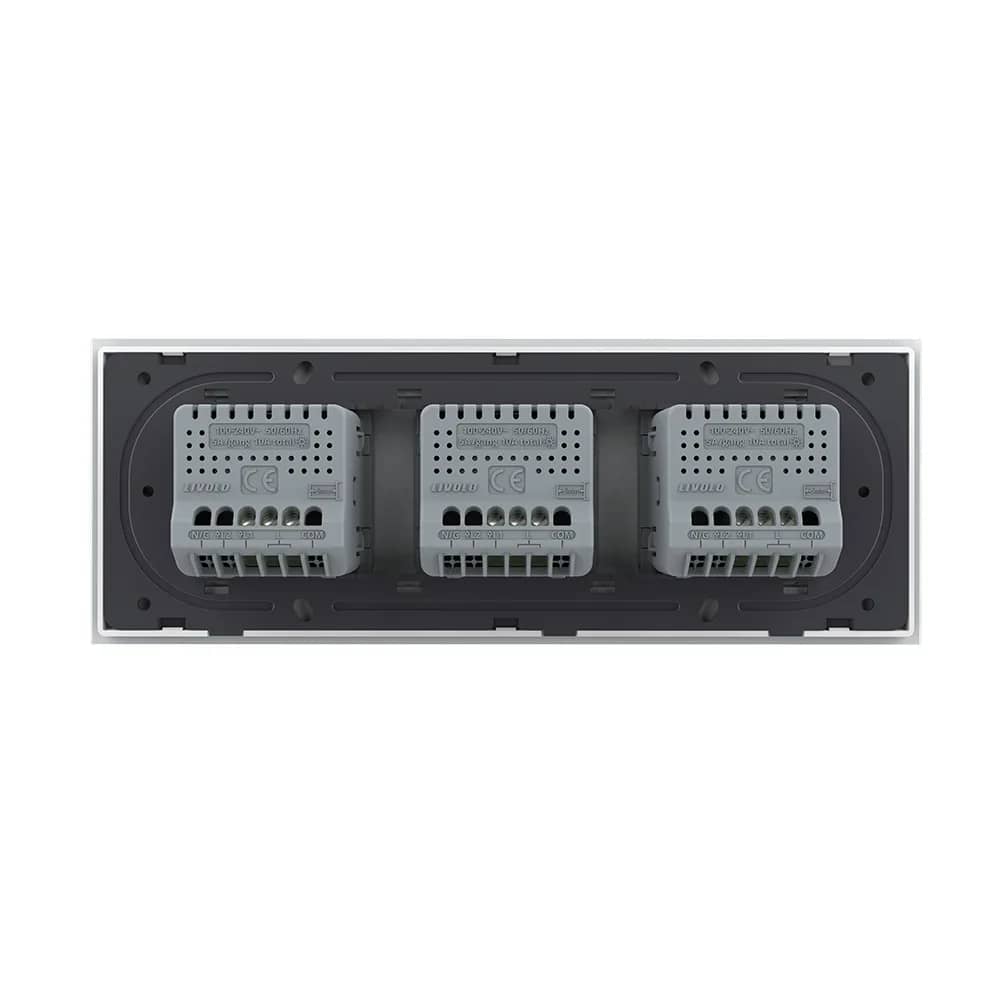

Structure

The switch is made up of three main parts, secured with a screw fixing system.

  • Elegant crystal glass panel
  • Switch modules
  • Metal frame
  • Screw fixing system with 102 mm spacing
Livolo Glass Touch Light Switch – 1 Gang + 1 Gang + 1 Gang, Italian Standard, 6M – Dimensions
04

Dimensions

  • Width: 210 mm
  • Height: 78 mm
  • Glass panel thickness: 4 mm
  • Module depth: 33 mm
  • Frame depth: 8 mm
  • Fixing screw spacing: 102 mm
Livolo Glass Touch Light Switch – 1 Gang + 1 Gang + 1 Gang, Italian Standard, 6M – Wiring Diagram
05

Wiring Diagram

Each switch module is connected to the live (L) supply, and each output feeds its own light, which is connected to neutral (N).

  • Live: L
  • Neutral: N
  • One light per switch module
Livolo Glass Touch Light Switch – 1 Gang + 1 Gang + 1 Gang, Italian Standard, 6M – Installation Steps
06

Installation Steps

  • 1. Open the package.
  • 2. Connect the cables and tighten the screws.
  • 3. Use the screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.
