Livolo Glass Touch Light Switch – 1 Gang + 2 Gang, Italian Standard, 4M

LIVOLO Single + Double Touch Switch

A range of products with a simple design and an extraordinary mechanism. This LIVOLO touch light switch combines a single and a double switch on one panel, built to the Italian standard.

• Single + double touch switch
• Italian standard
• Available in several panel colours

Does Not Discolour

The elegant design stays intact over time.

Structure

The switch consists of three main parts.

• Elegant crystal glass panel
• Switch modules
• Metal frame
• Screw fixing system

Dimensions

• Panel size: 143 mm x 78 mm
• Screw fixing distance: 108 mm
• Glass panel thickness: 4 mm

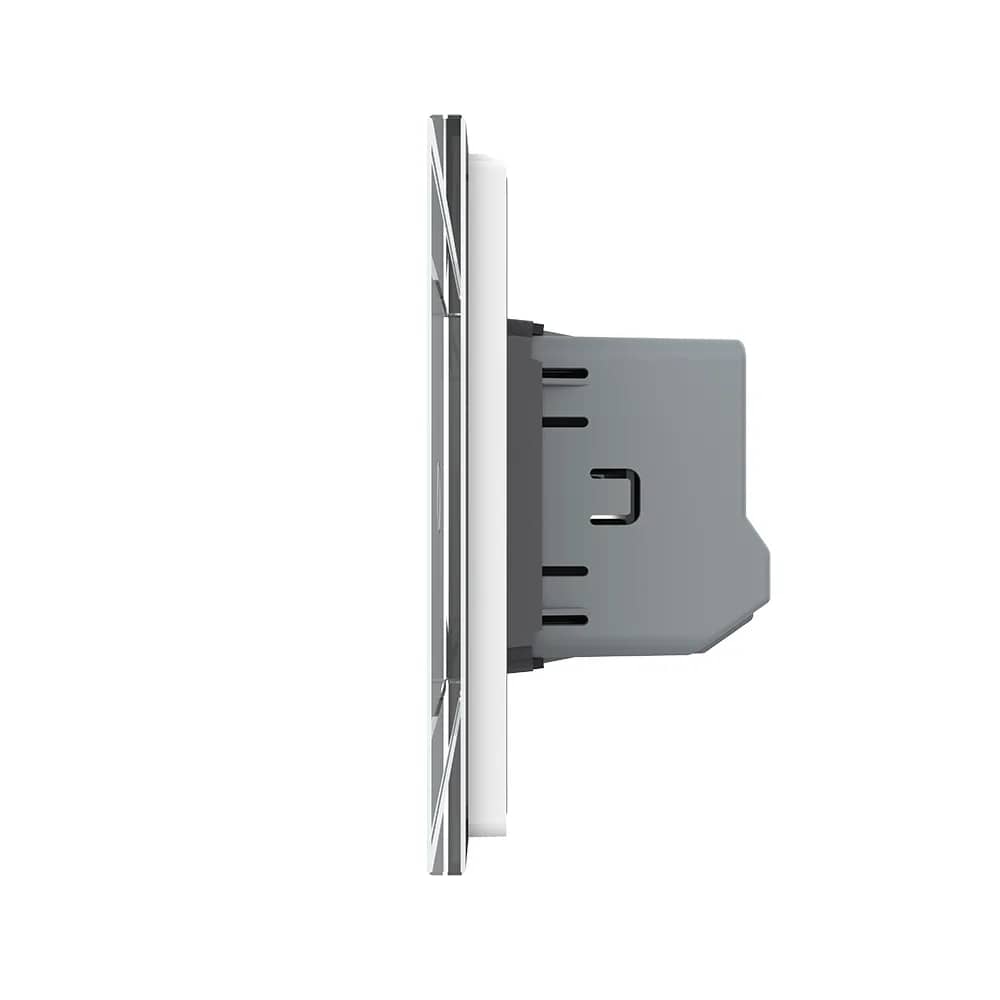

• Module depth: 33 mm
• Depth: 8 mm (as marked on the diagram)

Wiring Diagram

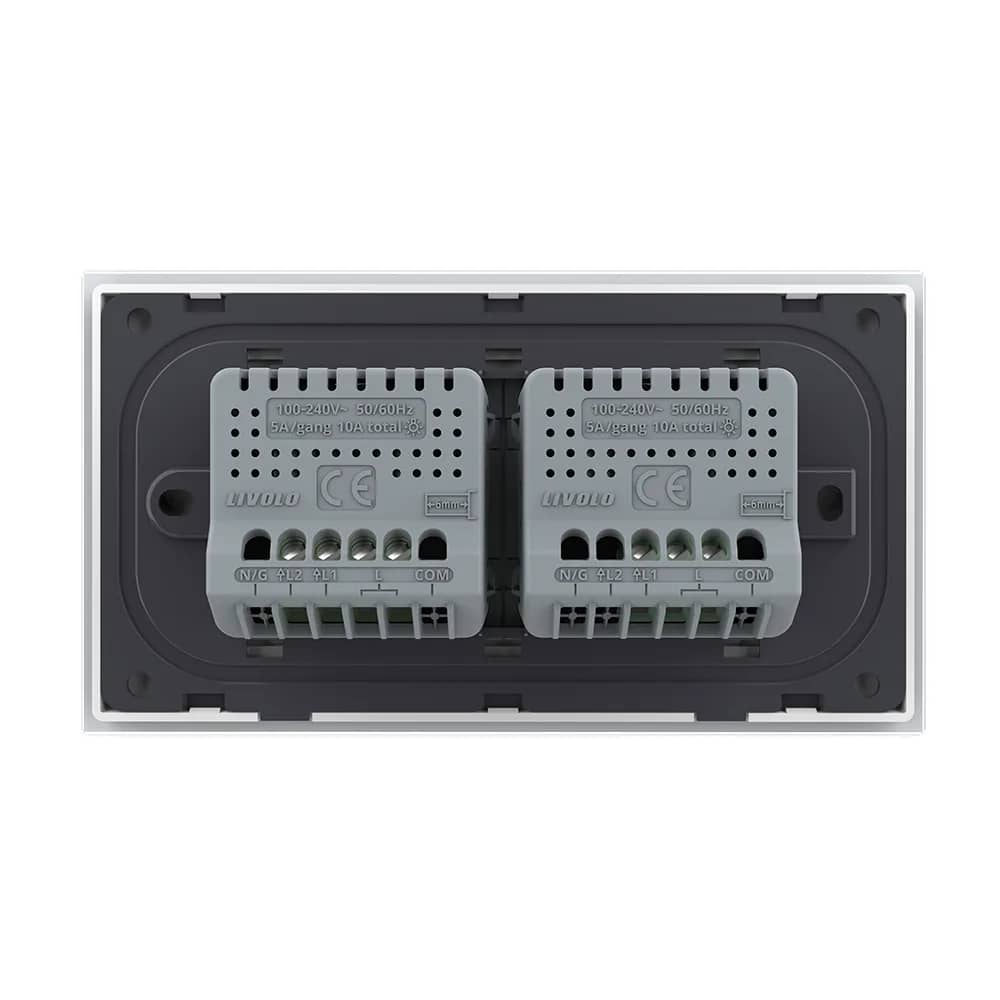

Connect the live (L) wire to the L terminal of each module and the lamps to the L1 and L2 outputs; the neutral (N) wire goes to the lamps. Terminals marked on the modules: N/G, L2, L1, L, COM.

• Live: L
• Neutral: N
• Module rating: 100–240V~ 50/60Hz, 5A/gang, 10A total

Installation Steps

• 1. Open the package.
• 2. Connect the wires and tighten the screws.
• 3. Use the screws to fix the frame.
• 4. Fit the front panel (it clicks into place).
