Livolo Glass Touch Light Switch – 1 Gang + 1 Gang, Italian Standard, 4M

SKU: VL-FC1/1-4W

AED 156

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 1 gang + 1 gang touch light switch with tempered glass frame, Italian standard, fits 4-module back boxes with 108 mm screw spacing.

Product details

Livolo glass touch light switch, Italian standard, 1 gang + 1 gang, compatible with a 4-module modular back box with 108 mm spacing between the screws. It is resistant to scratches, moisture and dust, and brings extra elegance and refinement to your home.

Highlights

Livolo Glass Touch Light Switch – 1 Gang + 1 Gang, Italian Standard, 4M – Livolo 1 Gang + 1 Gang Touch Light Switch
01

Livolo 1 Gang + 1 Gang Touch Light Switch

A single + single touch light switch from LIVOLO, built to the Italian standard. Simple design, outstanding mechanism, available in a variety of finishes.

  • Italian standard
  • Two single touch switches on one panel
  • Available in several colours: white, black, grey and gold
Livolo Glass Touch Light Switch – 1 Gang + 1 Gang, Italian Standard, 4M – Fade-Resistant Glass Finish
02

Fade-Resistant Glass Finish

The panel does not discolour, so its elegant design stays intact.

Livolo Glass Touch Light Switch – 1 Gang + 1 Gang, Italian Standard, 4M – Structure
03

Structure

The switch consists of three main parts.

  • Elegant crystal glass panel
  • Switch modules
  • Metal frame
  • Screw fixing system with 108 mm spacing
Livolo Glass Touch Light Switch – 1 Gang + 1 Gang, Italian Standard, 4M – Dimensions
04

Dimensions

  • Panel width: 143 mm
  • Panel height: 78 mm
  • Glass panel thickness: 4 mm
  • Module depth: 33 mm

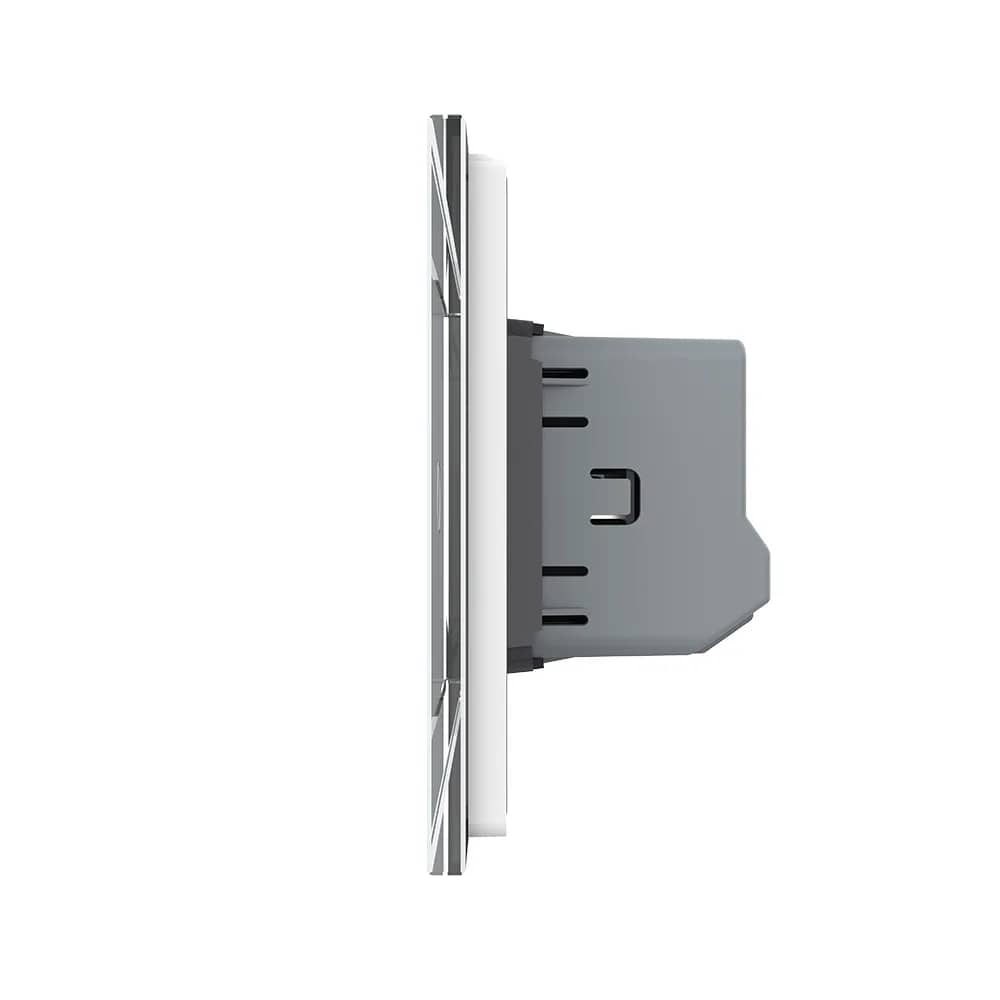

  • Side profile: 8 mm
Livolo Glass Touch Light Switch – 1 Gang + 1 Gang, Italian Standard, 4M – Technical Data
05

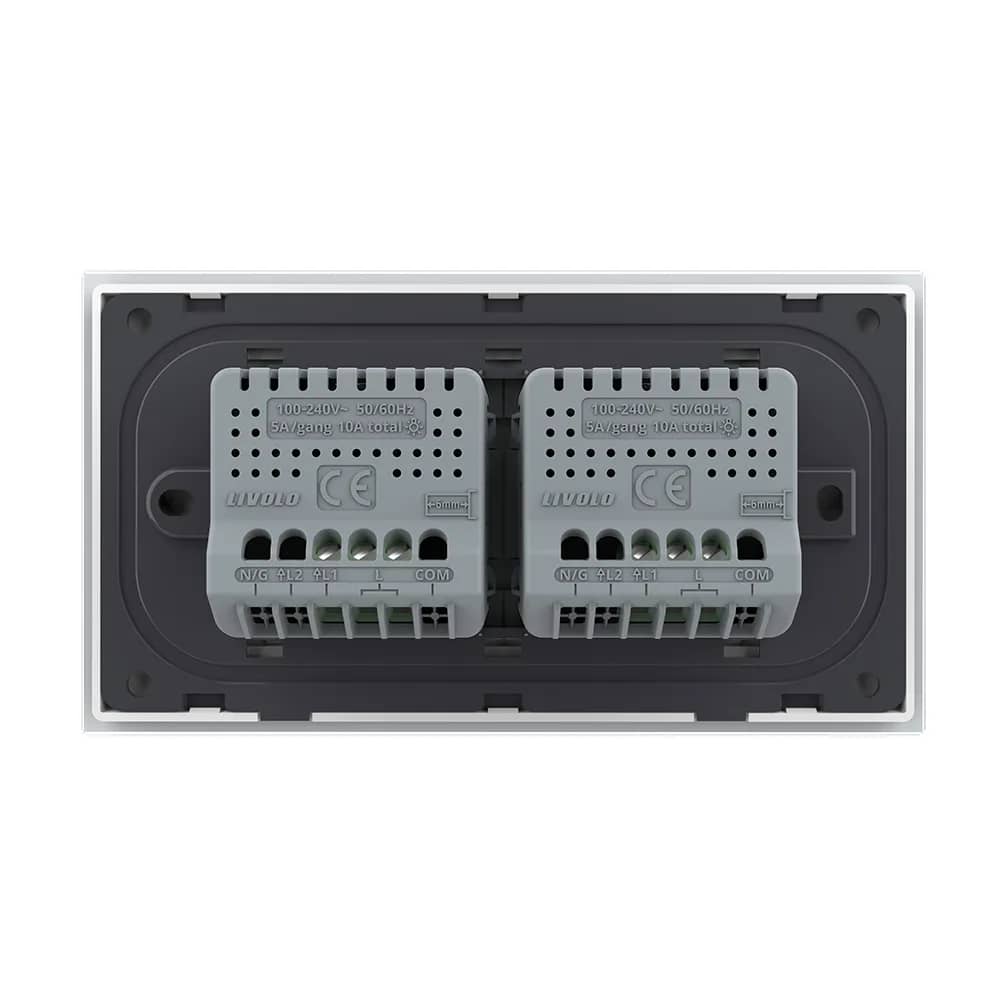

Technical Data

As printed on the switch modules.

  • Voltage: 100–240V~ 50/60Hz
  • Load: 5A/gang, 10A total
  • Terminals: N/G, L2, L1, L, COM
  • Marking: CE
Livolo Glass Touch Light Switch – 1 Gang + 1 Gang, Italian Standard, 4M – Wiring Diagram
06

Wiring Diagram

Each module's L terminal connects to the live (L) wire; each L1 output connects to a light, with the lights returning to the neutral (N) wire.

  • Live (L)
  • Neutral (N)
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.
