Livolo

Livolo Glass Touch Doorbell Button – New Series

SKU: VL-FC1B-2G-2W

AED 112

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo tempered-look glass touch doorbell button from the new series, available in White, Gold, Grey and Black.

Product details

The Livolo glass touch doorbell button – new series is an improved, innovative product resulting from technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.

The doorbell will only ring while the button is being pressed.

Highlights

Livolo Glass Touch Doorbell Button – New Series – Livolo Touch Doorbell Button
01

Livolo Touch Doorbell Button

A range of products with a simple design and an exceptional mechanism. The doorbell only rings while the button is being touched.

  • Available in white, gold, black and grey finishes
  • Doorbell sounds only while the button is touched
Livolo Glass Touch Doorbell Button – New Series – Precise Touch Sensor
02

Precise Touch Sensor

The touch sensor is extremely precise, just like the sensor on a smartphone.

Livolo Glass Touch Doorbell Button – New Series – High-Quality Glass Panel
03

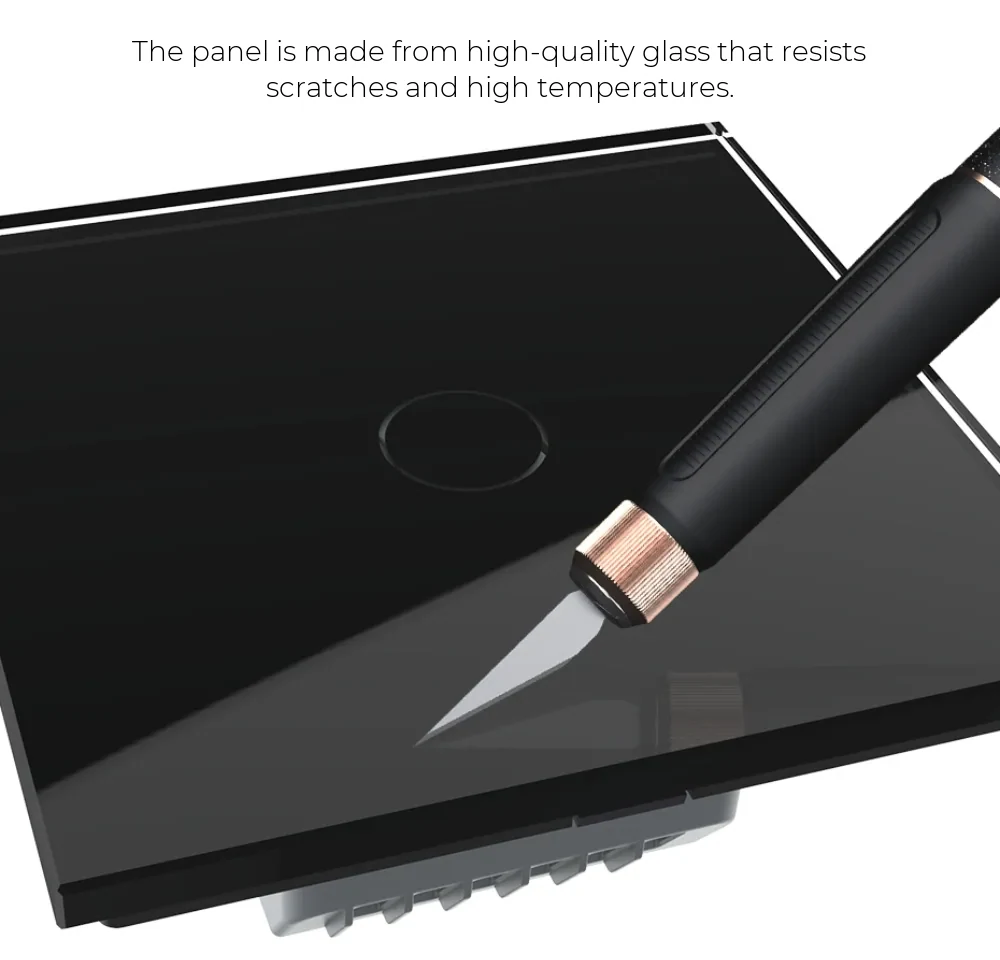

High-Quality Glass Panel

The panel is made from high-quality glass that resists scratches and high temperatures. It does not discolour, so the elegant design stays intact.

  • Scratch-resistant
  • Resistant to high temperatures
  • Does not discolour
Livolo Glass Touch Doorbell Button – New Series – Improved New Series
04

Improved New Series

Unmatched performance with low energy consumption. The new series is an improved version of the older model.

  • Panel thickness: 4 mm
  • Module depth: 33 mm
  • Frame depth: 8 mm
Livolo Glass Touch Doorbell Button – New Series – Compatible Bulbs
05

Compatible Bulbs

  • LED: 5~300W max.
  • Incandescent: 1000W max.
  • Halogen: 1000W max.
  • Smart RGB bulbs: not compatible

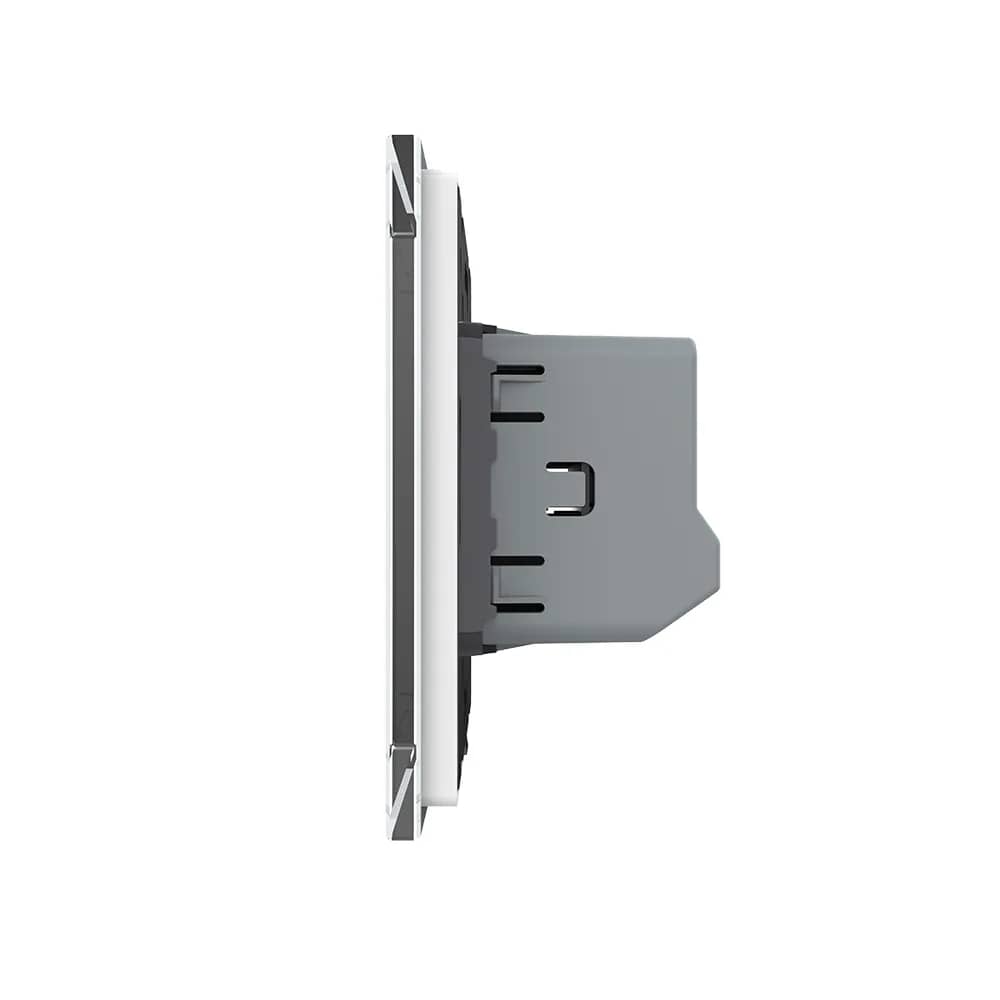

Livolo Glass Touch Doorbell Button – New Series – Structure
06

Structure

  • Elegant crystal glass panel
  • Switch module
  • Metal frame
  • Screw fixing system (60 mm spacing)
07

Technical Data

  • Voltage: 100-240V~ 50/60Hz
  • Current: 5A/gang, 10A total
  • Dimensions: 80 mm x 80 mm
  • Panel thickness: 4 mm
  • Module depth: 33 mm
  • Frame depth: 8 mm
  • Certification: CE
08

Wiring Diagram

Connect the live wire (L) to the L terminal and connect terminal L1 to the doorbell, which is also connected to the neutral wire (N).

  • Live (L) to terminal L
  • Terminal L1 to doorbell
  • Doorbell to neutral (N)
09

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel until it clicks.

In detail

Livolo Glass Touch Doorbell Button – New Series – detail 1Livolo Glass Touch Doorbell Button – New Series – detail 2
