Livolo

Livolo Glass Touch Dimmer Switch – 2 Gang, New Series

SKU: VL-FC2D2-2G-2W

AED 113

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo new-series 2 gang touch dimmer switch with tempered glass panel, faster response, wider bulb compatibility and low standby consumption.

Product details

The Livolo new-series 2 gang touch dimmer switch is an improved, innovative product resulting from technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.

Improvements over the previous series:

  • → Compatible with more types of bulbs
  • → Faster response time when the touch panel is pressed
  • → More powerful and robust chip – made in Japan
  • → Reduced standby energy consumption
  • → Compact design (smaller dimensions than the previous model)
  • → Maximum supported load of 2A per circuit

Highlights

Livolo Glass Touch Dimmer Switch – 2 Gang, New Series – Livolo 2 Gang Touch Dimmer Switch
01

Livolo 2 Gang Touch Dimmer Switch

A double touch switch with dimmer from Livolo. Simple design, outstanding mechanism, available in a range of colour finishes.

  • Double (2 gang) touch switch with dimming
  • Simple design, outstanding mechanism
  • Available in white, black, gold and grey
Livolo Glass Touch Dimmer Switch – 2 Gang, New Series – Dimmable Control
02

Dimmable Control

Press and hold the switch button to dim or brighten the lamp.

Livolo Glass Touch Dimmer Switch – 2 Gang, New Series – Improved New Series
03

Improved New Series

Unbeatable performance with low energy consumption. The new series is an improved version of the older model.

  • Glass panel thickness: 4 mm
  • Module depth: 33 mm
  • Frame depth: 8 mm
Livolo Glass Touch Dimmer Switch – 2 Gang, New Series – Fade-Resistant Design
04

Fade-Resistant Design

The panel does not discolour, so the elegant design stays intact.

Livolo Glass Touch Dimmer Switch – 2 Gang, New Series – Compatible / Incompatible Lamps
05

Compatible / Incompatible Lamps

  • Compatible: halogen lamps
  • Compatible: incandescent lamps
  • Compatible: dimmable LED lamps
  • Incompatible: energy-saving lamps
  • Incompatible: fluorescent lamps
  • Incompatible: standard (non-dimmable) LED lamps

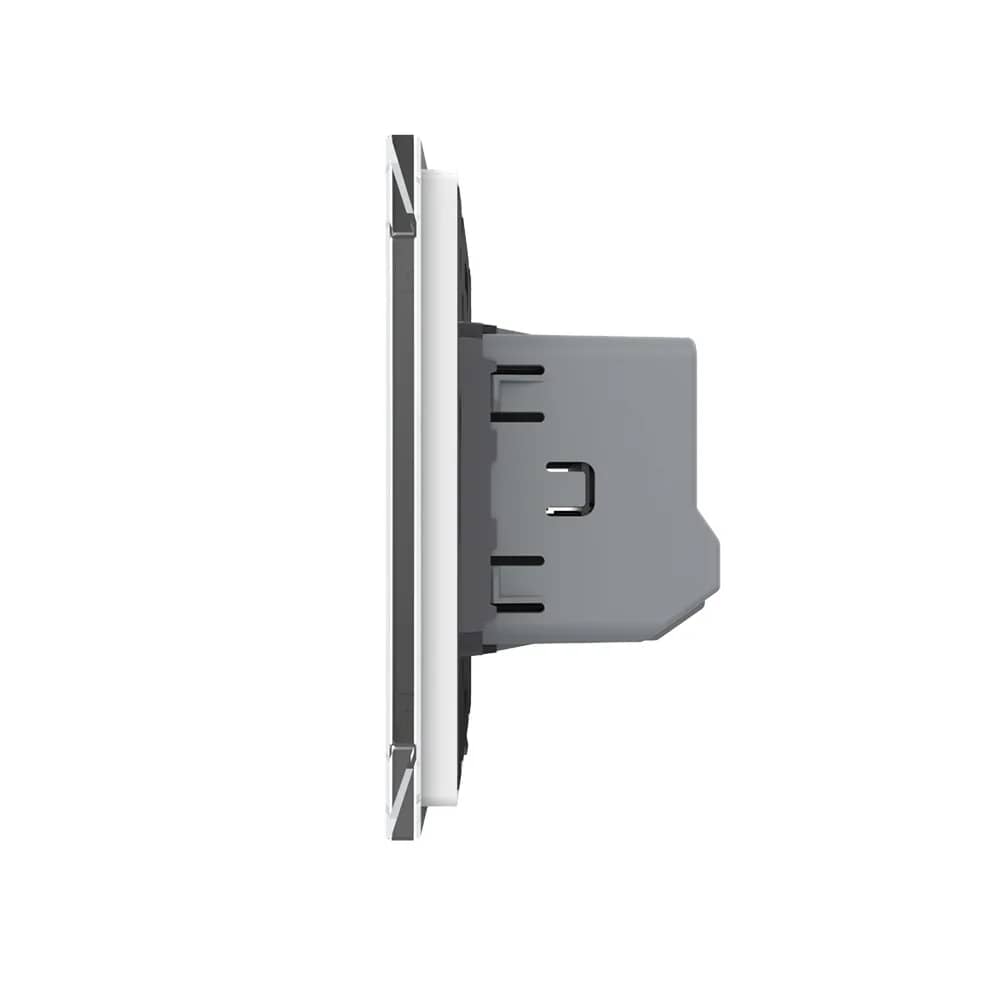

Livolo Glass Touch Dimmer Switch – 2 Gang, New Series – Structure
06

Structure

  • Elegant crystal glass panel
  • Switch module
  • Metal frame
  • Screw fixing system with 60 mm spacing
07

Technical Data

  • Input: 100-240V~ 50/60Hz
  • Load: 2A/gang
  • Dimensions: 80 mm x 80 mm
  • Glass panel: 4 mm
  • Module depth: 33 mm
  • Frame depth: 8 mm
  • Fixing screw spacing: 60 mm

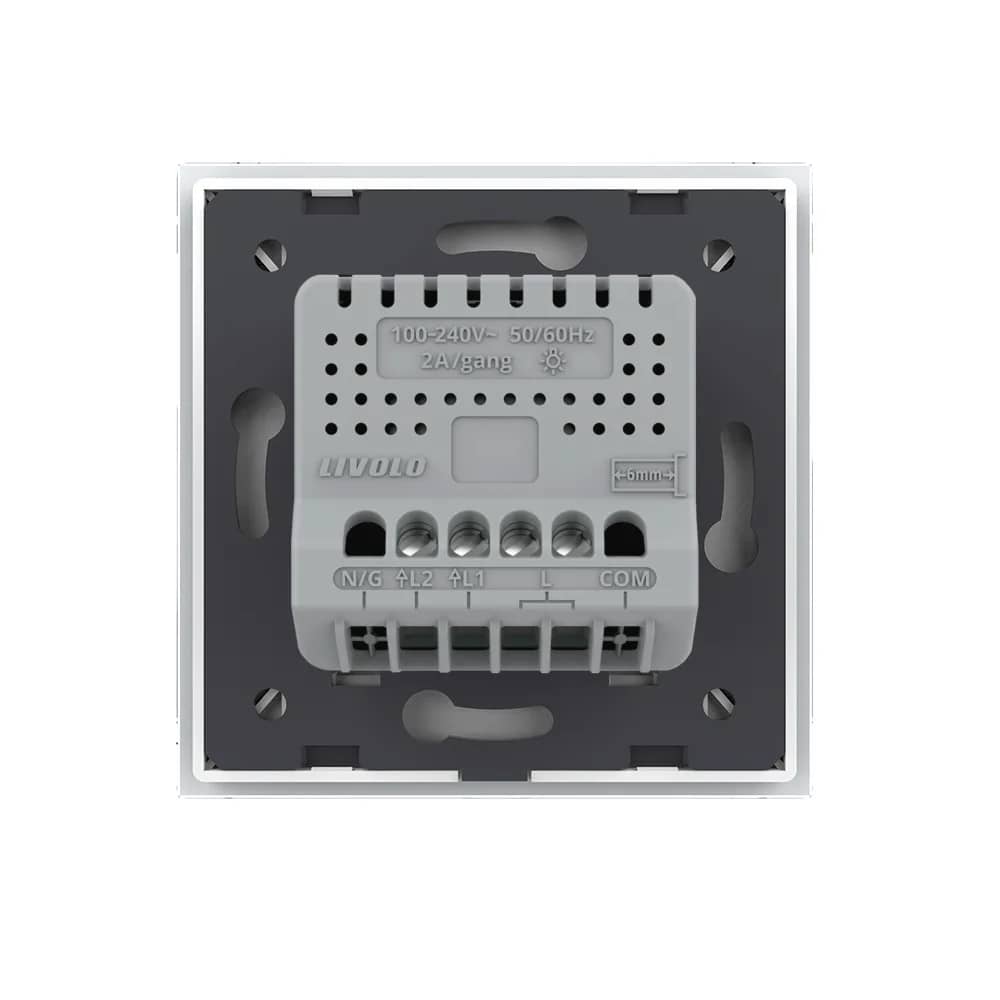

  • Terminals: N/G, L2, L1, L, COM
08

Wiring Diagram

Connect the phase (L) to terminal L, and each lamp to terminals L1 and L2 respectively; the lamps' other wires go to neutral (N).

09

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (it clicks into place).

The Livolo touch panel in action

Official Livolo video
