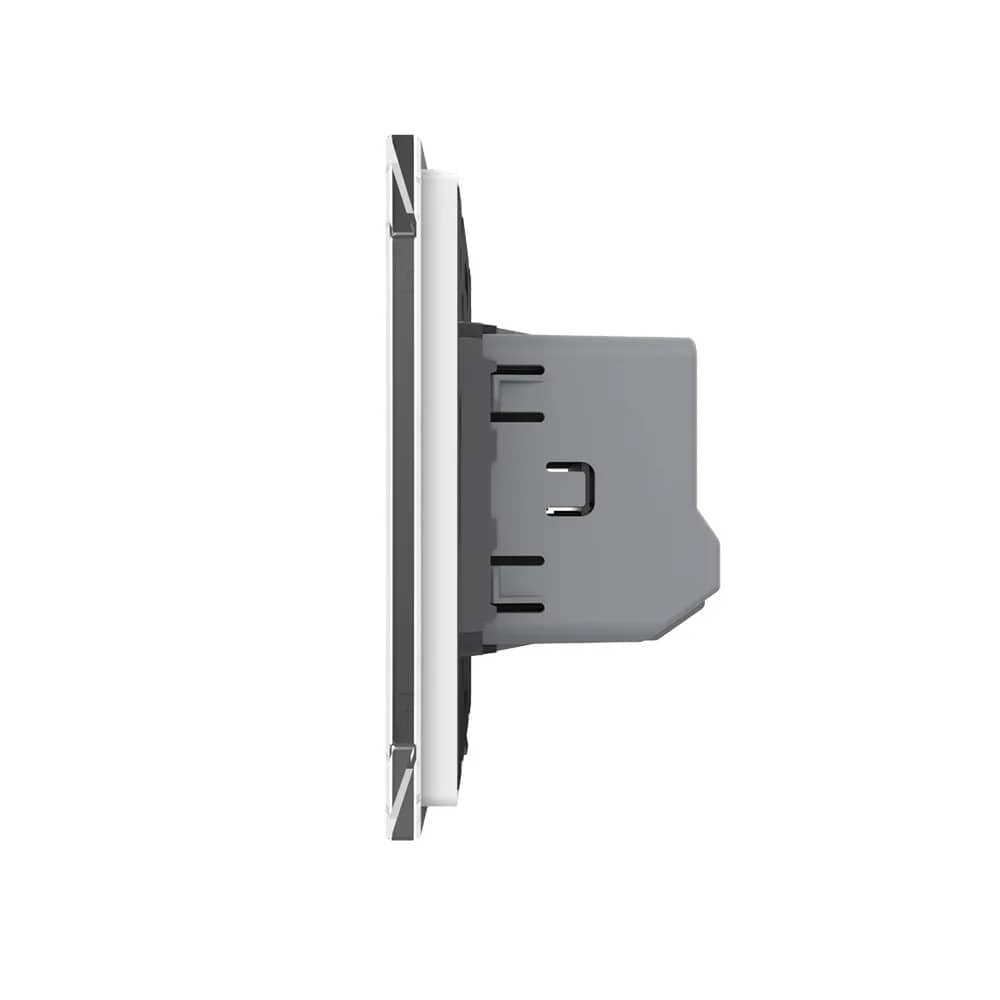

Livolo Glass Touch 2-Way / Intermediate Light Switch – 2 Gang, ZigBee EC Protocol – White — image 3
Livolo Glass Touch 2-Way / Intermediate Light Switch – 2 Gang, ZigBee EC Protocol – White — image 4
1/4
Livolo

Livolo Glass Touch 2-Way / Intermediate Light Switch – 2 Gang, ZigBee EC Protocol

SKU: VL-FC2SZ2-2G-2W

AED 118

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 2 gang 2-way/intermediate glass touch light switch with ZigBee EC – control by touch, smartphone app or Alexa and Google Home voice commands.

Product details

Livolo 2 gang 2-way (staircase) / intermediate touch light switch with ZigBee EC protocol, resistant to moisture and dust. Give your home an extra touch of refinement and comfort.

It can be operated:

– Directly at the switch, on/off by touch;

– From your smartphone via the Livolo ZigBee EC Hub using the Livolo app (hub sold separately);

– By voice with Google Home or Amazon Alexa. To connect the switch to Google Home or Amazon Alexa, you need the Livolo ZigBee EC Hub.

A maximum of 3 switches can be connected in the circuit (intermediate wiring)

Highlights

Livolo Glass Touch 2-Way / Intermediate Light Switch – 2 Gang, ZigBee EC Protocol – Livolo Double Touch Switch – 2-Way / Intermediate
01

Livolo Double Touch Switch – 2-Way / Intermediate

A double touch light switch for 2-way and intermediate (cross) circuits, using the Livolo ZigBee EC protocol. Simple design, outstanding mechanism.

  • 2 gang touch control
  • 2-way / intermediate (cross) switching
  • ZigBee EC protocol
  • Available in a variety of colours: white, black, gold and grey
Livolo Glass Touch 2-Way / Intermediate Light Switch – 2 Gang, ZigBee EC Protocol – App Control
02

App Control

Change the atmosphere of your home with a simple touch. Open the Livolo app to customise the lighting in your home just the way you like it.

  • Important: Livolo ZigBee switches work only with the Livolo ZigBee hub
Livolo Glass Touch 2-Way / Intermediate Light Switch – 2 Gang, ZigBee EC Protocol – Structure
03

Structure

  • Elegant glass panel
  • Switch module
  • Metal frame
  • Screw fixing system (60 mm spacing)
Livolo Glass Touch 2-Way / Intermediate Light Switch – 2 Gang, ZigBee EC Protocol – Dimensions
04

Dimensions

  • Panel: 80 mm x 80 mm
  • Glass panel thickness: 4 mm
  • Module depth: 33 mm
  • Frame: 8 mm
Livolo Glass Touch 2-Way / Intermediate Light Switch – 2 Gang, ZigBee EC Protocol – Technical Data
05

Technical Data

  • Voltage: 100-240V~ 50/60Hz
  • Load: 5A/gang, 10A total
  • Terminals: N/G, L2, L1, L, COM
Livolo Glass Touch 2-Way / Intermediate Light Switch – 2 Gang, ZigBee EC Protocol – Wiring
06

Wiring

The lights connect to the L1 and L2 terminals and to neutral (N). The live wire (L) connects to the L terminal of both switches, and the COM terminals are linked together for 2-way / intermediate operation.

07

Installation

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).
