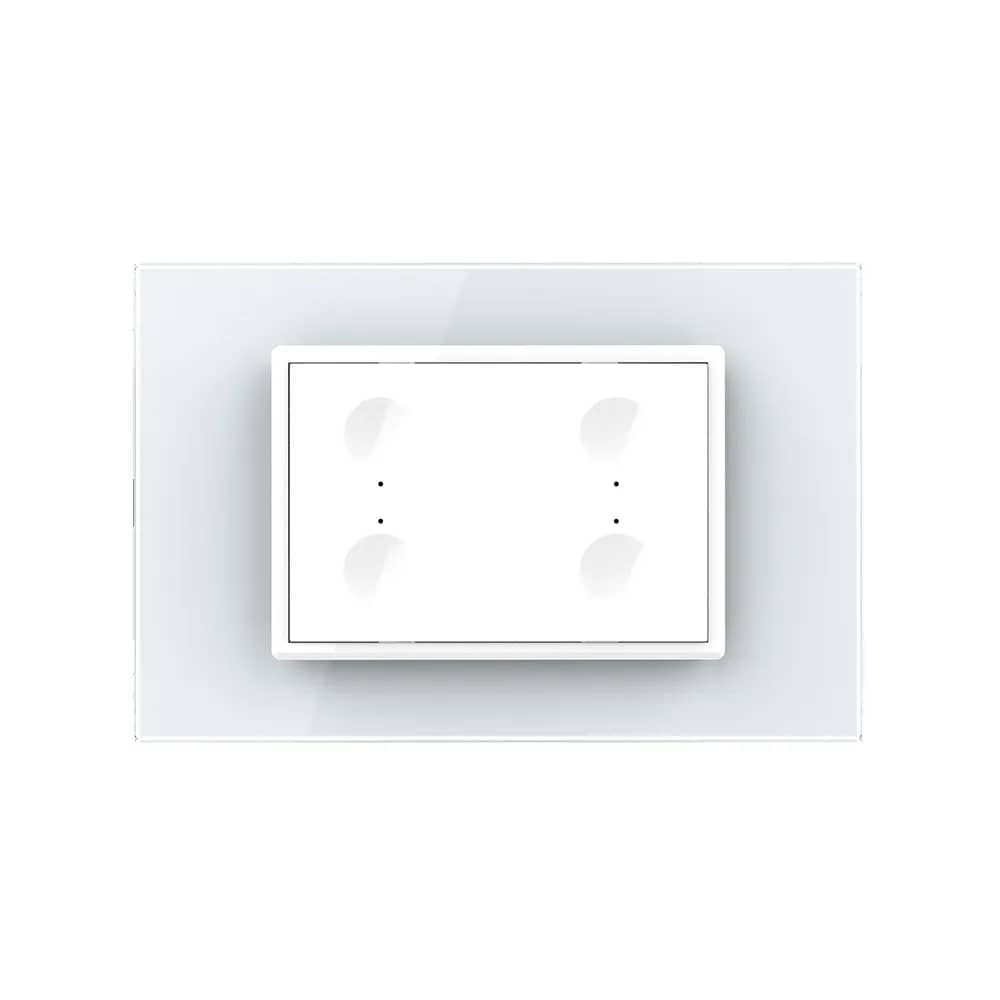

Livolo Glass Touch 2-Way / Intermediate Light Switch – 4 Gang, Italian Standard – New Series – White

1 / 4

Livolo

Livolo Glass Touch 2-Way / Intermediate Light Switch – 4 Gang, Italian Standard – New Series

SKU: VL-FC4S-3WP-11

AED 74

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Livolo 4 gang 2-way/intermediate touch light switch with tempered glass frame, Italian standard, LED indicator and scratch-resistant crystal finish.

Product details

Livolo 4 gang 2-way (staircase) / intermediate touch light switch with glass frame, Italian standard, with a crystal texture, light indicator, resistant to moisture and scratches – refinement at its finest.

Livolo switches use a touch sensor with a 100 ms response time, similar to the technology used in smartphones. The switch panel is made of tempered, fire-resistant glass. The red/blue LED indicates the on/off status of the switch.

A maximum of 3 switches can be connected in the circuit (intermediate wiring)

Highlights

Simple Design, Outstanding Mechanism

Part of a varied Livolo range, this 4-gang touch switch is offered in several glass panel colours.

Available in white, black, grey and gold panel finishes
Important: 2-way switches only work when installed and synchronised with other Livolo 2-way products
Livolo products do NOT work with other brands

Precise Touch Sensor

The touch sensor is extremely precise, identical to the sensor found in a smartphone.

No Unnecessary Wiring

The new Livolo switches ensure quick and easy installation, using Live (L) and Neutral (N) connections.

Live (L)
Neutral (N)

High-Quality Glass Panel

The panel will not fade, so its elegant design stays intact. It is made from high-quality glass that resists scratches and high temperatures.

Does not discolour
Scratch-resistant
Resistant to high temperatures

Structure

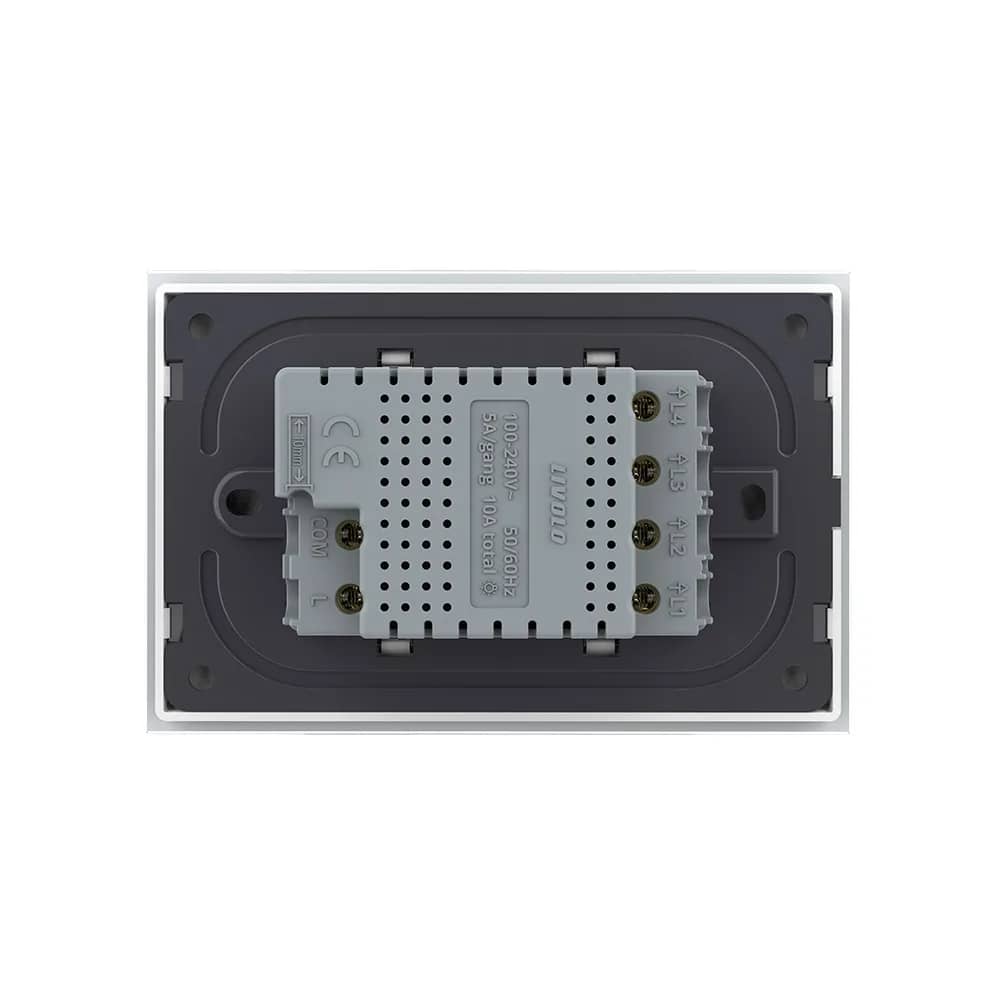

The switch consists of three main parts, fixed with a screw mounting system.

Elegant crystal glass panel
Switch module
Metal frame

Technical Data

Voltage: 100-240V~ 50/60Hz
Load: 5A/gang, 10A total
Gangs: 4 (L1–L4)
Panel dimensions: 119 mm x 78 mm
Screw mounting distance: 85 mm
Depth: 4 mm (panel), 34 mm (module), 8 mm

Wiring Diagram

Two 4-gang switches are linked with a 2-way connection to control four lights from two locations, with Live (L) and Neutral connected as shown in the wiring diagram.

Installation Steps

1. Open the package.
2. Connect the wires and tighten the screws.
3. Use the 2 screws to fix the frame.
4. Fit the front panel (it clicks into place).

In detail

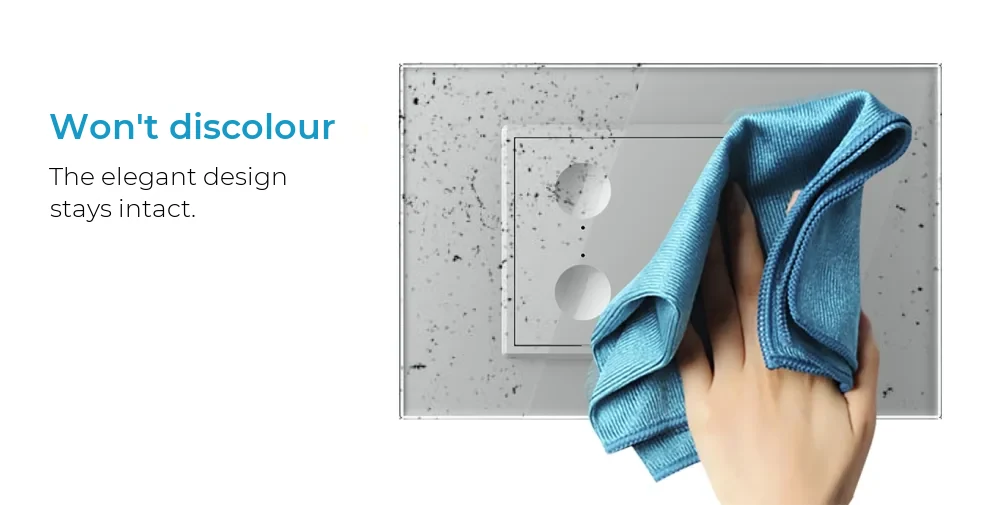

Livolo Glass Touch 2-Way / Intermediate Light Switch – 4 Gang, Italian Standard – New Series – detail 1

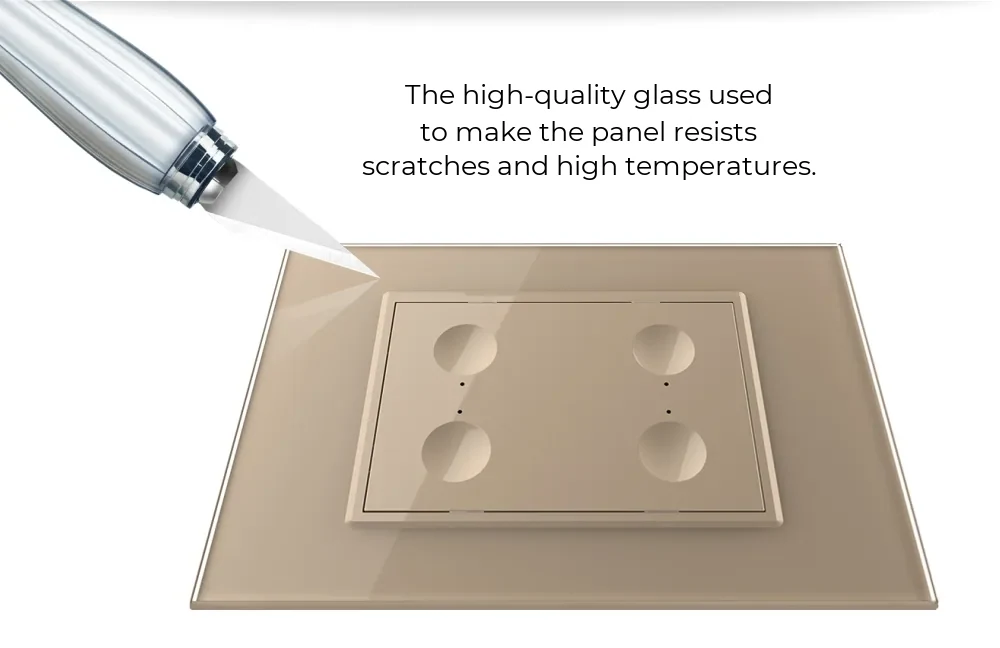

Livolo Glass Touch 2-Way / Intermediate Light Switch – 4 Gang, Italian Standard – New Series – detail 2

The Livolo touch panel in action

Official Livolo video
