Livolo

Livolo Quadruple Glass Touch Light Switch – 4 Gang, Italian Standard (New Series)

SKU: VL-FC4-3WP-11

AED 69

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 4 gang touch light switch with tempered glass frame, Italian standard, crystal texture and on/off LED indicator.

Product details

Livolo 4 gang touch light switch with glass frame, Italian standard, with a crystal texture and light indicator. It is moisture- and scratch-resistant, offering refinement at its finest.

Livolo switches use a touch sensor with a 100 ms response time, similar to the technology used in smartphones. The switch panel is made of fire-resistant tempered glass. The red/blue LED indicates the on/off status of the switch.

Highlights

Livolo Quadruple Glass Touch Light Switch – 4 Gang, Italian Standard (New Series) – Simple Design, Outstanding Mechanism
01

Simple Design, Outstanding Mechanism

Part of a varied product range, combining a simple design with an exceptional switching mechanism.

Livolo Quadruple Glass Touch Light Switch – 4 Gang, Italian Standard (New Series) – Precise Touch Sensor
02

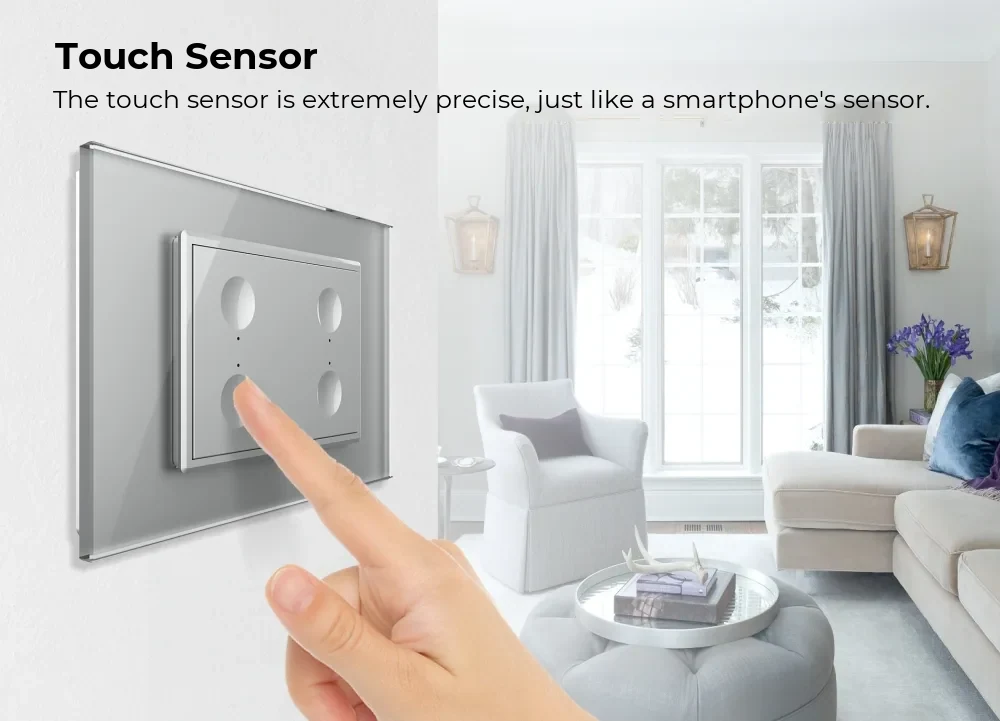

Precise Touch Sensor

The touch sensor is extremely precise, just like the sensor of a smartphone.

Livolo Quadruple Glass Touch Light Switch – 4 Gang, Italian Standard (New Series) – No Unnecessary Cables
03

No Unnecessary Cables

The new Livolo switches ensure quick and easy installation, connecting to the live (L) and neutral (N) wires.

  • Live (L)
  • Neutral (N)
Livolo Quadruple Glass Touch Light Switch – 4 Gang, Italian Standard (New Series) – Glass Panel That Won't Fade
04

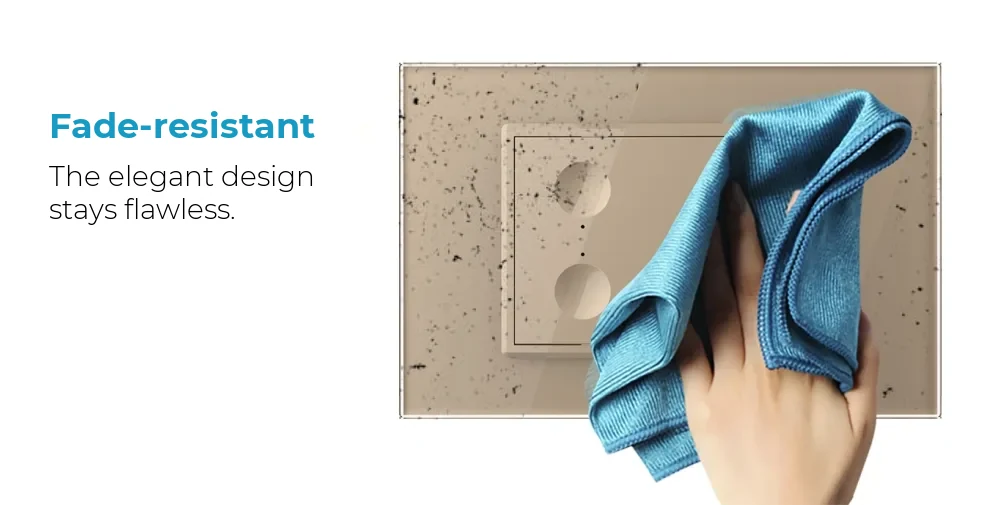

Glass Panel That Won't Fade

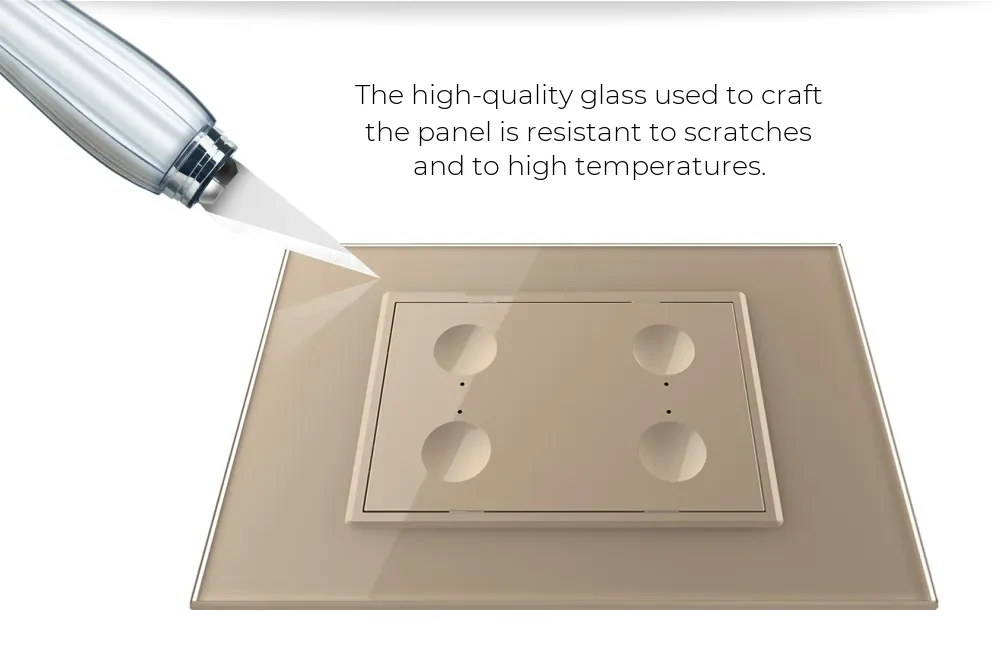

The elegant design stays intact and does not discolour. The panel is made of high-quality glass that resists scratches and high temperatures.

Livolo Quadruple Glass Touch Light Switch – 4 Gang, Italian Standard (New Series) – Structure
05

Structure

  • Elegant crystal glass panel
  • Switch module
  • Metal frame
  • Screw fixing system
Livolo Quadruple Glass Touch Light Switch – 4 Gang, Italian Standard (New Series) – Technical Data
06

Technical Data

  • Voltage: 100-240V~, 50/60Hz
  • Load: 5A/gang, 10A total

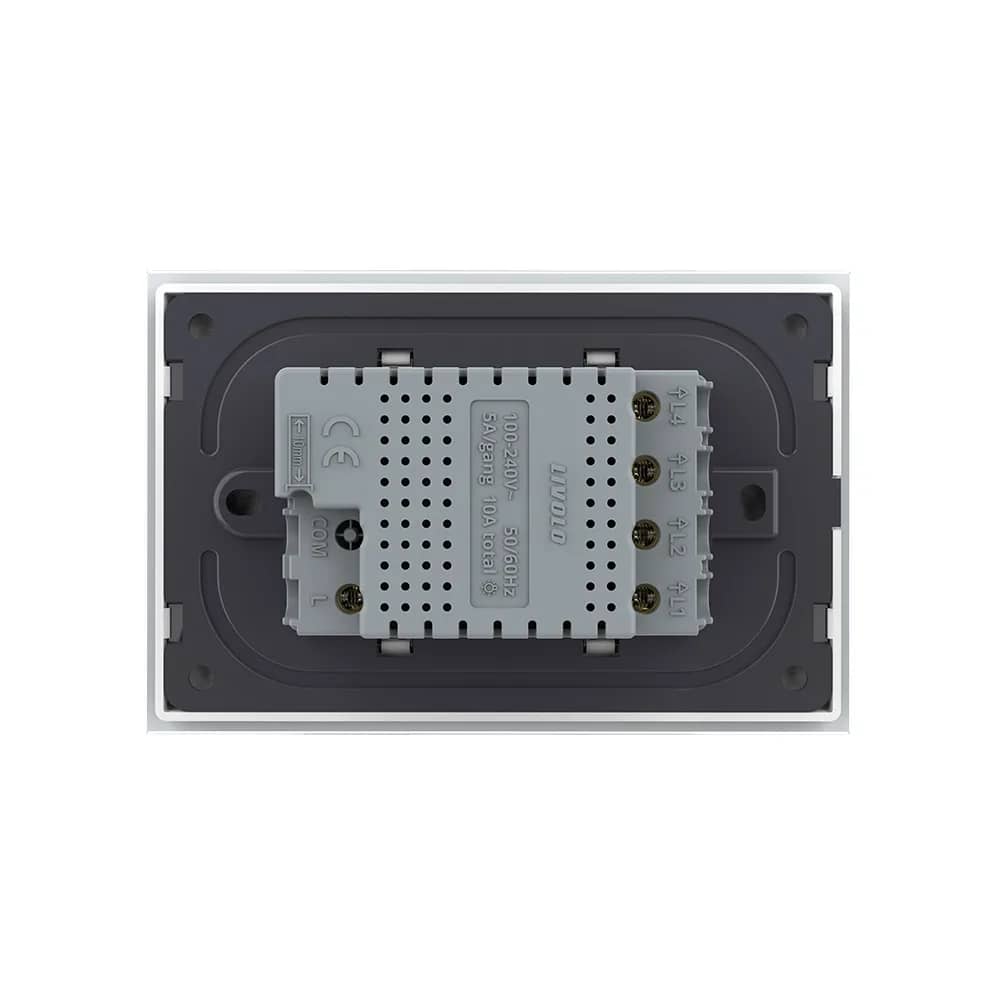

  • Terminals: COM, L1, L2, L3, L4
  • Panel dimensions: 119 mm x 78 mm
  • Screw fixing spacing: 85 mm
  • Depth: 4 mm / 34 mm / 8 mm (per dimension drawing)
07

Wiring Diagram

Connect the live wire to the COM terminal and each of the four lights to terminals L1, L2, L3 and L4; the neutral wire runs to the lights.

08

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).

In detail

Livolo Quadruple Glass Touch Light Switch – 4 Gang, Italian Standard (New Series) – detail 1Livolo Quadruple Glass Touch Light Switch – 4 Gang, Italian Standard (New Series) – detail 2Livolo Quadruple Glass Touch Light Switch – 4 Gang, Italian Standard (New Series) – detail 3

The Livolo touch panel in action

Official Livolo video
