Livolo Glass Touch Light Switch – 3 Gang 2-Way / Intermediate, Italian Standard, ZigBee EC
SKU: VL-FC3SZ2-3G-11
AED 216
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 3 gang 2-way/intermediate touch switch with crystal glass panel, Italian standard, ZigBee EC for app and voice control via hub.
Product details
Livolo 3 gang glass touch light switch, 2-way (staircase) / intermediate, with ZigBee EC protocol. The panel is made of crystal glass and features a light indicator. It is resistant to moisture and scratches.
It can be operated:
– Directly at the switch, on/off by touch;
– From your smartphone via the Livolo app using the Livolo ZigBee EC Hub (hub sold separately);
– By voice with Google Home or Amazon Alexa. The Livolo ZigBee EC Hub is required as the link between the switch and Google Home or Amazon Alexa.
Highlights
02
Important: Two-Way Compatibility
Two-way switches work only when installed and synchronised with other Livolo two-way products. Livolo products do NOT work with other brands.
03
Touch Sensor
The touch sensor is extremely precise, just like the sensor of a smartphone.
04
Does Not Fade
The elegant design stays intact.
05

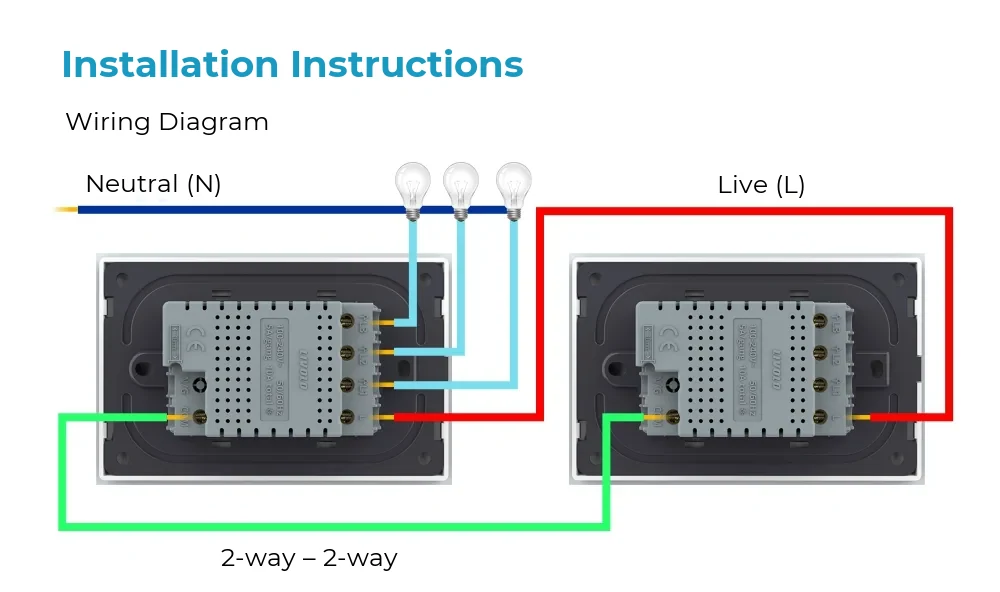

Wiring Diagram
Neutral (N) connects to the three lamps, each wired to outputs L1, L2 and L3 of the first switch. Live (L) connects to the L terminal of both switches, and the two switches are linked to each other (two-way to two-way).
- Neutral (N)
- Live (L)
- Two-way to two-way link between switches
06
Technical Data
- Panel size: 119 mm x 78 mm
- Glass panel thickness: 4 mm
- Module depth: 24 mm
- Frame thickness: 8 mm
- Fixing distance: 85 mm
- Glass panel
- Metal frame
- Screw fixing system
07
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click into place).
