01
A Range of Finishes
Simple design, outstanding mechanism. The switch is shown in white, black, grey and gold glass finishes.
Livolo
Livolo Glass Touch Light Switch – 2 Gang 2-Way / Intermediate, Italian Standard – New Series
SKU: VL-FC2S-3WP-11
AED 86
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 2 gang 2-way/intermediate touch light switch with tempered glass frame, Italian standard, LED indicator, in White, Black, Grey or Gold.
Product details
Livolo 2 gang 2-way (staircase) / intermediate touch light switch with glass frame, Italian standard, with a crystal texture and light indicator, resistant to moisture and scratches – refinement at its finest.
Livolo switches use a touch sensor with a 100 ms response time, similar to the technology used in smartphones. The switch's glass panel is made of fire-resistant tempered glass. The red/blue LED indicates the on/off status of the switch.
A maximum of 3 switches can be connected in the circuit (intermediate)
Highlights
02
Important Compatibility Notice
2-way (staircase) switches only work when installed and synchronised with other Livolo 2-way products. Livolo products DO NOT work with other brands.
03
Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
04
No Unnecessary Wiring
The new Livolo switches allow quick and easy installation.

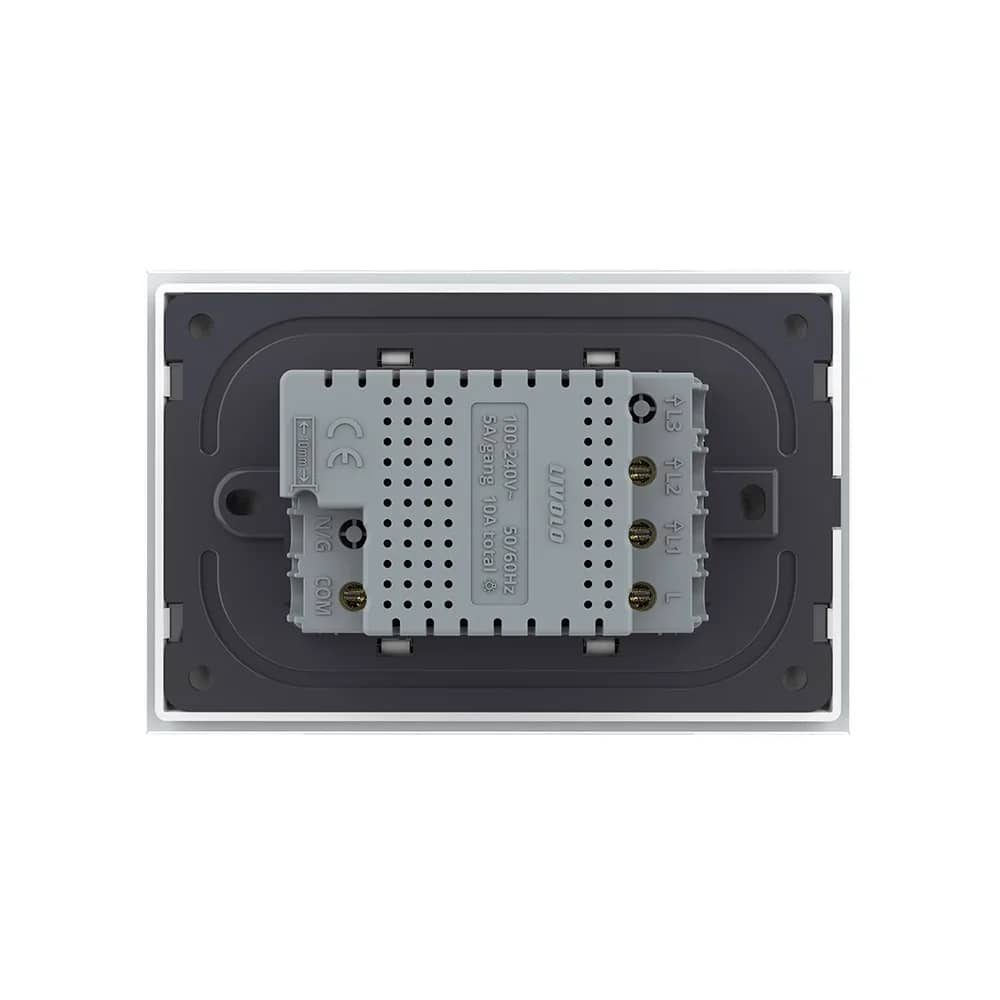

- Connections: Live (L) and Neutral (N)
- Rated: 100-240V~ 50/60Hz
- Load: 5A/gang, 10A total
05
Glass Panel That Won't Fade

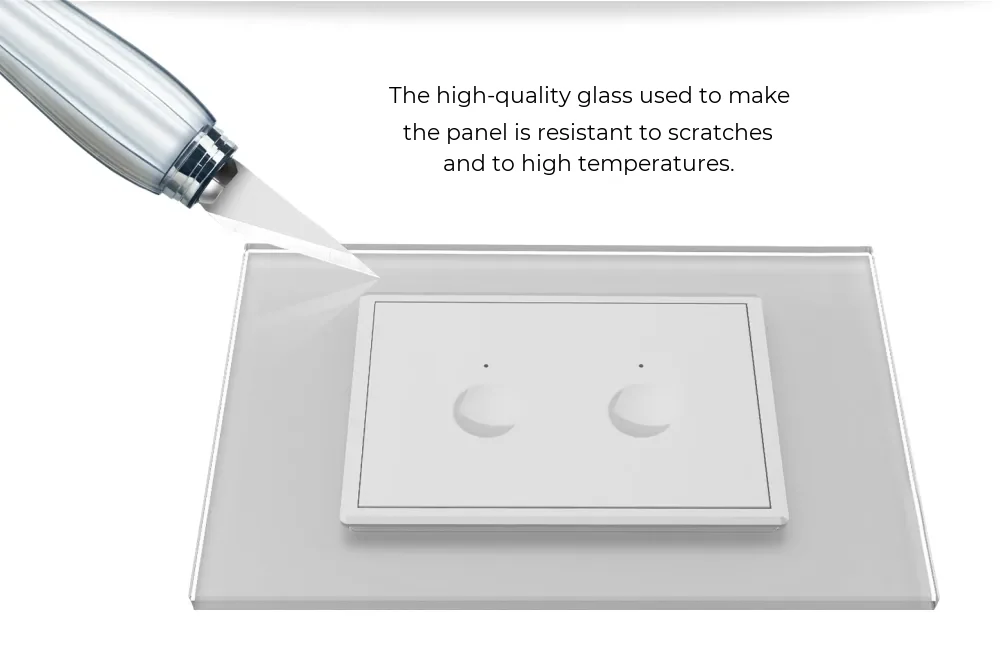

The elegant design stays intact and does not discolour. The high-quality glass panel resists scratches and high temperatures.
06
Structure
- Elegant crystal glass panel
- Switch module
- Metal frame
- Screw fixing system: 85 mm
07

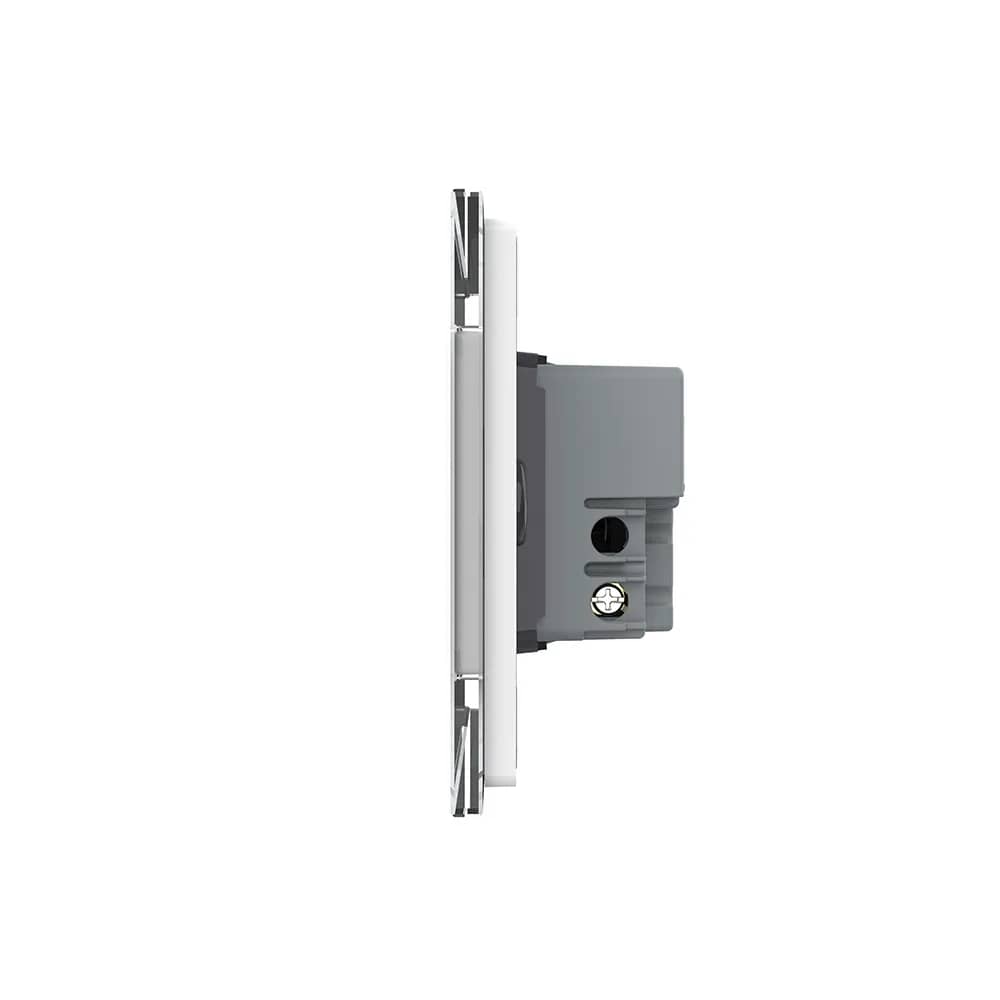

Dimensions
- Width: 119 mm
- Height: 78 mm
- Depths shown: 4 mm, 24 mm, 8 mm
08
Wiring Diagram
Double switch in a 2-way (staircase) configuration: two switches connected via the 2-way link, with Live (L) on one switch and Neutral (N) to the lamps.
09
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Click the front panel into place.
In detail
