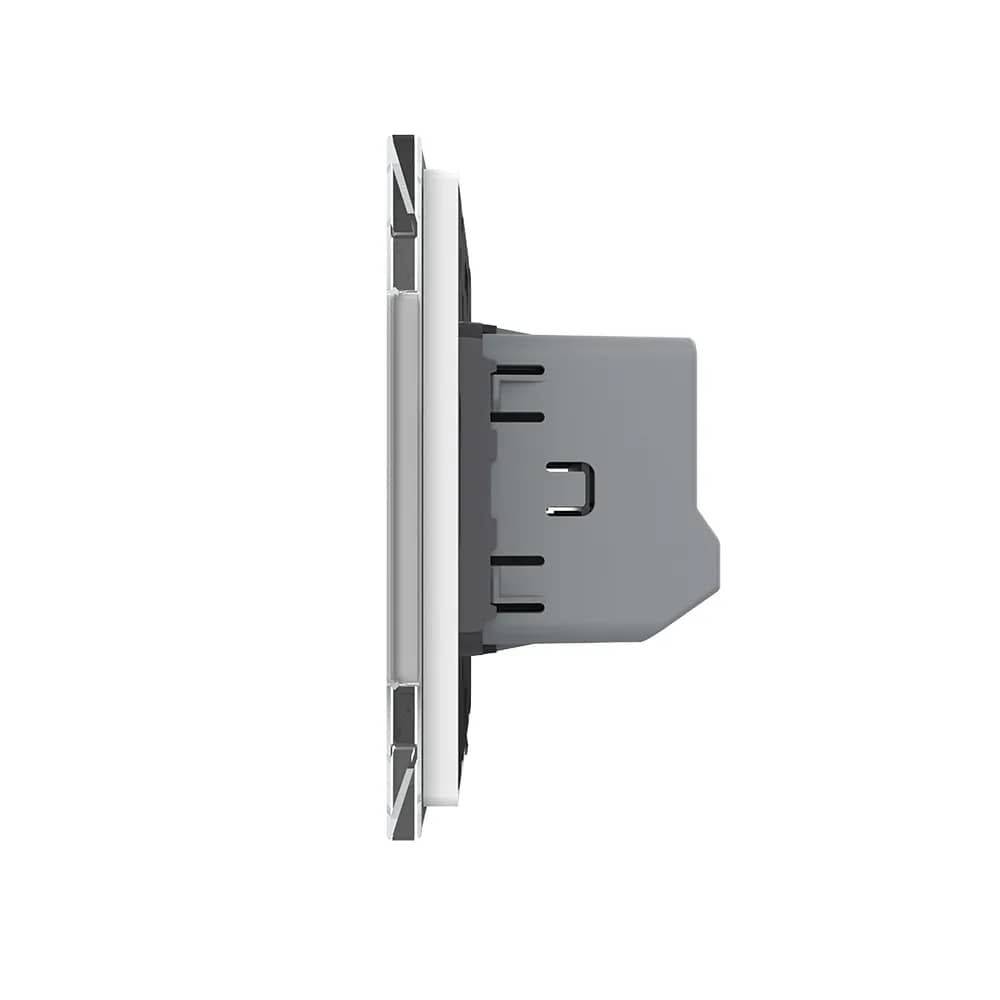

Livolo 1 Gang Touch Light Switch with Glass Frame – Zigbee EC Protocol – White — image 3
Livolo 1 Gang Touch Light Switch with Glass Frame – Zigbee EC Protocol – White — image 4
1/4
Livolo

Livolo 1 Gang Touch Light Switch with Glass Frame – Zigbee EC Protocol

SKU: VL-FC1Z2-2W-11

AED 74

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 1 gang glass touch light switch with Zigbee EC, resistant to moisture and dust, controllable by touch, app or Alexa/Google voice via hub.

Product details

Livolo 1 gang light switch, Zigbee EC protocol, resistant to moisture and dust. It brings extra refinement and comfort to your home.

It can be operated:

– Directly on the switch, on/off by touch;

– From your smartphone via the Livolo app using the Livolo Zigbee EC Hub (hub sold separately);

– By voice with Google Home or Amazon Alexa. The Livolo Zigbee EC Hub is required as the link between the switch and Google Home or Amazon Alexa.

Highlights

Livolo 1 Gang Touch Light Switch with Glass Frame – Zigbee EC Protocol – Livolo Single Touch Switch – ZigBee Protocol
01

Livolo Single Touch Switch – ZigBee Protocol

A wide range of products with a simple design and an extraordinary mechanism. This single touch light switch from Livolo uses the ZigBee protocol.

  • 1 gang touch switch
  • ZigBee protocol
  • Available in several frame colours
Livolo 1 Gang Touch Light Switch with Glass Frame – Zigbee EC Protocol – High-Quality Glass Panel
02

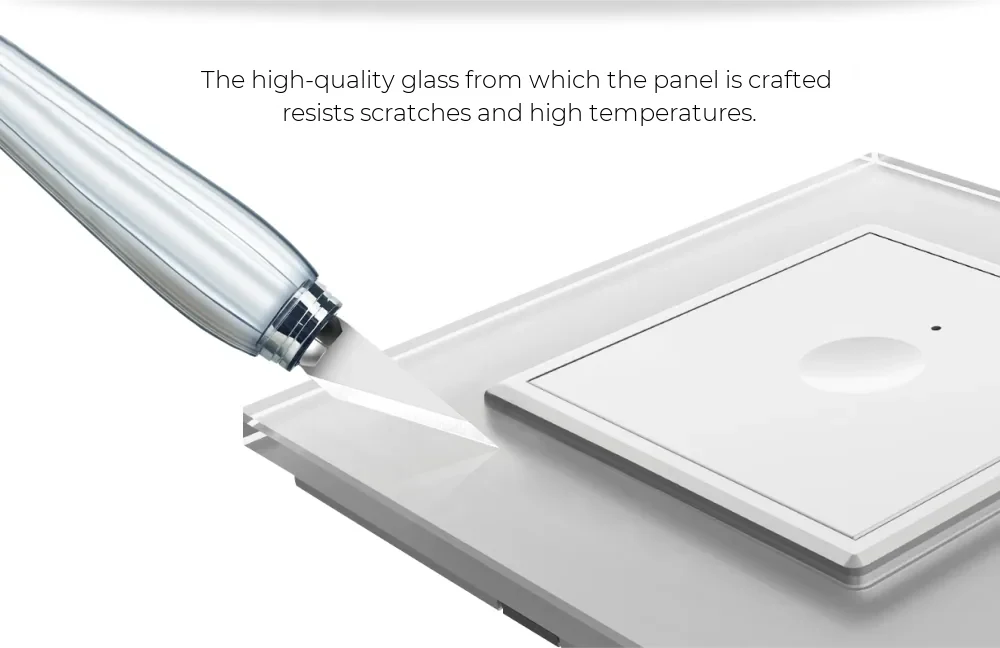

High-Quality Glass Panel

The panel is made from high-quality glass that resists scratches and high temperatures.

Livolo 1 Gang Touch Light Switch with Glass Frame – Zigbee EC Protocol – App Control
03

App Control

Change the atmosphere of your home at the touch of a button. Open the Livolo app to customise the lighting in your home just the way you like.

  • Important: Livolo switches with the ZigBee protocol work only with the ZigBee hub.
Livolo 1 Gang Touch Light Switch with Glass Frame – Zigbee EC Protocol – Structure
04

Structure

The switch is made up of three parts and is fixed with a screw mounting system.

  • Glass frame
  • Switch module
  • Metal frame
Livolo 1 Gang Touch Light Switch with Glass Frame – Zigbee EC Protocol – Technical Data
05

Technical Data

  • Rated voltage: 100-240V~ 50/60Hz
  • Load: 5A/gang, 10A total
  • Terminals: N/G, L2, L1, L, COM
  • Front panel dimensions: 80 mm x 80 mm
  • Screw fixing distance: 60 mm
  • Depth behind panel: 33 mm
  • Panel thickness: 4 mm / 8 mm
Livolo 1 Gang Touch Light Switch with Glass Frame – Zigbee EC Protocol – Wiring Diagram
06

Wiring Diagram

Connect the live (phase) wire to the L terminal and the lamp to the L1 terminal; the lamp's other wire connects to neutral.

  • Live (phase) → L
  • Lamp → L1
  • Lamp → Neutral
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (it clicks into place).

In detail

Livolo 1 Gang Touch Light Switch with Glass Frame – Zigbee EC Protocol – detail 1
