Sonoff

Sonoff Dual R3 2-Channel Wi-Fi Smart Relay with Energy Monitoring and Scheduling – 2.4 GHz

SKU: DUALR3

AED 80

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Sonoff Dual R3 2-channel Wi-Fi relay with energy metering and scheduling, controlled remotely via the eWeLink app.

Product details

The Sonoff Dual R3 is a 2-channel wireless relay with an energy meter that can be fitted to a wide range of devices around the home, switching them on or off using the eWeLink app. The device sends data to a cloud platform via your Wi-Fi router, then lets you control your devices remotely through the app.

Highlights

Sonoff Dual R3 2-Channel Wi-Fi Smart Relay with Energy Monitoring and Scheduling – 2.4 GHz – Sonoff Dual R3 Relay – Key Features
01

Sonoff Dual R3 Relay – Key Features

A 2-gang Wi-Fi smart relay that upgrades your existing switches with smart control.

  • Remote control
  • Scheduling
  • Sharing
  • Smart scenes
  • Voice control
  • Status synchronisation
  • Energy consumption monitoring
  • Overheating protection
Sonoff Dual R3 2-Channel Wi-Fi Smart Relay with Energy Monitoring and Scheduling – 2.4 GHz – Upgrade Your Switches
02

Upgrade Your Switches

Your switches can be controlled from your smartphone, so you can schedule them for a specific time or turn them on and off remotely.

Sonoff Dual R3 2-Channel Wi-Fi Smart Relay with Energy Monitoring and Scheduling – 2.4 GHz – Energy Consumption Monitoring
03

Energy Consumption Monitoring

The app shows real-time readings per channel and a history of daily consumption.

  • Current (A)
  • Voltage (V)
  • Real power (W)
  • Reactive power (W)
  • Apparent power (W)
  • Daily consumption history (kWh)
  • History and real-time views
Sonoff Dual R3 2-Channel Wi-Fi Smart Relay with Energy Monitoring and Scheduling – 2.4 GHz – Voice Control
04

Voice Control

Make life easier and more comfortable with the Sonoff Dual R3 relay, which can be controlled with voice commands.

  • Works with Alexa
  • Works with Hey Google
Sonoff Dual R3 2-Channel Wi-Fi Smart Relay with Energy Monitoring and Scheduling – 2.4 GHz – Curtain and Blind Control
05

Curtain and Blind Control

Open or close your curtains or blinds remotely using the eWeLink mobile app.

Sonoff Dual R3 2-Channel Wi-Fi Smart Relay with Energy Monitoring and Scheduling – 2.4 GHz – Installation
06

Installation

The relay fits behind a standard wall switch. A wiring diagram is provided for connecting a curtain motor.

  • N In: neutral
  • L In: live (phase)
  • L Out 1: curtain motor – forward
  • L Out 2: curtain motor – reverse
  • S1 / S2: wall switch inputs
  • Motor earth connected to ground
Sonoff Dual R3 2-Channel Wi-Fi Smart Relay with Energy Monitoring and Scheduling – 2.4 GHz – Technical Data
07

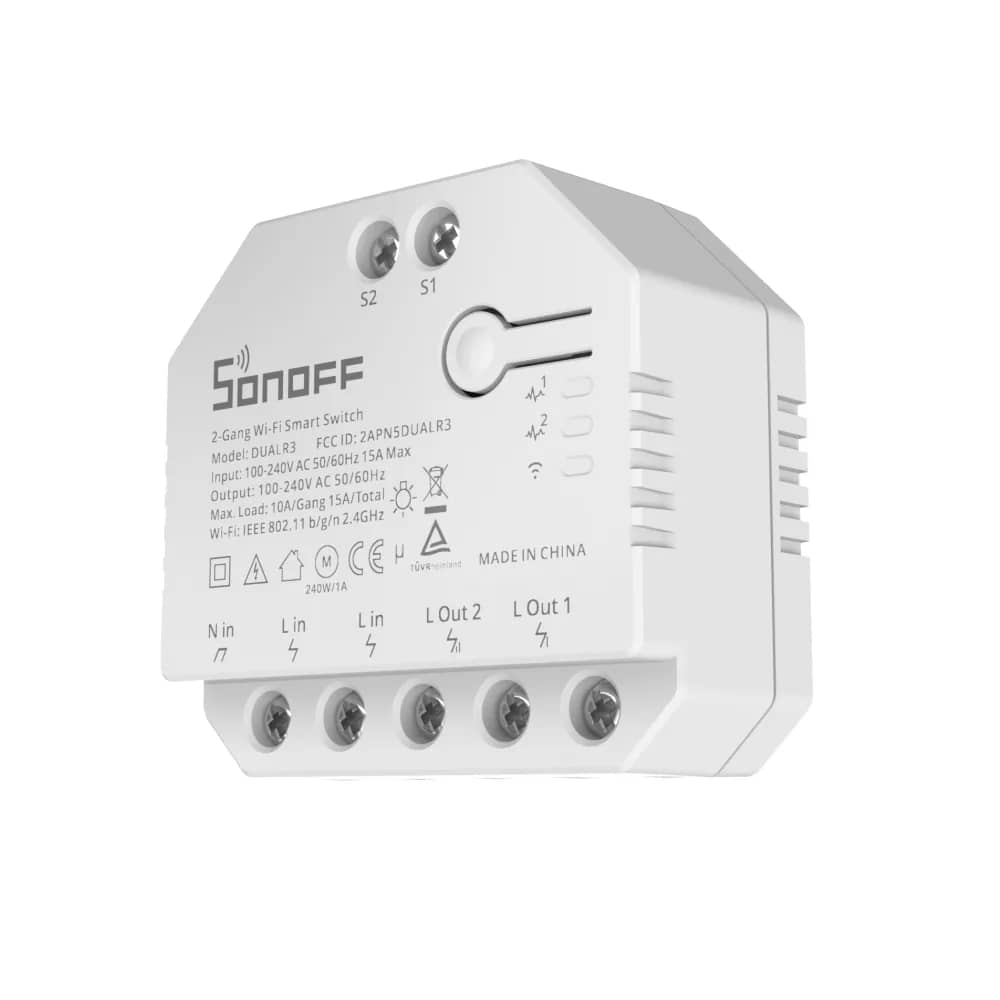

Technical Data

  • Model: DUALR3
  • Type: 2-Gang Wi-Fi Smart Switch
  • FCC ID: 2APN5DUALR3
  • Input: 100-240V AC 50/60Hz 15A Max
  • Output: 100-240V AC 50/60Hz
  • Max. load: 10A/Gang, 15A/Total
  • Wi-Fi: IEEE 802.11 b/g/n 2.4GHz

In detail

Sonoff Dual R3 2-Channel Wi-Fi Smart Relay with Energy Monitoring and Scheduling – 2.4 GHz – detail 1
