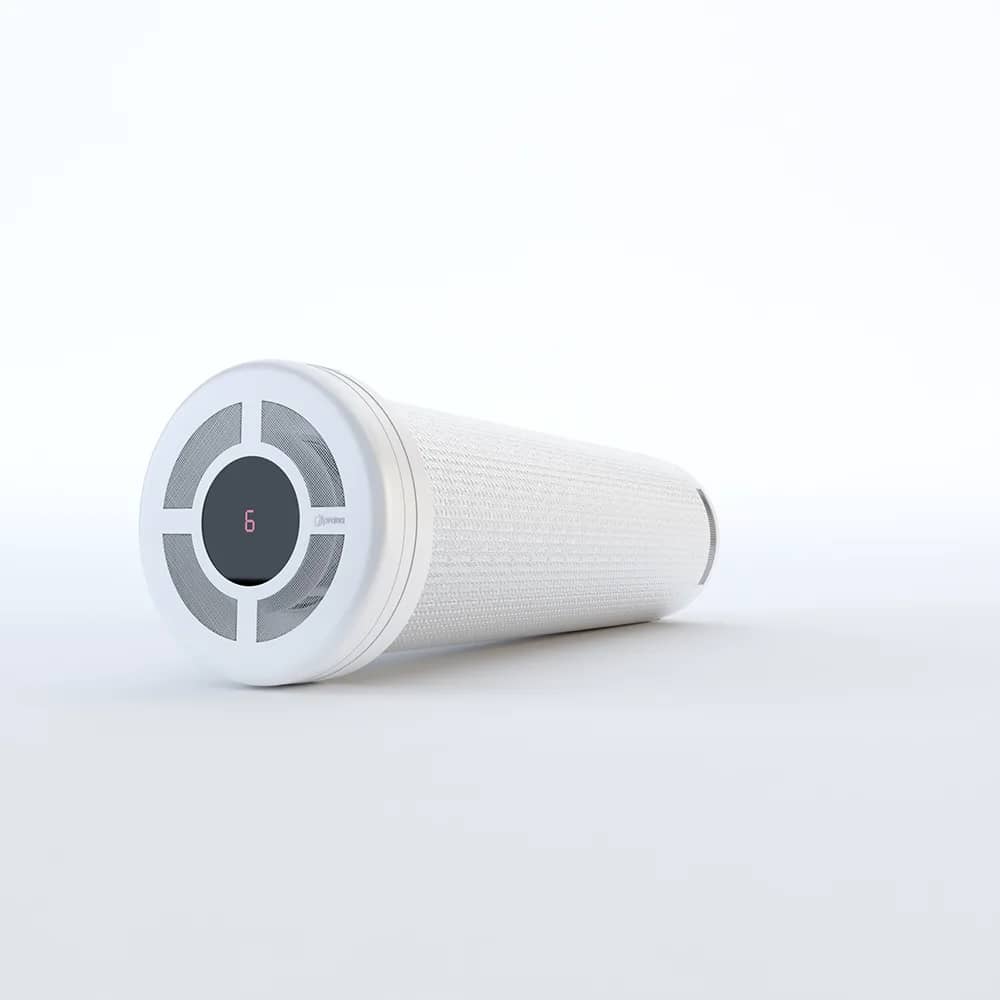

Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function — image 3
Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function — image 4
Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function — image 5

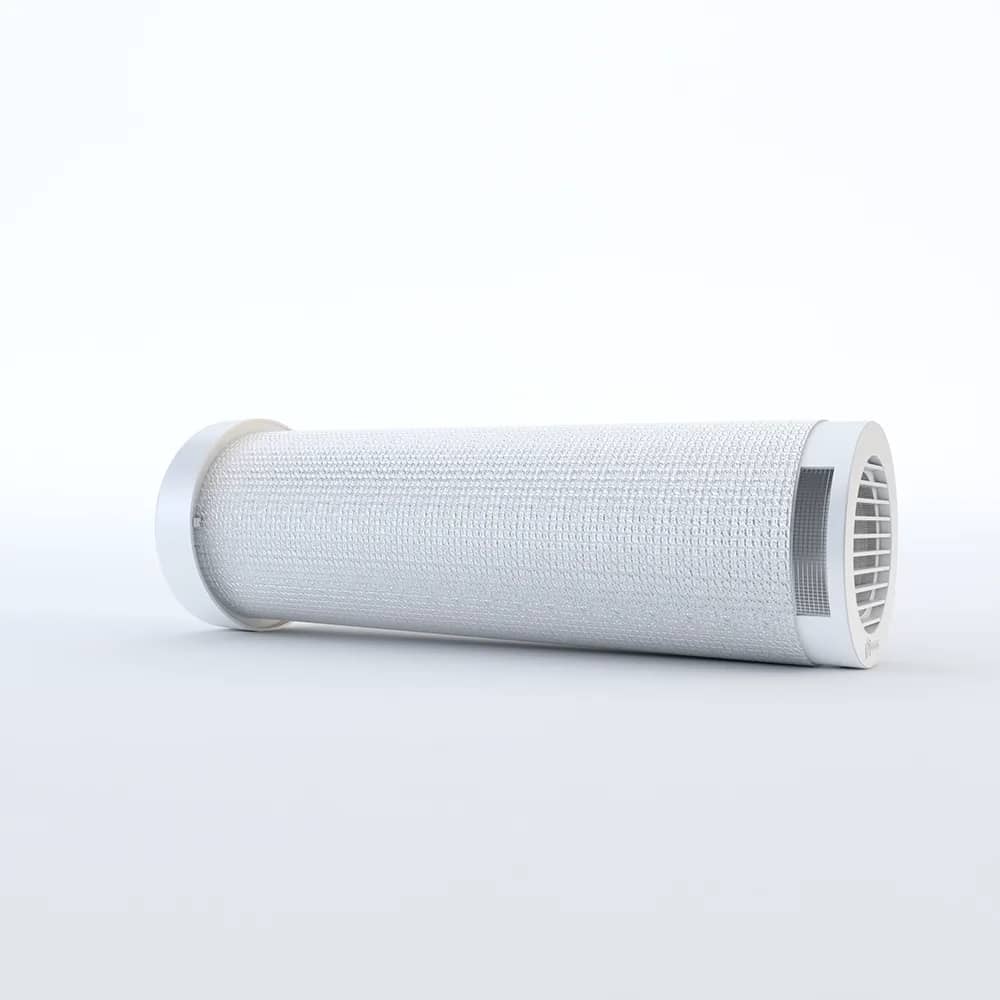

Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function — image 6
Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function — image 7
Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function — image 8
Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function — image 9

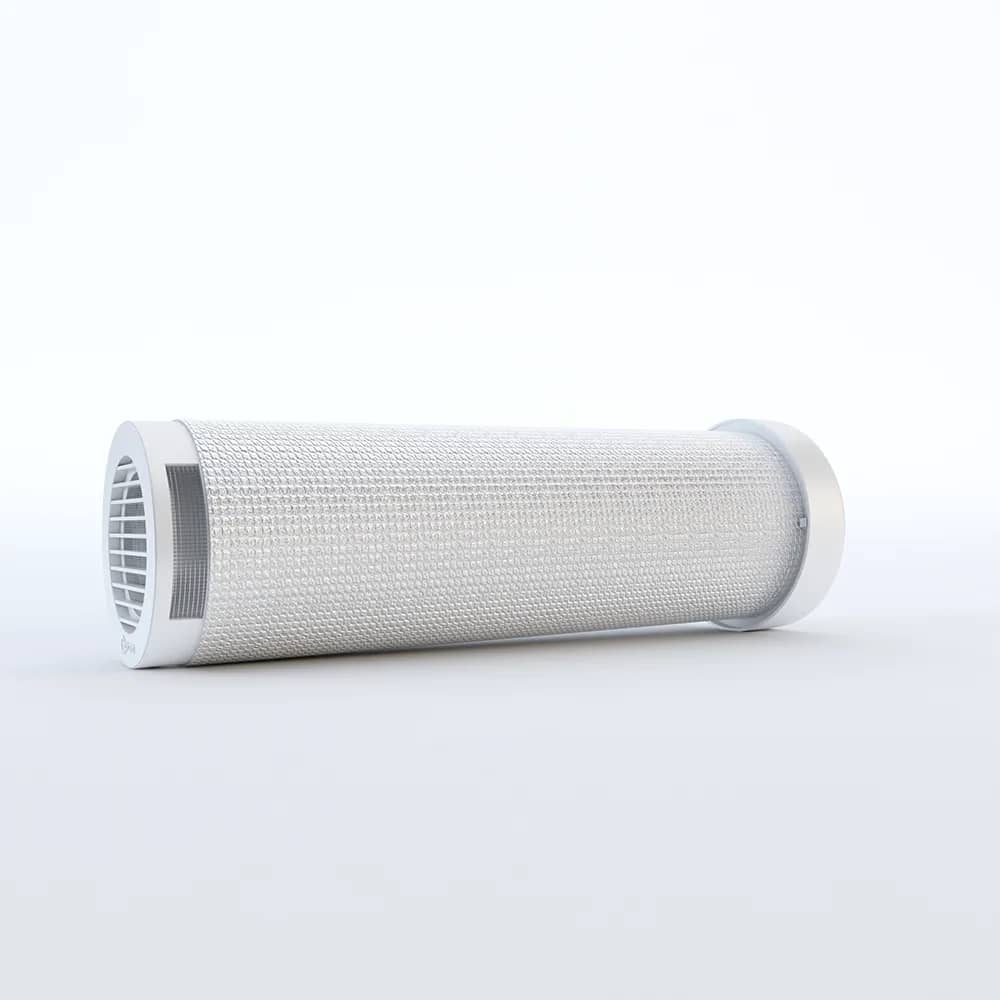

Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function — image 10

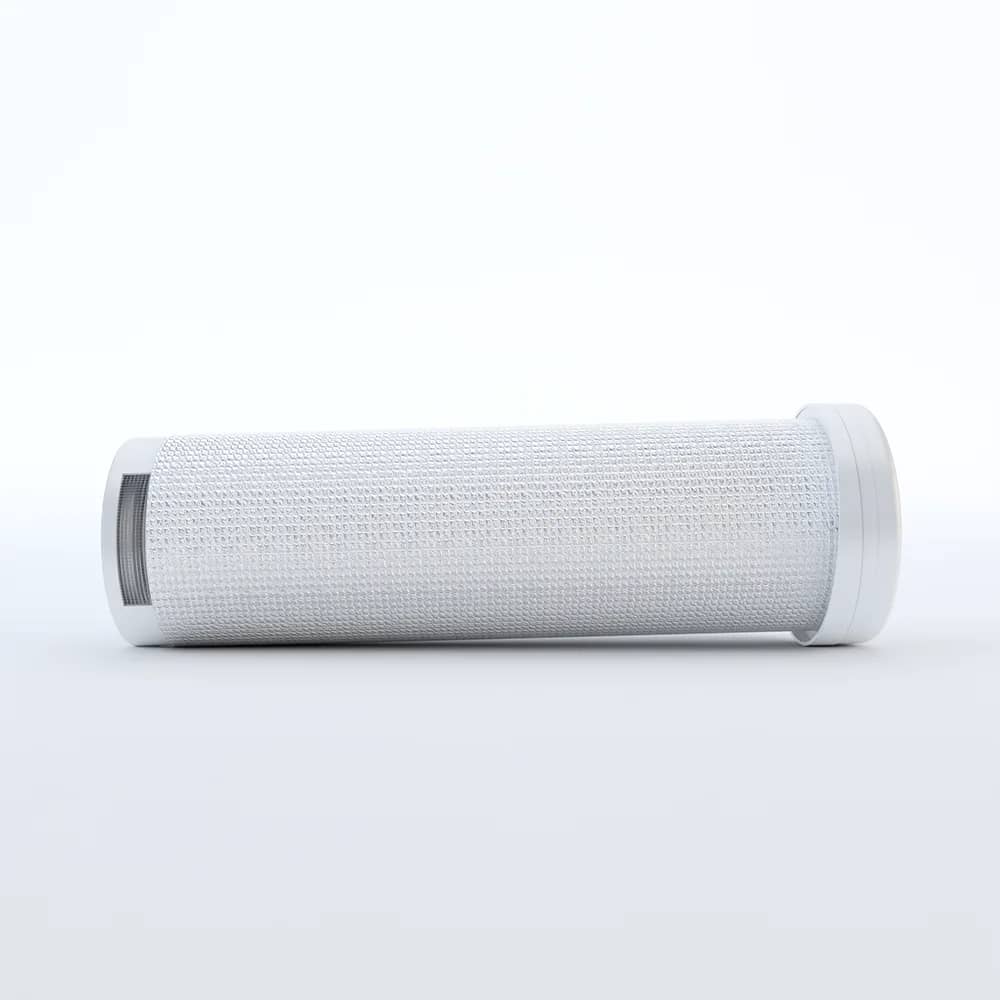

Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function — image 11

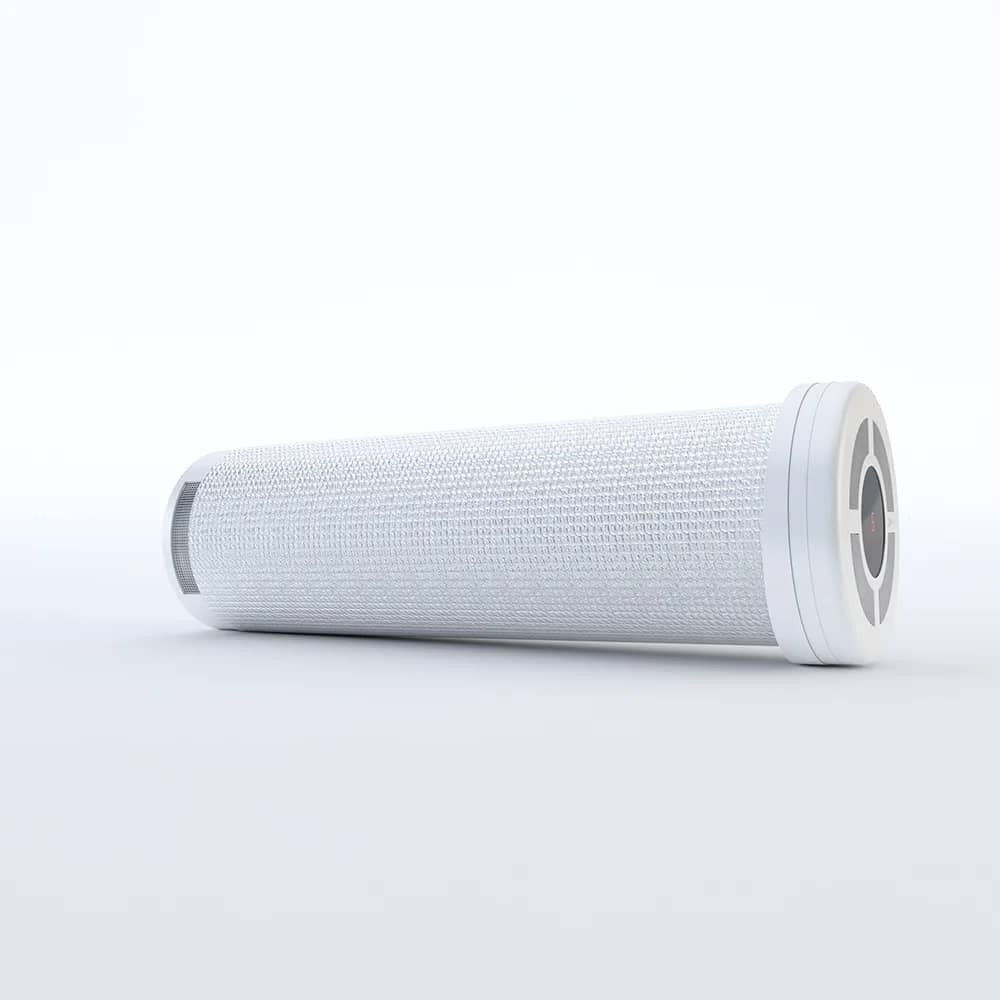

Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function — image 12

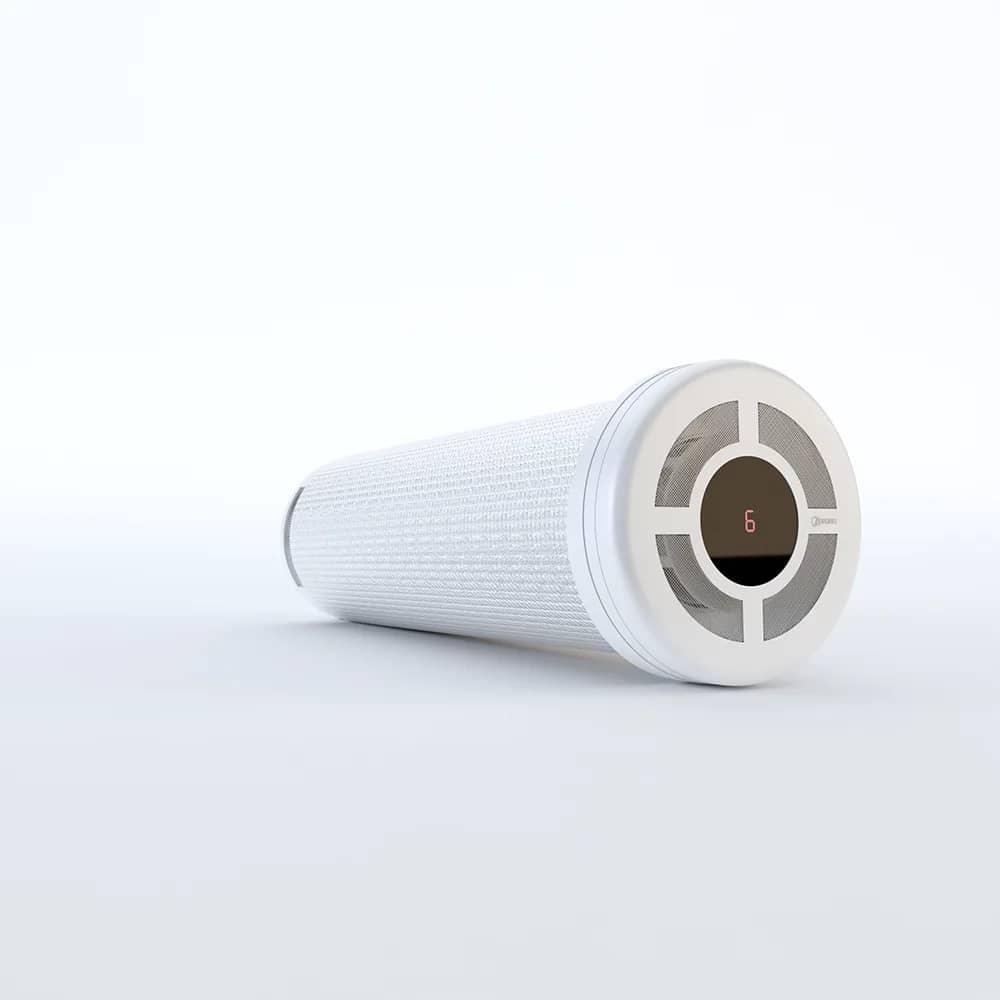

Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function — image 13
1/13
Prana

Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function

SKU: 200C490ERPPR+

AED 4,062

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Dual-flow heat recovery ventilation with copper heat exchanger, G3 filters and remote or app control of airflow for fresh, energy-efficient indoor air.

Product details

The Prana 200C ERP Premium Plus heat recovery unit is a dual-flow ventilation system (air supply and extraction take place simultaneously, without the airflows mixing).
The system removes indoor air contaminated with dust microparticles and smoke, and supplies fresh, clean air from outside. The incoming and outgoing airflows pass through separate channels and never mix.

During ventilation, heat is transferred through the copper heat exchanger, which ensures the system's energy efficiency in every season.

The Prana system now also includes G3 filters that clean the air of plant pollen and spores, allowing rooms to be supplied with fresh air with an energy efficiency coefficient of up to 93%.

The ability to control the volume of supplied and extracted air via remote control or app brings enhanced comfort to your home!

Highlights

Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function – How It Works
01

How It Works

A copper heat exchanger lets fresh outdoor air and stale indoor air pass each other at the same time, so intake and extraction work simultaneously while energy is recovered.

  • Copper heat exchanger
  • Dual flow: intake and extraction work simultaneously
  • Cool, fresh outdoor air is drawn in and enters the room pre-warmed
  • Stale room air is extracted and expelled outside
Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function – Key Benefits
02

Key Benefits

  • Easy to use: phone app and remote control
  • Advanced technology
  • Low energy consumption
  • Energy recovery
  • Simple, easy installation
  • Tested in a climate laboratory
  • CE certified
Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function – Installation Notes
03

Installation Notes

The unit is installed through the wall.

  • Mount 100-150mm from the adjacent wall/ceiling
  • Install at a downward slope of 3-5° towards the outside
Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function – Dimensions – PRANA-200C
04

Dimensions – PRANA-200C

  • Wall length: ≥ 490 mm
  • Interior cover diameter: Ø 235 mm (Ø 88 mm central section)
  • Unit diameter: Ø 210 mm
  • Exterior grille diameter: Ø 200 mm (Ø 115 mm central section)
  • Interior cover depth: 50-75 mm (L = 0-30 mm adjustment)
  • Exterior protrusion: 40 mm
  • Clearance: 15 mm
Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function – Technical Data – 200C Premium Plus
05

Technical Data – 200C Premium Plus

  • Maximum airflow: 140
  • Temperature retention coefficient: 93%
  • Energy efficiency class: A
  • Recommended area (ceiling height 2.7m): 40 m²
  • Power consumption: 3.4W - 26W
  • Diameter: 200mm
  • Mounting diameter: 212mm
  • Power supply: 220V
  • SPI: 0.12 W/m³/h
  • Noise level at 3m: 44dB
  • Mounting type: In-wall
  • Display type: Digital
  • Number of speeds: 5
  • G3 filter: Yes (2 filters)
Prana 200C ERP Premium Plus Heat Recovery Ventilation System with Pre-Heating Function – Functions & Sensors – Premium Plus
06

Functions & Sensors – Premium Plus

  • Thermal and acoustic insulation
  • Ventilation modes: Night mode and Airing
  • Sleep timer
  • Pre-heating function (55W heater)
  • Defrost function
  • Adjustable display brightness
  • Separate intake and extraction control
  • Display with pictograms
  • Remote control
  • Phone app & Wi-Fi
  • Atmospheric pressure sensor
  • Filter dirt level indicator
  • Date and time on display
  • Humidity sensor
  • AUTO function
  • Temperature sensors (4 sensors)
  • CO2 sensor
  • VOC sensor
