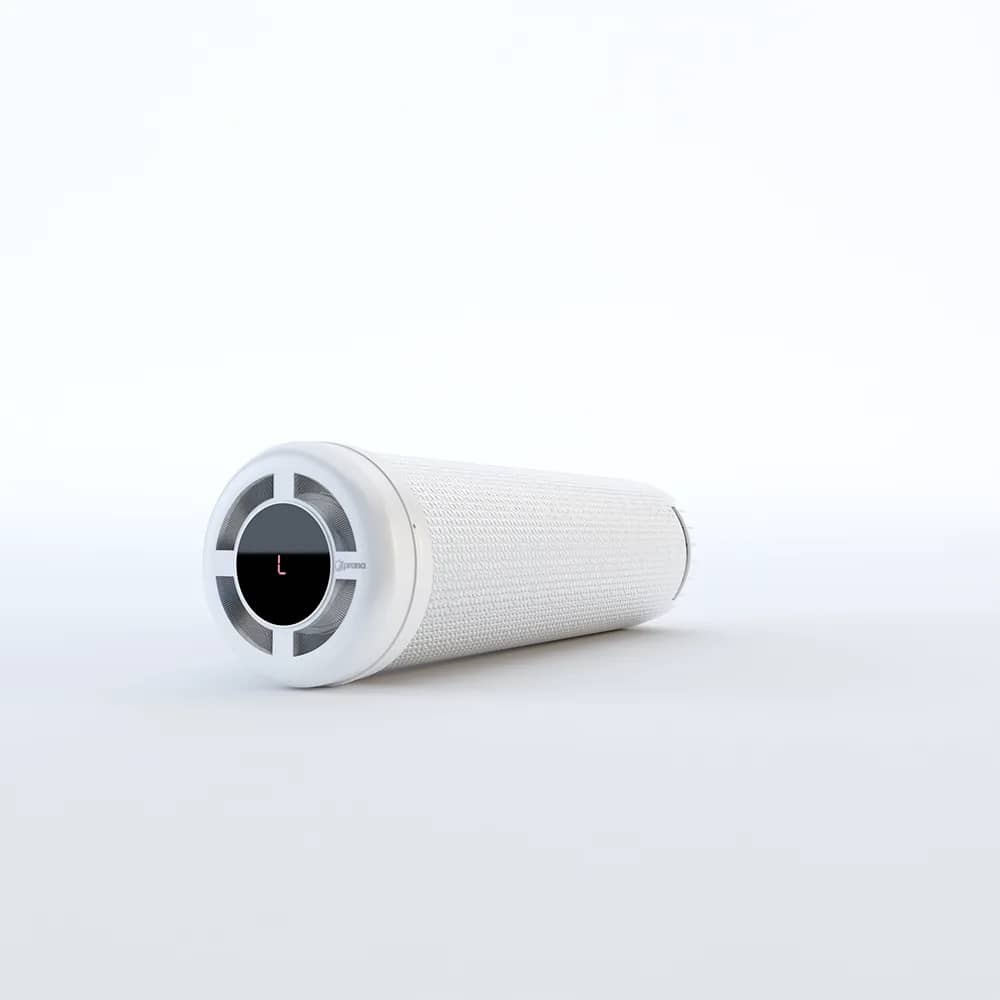

Prana 150 ERP Heat Recovery Ventilation System with Preheating Function — image 3

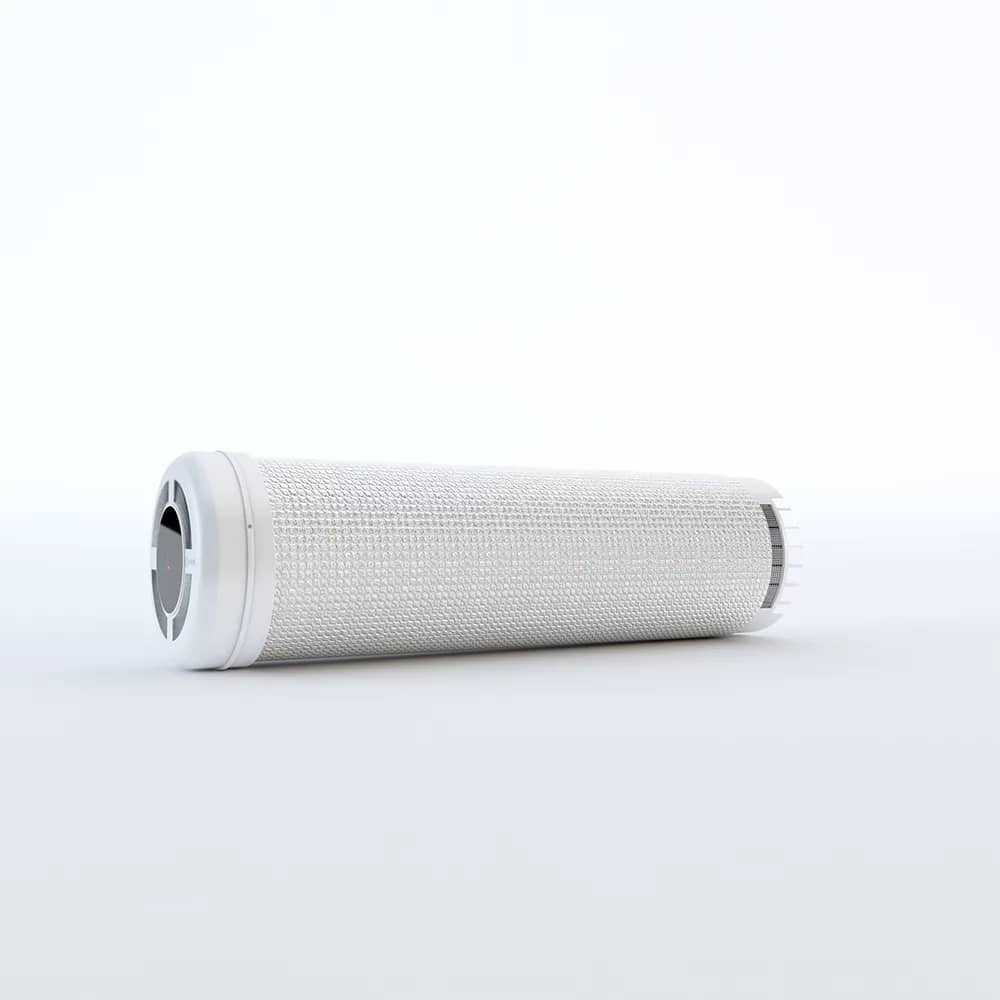

Prana 150 ERP Heat Recovery Ventilation System with Preheating Function — image 4

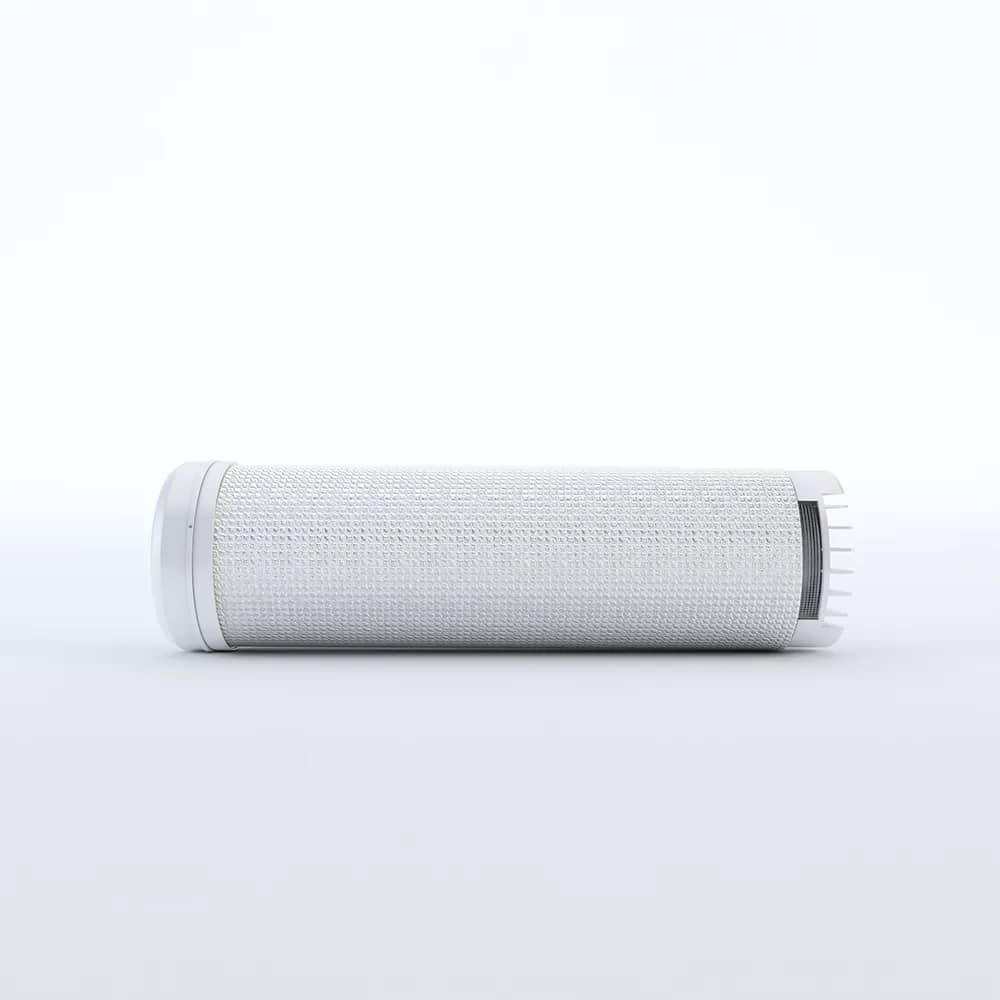

Prana 150 ERP Heat Recovery Ventilation System with Preheating Function — image 5

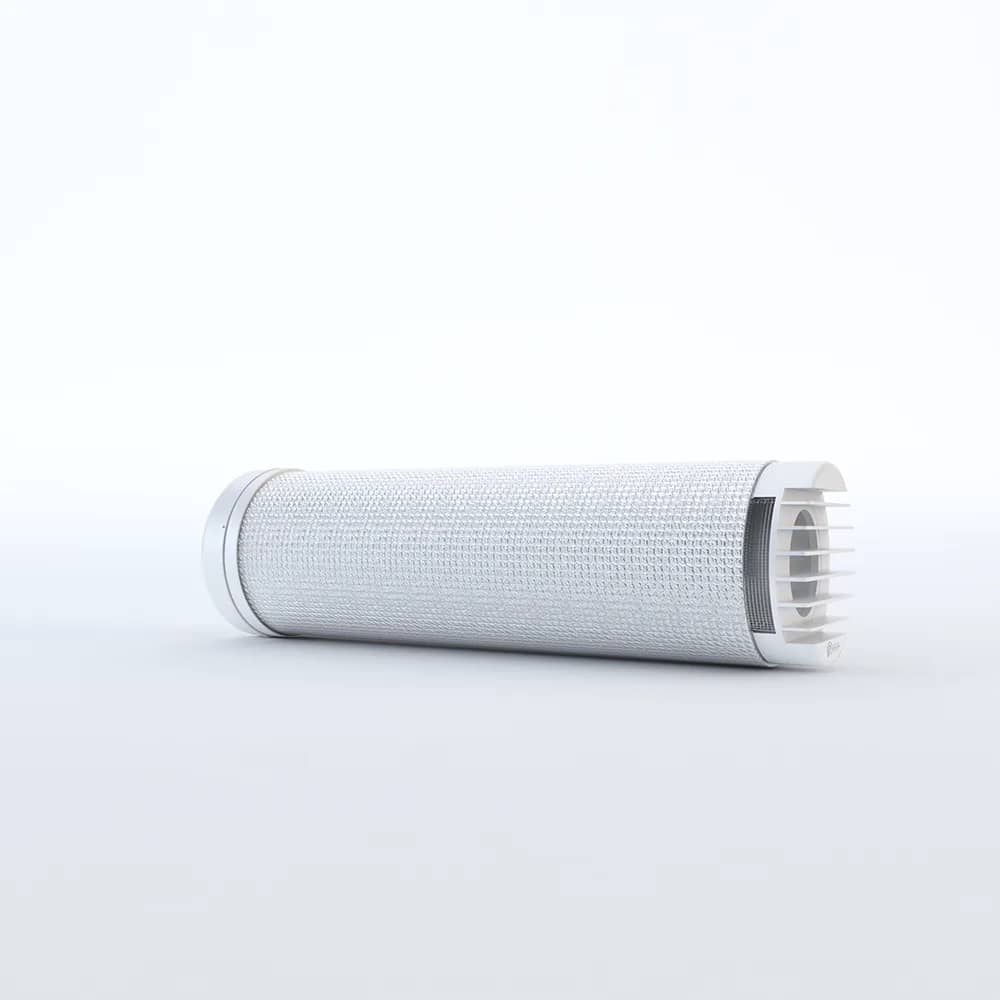

Prana 150 ERP Heat Recovery Ventilation System with Preheating Function — image 6

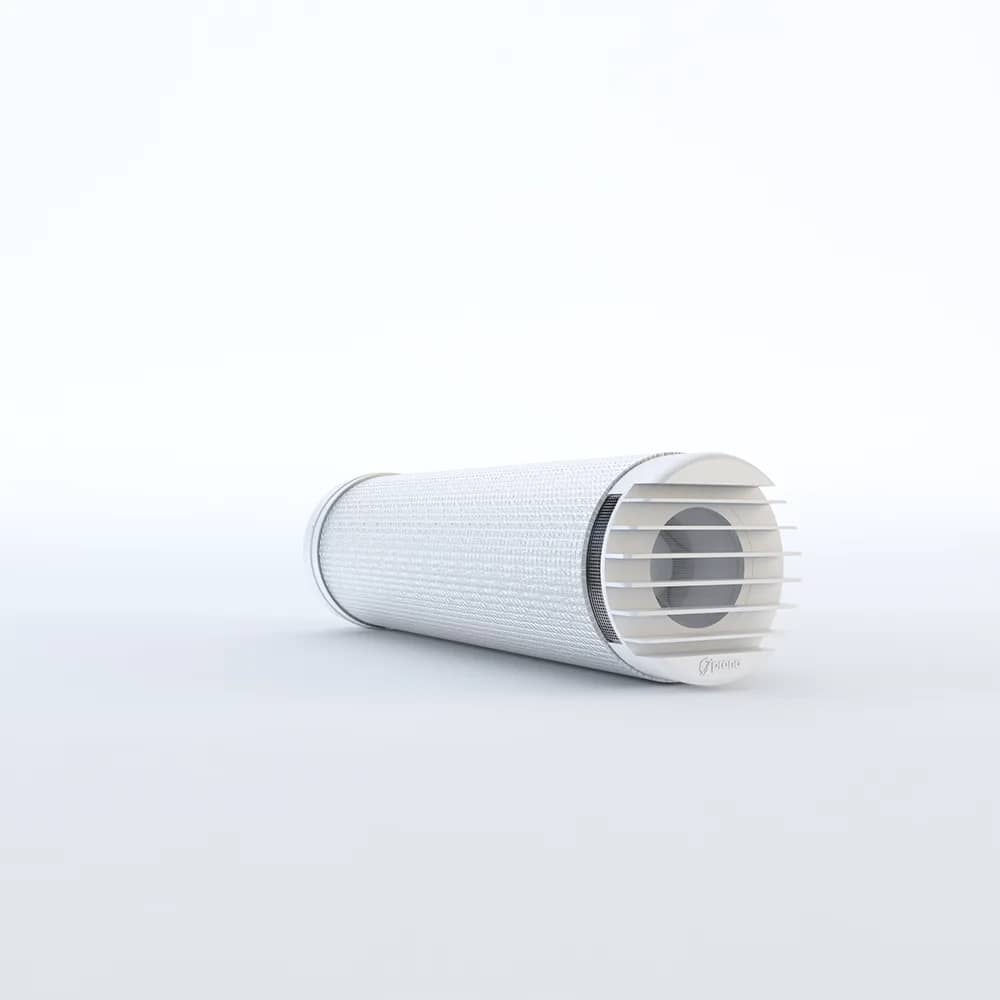

Prana 150 ERP Heat Recovery Ventilation System with Preheating Function — image 7

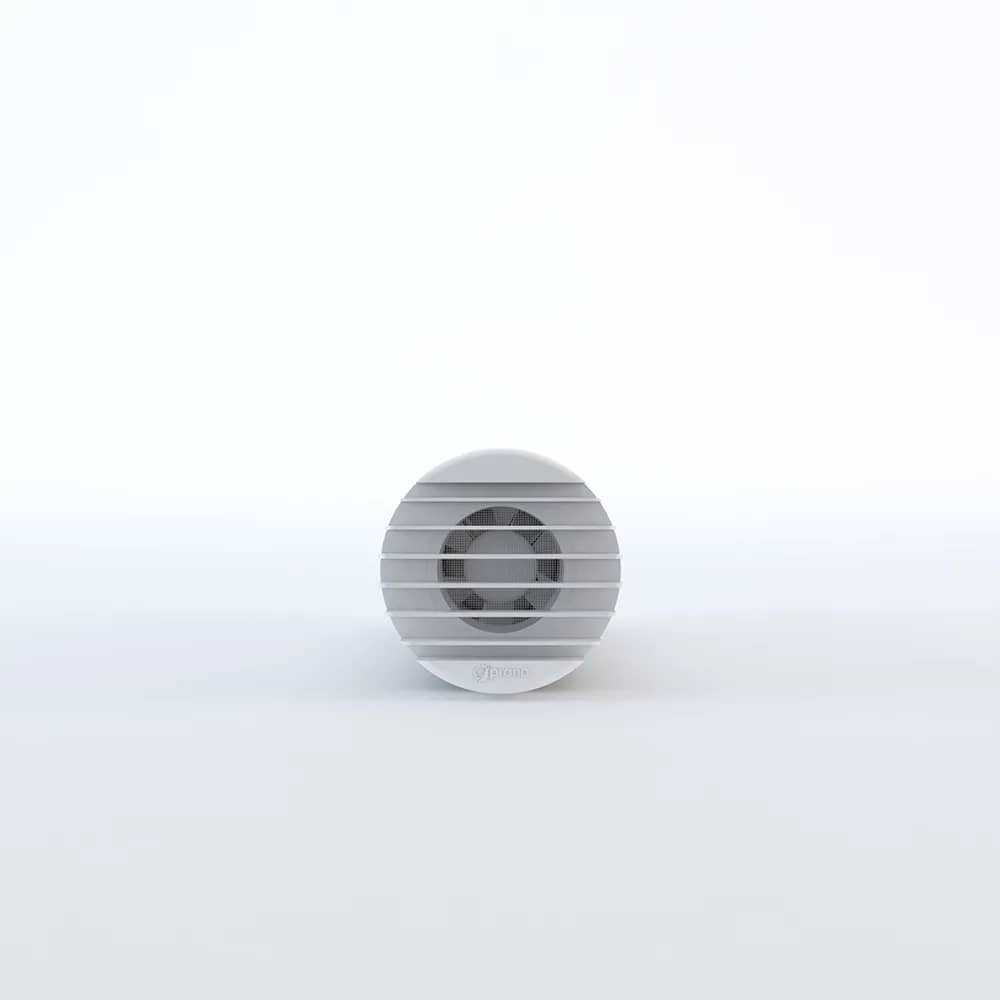

Prana 150 ERP Heat Recovery Ventilation System with Preheating Function — image 8

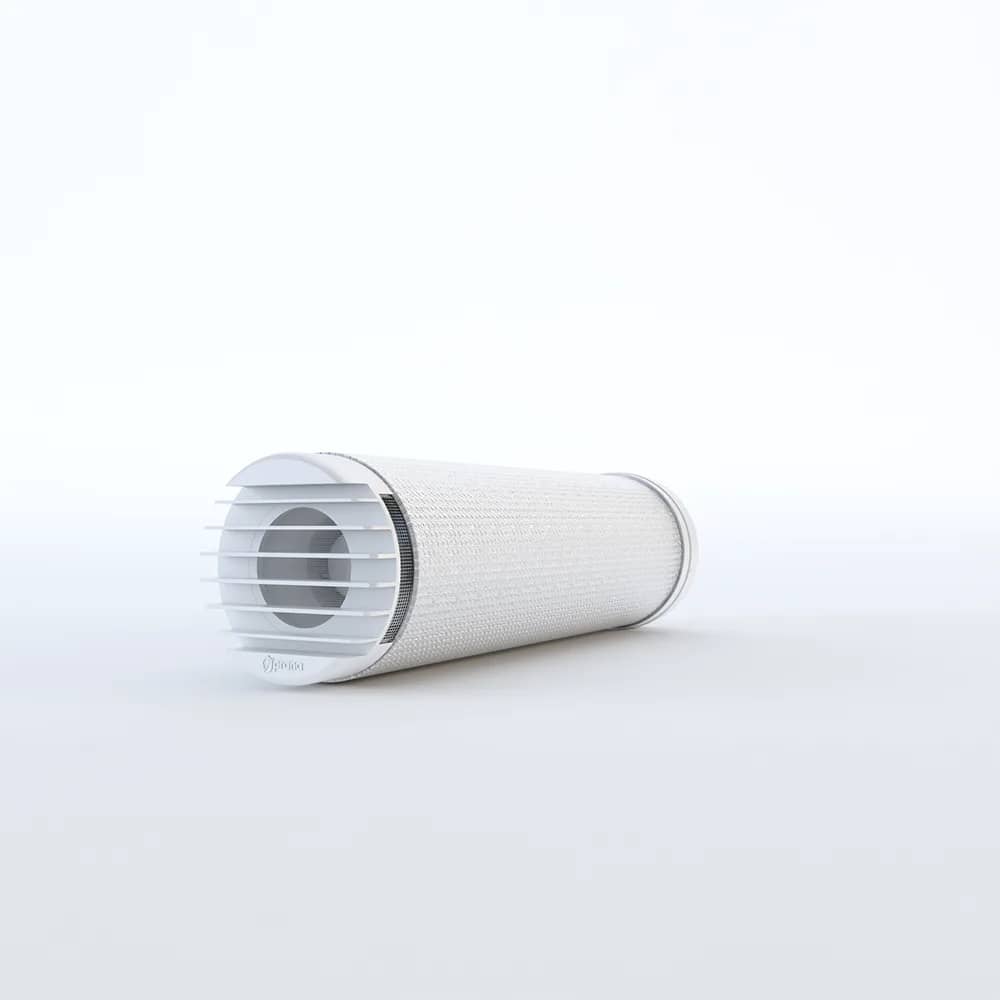

Prana 150 ERP Heat Recovery Ventilation System with Preheating Function — image 9

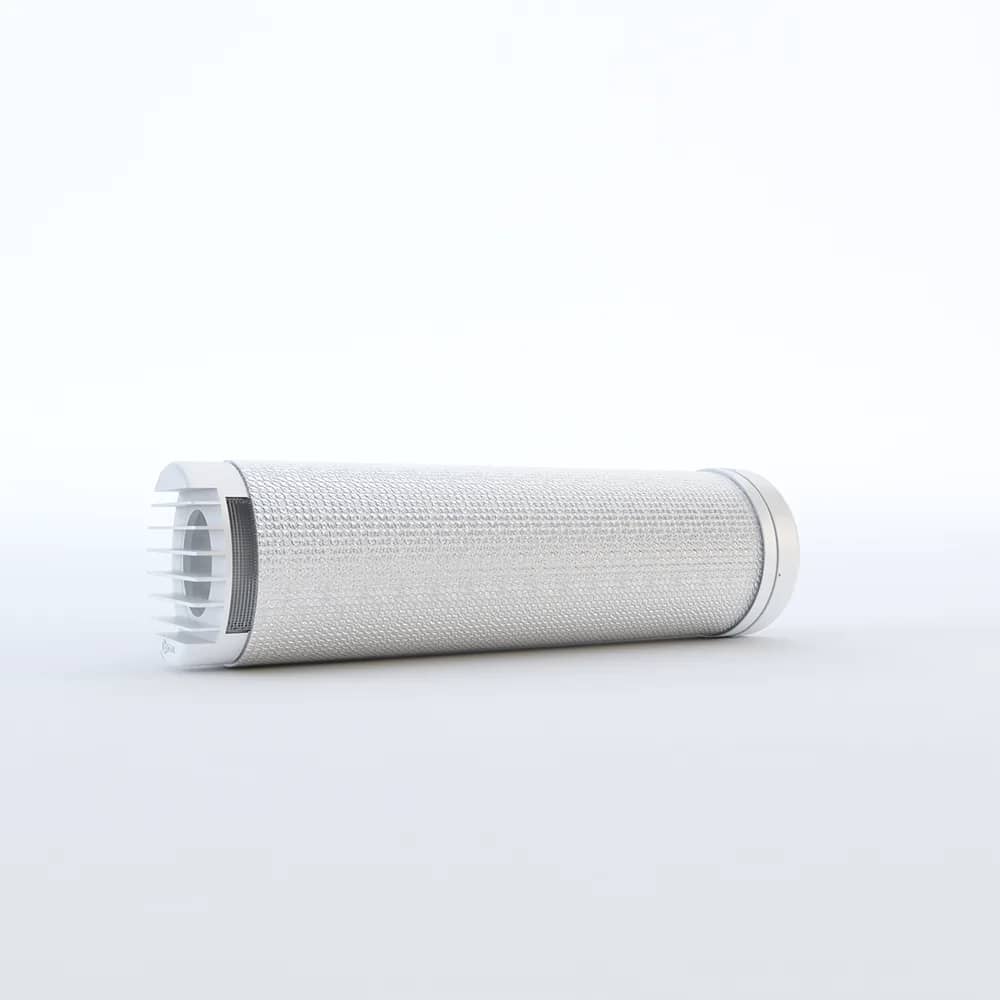

Prana 150 ERP Heat Recovery Ventilation System with Preheating Function — image 10

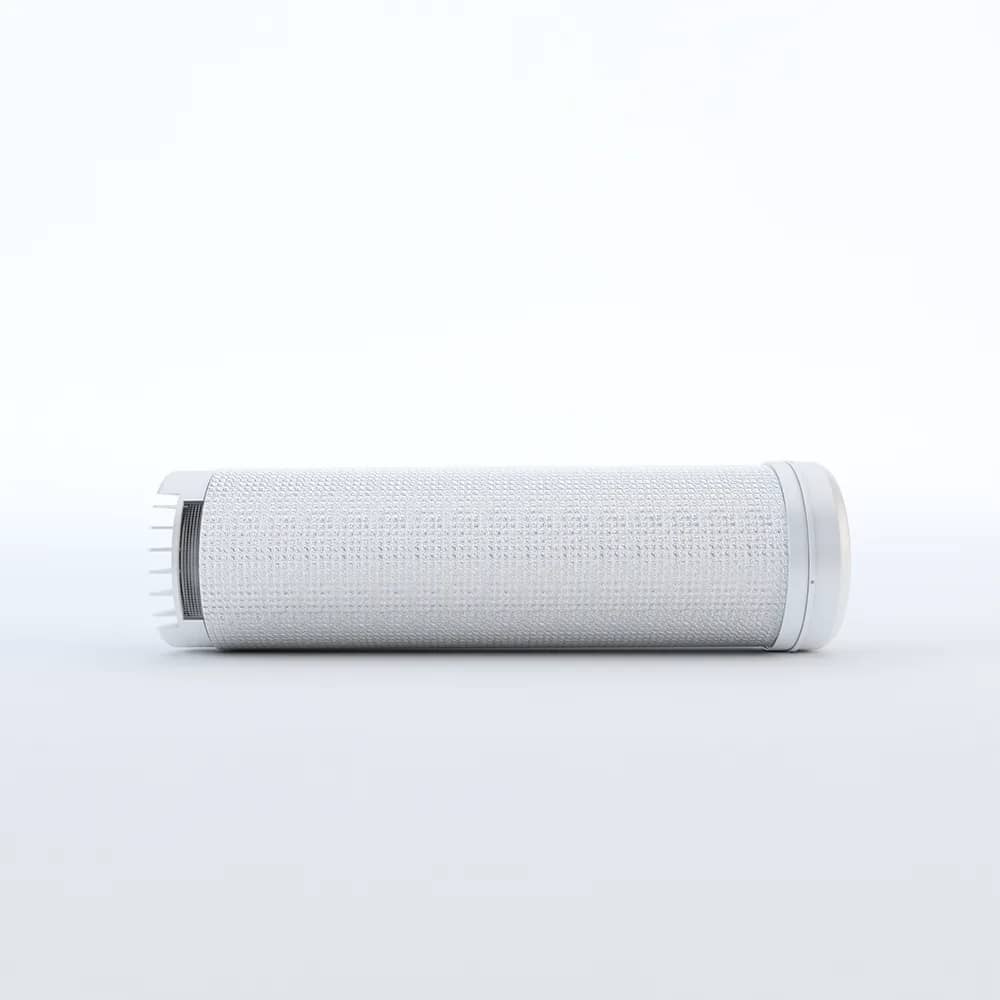

Prana 150 ERP Heat Recovery Ventilation System with Preheating Function — image 11

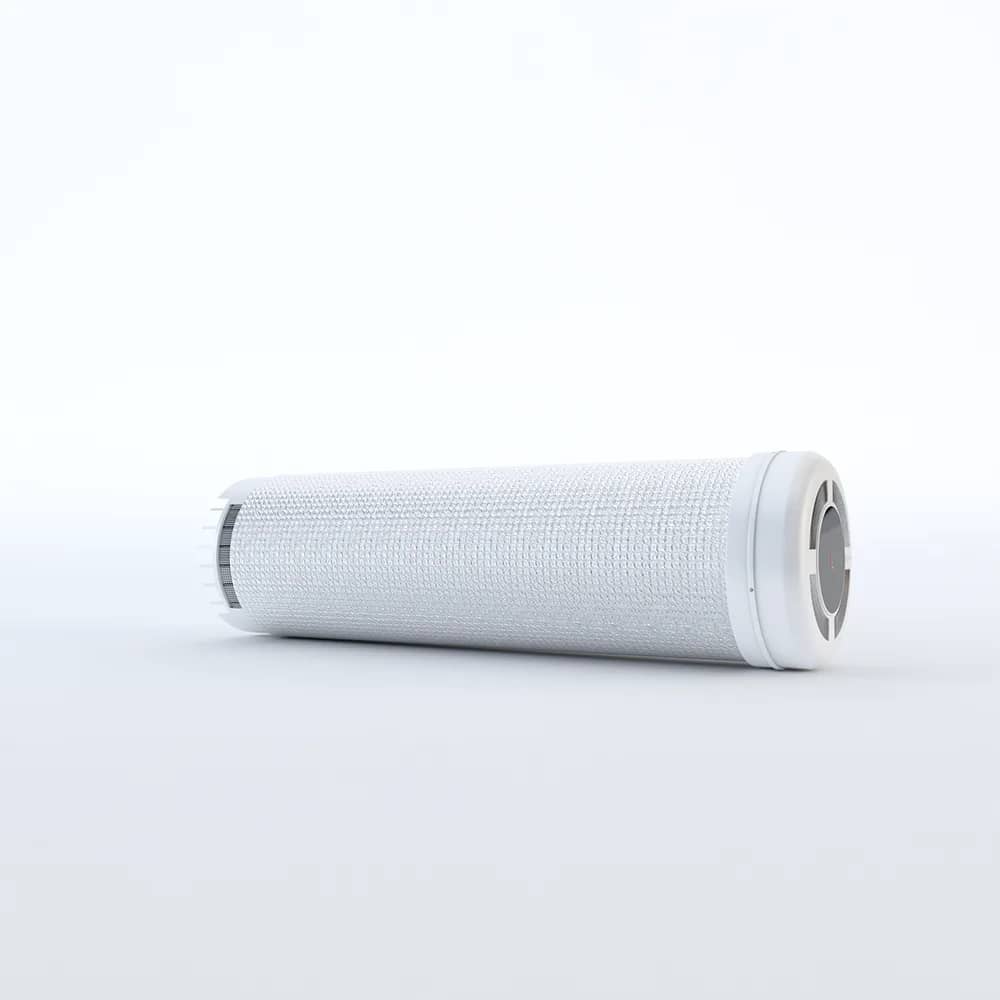

Prana 150 ERP Heat Recovery Ventilation System with Preheating Function — image 12

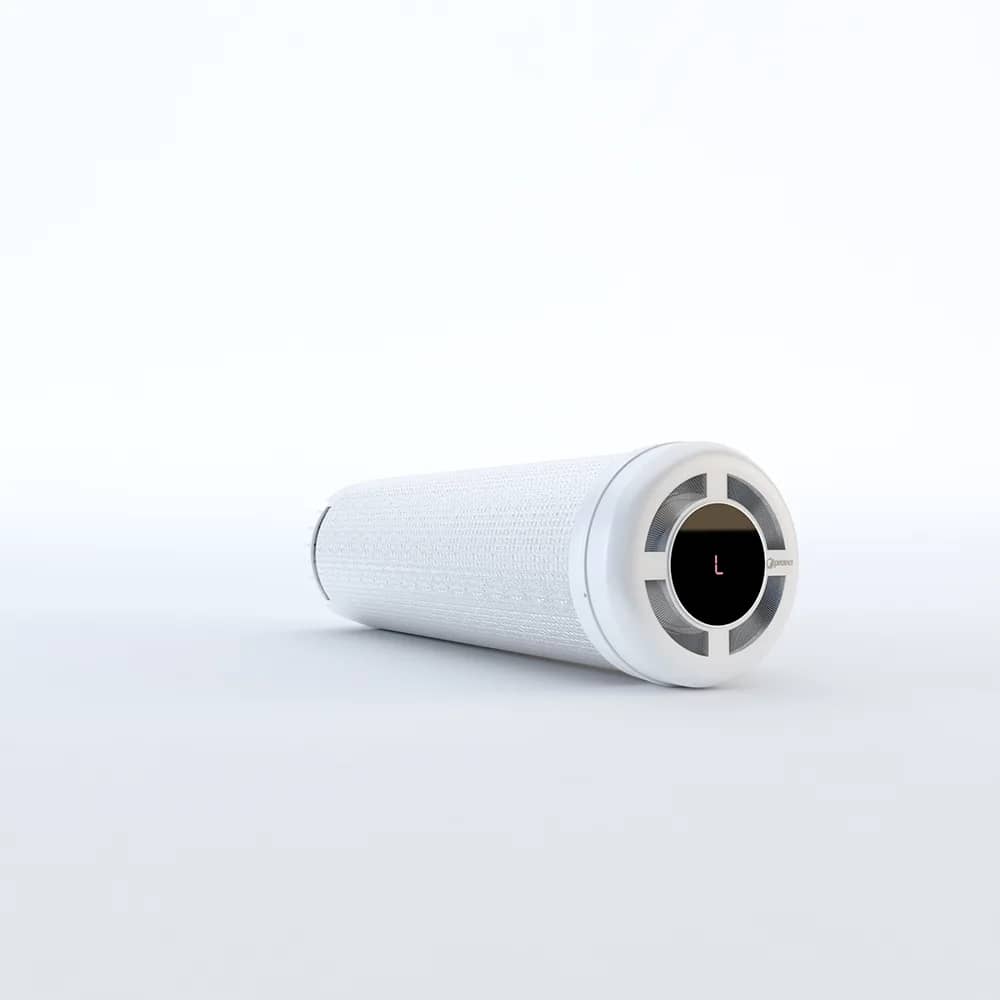

Prana 150 ERP Heat Recovery Ventilation System with Preheating Function — image 13
1/13
Prana

Prana 150 ERP Heat Recovery Ventilation System with Preheating Function

SKU: 150L450ERPST

AED 2,369

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Dual-flow heat recovery ventilator with copper heat exchanger, G3 filters and app control of supply and extract airflow.

Product details

The Prana 150 ERP heat recovery unit is a dual-flow ventilation system (air is supplied and extracted simultaneously, without the airflows mixing).
The system removes indoor air contaminated with fine dust particles and smoke, and brings in fresh, clean air from outside. The supply and extract airflows pass through separate channels and never mix.

During ventilation, heat is transferred through the copper heat exchanger, which ensures the system's energy efficiency in every season.

The Prana system now also includes G3 filters that clean the air of plant pollen and spores, supplying rooms with fresh air at an energy quality coefficient of up to 97%.

The ability to control the volume of supplied and extracted air from the app brings greater comfort to your home!

Highlights

Prana 150 ERP Heat Recovery Ventilation System with Preheating Function – How It Works
01

How It Works

Fresh, cold outdoor air and stale indoor air pass through a copper heat exchanger in opposite directions. Intake and extraction run simultaneously, so incoming air is pre-warmed before it enters the room.

  • Copper heat exchanger
  • Dual flow: intake and extraction work simultaneously
  • Stale room air is extracted outside
  • Pre-warmed fresh air is supplied into the room
  • Recovers energy
Prana 150 ERP Heat Recovery Ventilation System with Preheating Function – Key Features
02

Key Features

  • Easy to use: phone app and remote control
  • Advanced technology with digital display
  • Low energy consumption
  • Simple, easy installation
  • Tested in a climate laboratory
  • CE certified
Prana 150 ERP Heat Recovery Ventilation System with Preheating Function – Installation Guidelines
03

Installation Guidelines

The unit is installed through the wall with a slight outward slope.

  • Inclination angle: 3-5°
  • Indoor unit position: 100-150 mm from the adjacent wall
  • Installation type: in-wall
Prana 150 ERP Heat Recovery Ventilation System with Preheating Function – PRANA-150 Dimensions
04

PRANA-150 Dimensions

Two installation length versions are shown in the drawings.

  • Indoor panel diameter: Ø 175 mm (inner Ø 88 mm)
  • Unit body diameter: Ø 160 mm
  • Outdoor grille diameter: Ø 150 mm (inner Ø 95 mm)
  • Wall length version 1: ≥ 475 mm
  • Wall length version 2: ≥ 535 mm (500 mm + 35 mm)
  • Indoor section: 50-75 mm, L = 0-25 mm
  • Outdoor section: 40 mm
Prana 150 ERP Heat Recovery Ventilation System with Preheating Function – Technical Data (150 / 200G / 200C)
05

Technical Data (150 / 200G / 200C)

Values are listed in the order 150 / 200G / 200C and are identical for Standard, Premium and Premium Plus versions.

  • Maximum airflow: 70 / 85 / 140
  • Temperature retention coefficient: 95% / 96% / 93%
  • Energy efficiency class: A
  • Recommended area (H = 2.7 m): 25 m² / 30 m² / 40 m²
  • Power consumption: 2.3W - 12W / 2.3W - 12W / 3.4W - 26W
  • Diameter: 150mm / 200mm / 200mm
  • Mounting diameter: 162mm / 212mm / 212mm
  • SPI: 0.17 W/m3/h / 0.13 W/m3/h / 0.12 W/m3/h
  • Noise level at 3 m: 36dB / 38dB / 44dB
  • Power supply: 220V
  • Display: digital
  • Number of speeds: 5
Prana 150 ERP Heat Recovery Ventilation System with Preheating Function – Functions (All Versions)
06

Functions (All Versions)

  • Dual flow (simultaneous intake/extraction)
  • Thermal and acoustic insulation
  • Night mode ventilation
  • Airing (purge) ventilation
  • Sleep timer
  • Preheating (55W heating element)
  • Defrost function
  • Adjustable display brightness
  • Separate intake and extraction adjustment
  • Display with pictograms
  • G3 filter
  • Remote control
  • Phone app & Wi-Fi
Prana 150 ERP Heat Recovery Ventilation System with Preheating Function – Standard vs Premium vs Premium Plus
07

Standard vs Premium vs Premium Plus

Additional features available on the higher versions.

  • G3 filters: Standard 1, Premium 2, Premium Plus 2
  • Atmospheric pressure sensor: Premium and Premium Plus
  • Filter clogging indicator: Premium and Premium Plus
  • Date and time on display: Premium and Premium Plus
  • Humidity sensor: Premium and Premium Plus
  • AUTO function: Premium and Premium Plus
  • Temperature sensors: Premium 2, Premium Plus 4
  • CO2 sensor: Premium Plus only
  • VOC sensor: Premium Plus only
