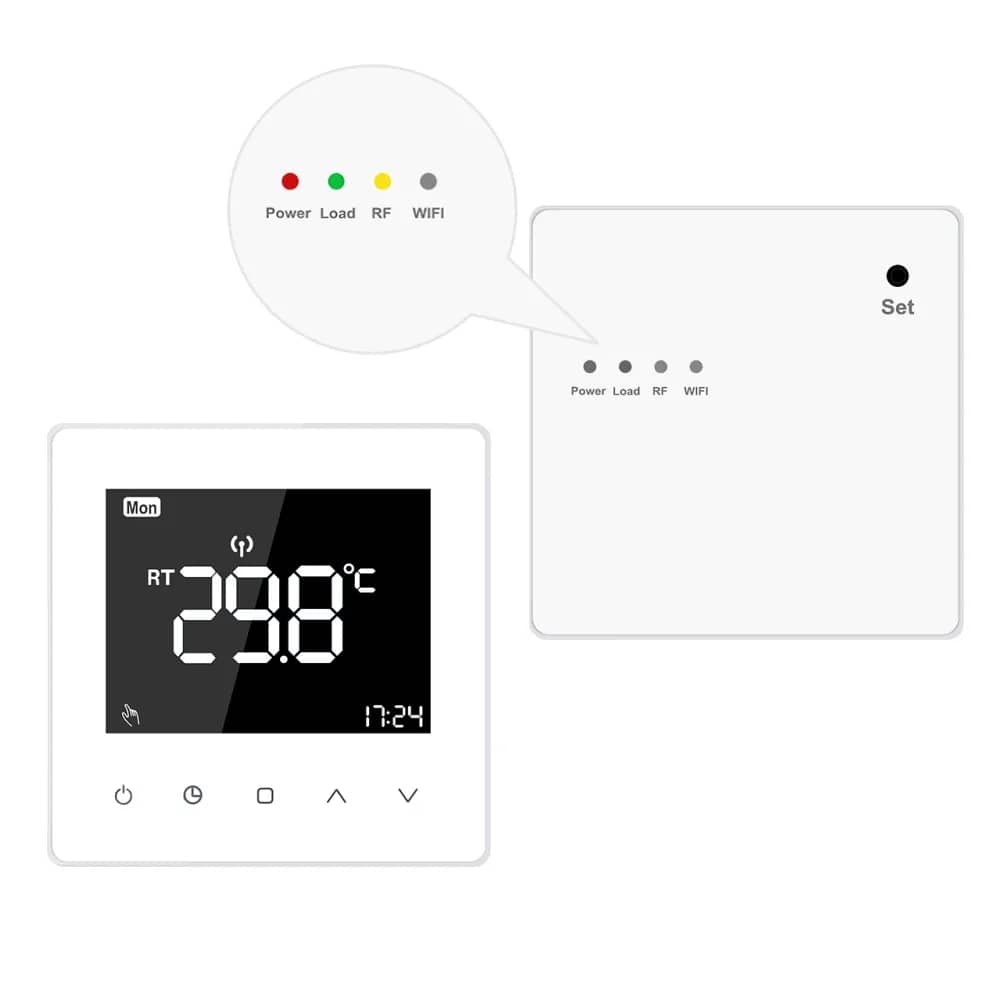

Luxion TP618RF Wireless Thermostat with Receiver
A wireless thermostat with receiver, designed for gas or electric boilers.
Luxion
Luxion TP618RF Wireless Thermostat with Receiver for Gas or Electric Boilers – LCD Display, Memory Function
SKU: TP618RF
AED 178
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion TP618RF wireless RF thermostat with receiver for gas or electric boilers, featuring touch buttons, LCD display, weekly programming and memory.
Product details
The Luxion TP618RF wireless thermostat works with gas or electric boilers. It features RF connectivity, touch buttons, an LCD display, weekly programming, a memory function and frost protection. From the menu, you can set the thermostat's operating periods to suit your daily routine, both during the week and at the weekend.
Highlights
02

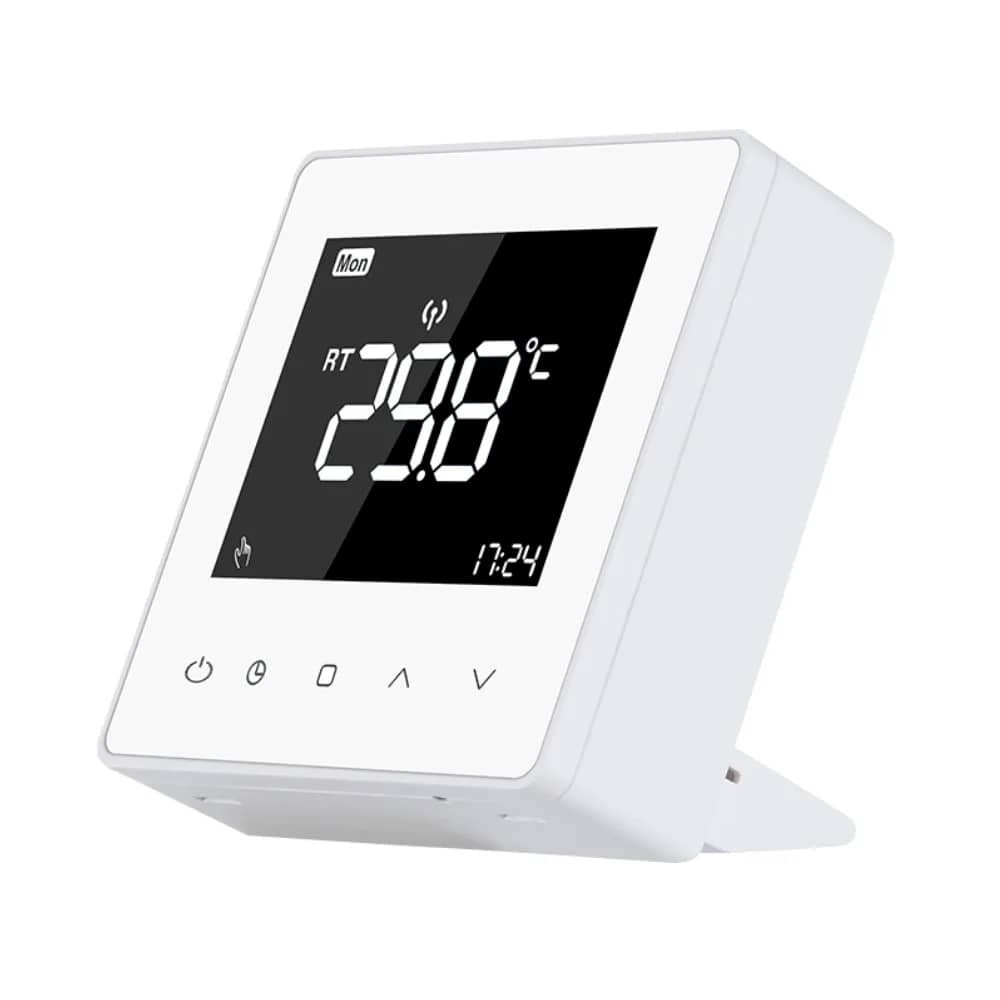

LCD Display
The thermostat features a large black backlit LCD screen with touch buttons and weekly programming functions.
- Powered by 2 AA batteries
- Optimised for low power consumption
- Screen enters stand-by mode after approx. 13 seconds
03
Thermostat Lock Function
Lock the thermostat so your children cannot tamper with it.
- Press the ∧ and ∨ buttons for 7 seconds to lock/unlock the thermostat
04
Make Your Home More Comfortable
Set the thermostat's operating intervals to suit your daily routine. Enter the device menu and choose operating hours for weekdays and the weekend, with 6 time intervals per day.
05
Frost Protection
The anti-freeze system constantly monitors the room temperature. When it drops below 10°C, the thermostat automatically starts the heating system to prevent the water in the heating system from freezing.
06
Thermostat Display
- Battery level
- RF
- Thermostat lock
- Days
- Room temperature (RT)
- Set temperature (SET)
- Floor temperature (FLOOR)
- ECO mode
- Manual mode
- Schedules
- Settings
- Programmed period
- Time
- Buttons: ON/OFF, Time, Menu, Up, Down
07

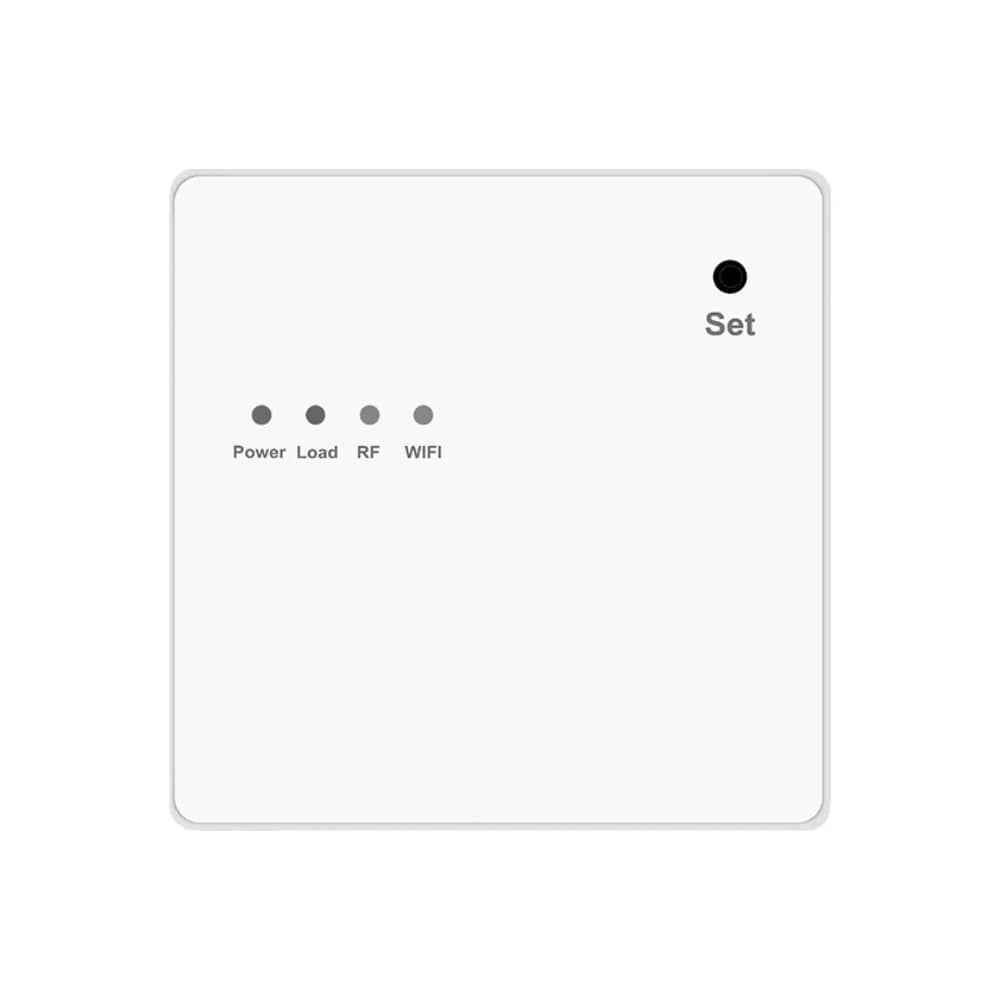

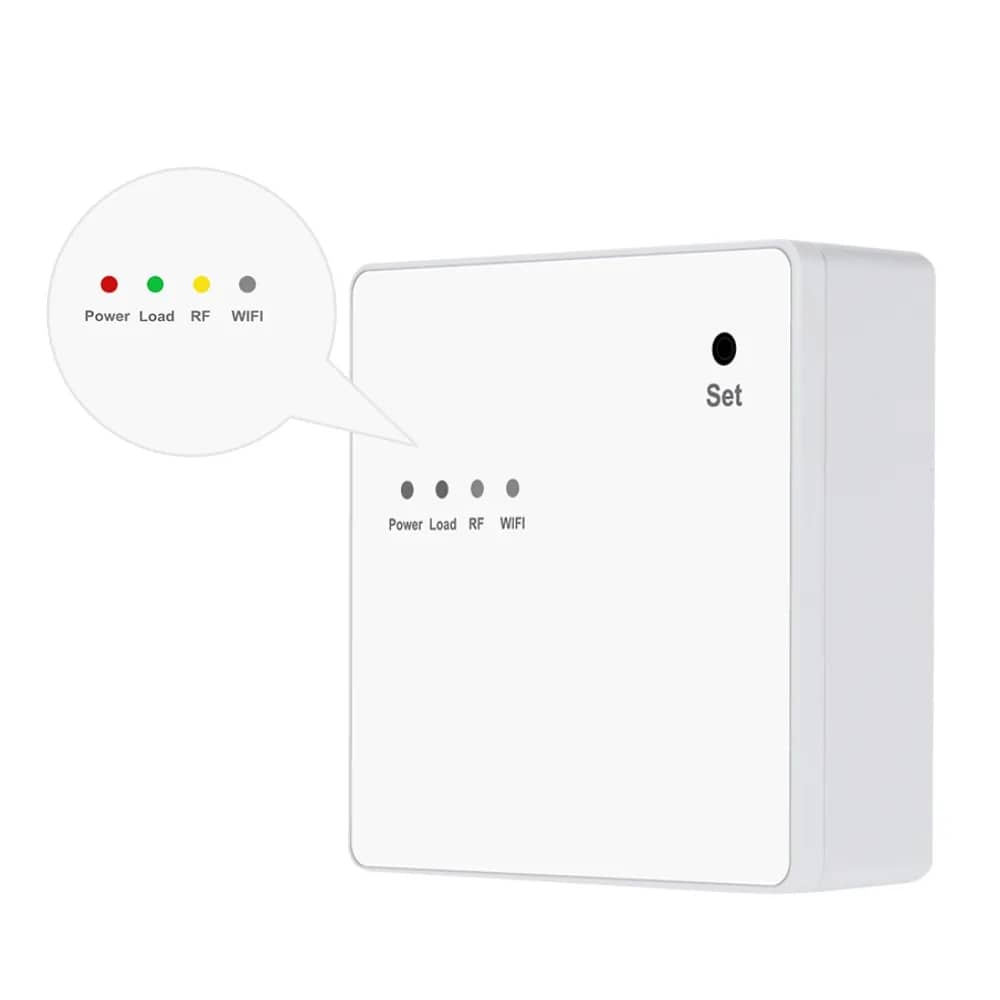

Receiver
- Setting button (Set)
- LED indicators: Power, Load, RF, WIFI
08
Wiring Diagram
The receiver connects to water heating or boiler circuits via its NC, NO and COM relay terminals.
- NO: Normally Open
- COM: Common
- NC: Normally Closed
- Relay rating: 220VAC 3A
- Power supply terminals: AC220V-N, AC220V-L
- Thermostat power: 2 AA batteries
09
Installation
- Step 1: Open the receiver's front cover by gently inserting the tip of a screwdriver
- Step 2: Mount the receiver using the two screws and connect the wires according to the wiring diagram

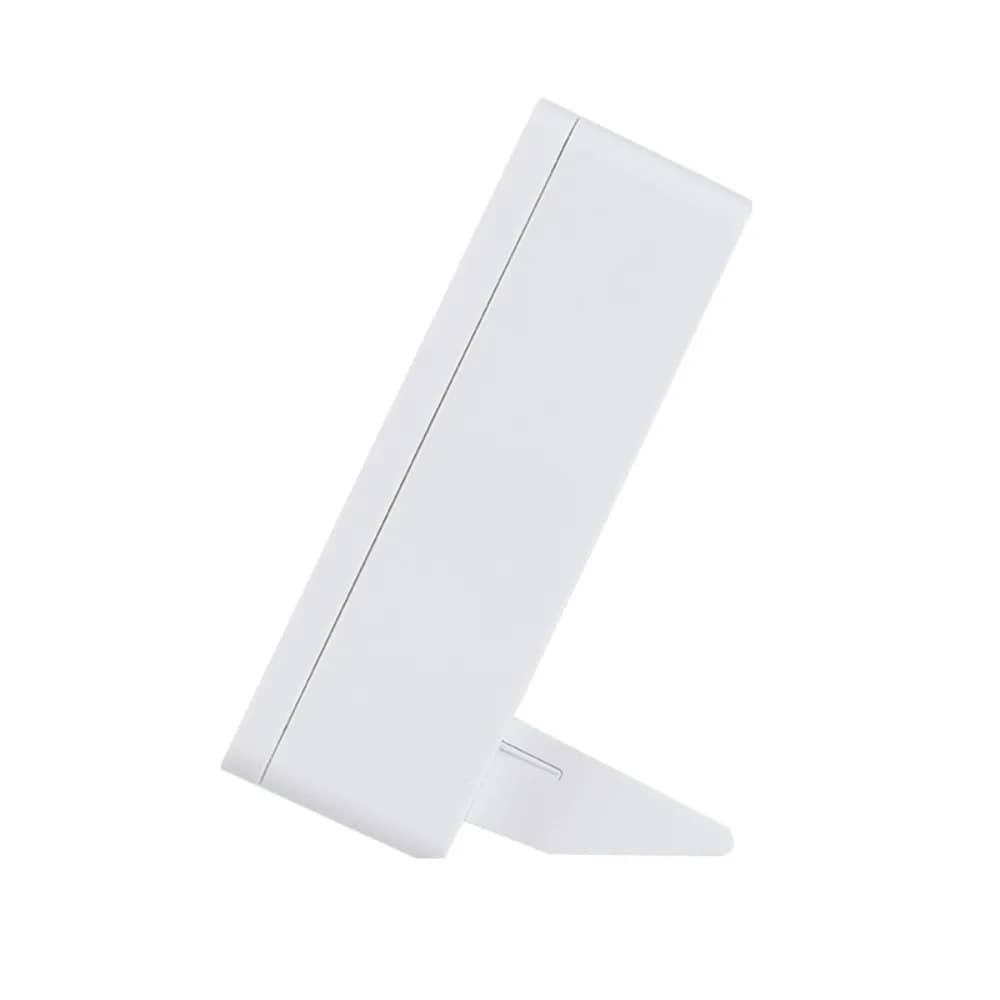

- Step 3: Place the thermostat on a desk or mount it on the wall
