Luxion TP608RF Wireless Thermostat with Receiver
A wireless thermostat with receiver for gas or electric boilers.
Luxion
Luxion TP608RF Wireless Thermostat with Receiver for Gas or Electric Boilers – Programmable, Anti-Freeze
SKU: TP608RF
AED 174
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion TP608RF wireless RF thermostat with receiver for gas or electric boilers, featuring touch buttons, LCD screen and weekly programming.
Product details
The Luxion TP608RF wireless thermostat works with gas or electric boilers. It features RF connectivity, touch buttons, an LCD screen and weekly programming. From the menu, you can set the thermostat's operating intervals to match your daily routine, both during the week and at the weekend.
Highlights
02
LCD Display
The thermostat features a large white backlit LCD screen with touch buttons and weekly programming functions. It is powered by 2 AA batteries and optimised for low consumption, so the screen switches to stand-by mode after approx. 3 seconds.
- Large white backlit LCD
- Touch buttons
- Weekly programming
- Powered by 2 AA batteries
- Screen enters stand-by after approx. 3 seconds
03
Thermostat Lock Function
Lock the thermostat so your children cannot tamper with it.
- Press the up and down buttons for 7 seconds to lock/unlock the thermostat
04
Make Your Home More Comfortable
Set the thermostat's operating periods to match your daily routine. Enter the device menu and choose operating hours for weekdays and the weekend, with 6 time periods per day.
05
Frost Protection
The anti-freeze system constantly monitors the room temperature. When it drops below 10°C, the thermostat automatically switches on the heating to prevent the water in the heating system from freezing.
06
Thermostat Display
- Battery level
- RF signal
- Thermostat lock
- Days of the week
- Room temperature (RT)
- Set temperature (SET)
- Floor temperature (FLOOR)
- ECO mode
- Manual mode
- Programmes
- Settings
- Programmed period
- Time
- Buttons: ON/OFF, Time, Menu, Up, Down
07

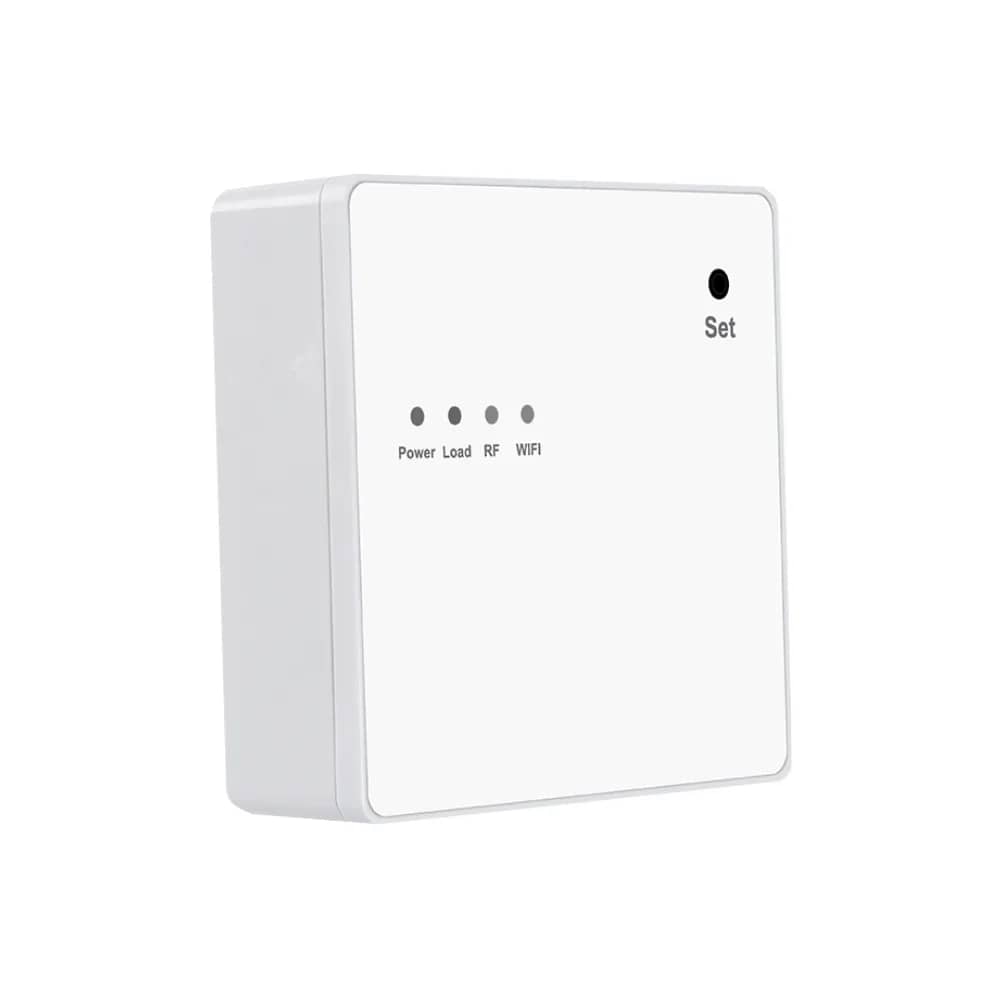

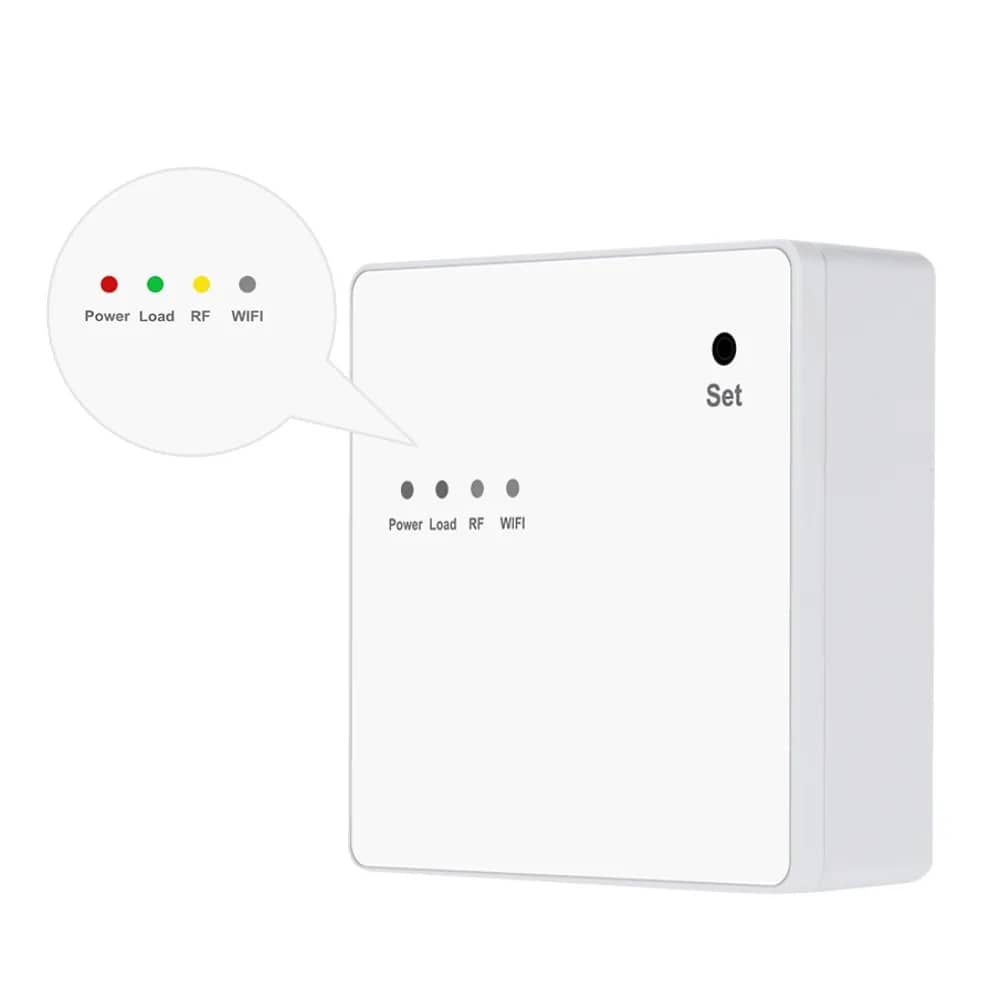

Receiver
- Set button
- LED indicators: Power, Load, RF, WIFI
08
Wiring Diagram
The receiver can be wired for water heating or a boiler; the thermostat runs on 2 AA batteries.
- NO: Normally Open
- COM: Common
- NC: Normally Closed
- Relay contact: 220VAC 3A
- Power supply: AC220V (L, N)
- Water heating: load connected via NC/NO/COM to AC220V
- Boiler: connected to NO and COM
09
Installation
- Step 1: Open the receiver's front cover by gently inserting the tip of a screwdriver.
- Step 2: Mount the receiver using the two screws and connect the wires according to the wiring diagram.
- Step 3: Place the thermostat on a desk or on the wall.
