Luxion

Luxion Glass Touch Light Switch Kit – 1 Gang RF433 Switch + 1 Channel RF433 Remote Control

SKU: LXD-MT-R101/WL1G-W

AED 140

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion 1 gang RF433 glass touch light switch with 1 channel RF433 remote control – compact, elegant and minimalist, in White.

Product details

The Luxion range of light switches stands out for its compact, elegant and minimalist design. The switches are versatile, and the touch sensor is highly precise, just like that of a smartphone. The construction is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.

The 1 gang light switch can be controlled with the RF433 remote control, which has a range of 30 metres in open field and 6 metres in real-world conditions (the range decreases with every physical obstacle or source of electronic interference).

The switch can also be controlled with the Luxion RF keyfob remote control (not included in the kit).

Highlights

Luxion Glass Touch Light Switch Kit – 1 Gang RF433 Switch + 1 Channel RF433 Remote Control – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new smart switches. The LUXION 1-gang touch switch with RF433 combines a sleek glass panel with a compact, minimalist look.

  • Single touch switch with RF433 technology
  • Shown in white, black, gold and grey finishes
Luxion Glass Touch Light Switch Kit – 1 Gang RF433 Switch + 1 Channel RF433 Remote Control – Touch Sensor
02

Touch Sensor

The touch sensor is extremely precise, just like the sensor of a smartphone.

Luxion Glass Touch Light Switch Kit – 1 Gang RF433 Switch + 1 Channel RF433 Remote Control – Moisture Resistant
03

Moisture Resistant

Suitable for use in humid environments.

Luxion Glass Touch Light Switch Kit – 1 Gang RF433 Switch + 1 Channel RF433 Remote Control – RF Remote Control
04

RF Remote Control

Use an RF remote control to switch Luxion switches on or off. Please note: the remote control shown is for illustration only and is NOT included; it must be purchased separately.

Luxion Glass Touch Light Switch Kit – 1 Gang RF433 Switch + 1 Channel RF433 Remote Control – Pairing Instructions
05

Pairing Instructions

  • Step 1: Hold your finger on the RF switch for 5 seconds until you hear a beep
  • Step 2: Press the RF remote control once to pair
Luxion Glass Touch Light Switch Kit – 1 Gang RF433 Switch + 1 Channel RF433 Remote Control – Cancelling Pairing
06

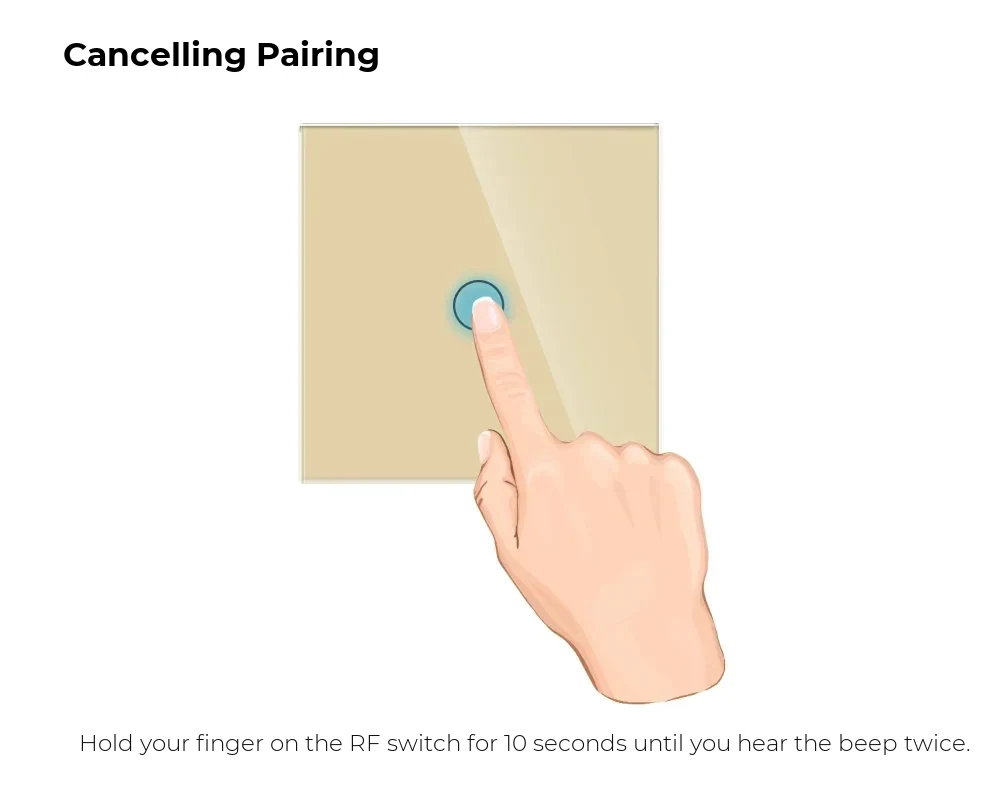

Cancelling Pairing

Hold your finger on the RF switch for 10 seconds until you hear two beeps.

Luxion Glass Touch Light Switch Kit – 1 Gang RF433 Switch + 1 Channel RF433 Remote Control – Wiring Diagram
07

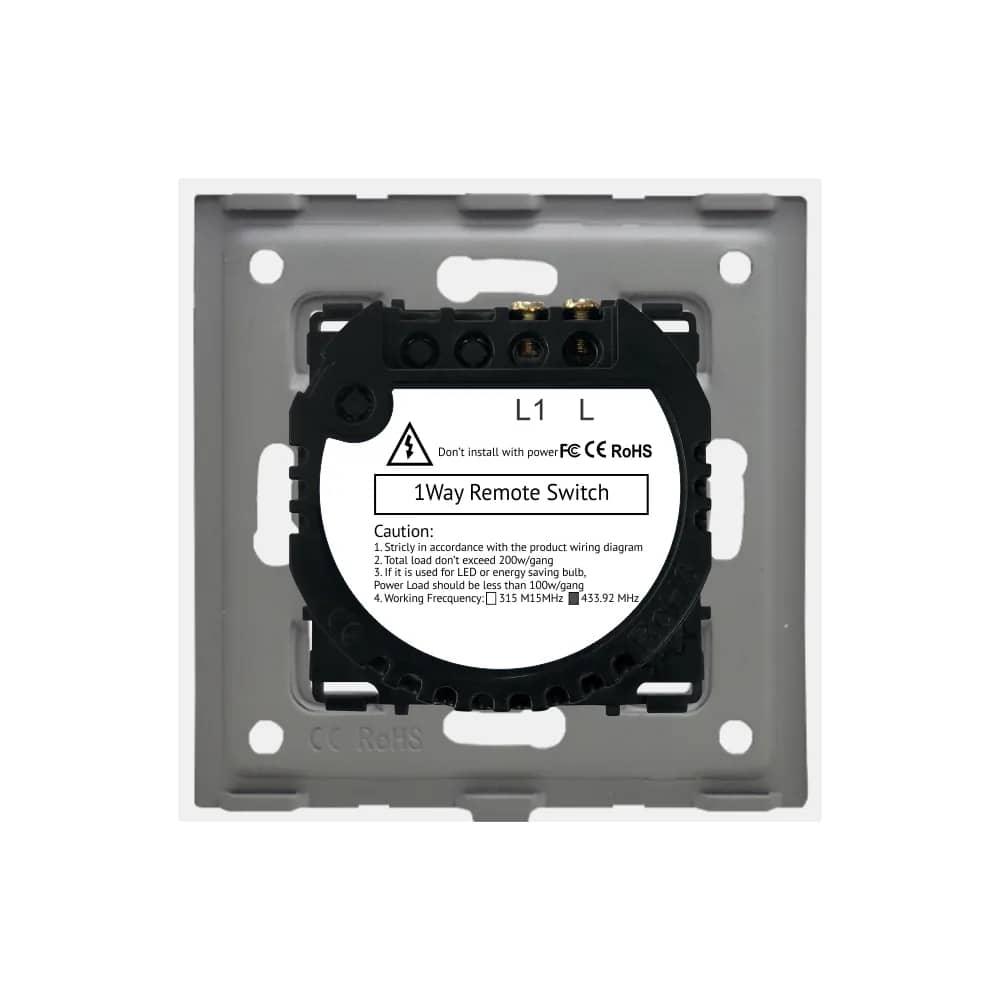

Wiring Diagram

Connect the live wire (L) to terminal L and the load (light) to terminal L1; the neutral (N) goes to the light.

  • Live (L) to terminal L
  • Output L1 to the light
  • Neutral (N) to the light
Luxion Glass Touch Light Switch Kit – 1 Gang RF433 Switch + 1 Channel RF433 Remote Control – Installation Steps
08

Installation Steps

  • Open the package
  • Connect the wires and tighten the screws
  • Use the 2 screws to fix the frame
  • Fit the front panel (it clicks into place)
Luxion Glass Touch Light Switch Kit – 1 Gang RF433 Switch + 1 Channel RF433 Remote Control – Structure
09

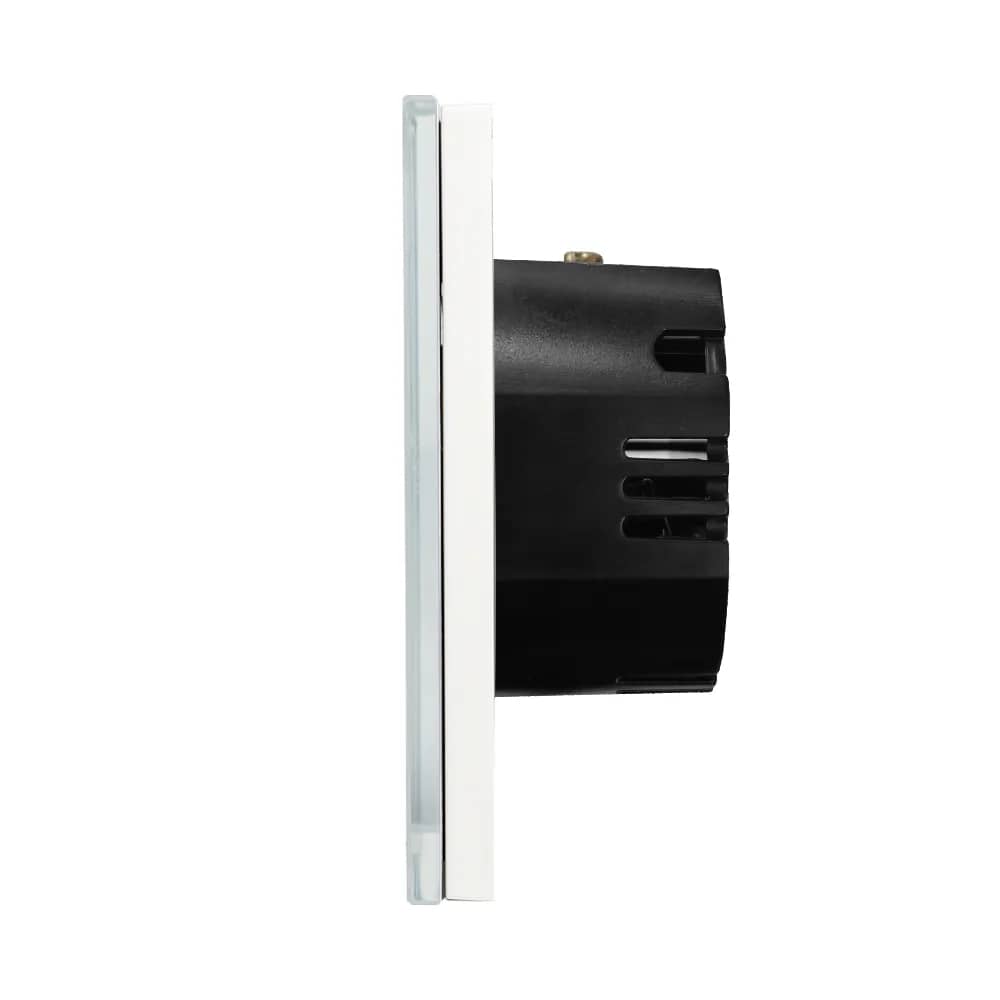

Structure

  • Elegant glass panel
  • Switch module
  • Metal frame
  • Screw fixing system, 60 mm between fixing points
Luxion Glass Touch Light Switch Kit – 1 Gang RF433 Switch + 1 Channel RF433 Remote Control – Technical Data
10

Technical Data

  • Type: Capacitive 1 way Touch Switch
  • Rated operational voltage: 110V – 240V AC
  • Capability allowance: -15% – +10%
  • Load power: 3–800W/gang, 2000W in total
  • Working temperature: -20°C – +70°C
  • Relative humidity: 10% – 93% (non-condensing)
  • Operating frequency: 50/60 Hz
  • Energy consumption: 0.02W
  • Life time: 100,000 times
  • Markings: CE, FC, RoHS
  • Panel dimensions: 86 x 86 mm
  • Panel thickness: 9 mm
  • Module depth: 26 mm
  • Module height: 49 mm
