Luxion

Luxion Motion Sensor Night Light with Glass Frame

SKU: LX-MP-SR02GF-W

AED 58

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion motion sensor night light with an elegant glass frame, available in White, Gold, Grey and Black for homes and commercial spaces.

Product details

Luxion motion sensor night light with a glass frame. Enjoy a refined, functional design with great attention to detail. Luxion blends seamlessly into any setting, so it can be installed not only at home but also in spaces such as offices and commercial premises, hospitality (HoReCa) venues, showrooms and display rooms, warehouses and modern industrial spaces, and residential or office buildings.

Highlights

Luxion Motion Sensor Night Light with Glass Frame – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new Luxion devices. This night light with motion sensor comes with a glass frame for a clean, modern look.

  • Night light with built-in motion sensor
  • Glass frame
  • Shown in white, black, gold and grey finishes
Luxion Motion Sensor Night Light with Glass Frame – Technical Data
02

Technical Data

  • Working voltage: 100V-240V AC
  • Colour temperature: 1800K-7500K
  • Load power: Max 1.5W
  • Working frequency: 50-60Hz
  • Sensing distance: 6-10 metres
  • Delay time: 90s, 180s, 300s
  • Detection range: 90 degrees
Luxion Motion Sensor Night Light with Glass Frame – Structure and Dimensions
03

Structure and Dimensions

The unit consists of a glass frame, the module and a metal mounting frame, fixed with a screw mounting system.

  • Glass frame
  • Module
  • Metal frame
  • Dimensions: 86 x 86 mm
  • Front profile depth: 8 mm
  • Screw mounting spacing: 60 mm
Luxion Motion Sensor Night Light with Glass Frame – Wiring Diagram
04

Wiring Diagram

Connect the neutral and live wires to the marked terminals on the back of the module.

  • N: Neutral
  • L: Live (phase)
Luxion Motion Sensor Night Light with Glass Frame – Installation Steps
05

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.

In detail

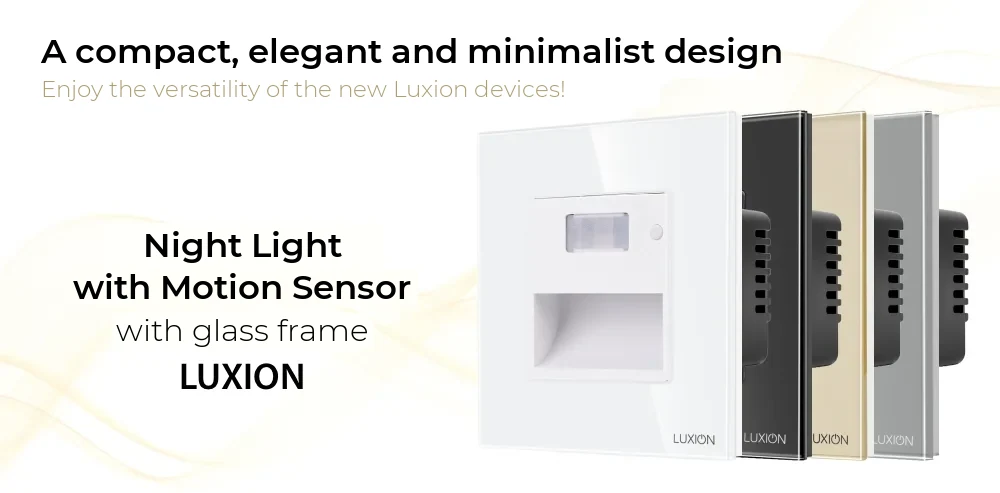

Luxion Motion Sensor Night Light with Glass Frame – detail 1
