Luxion PIR Motion Sensor with Glass Frame

Compact, Elegant and Minimalist Design

The Luxion PIR motion sensor with glass frame brings the versatility of the new Luxion devices to your home. The glass frame does not discolour, so its elegant design stays intact.

• Available in white, black, gold and grey glass frames
• Discolouration-resistant glass frame

Automatic Lighting with PIR Motion Detection

The motion sensor switches on the light as soon as it detects movement within its range. The switch turns off automatically after approximately 50 seconds.

• Sensing distance: 4-8 m
• Automatic switch-off after 50 ± 10 s

Technical Data

• Type: Body sensor switch
• Working voltage: 220V AC
• Load: resistive load 200W, LED load 60W
• Sensing distance: 4-8 meters
• Delay time: 50 seconds ± 10 seconds
• Sensing range: 90 degrees
• Markings: CE, FC, RoHS

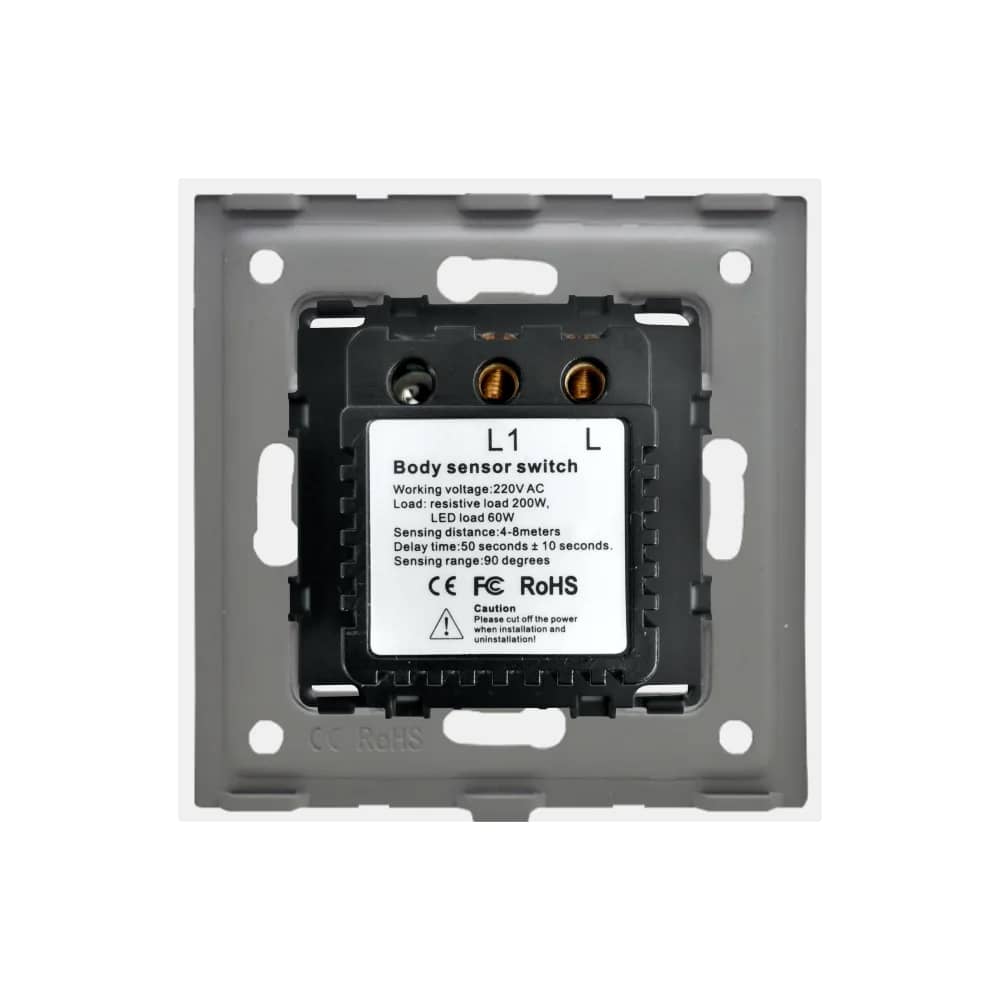

• Terminals: L1, L

Structure and Dimensions

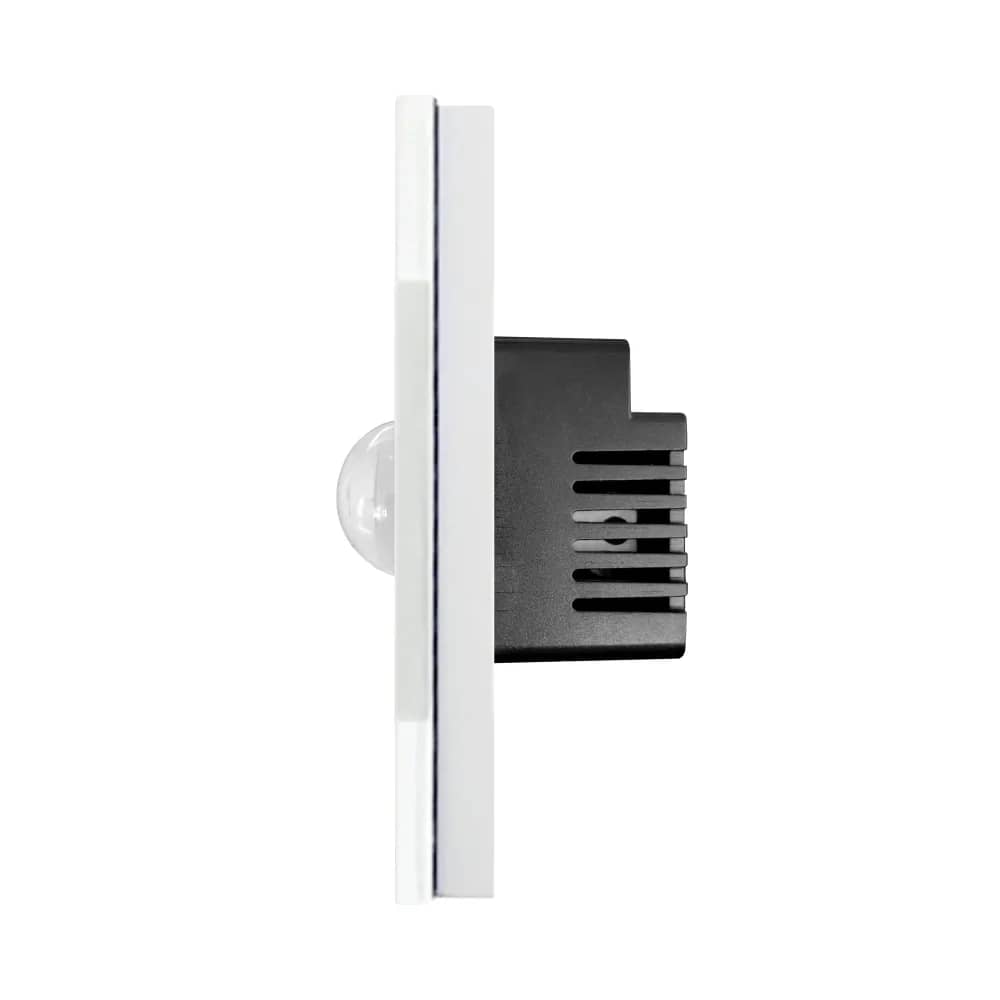

The product consists of a glass frame, a sensor module and a metal mounting frame, fixed with a screw mounting system.

• Glass frame
• Sensor module
• Metal frame
• Screw mounting spacing: 60 mm
• Front panel: 86 x 86 mm
• Depth: 9 mm (front) + 18 mm
• Module height: 50 mm

Wiring Diagram

Connect the live (L) wire to terminal L, and terminal L1 to the light, with the light's other side connected to neutral (N). Caution: please cut off the power before installation and uninstallation.

• Live (L) → terminal L
• Terminal L1 → light → Neutral (N)

Installation Steps

• 1. Open the package.
• 2. Connect the wires and tighten the screws.
• 3. Use the 2 screws to fix the frame.
• 4. Fit the front panel (click into place).
