Gewiss Modular Back Box Dimensions
Dimension drawings for Gewiss flush-mounted modular back boxes: the 3-module box (GW 24 403), 4-module box (GW 24 404) and 6/7-module box (GW 24 406). Dimensions A to G are shown on the front and side views.
Gewiss
Gewiss GW 24406 ST Flush-Mounted Back Box – 6 Module, Livolo Compatible (Italian Standard)
SKU: GW24406
AED 8
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.

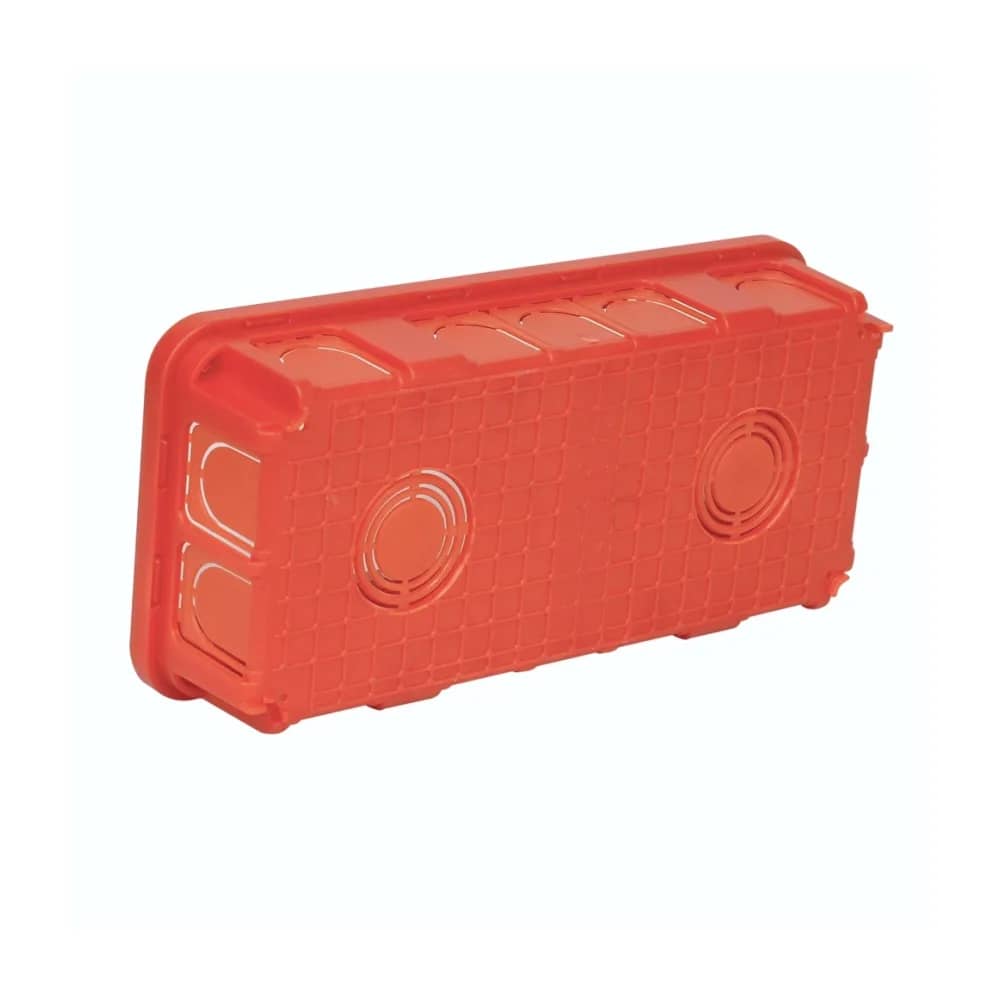

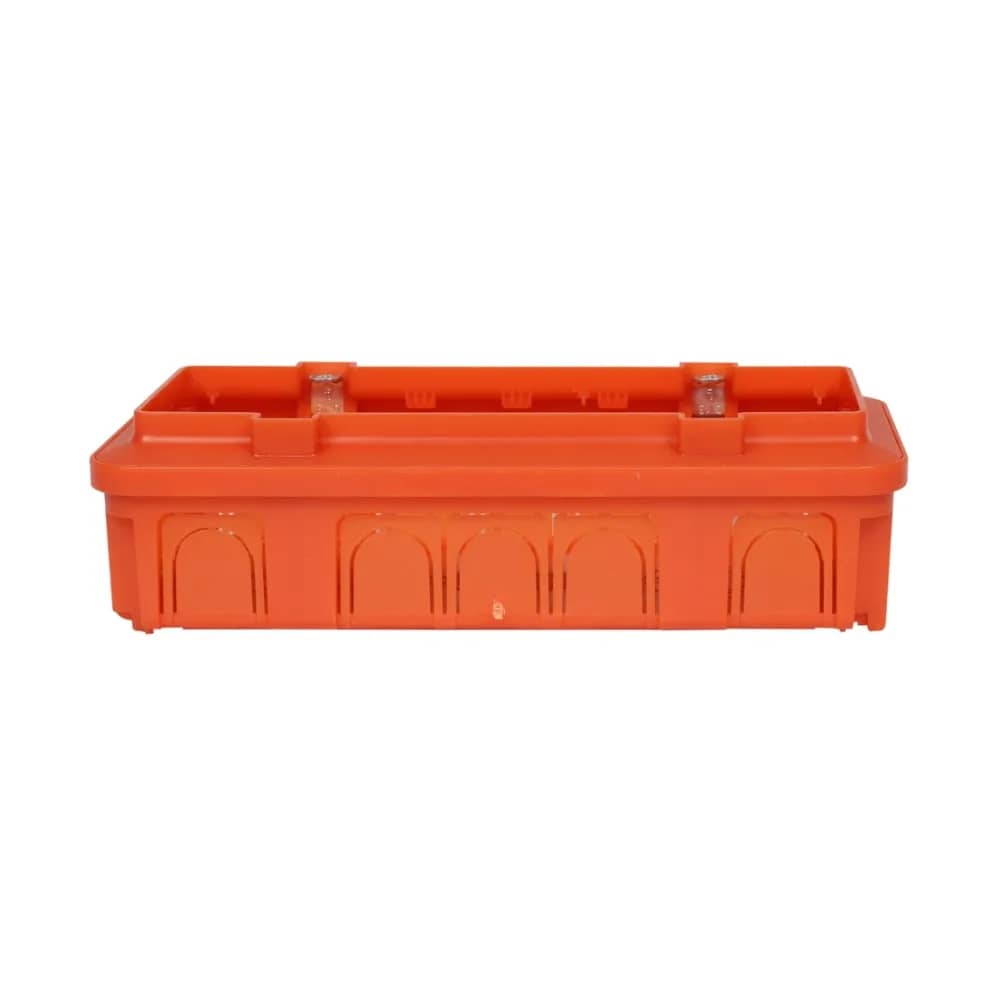

Gewiss GW 24406 6-module rectangular flush back box, 194 x 90 x 50.5 mm, for Italian-standard Livolo switches and sockets in masonry walls.
Product details
The GW 24406 back box is made from heat-resistant plastic. It is rectangular, holds 6 modules and measures 194 x 90 x 50.5 mm. It is designed for installing Italian-standard wiring devices in masonry walls and is flush-mounted (installed under plaster). The product is rated IP20 – for indoor use only. Compatible with Livolo products – Italian standard.
Highlights
02
Technical Data – GW 24 406 (6/7-Module Box)
- A: 171
- B: 60
- C: 194
- D: 90
- E: 49
- F: 50.5
- G: 100
03
Comparison – GW 24 403 (3-Module Box)
- A: 96
- B: 58
- C: 119
- D: 80
- E: 49
- F: 50.5
- G: 83.5
04
Comparison – GW 24 404 (4-Module Box)
- A: 121
- B: 58
- C: 144
- D: 85
- E: 49
- F: 50.5
- G: 108.5
