Gewiss Modular Back Box Dimensions
Dimensional drawings and measurements for Gewiss modular flush-mounted back boxes: 3-module box GW 24 403, 4-module box GW 24 404 and 6/7-module box GW 24 406. Dimensions A–G refer to the diagrams.
Gewiss
Gewiss GW 24404 ST 4 Module Flush-Mounted Back Box – Livolo Compatible, Italian Standard
SKU: GW24404
AED 5
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.

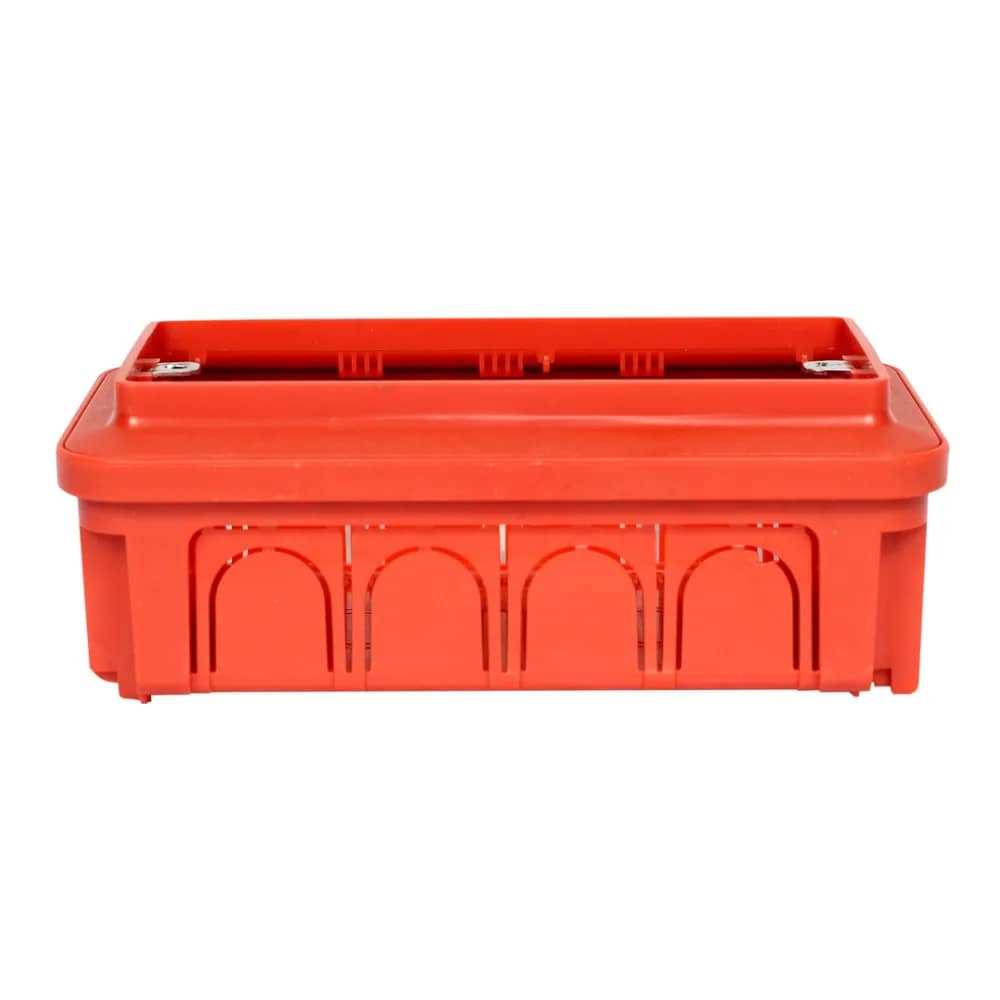

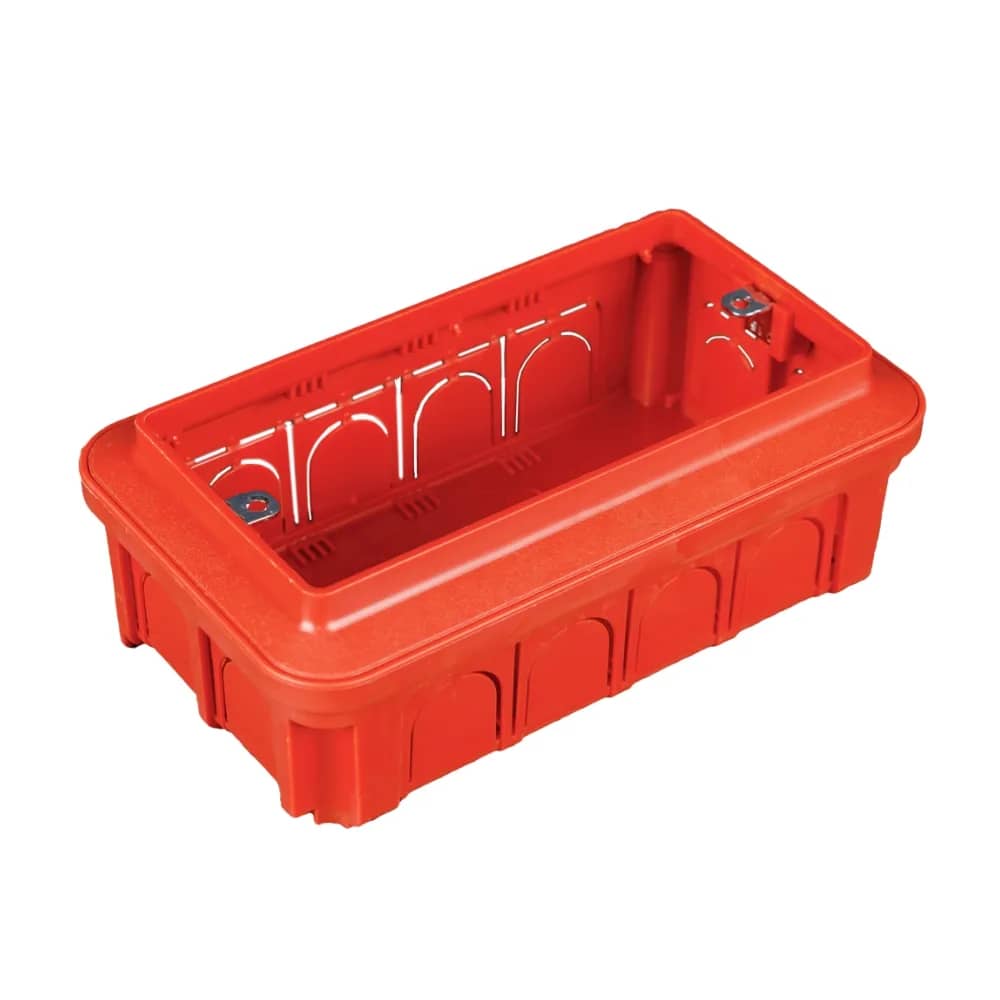

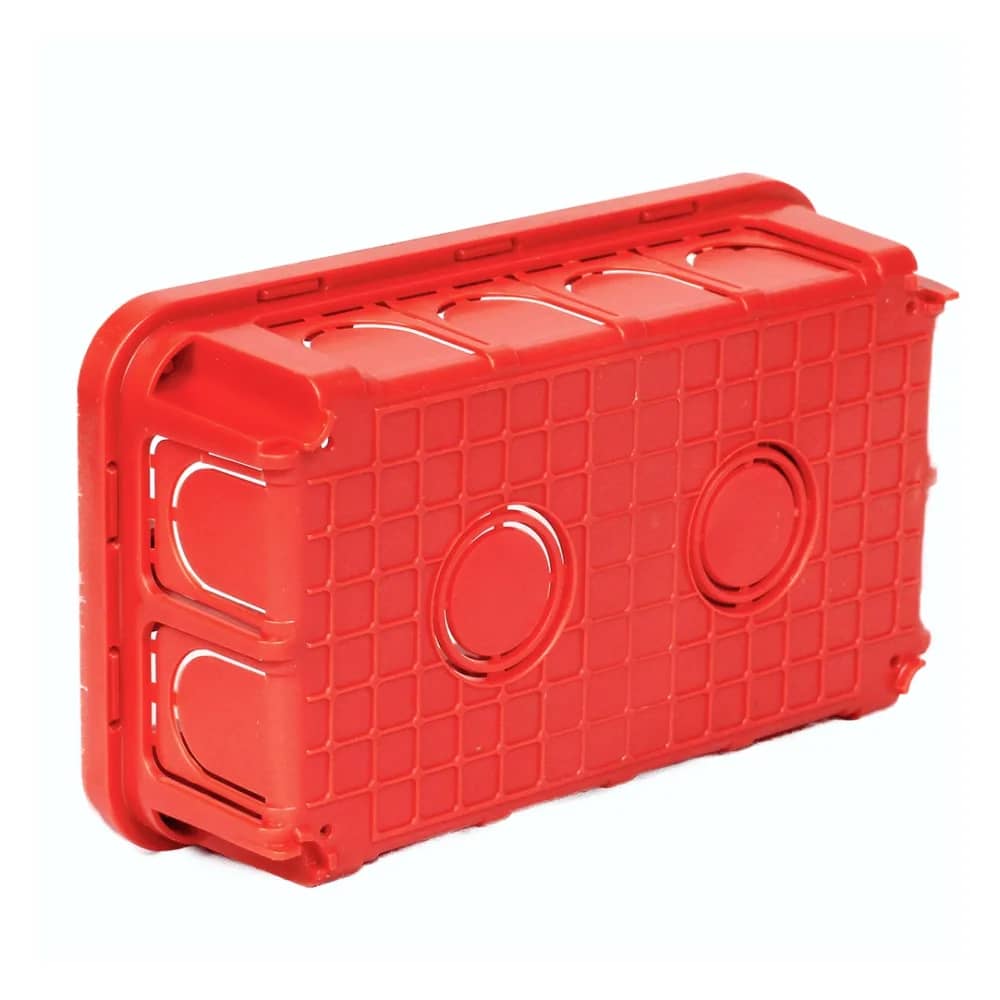

Gewiss GW 24404 rectangular 4-module flush back box (144 x 85 x 50.5 mm), IP20, compatible with Italian-standard Livolo switches.
Product details
The GW 24404 device back box is made from heat-resistant plastic. It is rectangular, takes 4 modules and measures 144 x 85 x 50.5 mm. It is designed for installing Italian-standard wiring devices in masonry walls and is flush-mounted (installed under plaster). The product has an IP20 protection rating – for indoor use only. Compatible with Livolo products – Italian standard.
Highlights
02
Technical Data – GW 24 404 (4-Module Box)
- A: 121
- B: 58
- C: 144
- D: 85
- E: 49
- F: 50.5
- G: 108.5
03
Comparison – GW 24 403 (3-Module Box)
- A: 96
- B: 58
- C: 119
- D: 80
- E: 49
- F: 50.5
- G: 83.5
04
Comparison – GW 24 406 (6/7-Module Box)
- A: 171
- B: 60
- C: 194
- D: 90
- E: 49
- F: 50.5
- G: 100
