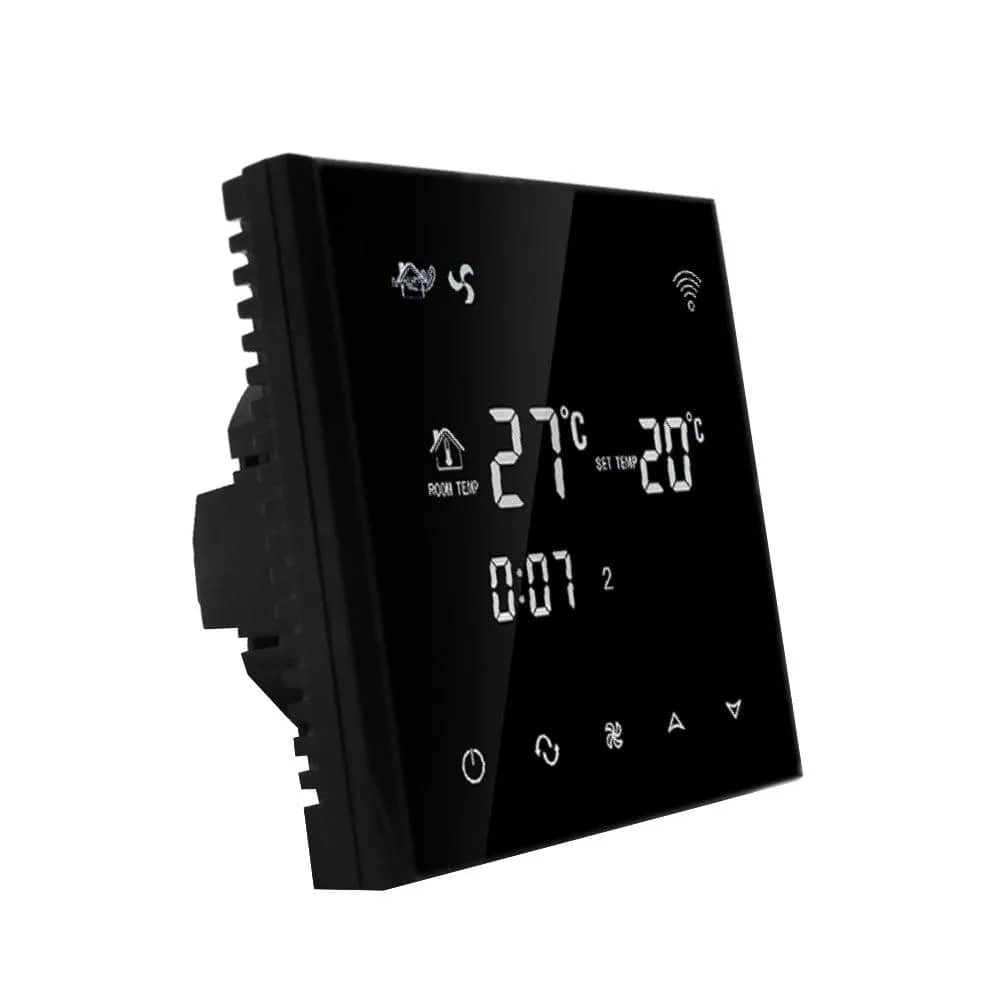

BeOk Air Conditioning Thermostat TGT70-AC4 — image 3
1/3
BeOk

BeOk Air Conditioning Thermostat TGT70-AC4

SKU: TGT70-AC4

AED 171

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

BeOk TGT70-AC4 thermostat that controls air conditioning valves by comparing room temperature, for greater comfort and energy savings.

Product details

Beok thermostats in the TGT70-AC series are designed to control air conditioning valves by comparing the room temperature and adjusting it to achieve the required level of comfort while saving energy.

Highlights

BeOk Air Conditioning Thermostat TGT70-AC4 – Wiring Diagram
01

Wiring Diagram

The thermostat connects to mains phase and neutral, a three-speed fan and up to two solenoid valves via its numbered rear terminals.

  • 1 L: Phase (live)
  • 2 N: Neutral
  • 3 Hi: Fan speed high
  • 4 Med: Fan speed medium
  • 5 Low: Fan speed low
  • 6 NO / 7 NC: Solenoid valve 1 (VAL 1)
  • 8 NO / 9 NC: Solenoid valve 2 (VAL 2)
  • Rated: AC230V, max 5A
BeOk Air Conditioning Thermostat TGT70-AC4 – Display and Controls
02

Display and Controls

The screen shows room temperature, set temperature, clock, day of the week, operating mode and timer status at a glance.

  • Cooling and heating mode indicators
  • Room temperature display
  • Set temperature display
  • Valve on indicator
  • Day of the week (1–7) and clock
  • Timer on/off settings 1 and 2
  • Touch buttons: Power on/off, Mode, Fan, Up, Down
