Smart Thermostat for Electric Underfloor Heating
The BeOk TDS23-EP is a smart thermostat for electric underfloor heating systems using heating cable, electric heaters or electric heating mats, with a maximum load of 16A.
BeOk
BeOk TDS23-EP Thermostat for Electric Underfloor Heating
SKU: TDS23-EP
AED 162
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Smart BeOk TDS23-EP thermostat for electric underfloor heating cables or mats up to 16A, wall-box mounted, 220V powered.
Product details
The BeOk TDS23-EP is a smart thermostat designed for electric underfloor heating systems using a heating cable or an electric heating mat, with a maximum load of 16A.
It does not work with gas boilers.
Note: This thermostat is mounted in a wall box! It must be powered at 220V and must be hard-wired to the underfloor heating mat.
Highlights
02
Key Features
- Memory function: all settings are saved, so there is no need to reset the thermostat after a power cut
- Programmable to suit you, e.g. 22°C from 9:00–17:00 and 25°C from 17:00–9:00
- Thermostat lock to stop children from changing the settings
03

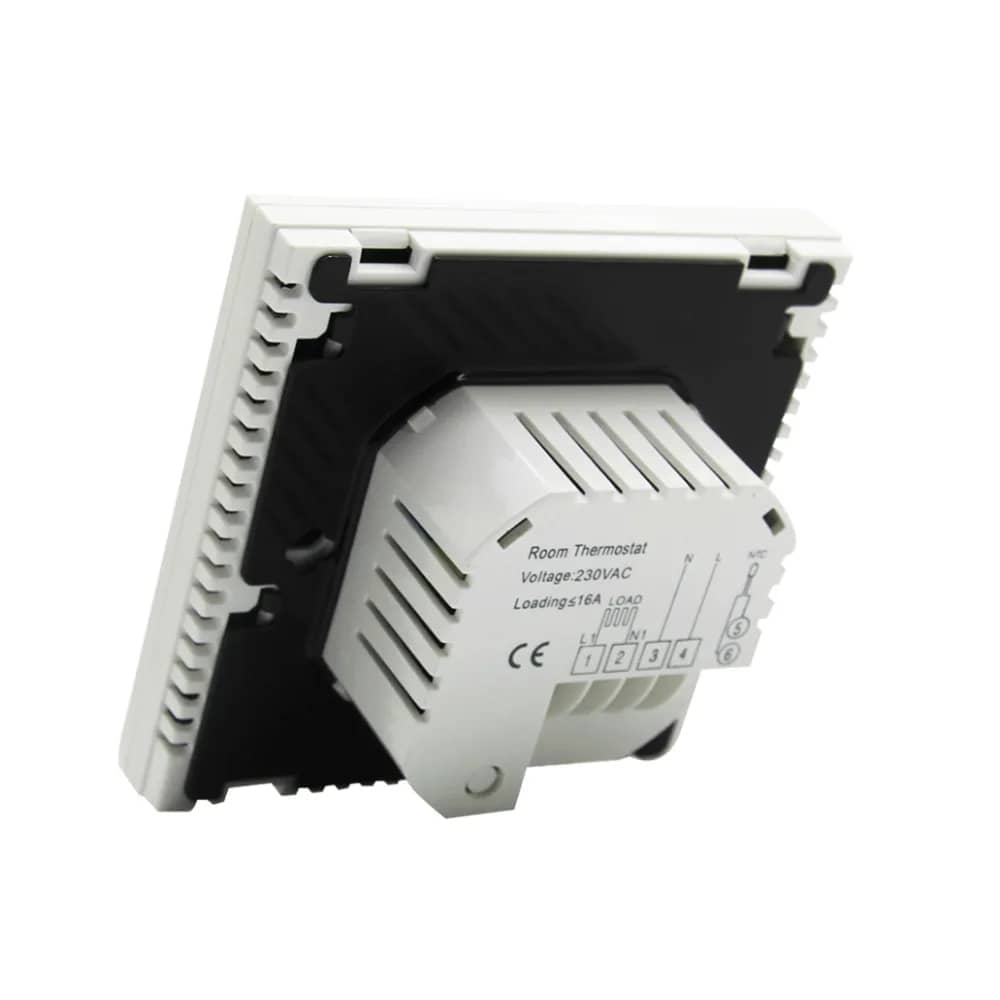

Elegant Glass Panel with 3 Sensor Modes
A stylish glass panel that suits any home, with 3 operating modes for the built-in sensors.
- Room (ambient) sensor
- Floor sensor
- Room + floor sensor
04

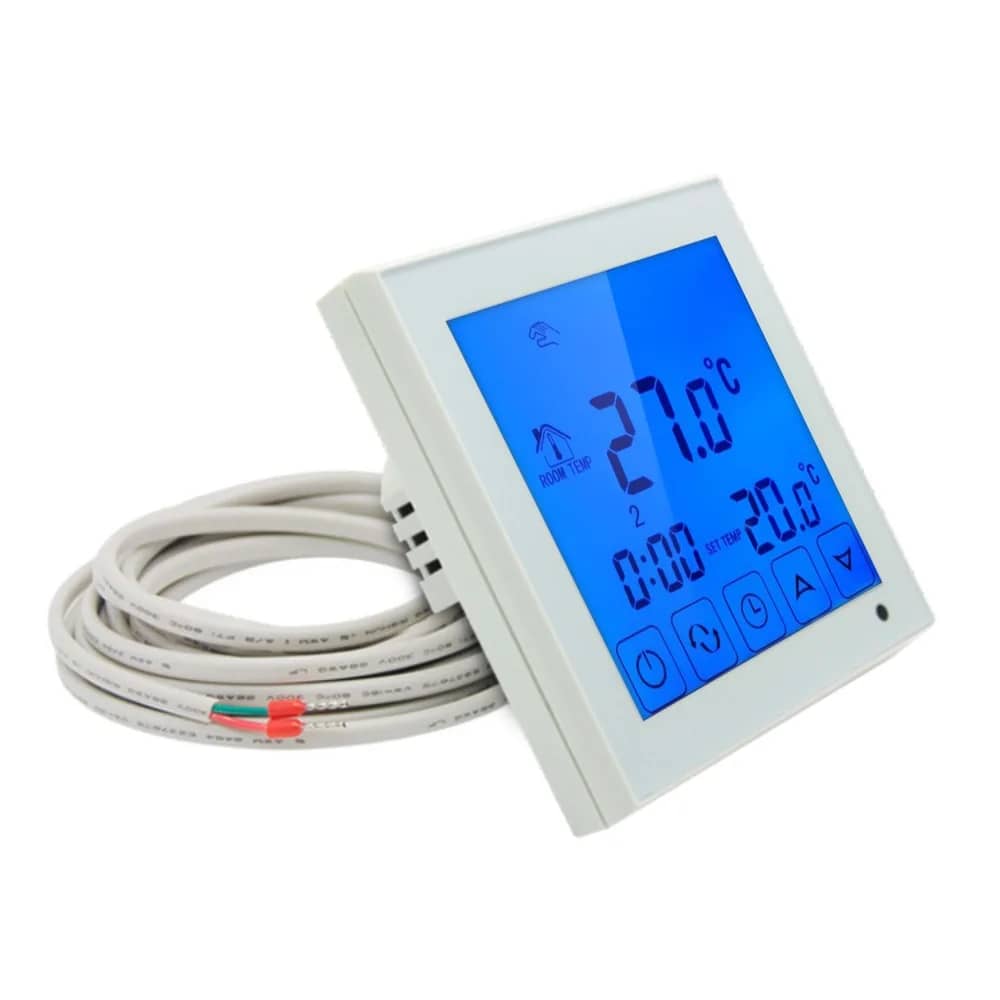

Overheat Protection
The smart overheat function monitors the floor temperature and keeps it at an optimal level for the whole family.
05
Frost Protection
The anti-freeze system constantly monitors the room temperature; when it drops below 10°C, the thermostat automatically switches on the heating to prevent the water in the heating system from freezing.
06
Weekly Programming
Programmable on a 5+2 day schedule with 6 time periods per day. It also features an adaptive start function, with usage shown as a percentage for the last 24h, 7 days, 30 days or 365 days.
07
Dimensions and Sensors
- Front panel: 86 mm x 86 mm
- Depth: 42 mm (in-wall section 26 mm)
- Rear housing height: 50 mm
- Internal sensor + external floor sensor
08
Installation
- Gently open the panel with a screwdriver
- Connect the power wires according to the wiring diagram and fix the mounting plate with two screws
- Refit the touch panel
- Press the power button to switch the thermostat on
