Livolo Wireless Touch Light Switch Module – 3 Gang 2-Way / Intermediate, Italian Standard, New Series

Triple Two-Way / Intermediate Wireless Touch Switch Module

A Livolo triple touch switch module with two-way and intermediate wireless function, built to the Italian standard. Simple design, outstanding mechanism, available in a variety of colour options.

• 3-gang touch control
• Two-way / intermediate (multi-location) switching
• Wireless control
• Italian standard

Important Compatibility Notes

Two-way switches only work when installed and synchronised with other Livolo two-way products. Livolo products do NOT work with other brands.

• The glass panel is NOT included and must be purchased separately
• The metal frame is not included
• Product images are for illustration only

Touch Sensor

The touch sensor is extremely precise, identical to the sensor in a smartphone.

Wireless Control

Wireless switches can be operated from any room. The switch can be controlled with the Livolo VL-RMT-02 key fob remote or the VL-RMT-04 remote control.

• Compatible remotes: VL-RMT-02 (key fob), VL-RMT-04
• Remote control not included – sold separately

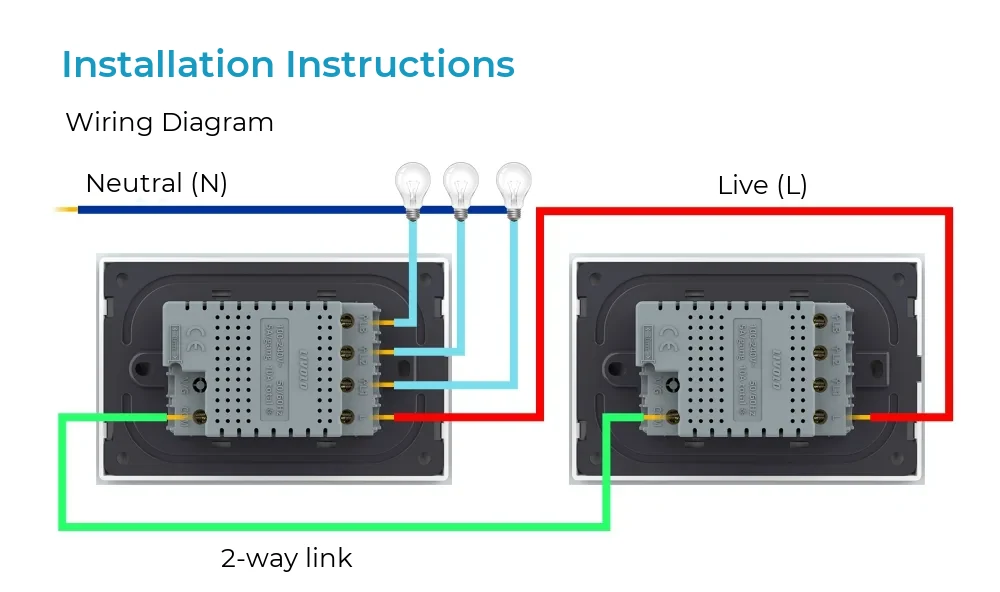

Wiring Diagram

The wiring diagram shows two switch modules linked by a two-way (traveller) connection, with the live (L) feeding the modules and three lamps connected to neutral (N).

• Neutral (N)
• Live (L)
• Two-way link between modules

Structure

The switch consists of an elegant crystal glass panel, the switch module and a metal mounting frame, secured with a screw fixing system.

• Elegant crystal panel (not included)
• Switch module
• Metal frame (not included)
