Livolo Wireless Touch Light Switch Module – 1 Gang, Italian Standard, New Series

Wireless Single Touch Switch Module

A Livolo wireless single switch module with touch control, built to the Italian standard. Simple design, extraordinary mechanism, available as part of a wide product range.

• Wireless 1-gang touch switch module
• Italian standard format
• Important: the price does NOT include the Livolo glass panel, which must be purchased separately

Touch Sensor

The touch sensor is extremely precise, identical to the sensor in a smartphone.

Wireless Remote Control

The wireless switch can be operated from any room using a Livolo remote control. Remote controls are not included in the package and must be purchased separately.

• Compatible with the Livolo VL-RMT-02 key fob remote
• Compatible with the Livolo VL-RMT-04 remote

Structure

The complete switch consists of a crystal glass panel, the switch module and a metal frame, fixed with a screw mounting system.

• Elegant crystal panel (not included)

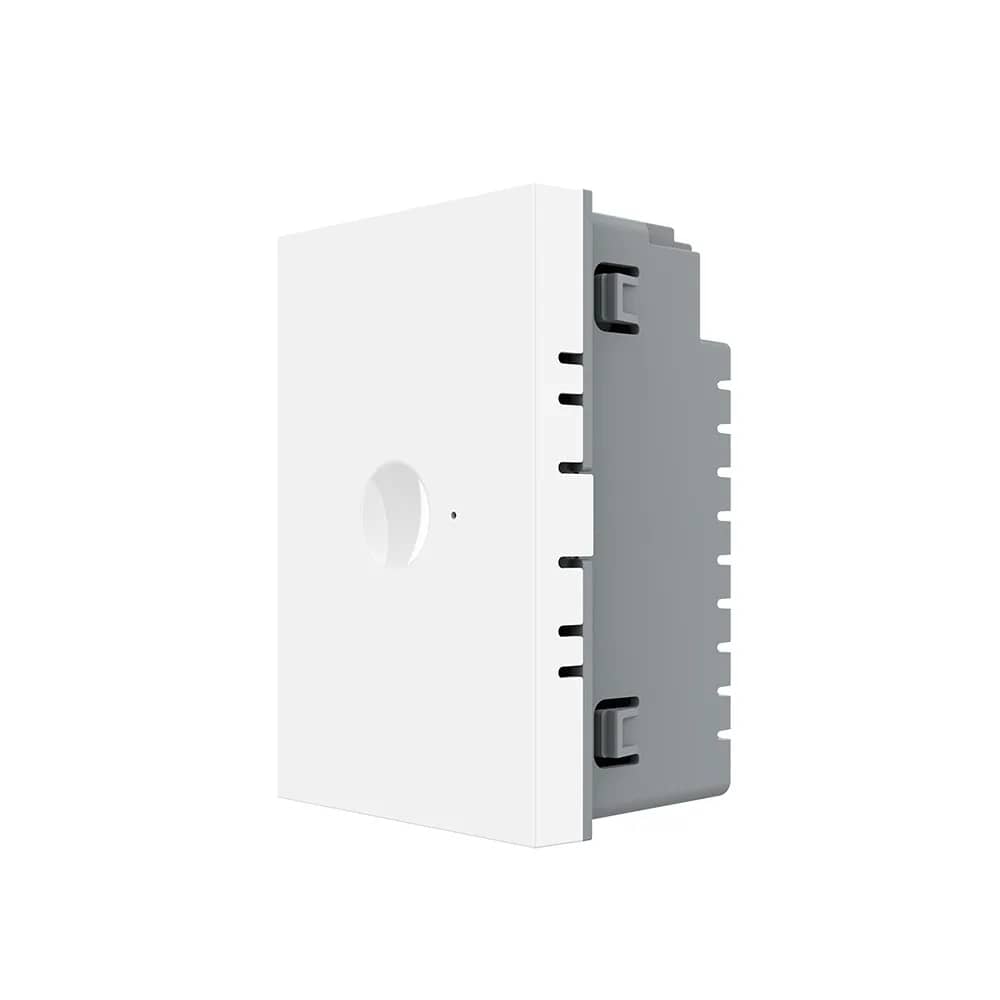

• Switch module
• Metal frame (not included)
• Screw mounting spacing: 85 mm

Dimensions

• Width: 119 mm
• Height: 78 mm
• Panel thickness: 4 mm
• Module depth: 24 mm
• Side profile: 8 mm

Wiring Diagram

Connect the live wire to the COM terminal and the lamp to the L1 terminal; the neutral wire goes directly to the lamp.

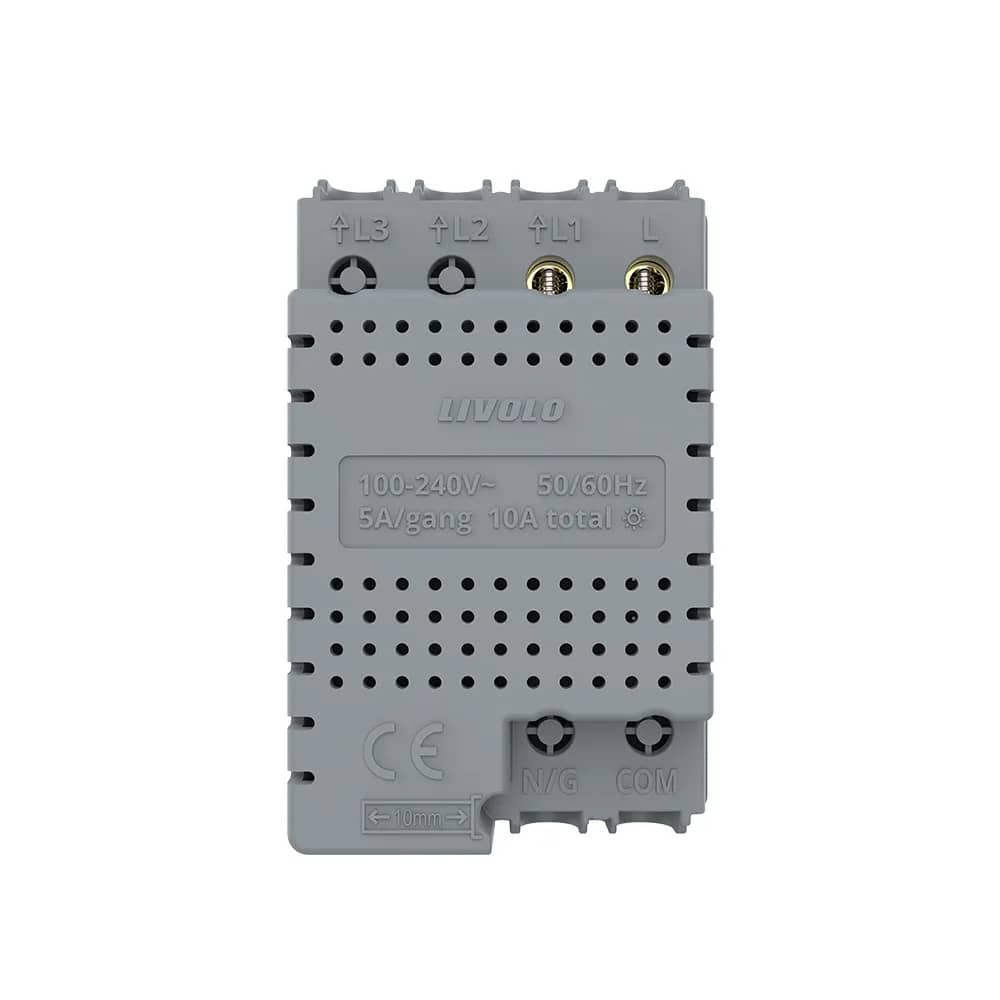

• Marked on module: 100-240V~ 50/60Hz
• Marked on module: 5A/gang, 10A total
