Livolo Wireless Double 2-Way/Intermediate Switch Module
A double wireless switch module for 2-way and intermediate (cross) circuits. Simple design, extraordinary mechanism, with close attention paid to every detail.
Livolo
Livolo Wireless 2 Gang 2-Way / Intermediate Touch Switch Module
SKU: 782100411
AED 131
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo wireless 2 gang 2-way touch switch module, also usable as intermediate (up to 3 switches), with remote, app and voice control options.
Product details
Wireless 2-way touch on/off light switch module, easy to use in the dark, resistant to scratches and moisture, so it always looks immaculate. Ideal for homes with an indoor staircase, offices and restaurants. Compatible with Livolo remote controls, giving you the added comfort of controlling your light switches from a remote. This module can also be connected as an intermediate (cross) switch.
A maximum of 3 switches can be connected in the circuit (intermediate wiring)
It can be operated:
– Directly from the switch, on/off by touch;
– From a Livolo remote control, one of 2 models:
Livolo Keyfob Remote Control
Livolo Glass Touch Screen Remote Control (remote controls are sold separately);
– From your smartphone using the BroadLink RM PRO Plus hub via the Ihc for Eu app, or using the Orvibo Allone Pro hub via the HomeMate app (hubs are sold separately);
– By voice with Google Home or Amazon Alexa. To link the switch with Google Home or Amazon Alexa you need one of 2 hub models: BroadLink RM PRO Plus or Orvibo Allone Pro.
Highlights
02

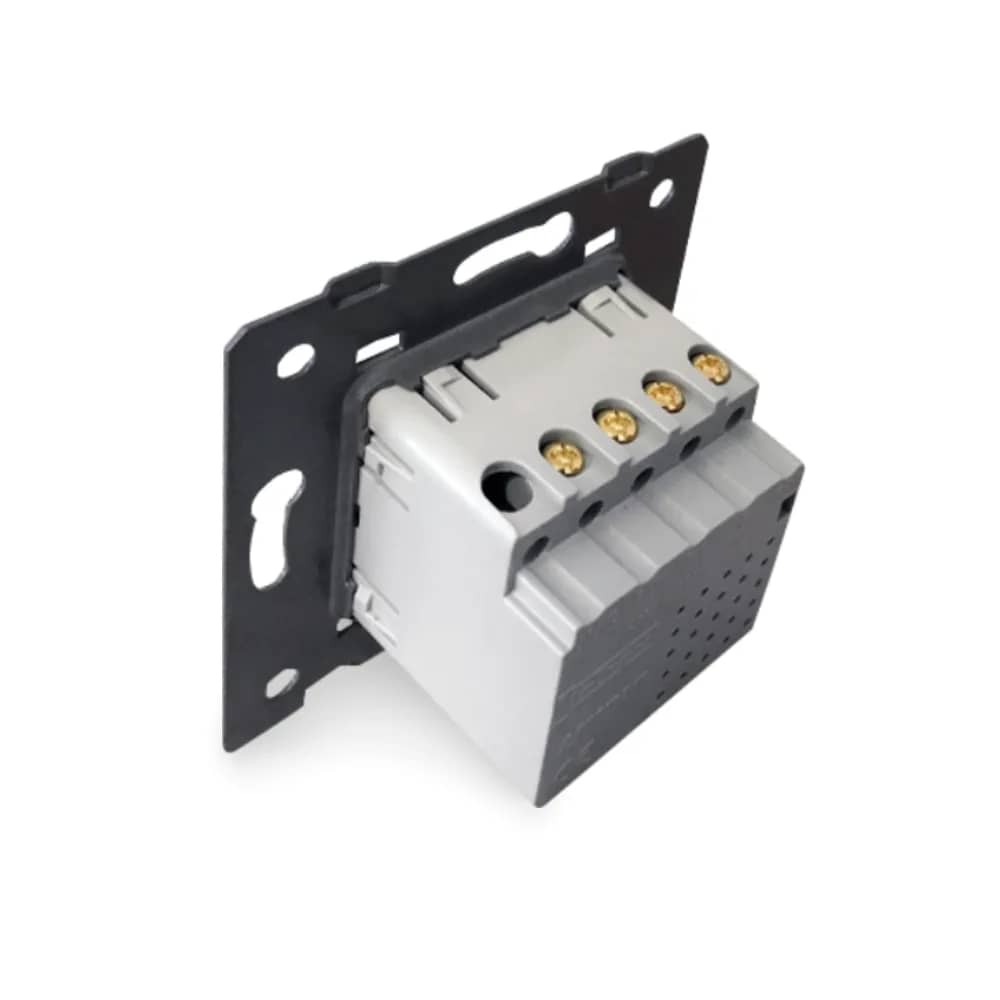

Wireless Remote Control
The wireless switches can be operated from any room using the VL-RMT-04 remote control.
03

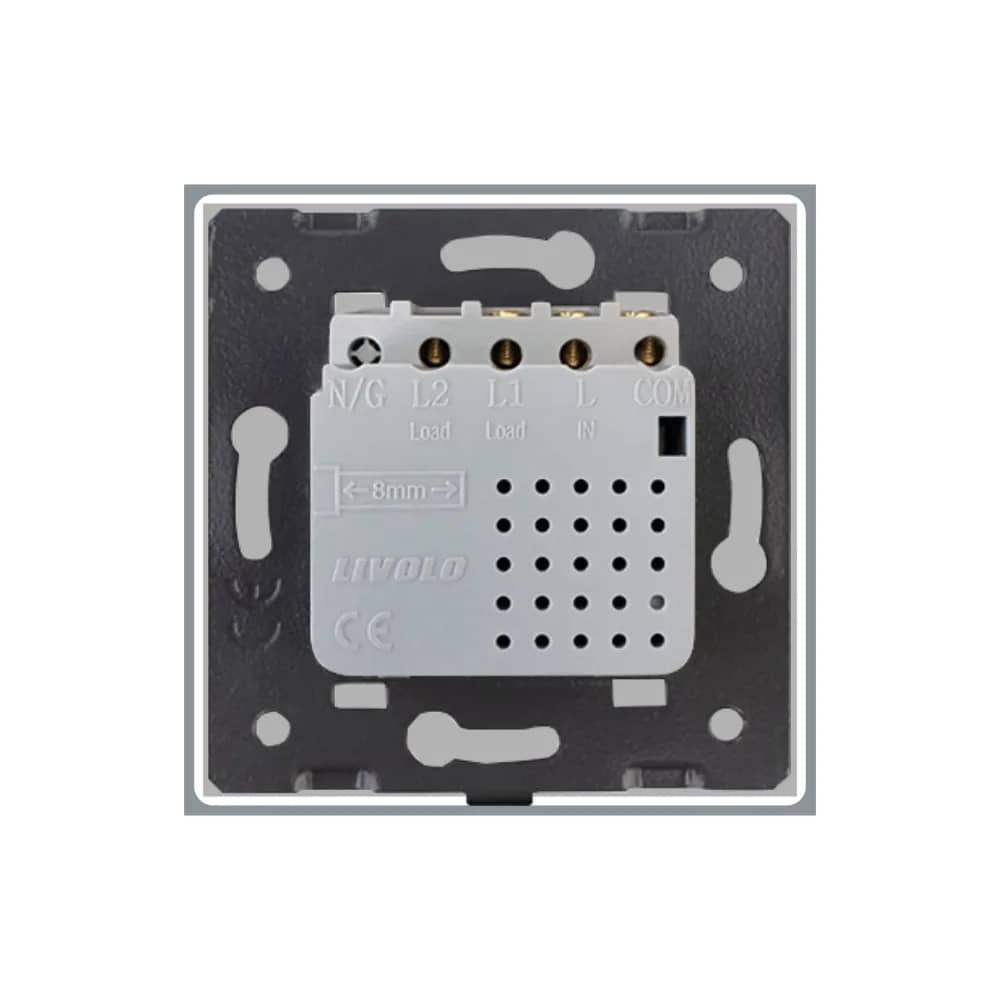

Structure
- Integrated safety module
- Metal frame
- Polycarbonate support
- Screw fixing system (60 mm fixing distance)
04
Dimensions
- Front width: 45 mm
- Front height: 71 mm
- Module side: 43 mm
- Module depth: 41 mm
- Front protrusion: 9 mm
- Fixing screw spacing: 60 mm
05
Wiring
Connect the live (L) wire to the L (IN) terminal and the two loads to the L1 and L2 (Load) terminals; the neutral (N) goes to the lamps. Strip wires to 8 mm.
- L: Live input
- L1: Load 1
- L2: Load 2
06
Installation Steps
- Remove the panel and module from the box
- Connect the wires according to the installation diagram and tighten the screws
- Use the 2 screws to fix the frame
- Cover the module with the glass panel and connect to the power supply
07
Please Note
Images are for presentation purposes only. The Livolo glass panel is NOT included and must be purchased separately.
