Livolo Wi-Fi Touch Light Switch Module – 3 Gang, Italian Standard, New Series, White

1 / 4

Livolo

Livolo Wi-Fi Touch Light Switch Module – 3 Gang, Italian Standard, New Series, White

Name: Livolo Wi-Fi Touch Light Switch Module – 3 Gang, Italian Standard, New Series, White
Brand: Livolo
SKU: C9-VL-FC3NY-3WP
Price: 182 AED
Availability: InStock

SKU: C9-VL-FC3NY-3WP

AED 182

In stock

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Livolo new-series 3 gang Wi-Fi touch switch module, Italian standard, connects directly to your router – no hub needed.

Product details

The Livolo new-series 3 gang Wi-Fi touch light switch module is an improved, innovative product resulting from technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing utility and comfort to your home. It fits a modular back box (3 modules) with 85mm screw spacing.

Livolo Wi-Fi switches connect directly to your Wi-Fi router, with no hub required. They need a neutral wire to operate. To control them from your phone, install the LIVOLO HOME app.

Highlights

Triple Wi-Fi Touch Switch Module – Italian Standard

A Livolo triple Wi-Fi switch module with touch control, built to the Italian standard. Simple design, exceptional mechanism.

Important: product images are for illustration only – the Livolo glass frame is NOT included and must be purchased separately
Glass frames shown in white, black, grey and gold

Touch Sensor

The touch sensor is extremely precise, just like the sensor on a smartphone.

App Control

Change the atmosphere of your home at the touch of a button. Open the Livolo app to customise your home lighting exactly as you like.

Livolo Wi-Fi switches connect directly to your Wi-Fi router – no hub required
For app control, install the LIVOLO HOME mobile app

Wiring Diagram

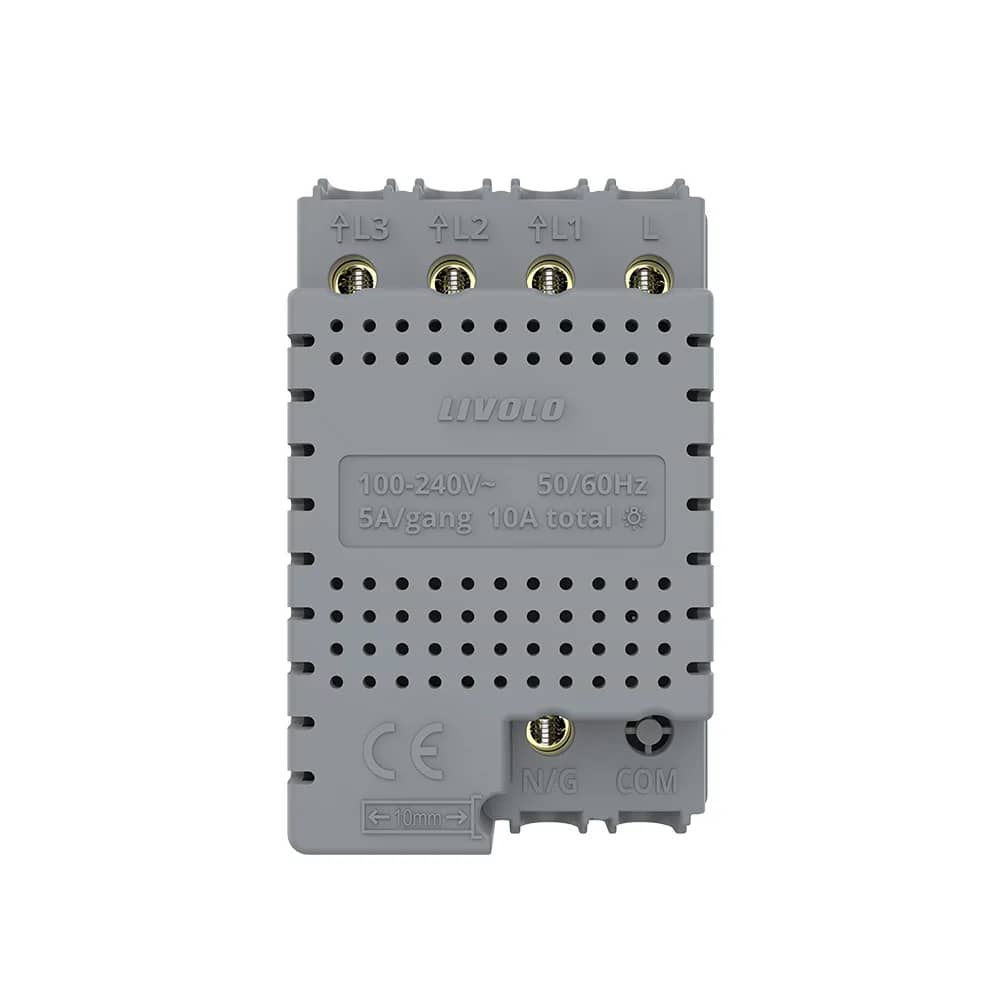

Connect the neutral wire to the N terminal, the live (phase) wire to the COM terminal, and each light to outputs L1, L2 and L3.

Rating printed on module: 100-240V~ 50/60Hz
5A/gang, 10A total

Structure

The system consists of a glass frame, the switch module and a metal mounting frame.

Glass frame: not included
Switch module: included
Metal frame: not included
Screw fixing system: 85 mm spacing

Dimensions

Width: 119 mm
Height: 78 mm

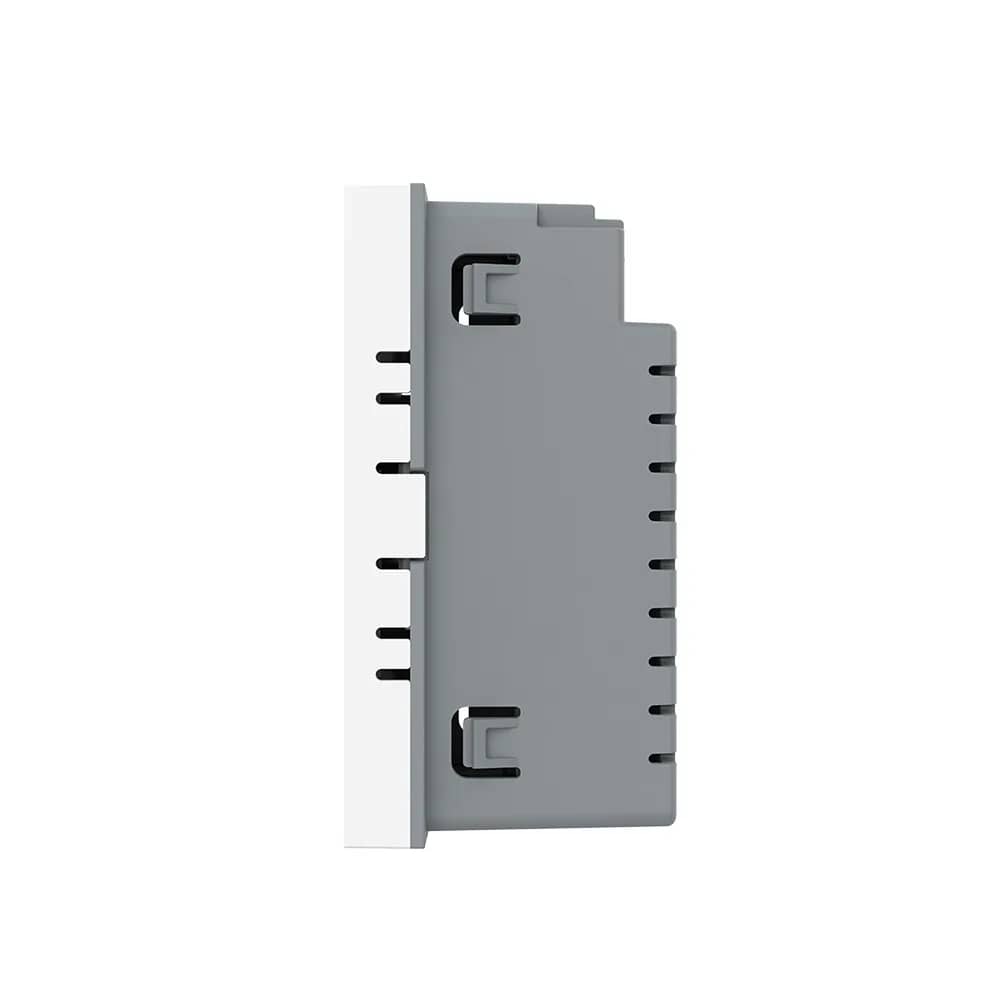

Depth: 4 mm / 24 mm / 8 mm (as per side-profile drawing)

Installation Steps

1. Open the package
2. Connect the wires and tighten the screws
3. Use the 2 screws to fix the frame
4. Click the front panel into place

Quality and Durability

Livolo products are sold worldwide and hold RoHS and CE certification, along with other international certificates.

Tempered glass panels with surface hardness greater than 4H, keeping the switch clean and scratch-resistant long term
Galvanised parts show no corrosion after high-temperature and saturated salt-spray testing
Surface and functionality remain as new after testing in extreme high, low and constant temperature and humidity conditions
Endurance tests show an average lifespan of over 100,000 operations
High-voltage resistance tested
