SmartHomesAE
Livolo Wi-Fi Touch Light Switch Module – 2 Gang, New Series (C7-VL-FC2NY-2G) — image 1
Livolo Wi-Fi Touch Light Switch Module – 2 Gang, New Series (C7-VL-FC2NY-2G) — image 2
Livolo Wi-Fi Touch Light Switch Module – 2 Gang, New Series (C7-VL-FC2NY-2G) — image 3
Livolo Wi-Fi Touch Light Switch Module – 2 Gang, New Series (C7-VL-FC2NY-2G) — image 4
1/4
Livolo

Livolo Wi-Fi Touch Light Switch Module – 2 Gang, New Series (C7-VL-FC2NY-2G)

SKU: C7-VL-FC2NY-2G

AED 142

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

New-series Livolo 2 gang Wi-Fi touch switch module that connects directly to your router, with no hub needed – controlled via the Livolo Home app.

Product details

The new-series Livolo 2 gang Wi-Fi touch light switch is an improved, innovative product, the result of technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home. It fits a round or square back box with 60mm screw spacing.

Livolo Wi-Fi switches connect directly to your Wi-Fi router, without the need for a hub.

A neutral wire is required for operation

For app control, the Livolo Home app must be installed.

Improvements over the previous series:

  • → Compatible with more types of bulbs
  • → Faster response time when touched
  • → More powerful and robust chip – made in Japan
  • → Reduced standby power consumption
  • → Compact design (smaller dimensions than the previous model)
  • → Maximum supported load of 5A per circuit

Highlights

Livolo Wi-Fi Touch Light Switch Module – 2 Gang, New Series (C7-VL-FC2NY-2G) – Livolo Double Touch Switch Module with Wi-Fi
01

Livolo Double Touch Switch Module with Wi-Fi

A double touch switch module from Livolo with a simple design and an outstanding mechanism. Please note: the images are for illustration only and the Livolo glass panel is NOT included – it must be purchased separately.

  • 2-gang touch switch module
  • Wi-Fi connectivity
  • Compatible with Livolo glass panels available in several colours
Livolo Wi-Fi Touch Light Switch Module – 2 Gang, New Series (C7-VL-FC2NY-2G) – Improved New Series
02

Improved New Series

The new series is an improved version of the previous model, delivering unmatched performance with low energy consumption.

  • Panel thickness: 4 mm
  • Module depth: 33 mm
  • Frame depth: 8 mm
Livolo Wi-Fi Touch Light Switch Module – 2 Gang, New Series (C7-VL-FC2NY-2G) – App Control
03

App Control

Change the atmosphere of your home at the touch of a button. Open the Livolo app to customise the lighting in your home just the way you like it.

  • Livolo Wi-Fi switches connect directly to your Wi-Fi router – no hub required
  • Install the LIVOLO HOME mobile app for control via the app
Livolo Wi-Fi Touch Light Switch Module – 2 Gang, New Series (C7-VL-FC2NY-2G) – Design
04

Design

The panel does not discolour, so its elegant design stays intact.

Livolo Wi-Fi Touch Light Switch Module – 2 Gang, New Series (C7-VL-FC2NY-2G) – Structure
05

Structure

The complete switch consists of an elegant crystal glass panel, the switch module and a metal frame. Only the switch module is included in this product.

  • Elegant crystal panel (not included)
  • Switch module (included)
  • Metal frame (not included)
  • Screw fixing system with 60 mm spacing
Livolo Wi-Fi Touch Light Switch Module – 2 Gang, New Series (C7-VL-FC2NY-2G) – Technical Data
06

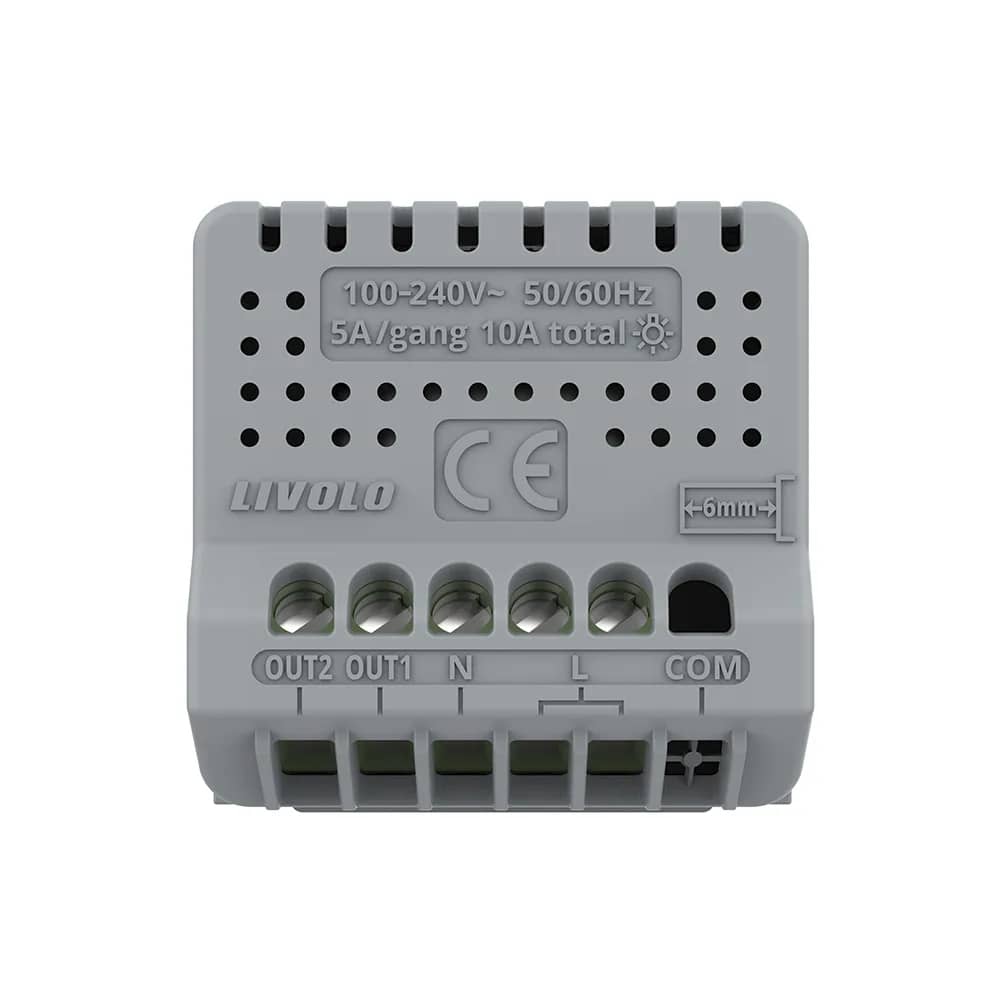

Technical Data

  • Rated voltage: 100-240V~ 50/60Hz
  • Load: 5A/gang, 10A total
  • Terminals: OUT2, OUT1, N, L, COM
  • Panel dimensions: 80 mm x 80 mm
  • Panel thickness: 4 mm
  • Module depth: 33 mm
  • Frame depth: 8 mm
  • Fixing screw spacing: 60 mm
07

Wiring Diagram

Connect the live (L) and neutral (N) wires to the module, with the two lighting circuits connected to OUT1 and OUT2.

  • Live: L
  • Neutral: N
  • Light outputs: OUT1 and OUT2
08

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.

In detail

Livolo Wi-Fi Touch Light Switch Module – 2 Gang, New Series (C7-VL-FC2NY-2G) – detail 1

The Livolo touch panel in action

Official Livolo video
