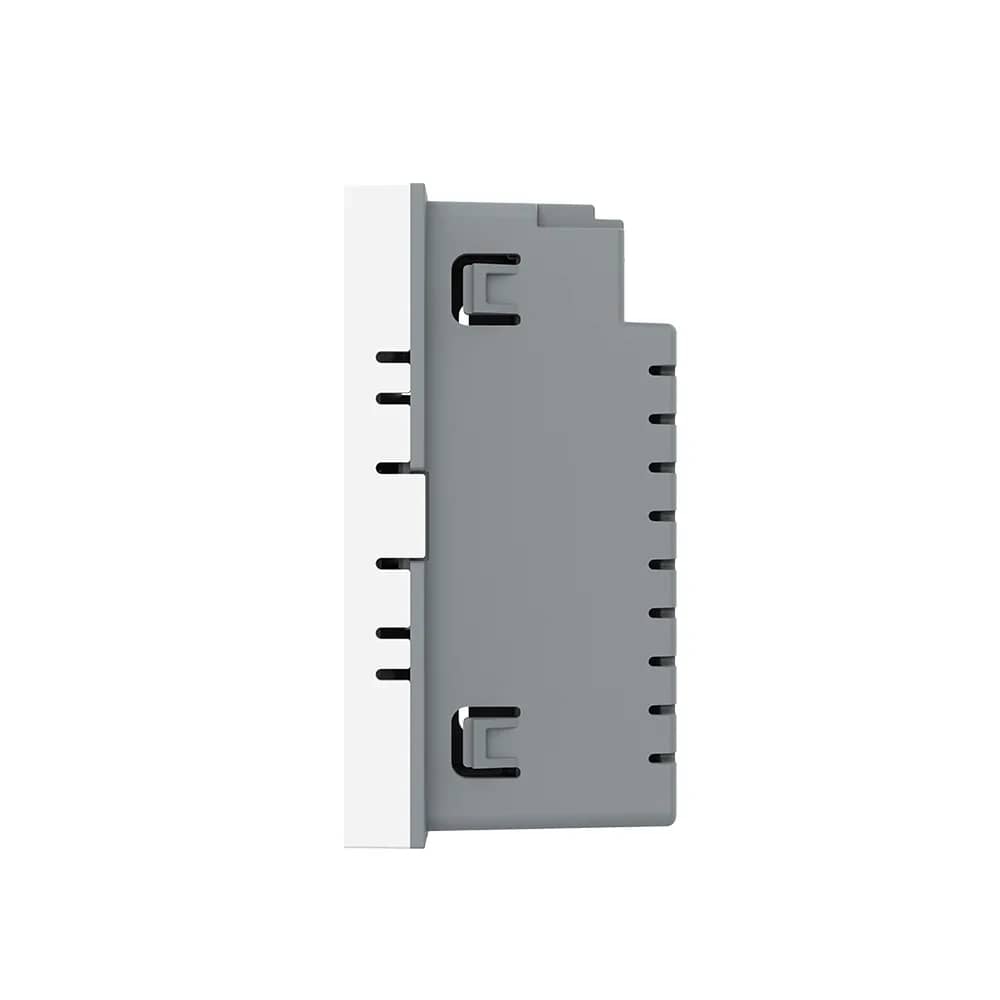

Livolo Wi-Fi Touch Light Switch Module – 2 Gang, Italian Standard, New Series, White — image 3
Livolo Wi-Fi Touch Light Switch Module – 2 Gang, Italian Standard, New Series, White — image 4
1/4
Livolo

Livolo Wi-Fi Touch Light Switch Module – 2 Gang, Italian Standard, New Series, White

SKU: C9-VL-FC2NY-3WP

AED 138

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 2 gang Wi-Fi touch switch module, Italian standard, connects directly to your router with no hub needed – control it from the Livolo Home app.

Product details

Livolo 2 gang Wi-Fi touch light switch module, Italian standard, resistant to scratches, moisture and dust. Give your home an extra touch of refinement and comfort.

The Livolo 2 gang Wi-Fi touch light switch module from the new series is an improved, innovative product, the result of technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home. It fits a modular back box (3 modules) with 85mm screw spacing.

Livolo Wi-Fi switches connect directly to your Wi-Fi router, with no hub required.

They require a neutral wire to operate.

To control the switch from your phone, you will need to install the Livolo Home app.

Highlights

Livolo Wi-Fi Touch Light Switch Module – 2 Gang, Italian Standard, New Series, White – Livolo Double Wi-Fi Touch Switch Module
01

Livolo Double Wi-Fi Touch Switch Module

A double Wi-Fi touch switch module built to the Livolo Italian standard, combining a simple design with an outstanding mechanism. Please note: the glass frame shown in the images is for presentation only and is NOT included; it must be purchased separately.

  • 2-gang Wi-Fi touch switch module
  • Livolo Italian standard
  • Glass frame not included – sold separately
Livolo Wi-Fi Touch Light Switch Module – 2 Gang, Italian Standard, New Series, White – Touch Sensor
02

Touch Sensor

The touch sensor is extremely precise, just like the sensor of a smartphone.

Livolo Wi-Fi Touch Light Switch Module – 2 Gang, Italian Standard, New Series, White – App Control
03

App Control

Change the atmosphere of your home with a simple touch. Open the Livolo app to customise your home lighting just the way you like it.

  • Livolo Wi-Fi switches connect directly to your Wi-Fi router – no hub required
  • Install the LIVOLO HOME mobile app for app control
Livolo Wi-Fi Touch Light Switch Module – 2 Gang, Italian Standard, New Series, White – Structure
04

Structure

The complete switch consists of a glass frame, the switch module and a metal mounting frame. Only the switch module is included.

  • Glass frame: not included
  • Switch module: included
  • Metal frame: not included
  • Screw fixing system with 85 mm spacing
Livolo Wi-Fi Touch Light Switch Module – 2 Gang, Italian Standard, New Series, White – Dimensions
05

Dimensions

  • Width (with frame): 119 mm
  • Height (with frame): 78 mm
  • Glass panel thickness: 4 mm
  • Depth: 24 mm
  • Front profile: 8 mm
Livolo Wi-Fi Touch Light Switch Module – 2 Gang, Italian Standard, New Series, White – Wiring Diagram
06

Wiring Diagram

Connect neutral to the N terminal, live to the COM/L input, and each light to its output terminal (L1, L2). Module label markings: 100-240V~ 50/60Hz, 5A/gang, 10A total.

  • Neutral (N)
  • Live (COM)
  • L1: light 1
  • L2: light 2
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).
