Livolo Wi-Fi Touch Light Switch Module – 1 Gang, Italian Standard – New Series C9-VL-FC1NY-3WP

SKU: C9-VL-FC1NY-3WP

AED 123

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 1 gang Wi-Fi touch switch module, Italian standard, connects directly to your router with no hub and is controlled via the Livolo Home app.

Product details

Livolo 1 gang Wi-Fi touch light switch module, Italian standard, resistant to scratches, moisture and dust. Give your home an extra touch of refinement and comfort.

The new-series Livolo 1 gang Wi-Fi touch light switch module is an improved, innovative product, the result of technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home. It fits a modular back box (3 modules) with 85mm screw spacing.

Livolo Wi-Fi switches connect directly to your Wi-Fi router, with no hub required.

They require a neutral wire to operate.

For control via the app, the Livolo Home app must be installed.

Highlights

Livolo Wi-Fi Touch Light Switch Module – 1 Gang, Italian Standard – New Series C9-VL-FC1NY-3WP – Single Wi-Fi Touch Switch Module – Italian Standard
01

Single Wi-Fi Touch Switch Module – Italian Standard

A Livolo single touch switch module with Wi-Fi, built to the Italian standard. Simple design, extraordinary mechanism.

  • Please note: product images are for presentation only – the Livolo glass frame is NOT included and must be purchased separately
Livolo Wi-Fi Touch Light Switch Module – 1 Gang, Italian Standard – New Series C9-VL-FC1NY-3WP – Touch Sensor
02

Touch Sensor

The touch sensor is extremely precise, just like the sensor in a smartphone.

Livolo Wi-Fi Touch Light Switch Module – 1 Gang, Italian Standard – New Series C9-VL-FC1NY-3WP – App Control
03

App Control

Change the atmosphere of your home with a single touch. Open the Livolo app to customise the lighting in your home just the way you like.

  • Livolo Wi-Fi switches connect directly to your Wi-Fi router – no hub required
  • For app control, install the LIVOLO HOME mobile app
Livolo Wi-Fi Touch Light Switch Module – 1 Gang, Italian Standard – New Series C9-VL-FC1NY-3WP – Structure
04

Structure

The complete switch consists of a glass panel, the switch module and a metal frame. Only the switch module is included.

  • Elegant crystal glass panel (not included)
  • Switch module
  • Metal frame (not included)
  • Screw fixing system: 85 mm spacing
Livolo Wi-Fi Touch Light Switch Module – 1 Gang, Italian Standard – New Series C9-VL-FC1NY-3WP – Dimensions
05

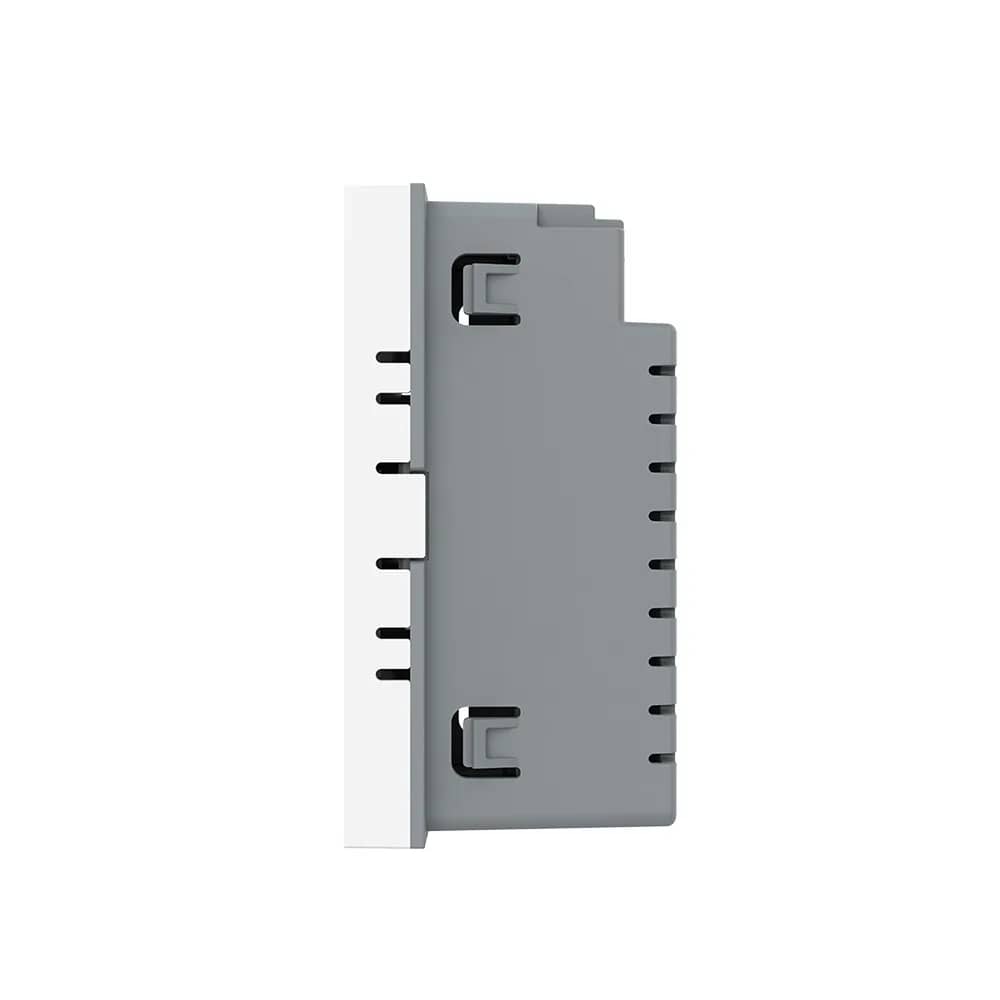

Dimensions

  • Width: 119 mm
  • Height: 78 mm
  • Depth: 4 mm / 24 mm / 8 mm (as shown on profile diagram)
Livolo Wi-Fi Touch Light Switch Module – 1 Gang, Italian Standard – New Series C9-VL-FC1NY-3WP – Technical Data
06

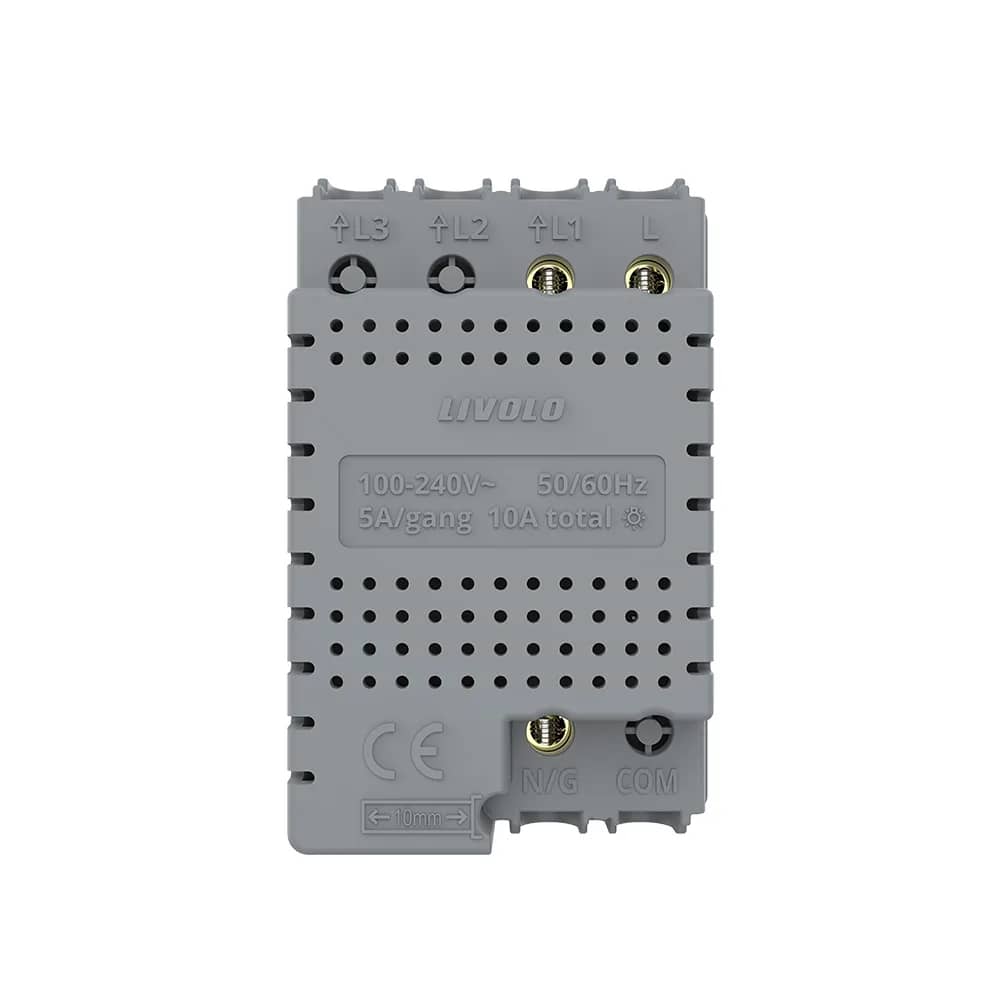

Technical Data

  • Voltage: 100-240V~
  • Frequency: 50/60Hz
  • Load: 5A/gang, 10A total
07

Wiring Diagram

Connect the neutral wire to the N terminal, the live (phase) wire to the COM terminal and the light fitting to the L1 terminal.

  • Neutral → N
  • Live (phase) → COM
  • Lamp → L1
08

Installation Steps

  • 1. Open the package
  • 2. Connect the wires and tighten the screws
  • 3. Use the 2 screws to fix the frame
  • 4. Click the front panel into place
09

Quality

Livolo products are sold worldwide and carry RoHS and CE certification, among other international certificates.

  • Tempered glass panels offer surface hardness greater than 4H, staying clean and scratch-resistant over the long term
  • Galvanised parts show no corrosion after high-temperature and saturated salt spray testing
  • Surface and functionality remain as new under extreme high, low and constant temperature or humidity
  • Endurance tests show an average service life of over 100,000 operations
  • High-voltage resistance tested

The Livolo touch panel in action
