Livolo

Livolo USB-A + USB-C Socket Module – New Series

SKU: C7-VL-FCUA18W.UC18W-2WP

AED 150

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo USB-A + USB-C charging socket module with 36W total output, up to 18W per port and smart fast-charge protocol detection.

Product details

The socket module features two charging ports with a total output of 36W. When the A port and the C port are used at the same time, each can deliver up to 18W simultaneously. The socket supports PD, QC, FCP, AFC, APPLE 5V/2.4A, BC1.2 DCP and other protocols, and automatically determines the best charging method for the connected devices. It fits a round or square wall box with 60 mm screw spacing.

Highlights

Livolo USB-A + USB-C Socket Module – New Series – Livolo USB-A + USB-C Socket Module
01

Livolo USB-A + USB-C Socket Module

A USB socket module with one USB-A and one USB-C port, supplied without the glass frame. Simple design, outstanding mechanism, available to match a range of frame colours.

  • USB-A + USB-C ports
  • 36W max output
  • Glass frame not included – must be purchased separately
Livolo USB-A + USB-C Socket Module – New Series – Wide Device Compatibility
02

Wide Device Compatibility

Charges a wide variety of smartphones and tablets.

  • Supports PD, QC, FCP, AFC and other protocols
Livolo USB-A + USB-C Socket Module – New Series – Installation
03

Installation

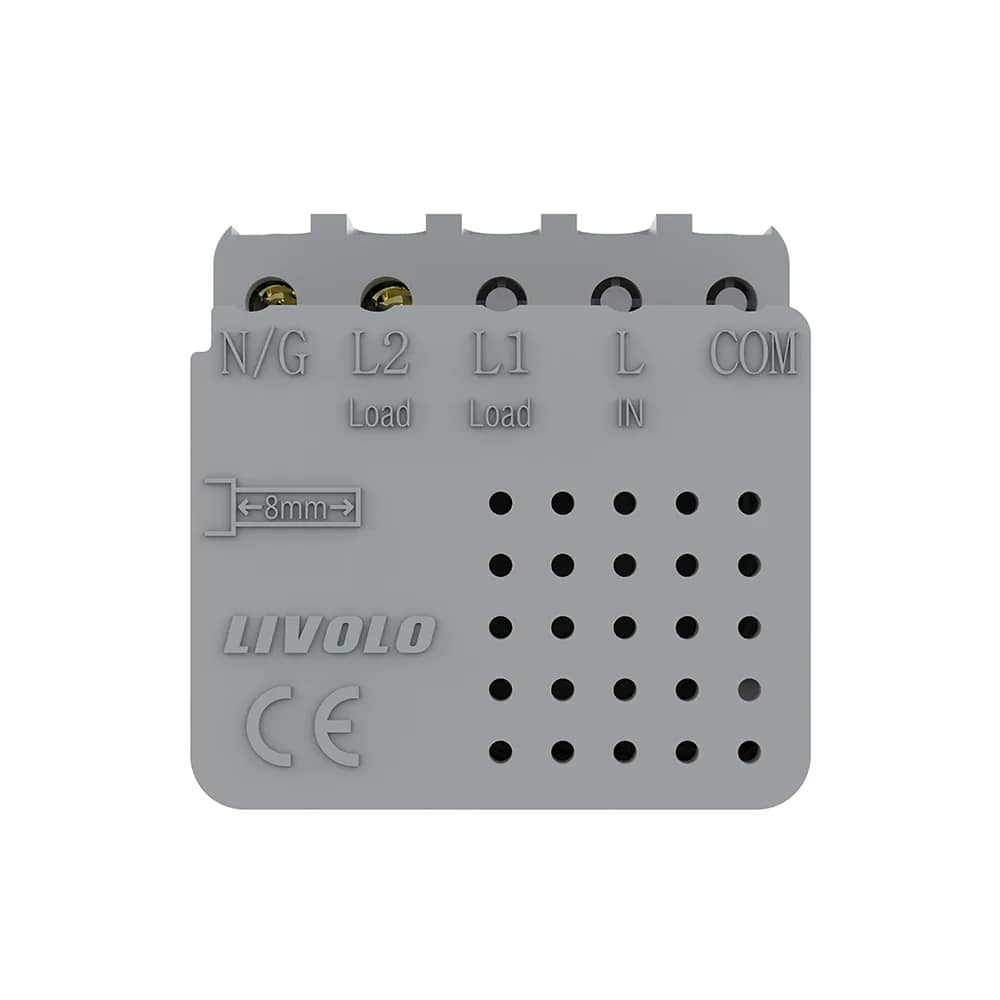

Refer to the wiring diagram: connect the neutral (N) wire to the N/G terminal and the live (L) wire to the L2 terminal.

  • Neutral (N) → N/G
  • Live (L) → L2
  • Screw fixing system, 60 mm between fixings
Livolo USB-A + USB-C Socket Module – New Series – Structure
04

Structure

The complete socket consists of a glass frame, the USB socket module and a metal mounting frame. Only the USB socket module is included.

  • Glass frame (not included)
  • USB socket module (included)
  • Metal frame (not included)
Livolo USB-A + USB-C Socket Module – New Series – Dimensions
05

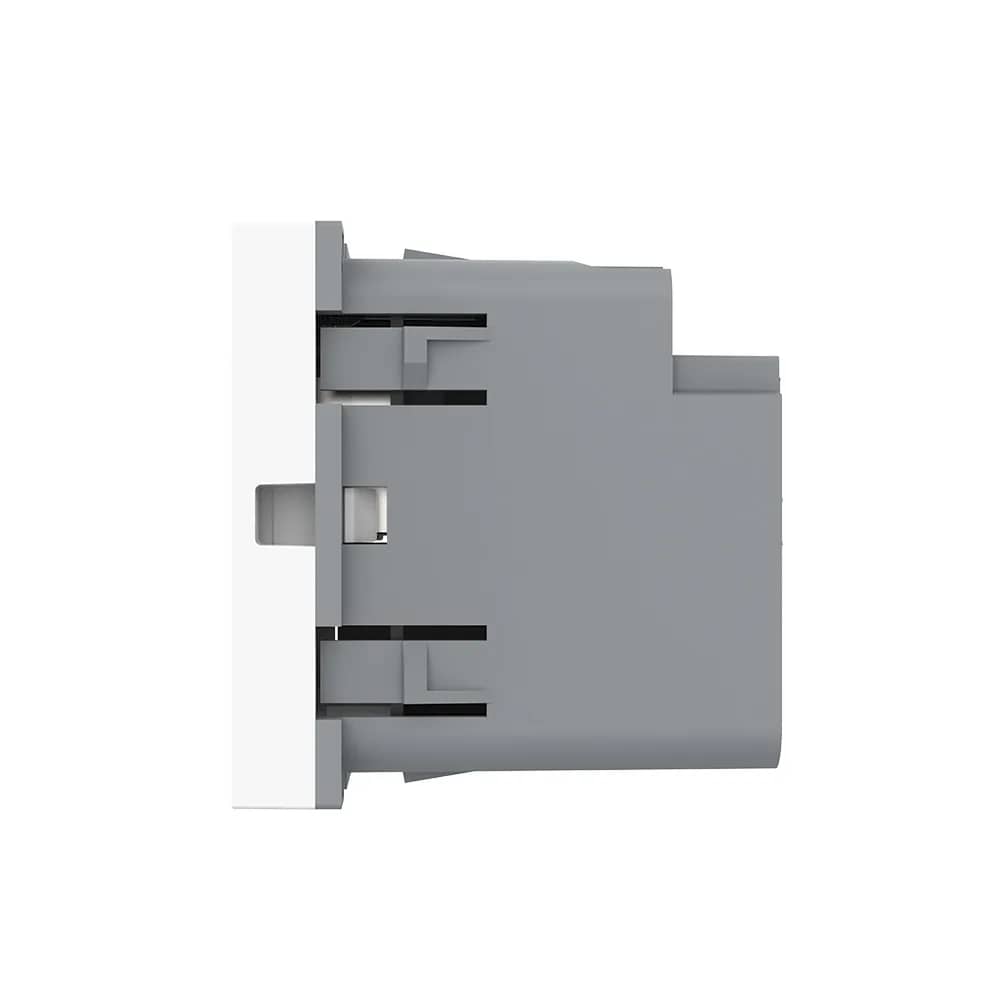

Dimensions

  • Frame size: 80 mm x 80 mm
  • Module face: 45 mm
  • Glass frame thickness: 4 mm
  • Front depth: 8 mm
  • Module body depth: 32 mm
  • Module body height: 40 mm
  • Screw fixing spacing: 60 mm
