Livolo

Livolo TV Socket Module

SKU: VL-FCTV-1WP

AED 12

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Premium Livolo single TV socket module that fits a glass frame and mounts in a standard wall box for a neat, cable-free look.

Product details

The Livolo single TV socket mounts on a glass frame directly into the wall box, helping you avoid unsightly electrical cables – a premium product.

Highlights

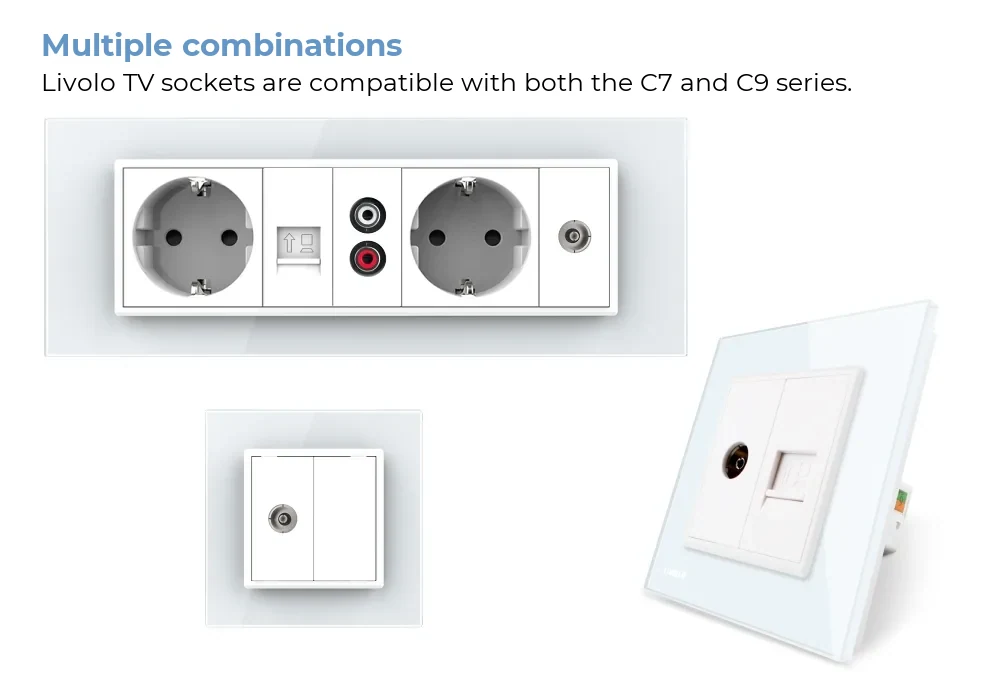

Livolo TV Socket Module – Multiple Combinations
01

Multiple Combinations

Livolo TV sockets are compatible with both the C7 series and the C9 series, so they can be combined with other modules in a single frame.

Livolo TV Socket Module – Wiring Diagram for TV Sockets
02

Wiring Diagram for TV Sockets

Follow these steps to connect the coaxial cable to the TV socket.

  • 1. Strip 15 mm from the outer jacket of the coaxial cable and fold back the wire braid around the cable.
  • 2. Strip 15 mm of insulation from the centre of the cable (leaving 3 mm) and fit the metal ring.
  • 3. Insert the connector between the braided wire and the insulating material, then crimp the metal sleeves with pliers to secure them.
  • 4. Screw the wired connector onto the TV socket.

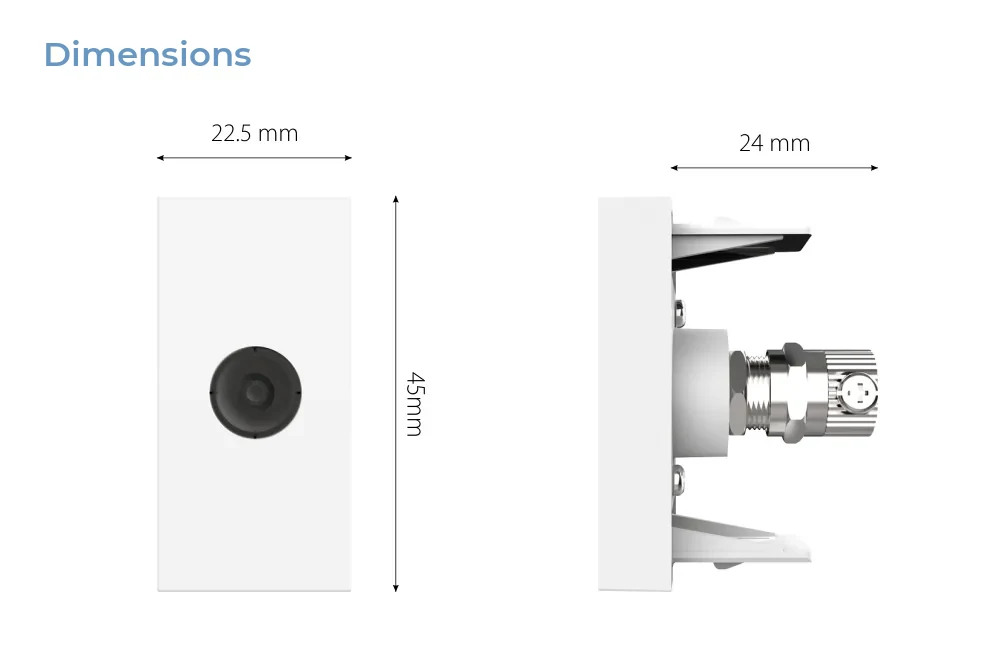

Livolo TV Socket Module – Dimensions
03

Dimensions

  • Width: 22.5 mm
  • Height: 45mm
  • Depth: 24 mm

In detail

Livolo TV Socket Module – detail 1Livolo TV Socket Module – detail 2
