Livolo Triple Socket with Blank and Glass Frame – 6/7 Modules, Italian Standard

Livolo Triple Socket with Blank – C9 Series

A triple socket with a blank module, set in a glass frame to the Italian standard, 6–7 modules. Part of the new Livolo C9 socket series: simple design, outstanding mechanism.

• Three sockets plus one blank module
• Glass frame, Italian standard, 6–7 modules
• New Livolo C9 series
• Available in a variety of frame colours

High-Quality Glass Panel

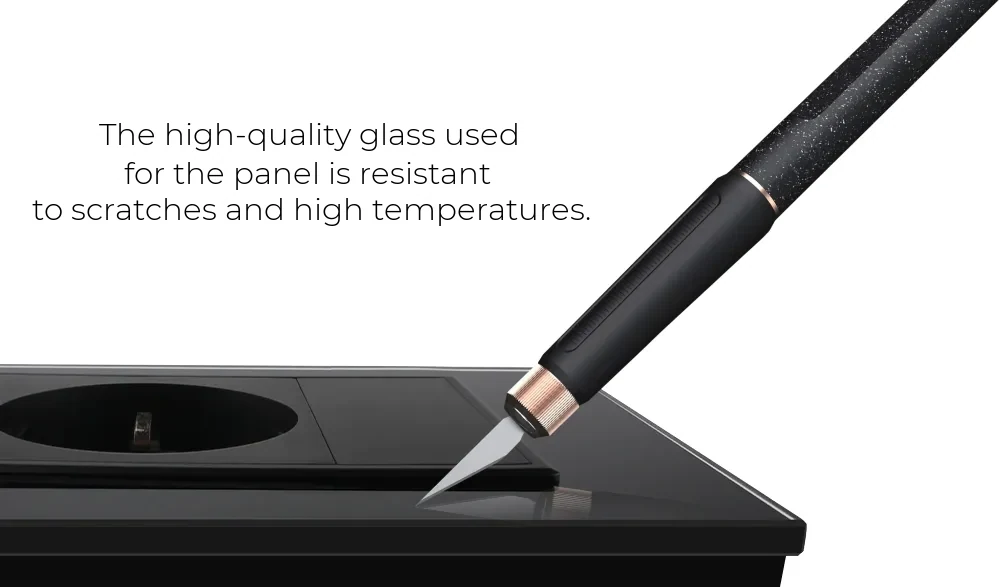

The panel is made from high-quality glass that resists scratches and high temperatures. It does not discolour, so the elegant design stays intact.

• Scratch-resistant
• Resistant to high temperatures

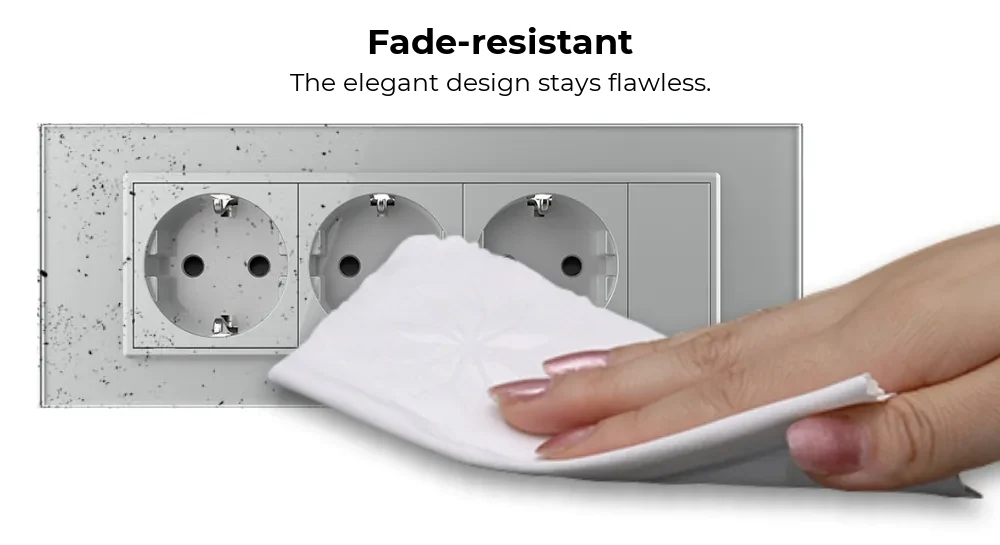

• Does not discolour
• Easy to wipe clean

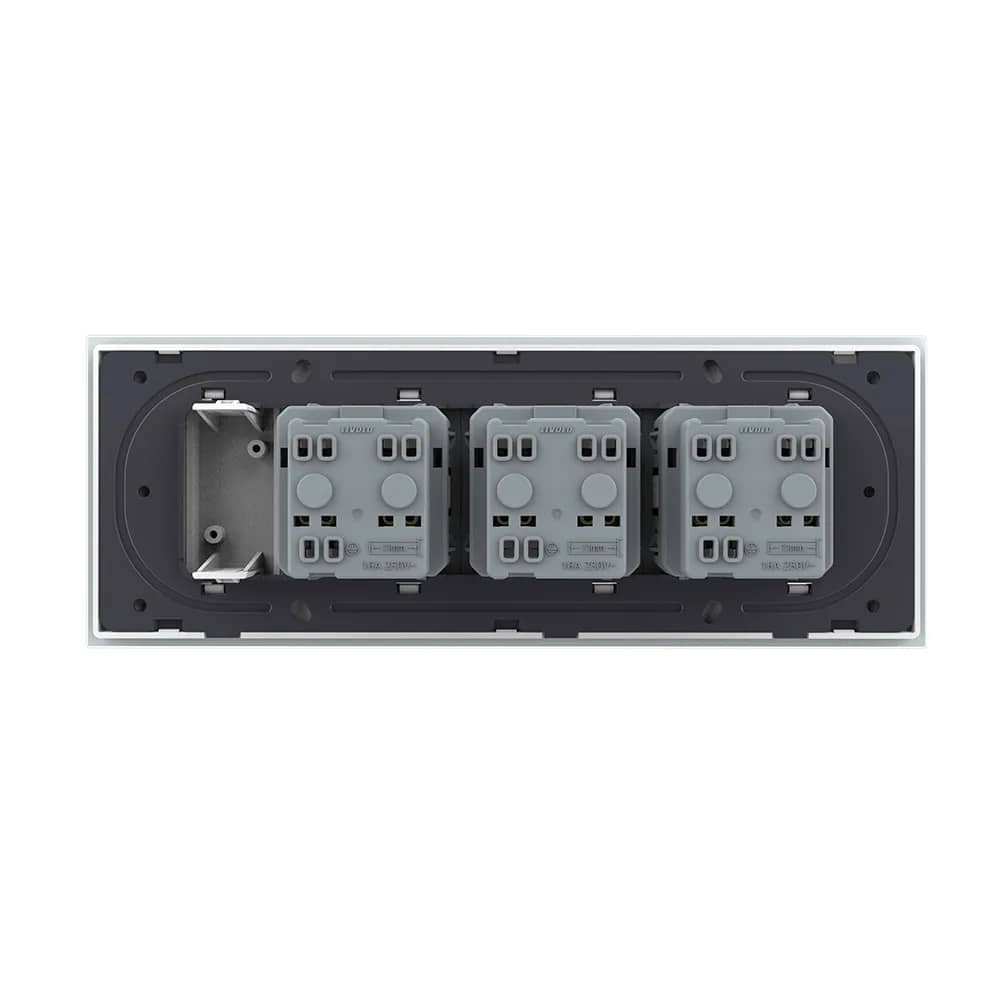

Structure

• Elegant crystal panel
• Socket modules
• Metal frame
• Screw fixing system with 102 mm spacing

Dimensions

• Width: 210 mm
• Height: 78 mm
• Panel thickness: 4 mm
• Module depth: 30 mm
• Frame profile: 8 mm
• Fixing screw spacing: 102 mm

Wiring Diagram

Connect the neutral, live and earth lines to the socket modules as shown in the wiring diagram.

• Neutral line
• Live (supply) line
• Earth line

Installation

• 1. Open the package.
• 2. Connect the cables and tighten the screws.
• 3. Use the 4 screws to fix the frame.
• 4. Fit the front panel – it clicks into place.
