01
Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
- Glass panel not included – it must be purchased separately
Livolo

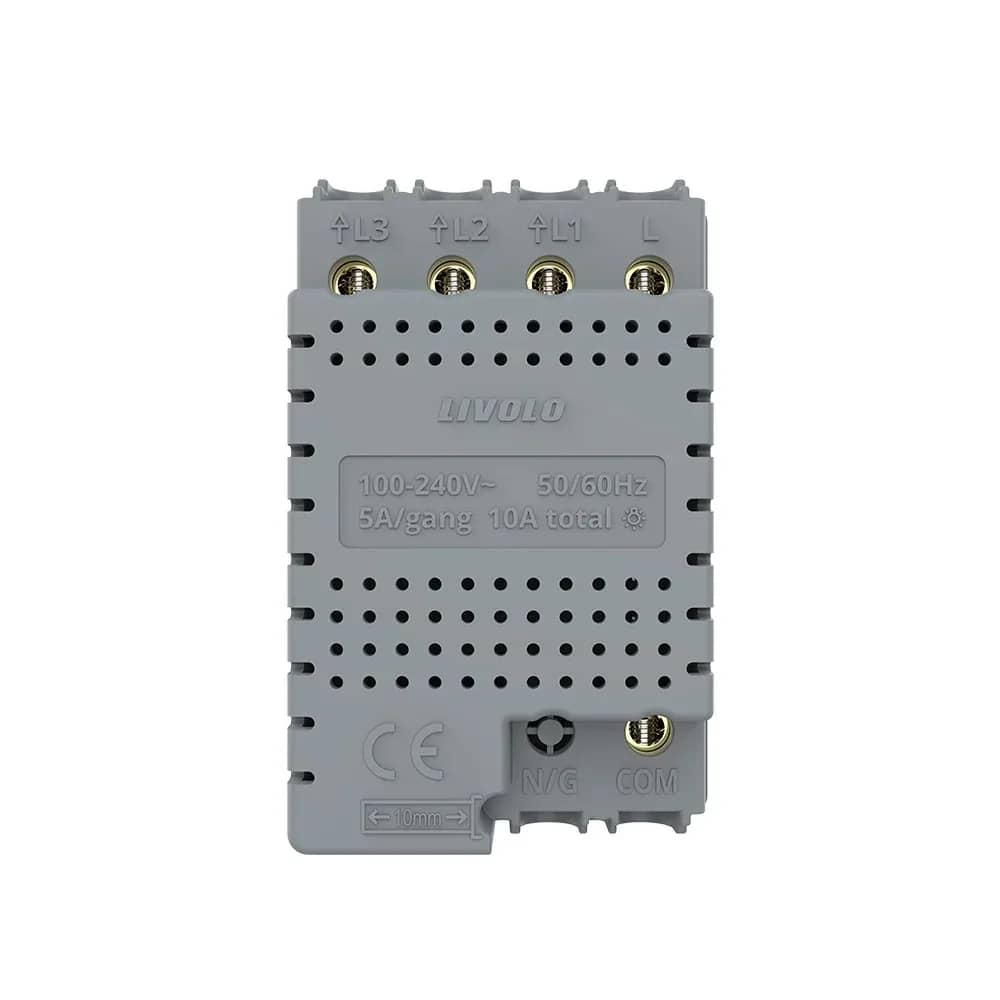

Livolo Touch Light Switch Module – 3 Gang 2-Way / Intermediate, Zigbee EC, Italian Standard
SKU: C9-VL-FC3SZ2-3G
AED 193
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 3 gang 2-way/intermediate touch switch module, Zigbee EC protocol, Italian standard, resistant to scratches, moisture and dust.
Product details
Livolo 3 gang touch light switch module, 2-way (staircase) / intermediate (cross). Zigbee EC protocol, Italian standard, resistant to scratches, moisture and dust. Give your home an extra touch of refinement and comfort.
Compatible only with the Zigbee EC hub
Highlights
02
Compatible with Amazon Alexa
With a simple voice command, you can control the Livolo ZigBee switch to turn your lights on or off.
- Example command: "Alexa, turn on the light!"
03
Light Indicator
Red and blue LEDs show whether the switch is on or off.
- Red LED: switch is on
- Blue LED: switch is off
04
Easy to Find in the Dark
The LED lights up clearly and the switch emits a clear sound when touched.
05
Smart MCU Chip
Built-in microchip technology with an intelligent MCU chip.
06
Wiring Diagram
Two-way wiring between two switch modules, controlling three lamps.
- Neutral (N) connected to the lamps
- Live (L) connected to both modules
- Traveller wire linking the two modules (two-way connection)
07
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
In detail
