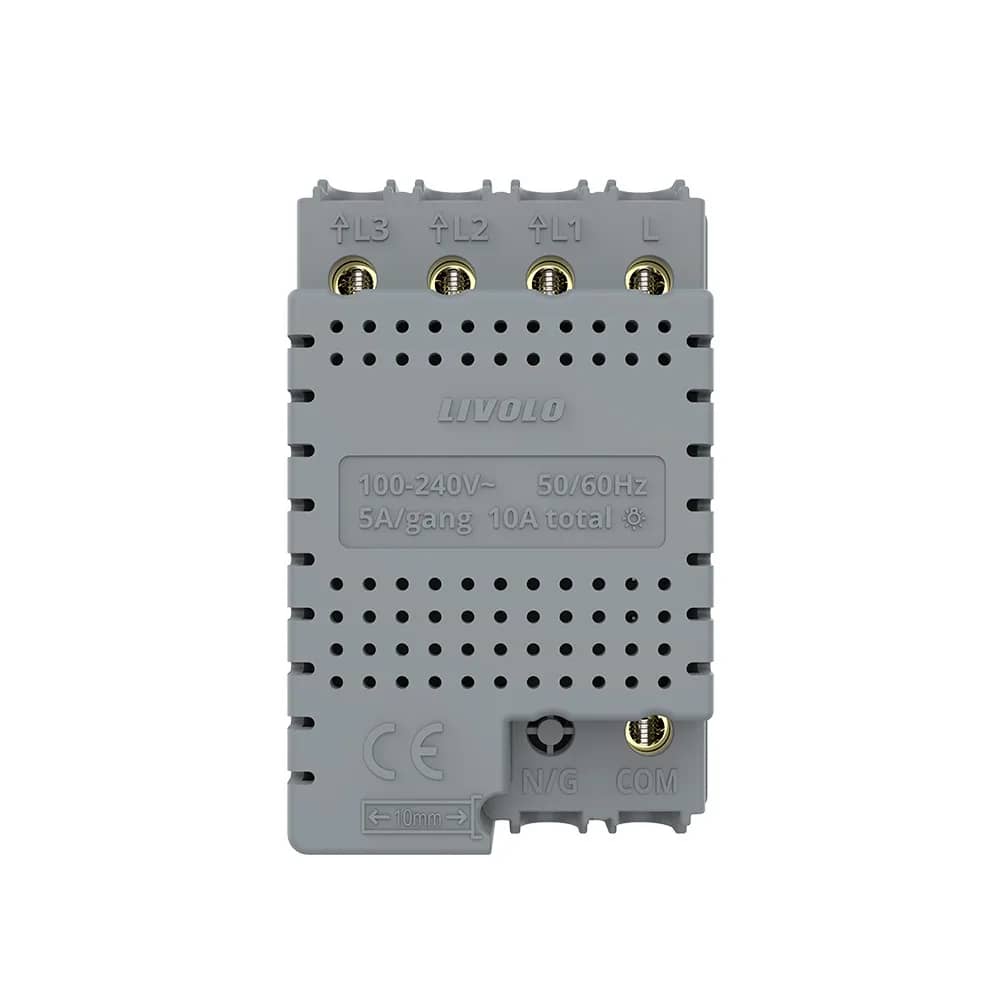

Livolo Touch Light Switch Module – 3 Gang 2-Way / Intermediate (Cross), Italian Standard C9-VL-FC3S-3G — image 3
1/3
Livolo

Livolo Touch Light Switch Module – 3 Gang 2-Way / Intermediate (Cross), Italian Standard C9-VL-FC3S-3G

SKU: C9-VL-FC3S-3G

AED 141

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 3 gang 2-way / intermediate touch switch module, Italian standard, resistant to scratches, moisture and dust.

Product details

Livolo 3 gang touch light switch module, 2-way (staircase) / intermediate (cross). Italian standard, resistant to scratches, moisture and dust. Give your home an extra touch of refinement and comfort.

A maximum of 3 switches can be connected in the circuit (intermediate/cross wiring)

Flush-mount back box: GEWISS 3M

Drywall back box: GEWISS 3M

Please note: back boxes are ordered separately!

Highlights

Livolo Touch Light Switch Module – 3 Gang 2-Way / Intermediate (Cross), Italian Standard C9-VL-FC3S-3G – Triple Touch Switch Module – 2-Way / Intermediate
01

Triple Touch Switch Module – 2-Way / Intermediate

A triple (3 gang) touch switch module for 2-way and intermediate (cross) switching, built to the Livolo Italian standard. Simple design, outstanding mechanism.

  • Works only when installed and synchronised with other Livolo 2-way products
  • Livolo products do not work with other brands
  • The Livolo glass panel is not included and must be purchased separately; images are for illustration only
Livolo Touch Light Switch Module – 3 Gang 2-Way / Intermediate (Cross), Italian Standard C9-VL-FC3S-3G – Touch Sensor
02

Touch Sensor

The touch sensor is extremely precise, just like the sensor in a smartphone.

Livolo Touch Light Switch Module – 3 Gang 2-Way / Intermediate (Cross), Italian Standard C9-VL-FC3S-3G – LED Indicator – Easy to Find in the Dark
03

LED Indicator – Easy to Find in the Dark

Red and blue LEDs show whether the switch is on or off. The LED lights up clearly and the switch emits a clear sound.

  • Red LED: switch is on
  • Blue LED: switch is off
  • Smart MCU chip with built-in microchip technology
Livolo Touch Light Switch Module – 3 Gang 2-Way / Intermediate (Cross), Italian Standard C9-VL-FC3S-3G – No Unnecessary Wiring
04

No Unnecessary Wiring

The new Livolo switches ensure quick and easy installation.

  • Live (L) and Neutral (N) connections
  • Terminals: L, L1, L2, L3, COM
05

Wiring Diagram

Triple switch wired in a 2-way / intermediate configuration: the two modules are linked via the COM terminals, with Live (L) on one module and the three lamps connected to the L1, L2 and L3 outputs of the other, returning to Neutral (N).

06

Structure

The assembly consists of a glass panel, the switch module and a metal frame, fixed with screws.

  • Elegant crystal panel (not included)
  • Switch module
  • Metal frame (not included)
  • Screw fixing distance: 85 mm
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).
08

Technical Data

  • Voltage: 100-240V~
  • Frequency: 50/60Hz
  • Load: 5A/gang, 10A total
  • Standard: Italian
  • Model: C9-VL-FC3S-3G
