Livolo Touch Light Switch Module – 1 Gang 2-Way / Intermediate – New Series VL-FC1S-2G

1 / 4

Livolo

Livolo Touch Light Switch Module – 1 Gang 2-Way / Intermediate – New Series VL-FC1S-2G

Name: Livolo Touch Light Switch Module – 1 Gang 2-Way / Intermediate – New Series VL-FC1S-2G
Brand: Livolo
SKU: VL-FC1S-2G
Price: 101 AED
Availability: InStock

SKU: VL-FC1S-2G

AED 101

In stock

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Livolo new-series 1 gang 2-way / intermediate touch switch module, up to 3 switches per circuit, fits round or square boxes with 60mm screw spacing.

Product details

The Livolo new-series 1 gang 2-way / intermediate touch light switch module is an improved, innovative product, the result of technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home. It fits a round or square wall box with 60mm spacing between the screws.

Up to 3 switches can be connected in the circuit (intermediate)

Improvements over the previous series:

→ Compatible with more types of light bulbs
→ Faster response time when the touch is activated
→ More powerful and robust chip – made in Japan
→ Reduced stand-by power consumption
→ Compact design (smaller dimensions than the previous model)
→ Maximum supported load of 5A / circuit

Highlights

Livolo Single Touch Switch Module – 2-Way / Intermediate

A single touch switch module for 2-way (staircase) and intermediate (cross) wiring, from a wide range of Livolo products. Simple design, outstanding mechanism. Please note: the image is for illustration only and the price does NOT include the Livolo panel, which must be purchased separately.

Module only – glass panel and metal frame not included
Panel shown in several colour options for illustration

Improved New Series

Unrivalled performance with low energy consumption. The new series is an improved version of the old model, with a slimmer profile.

Panel thickness: 4 mm
Depth behind the wall: 33 mm
Frame offset: 8 mm

Touch Sensor

The touch sensor is extremely precise, identical to the sensor of a smartphone.

LED Light Indicator

Red and blue LEDs show whether the switch is on or off, making it easy to find in the dark. The LED lights up gently and the switch emits a clear sound.

Red LED: switch is on
Blue LED: switch is off
MCU smart chip with built-in microchip technology

Durable Design

Does not discolour – the elegant design stays intact
Water resistant – can be used safely in damp environments

Structure

The complete switch consists of an elegant crystal glass panel, the switch module and a metal frame. Only the switch module is included.

Crystal glass panel (not included)
Switch module (included)
Metal frame (not included)
Screw fixing system: 60 mm
Panel dimensions: 80 mm x 80 mm

Wiring Diagram

Connect neutral (N) to the lamp and live (L) to the L terminal of both switches; link the COM terminals of the two switches for 2-way / intermediate operation.

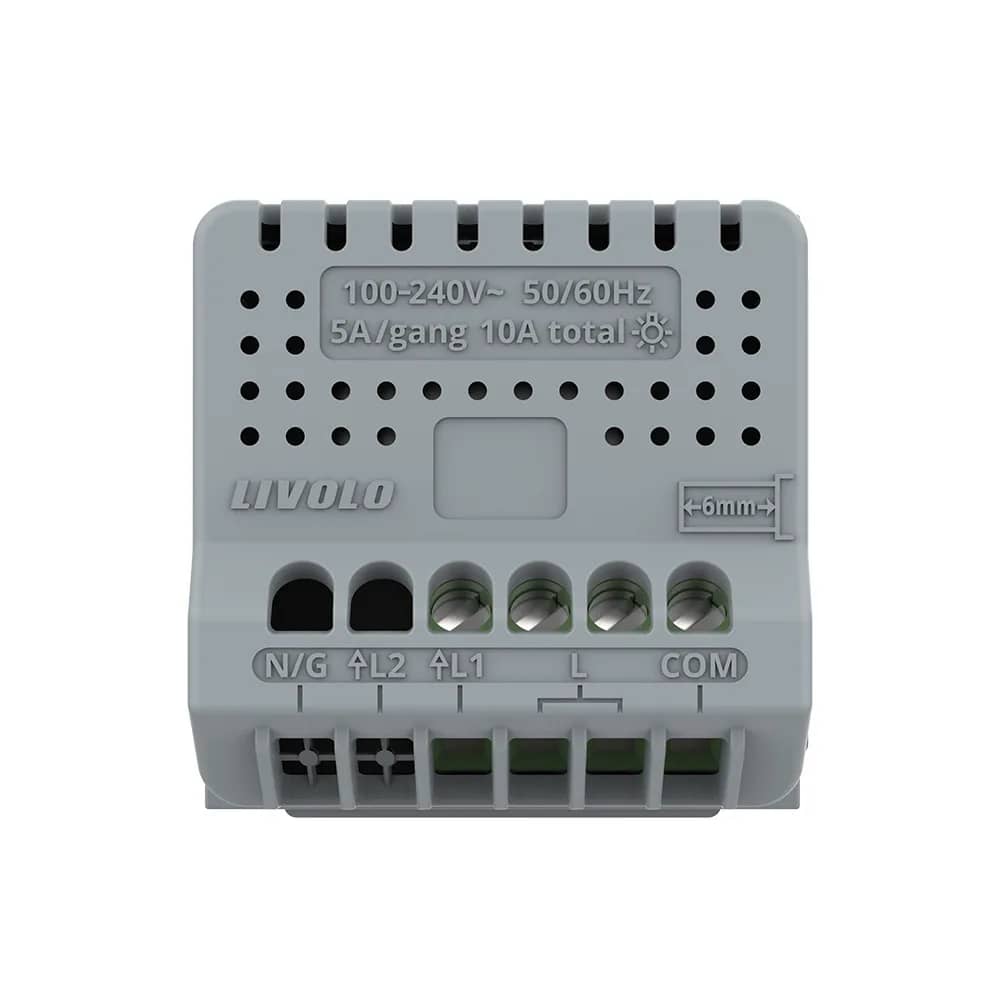

Module marking: 100–240V~ 50/60Hz
5A/gang, 10A total
Terminals: N/G, L2, L1, L, COM

Installation Steps

1. Open the package.
2. Connect the wires and tighten the screws.
3. Use the 2 screws to fix the frame.
4. Clip on the front panel.
