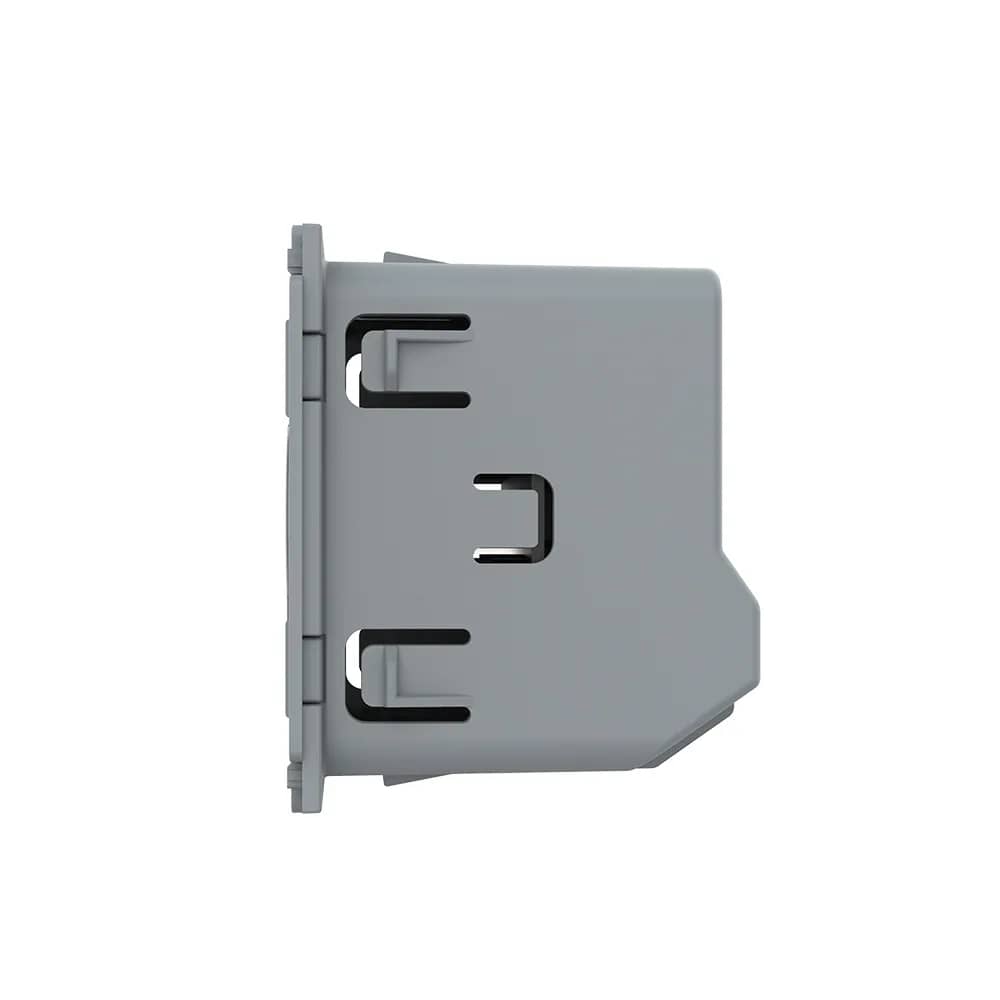

Livolo Touch Momentary Switch Module – 1 Gang, Dry Contact – New Series C7-VL-FC1NB-2G — image 4
1/4
Livolo

Livolo Touch Momentary Switch Module – 1 Gang, Dry Contact – New Series C7-VL-FC1NB-2G

SKU: C7-VL-FC1NB-2G

AED 106

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 1 gang touch momentary (push-to-reset) switch module with dry contact and blue/red LED indicator – New Series.

Product details

Momentary switch module / touch reset button (on/off), with a blue LED when the switch is off and a red LED when the switch is on, making it easy to use in the dark. Resistant to scratches and humidity, it will always look impeccable. Suitable for homes, offices, restaurants, conference rooms and luxury hotels.

Highlights

Livolo Touch Momentary Switch Module – 1 Gang, Dry Contact – New Series C7-VL-FC1NB-2G – Livolo Single Touch Switch Module – Momentary, Dry Contact
01

Livolo Single Touch Switch Module – Momentary, Dry Contact

A wide range of products with a simple design and an outstanding mechanism. This single momentary (push-return) dry contact switch module works with Livolo touch panels.

  • Important: the image is for illustration only – the Livolo glass panel is NOT included and must be purchased separately
  • Available panel colours shown: white, gold, black and grey
Livolo Touch Momentary Switch Module – 1 Gang, Dry Contact – New Series C7-VL-FC1NB-2G – Touch Sensor
02

Touch Sensor

The touch sensor is extremely precise, just like the sensor of a smartphone.

Livolo Touch Momentary Switch Module – 1 Gang, Dry Contact – New Series C7-VL-FC1NB-2G – Does Not Discolour
03

Does Not Discolour

The elegant design stays intact.

Livolo Touch Momentary Switch Module – 1 Gang, Dry Contact – New Series C7-VL-FC1NB-2G – Wiring Diagram
04

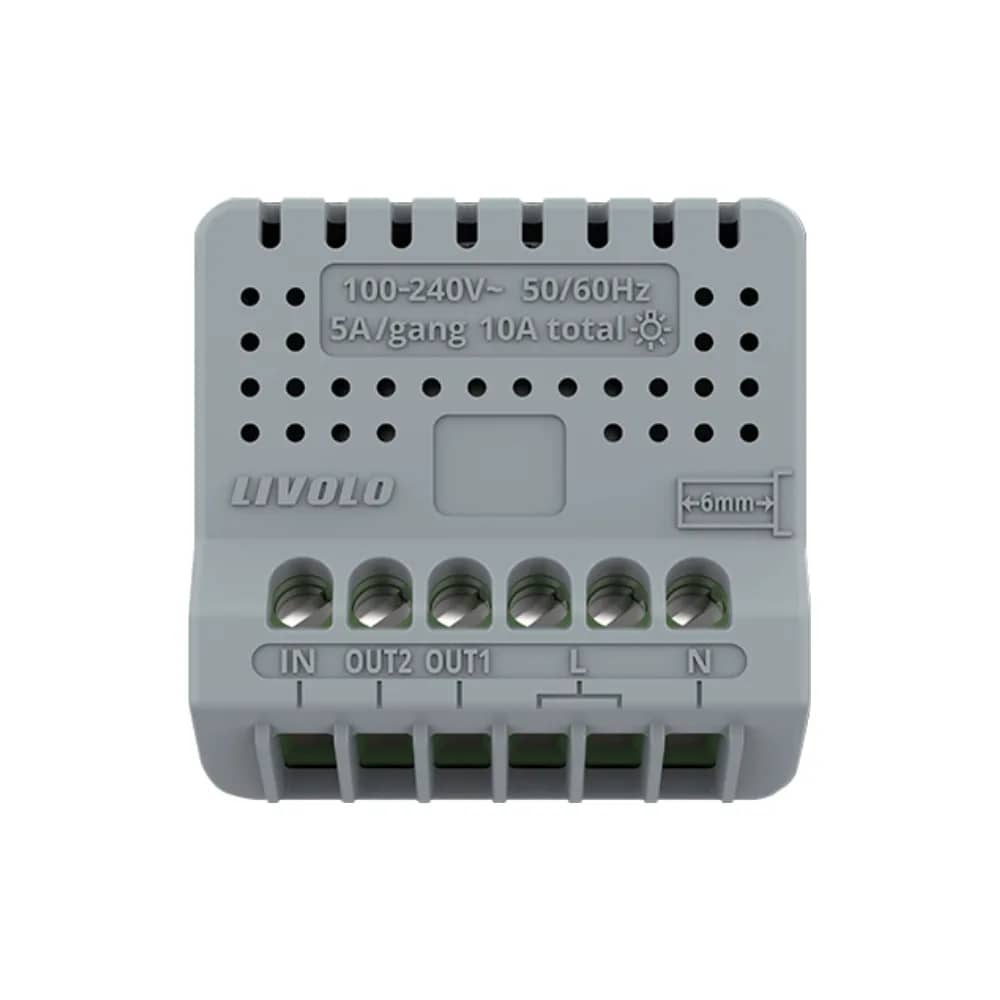

Wiring Diagram

Terminal designations for connecting the module.

  • L: Live (phase)
  • IN: Input terminal
  • N: Neutral
  • OUT2, OUT1: Output terminals
Livolo Touch Momentary Switch Module – 1 Gang, Dry Contact – New Series C7-VL-FC1NB-2G – Wiring with a Step-by-Step Relay
05

Wiring with a Step-by-Step Relay

The banners show a wiring scheme for using the momentary switch with a step-by-step (impulse) relay, e.g. Finder 27.01, alongside a conventional push button controlling a lamp.

Livolo Touch Momentary Switch Module – 1 Gang, Dry Contact – New Series C7-VL-FC1NB-2G – Technical Data
06

Technical Data

  • Voltage: 100-240V~ 50/60Hz
  • Load: 5A/gang, 10A total
  • Wire strip length: 6 mm
  • Panel dimensions: 80 mm x 80 mm
  • Screw fixing spacing: 60 mm
  • Depth: 4 mm / 8 mm (panel), 33 mm (module)
  • Marking: CE
07

Structure

The complete switch consists of three parts; only the switch module is supplied with this product.

  • Elegant crystal glass panel (not included)
  • Switch module (included)
  • Metal frame (not included)
  • Screw fixing system
08

Installation Steps

  • 1. Open the package
  • 2. Connect the wires and tighten the screws
  • 3. Use the 2 screws to fix the frame
  • 4. Click the front panel into place
