Touch Sensor
The touch sensor is extremely precise, identical to the sensor in a smartphone.
- Glass panel not included – must be purchased separately
Livolo

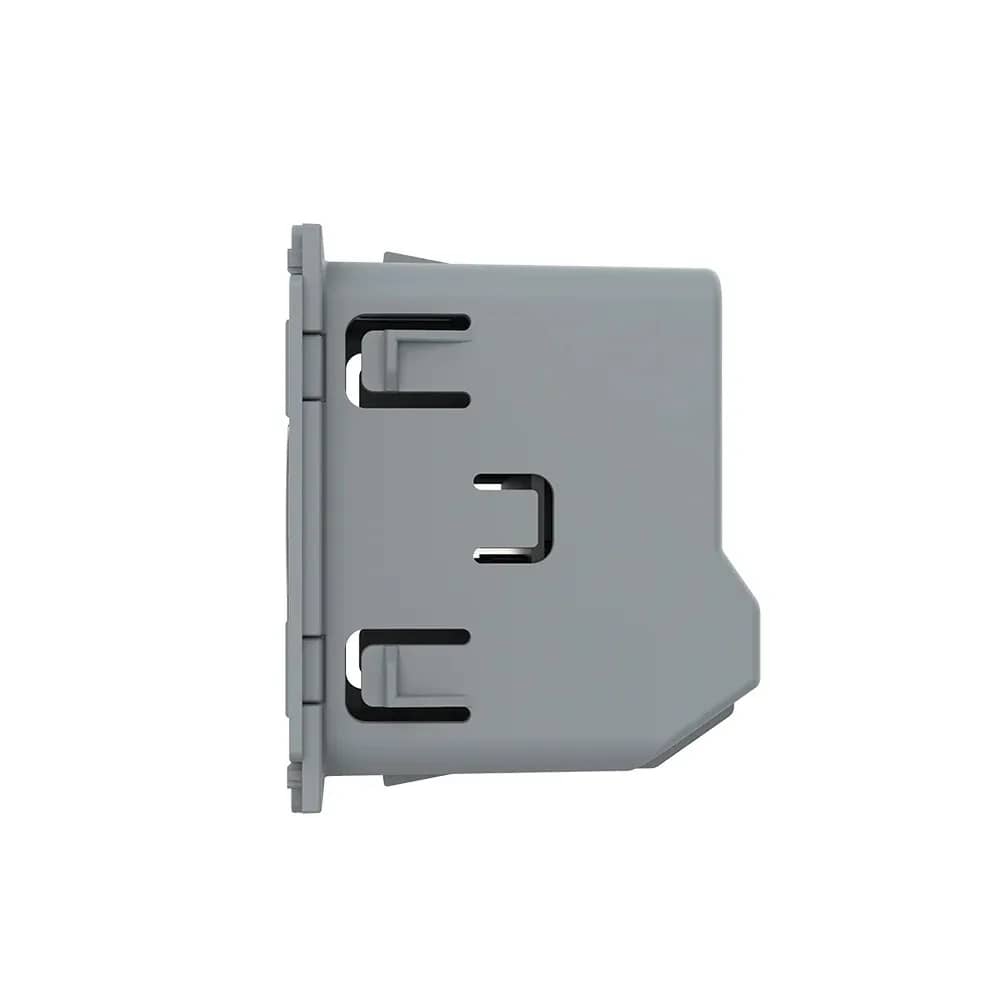

Livolo Touch Momentary Switch Module – 1 Gang, Dry Contact, 12/24V – New Series (C7-VL-FC1HC-2G)
SKU: C7-VL-FC1HC-2G
AED 124
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 1 gang momentary touch switch module with dry contact for 12/24V, blue/red LED indicator and a scratch- and moisture-resistant finish.
Product details
1 gang momentary switch module / reset button, 12/24V, with on/off touch control – blue LED when the switch is off and red LED when the switch is on – easy to use in the dark, resistant to scratches and moisture, and it will always look impeccable. Suitable for homes, offices, restaurants, conference rooms and luxury hotels.
Highlights
02
Does Not Fade
The elegant design stays intact.
03
Wiring Diagram
The module is marked 12/24V DC, 5A/gang, 10A total.
- + : Positive pole of the DC power source
- - : Negative pole of the DC power source
- IN: Input wire
- OUT1/OUT2: Output wires
- Wire strip length: 6mm
04
Structure
The switch consists of an elegant crystal panel, the switch module and a metal frame. Only the switch module is included.
- Elegant crystal panel (not included)
- Switch module
- Metal frame (not included)
- Screw fixing system: 60 mm
05
Dimensions
- Panel: 80 mm x 80 mm
- Panel thickness: 4 mm
- Module depth: 33 mm
- Frame: 8 mm
06
Installation
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
