Livolo

Livolo Touch Doorbell Button Module – New Series (VL-FC1B-2G)

SKU: VL-FC1B-2G

AED 94

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo new-series touch doorbell button module, fits round or square wall boxes with 60mm screw spacing.

Product details

The Livolo touch doorbell button module from the new series is an improved, innovative product, the result of technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home. It fits a round or square wall box with 60mm spacing between the screws.

The doorbell will only ring while the button is being pressed.

Highlights

Livolo Touch Doorbell Button Module – New Series (VL-FC1B-2G) – Livolo Touch Doorbell Button Module
01

Livolo Touch Doorbell Button Module

A wide choice of products with a simple design and an outstanding mechanism. Please note: the images are for presentation only and the glass panel is NOT included. It must be purchased separately.

Livolo Touch Doorbell Button Module – New Series (VL-FC1B-2G) – Key Features
02

Key Features

  • Doorbell button: the bell rings only when the button is touched
  • Touch sensor as precise as a smartphone screen
  • Low energy consumption
  • Improved new series compared with the old model
Livolo Touch Doorbell Button Module – New Series (VL-FC1B-2G) – Design and Materials
03

Design and Materials

The compatible high-quality glass panel resists scratches and high temperatures. It does not discolour, so its elegant design stays intact.

Livolo Touch Doorbell Button Module – New Series (VL-FC1B-2G) – Structure
04

Structure

  • Elegant crystal panel (not included)
  • Switch module
  • Metal frame (not included)
  • Screw fixing system, 60 mm fixing spacing
Livolo Touch Doorbell Button Module – New Series (VL-FC1B-2G) – Dimensions
05

Dimensions

  • Panel: 80 mm x 80 mm
  • Panel thickness: 4 mm
  • Module depth: 33 mm
  • Frame: 8 mm
Livolo Touch Doorbell Button Module – New Series (VL-FC1B-2G) – Technical Data
06

Technical Data

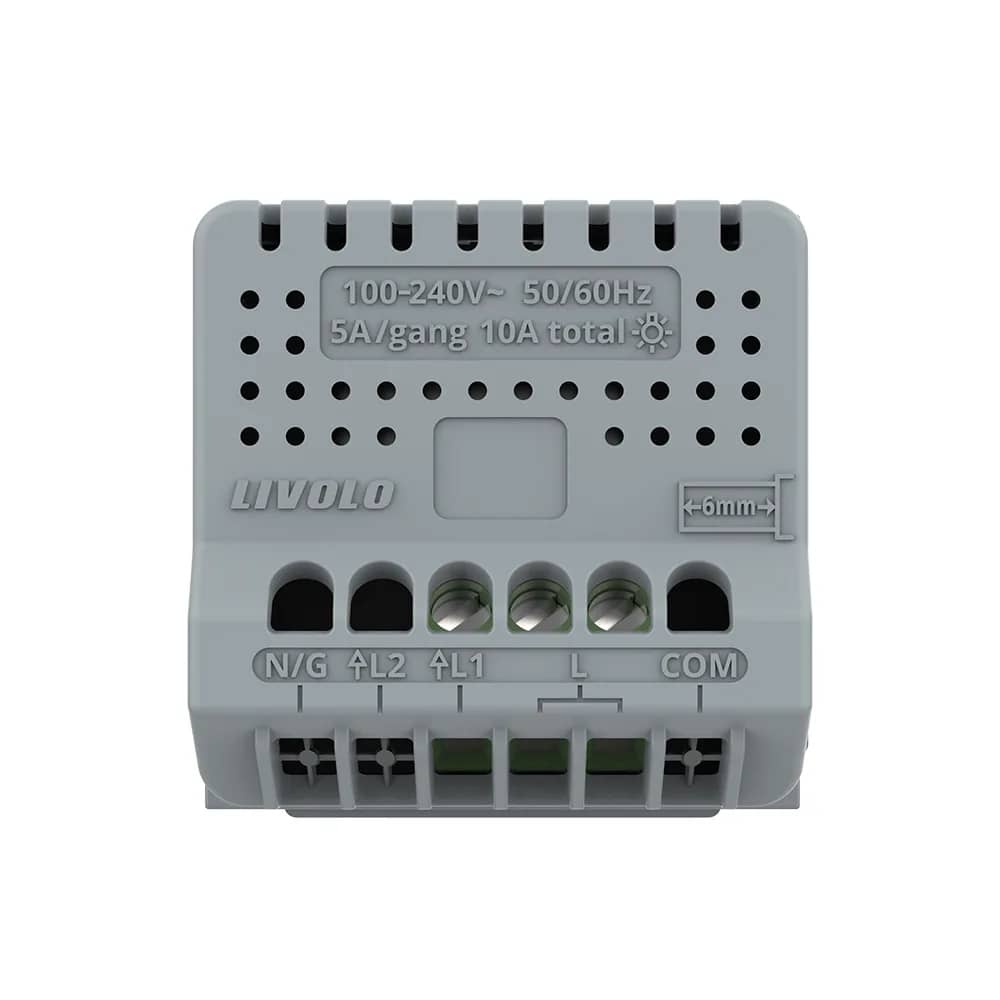

  • Voltage: 100-240V~ 50/60Hz
  • Load: 5A/gang, 10A total
  • Terminals: N/G, L2, L1, L, COM
  • Marking: CE
07

Wiring Diagram

Connect the live wire (L) to terminal L and run the L1 output to the doorbell, which is connected to the neutral (N).

08

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (it clicks into place).
