Livolo Touch Dimmer Light Switch Module – 2 Gang, New Series (C7-VL-FC2D2-2G)

Livolo Double Touch Dimmer Switch Module

A double touch switch module with dimmer function from Livolo: simple design, extraordinary mechanism. Please note: the images are for presentation only and the price does NOT include the Livolo panel, which must be purchased separately.

• 2-gang touch dimmer module
• Compatible with Livolo panels in a variety of colours
• Glass panel and metal frame not included

Improved New Series

Unbeatable performance with low energy consumption. The new series is an improved version of the old model, with a slimmer profile.

• Panel thickness: 4 mm
• Module depth: 33 mm
• Frame depth: 8 mm

Adjustable Light Dimming

Press and hold the switch button to dim or brighten the lamp.

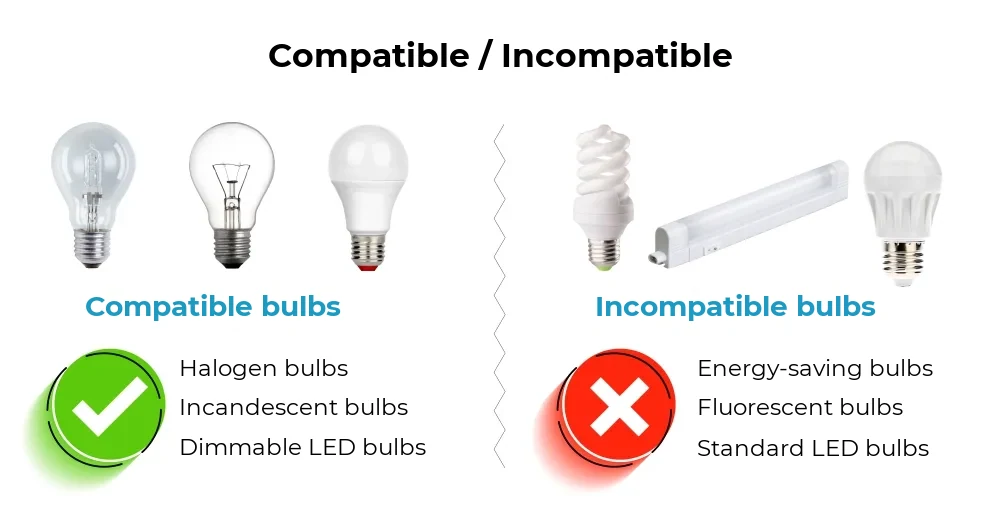

Compatible / Incompatible Lamps

• Compatible: halogen lamps
• Compatible: incandescent lamps
• Compatible: dimmable LED lamps
• Incompatible: energy-saving lamps
• Incompatible: fluorescent lamps
• Incompatible: standard (non-dimmable) LED lamps

Technical Data

• Voltage: 100-240V~
• Frequency: 50/60Hz
• Load: 2A/gang
• Terminals: N/G, L2, L1, L, COM
• Panel size: 80 x 80 mm
• Screw fixing distance: 60 mm

Structure

The complete switch consists of an elegant crystal glass panel, the switch module and a metal frame. Only the switch module is included.

• Crystal glass panel (not included)
• Switch module (included)
• Metal frame (not included)
• Screw fixing system
