01
Light Indicator
Red and blue LEDs show whether the switch is on or off.
- Red LED: switch is on
- Blue LED: switch is off
Livolo
Livolo Touch Curtain Switch Module – ZigBee EC Protocol (C7-VL-FC2NWZ2-2G)
SKU: C7-VL-FC2NWZ2-2G
AED 158
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo double touch curtain switch module with ZigBee EC protocol, controllable by touch, smartphone app or Alexa/Google Home via the Livolo hub.
Product details
The Livolo double touch curtain switch module with ZigBee EC protocol is designed to make your life easier and bring extra comfort to your home.
It can be operated:
– Directly from the switch, on/off by touch;
– From your smartphone via the Livolo ZigBee EC Wi-Fi Control Hub using the Livolo app (hub sold separately);
– By voice with Google Home or Amazon Alexa. To connect the switch to Google Home or Amazon Alexa, you need the Livolo ZigBee EC Wi-Fi Control Hub.
Important! Requires a neutral wire in the back box!
Highlights
02
Easy to Find in the Dark
The LED lights up clearly and the switch emits a clear sound, so it is easy to locate at night.
03
MCU Smart Chip
Built-in microchip technology with an intelligent MCU chip.
04
Fade-Resistant
Does not discolour – the elegant design stays intact.
05

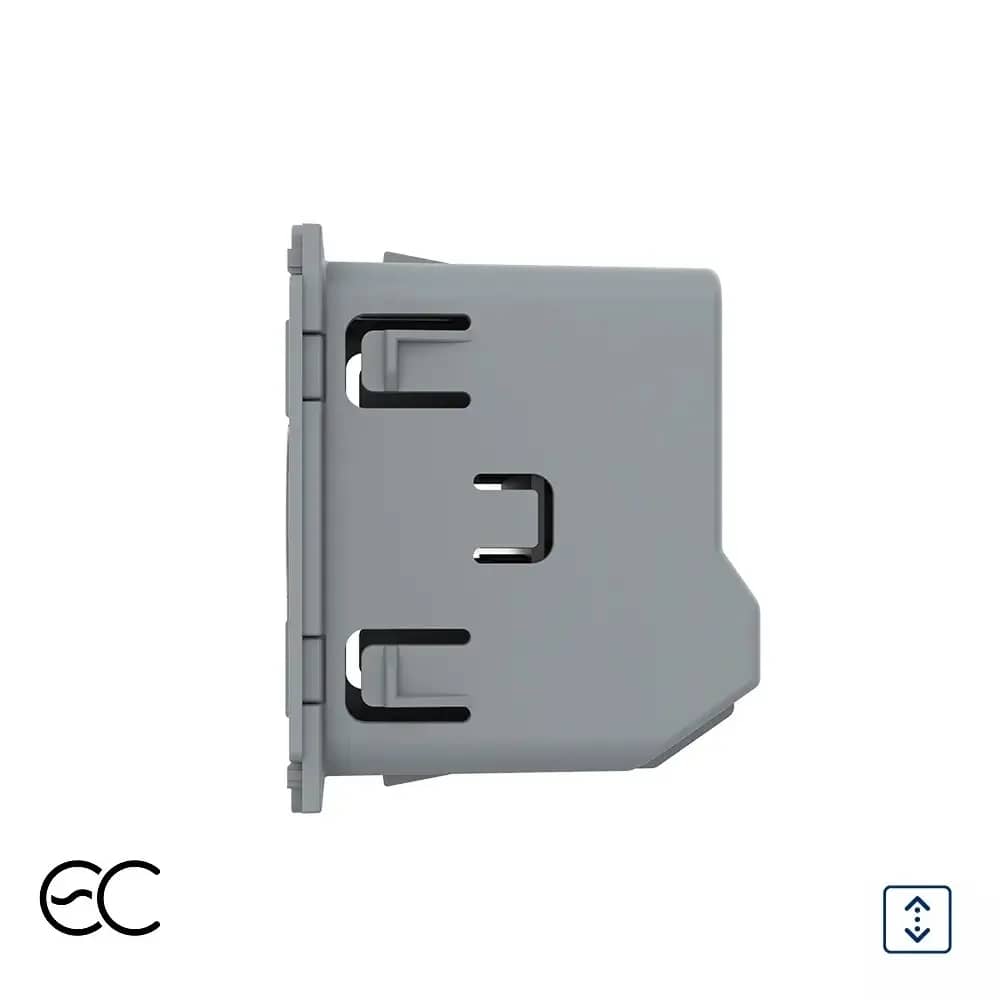

Structure
This product is the switch module only. The crystal glass panel and the metal frame are not included.
- Elegant crystal panel (not included)
- Switch module
- Metal frame (not included)
- Screw fixing system: 60 mm
06
Dimensions
- Panel: 80 mm x 80 mm
- Glass panel thickness: 4 mm
- Module depth: 33 mm
- Frame depth: 8 mm
07
Technical Data
- Voltage: 100-240V~ 50/60Hz
- Load: 5A/gang, 10A total
- Terminals (light wiring): N/G, L2, L1, L, COM
- Terminals (motor wiring): OUT2, OUT1, N, L, COM
08
Wiring Diagrams
Wiring diagrams are provided for connecting two lighting circuits (outputs L1 and L2) and for connecting a curtain motor (outputs OUT1 and OUT2 for the two directions), with Live (L) and Neutral (N) supply.
09
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel – it clicks into place.
