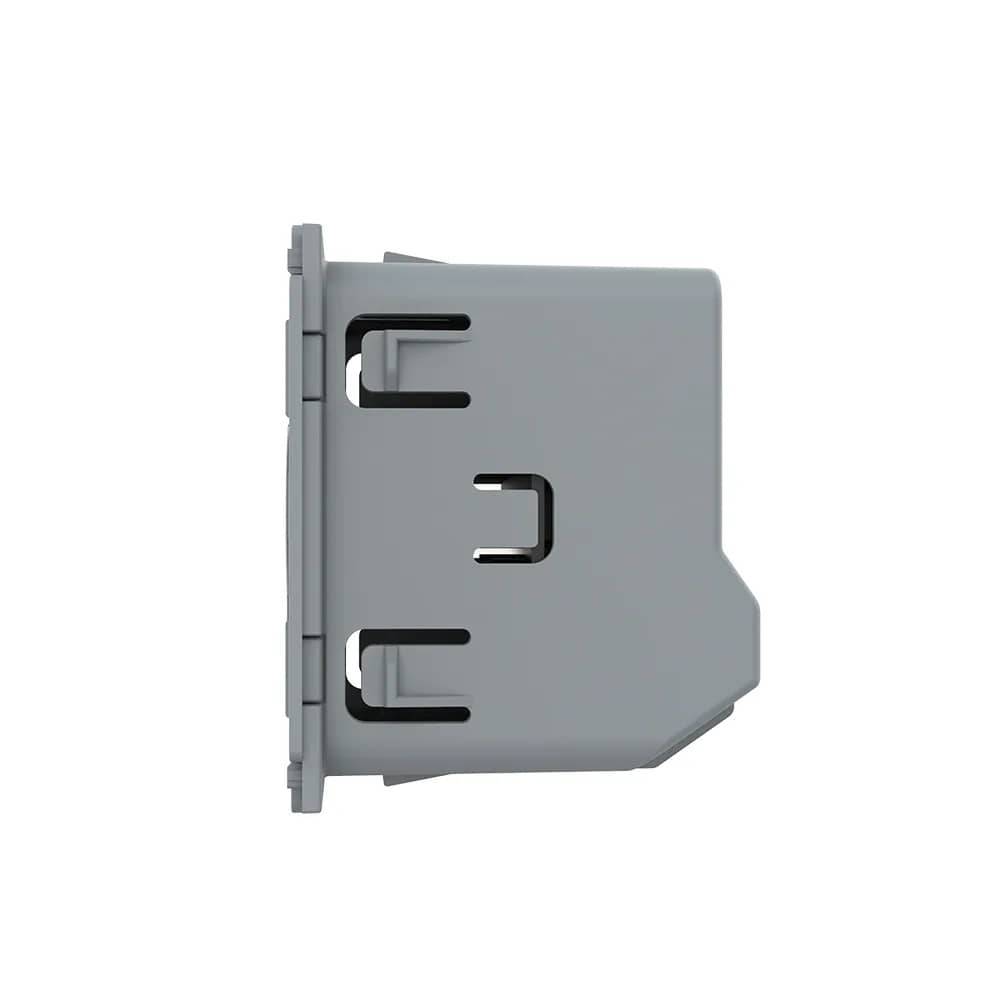

Livolo Touch Curtain Switch Module – New Series (C7-VL-FC2NW-2G) — image 3

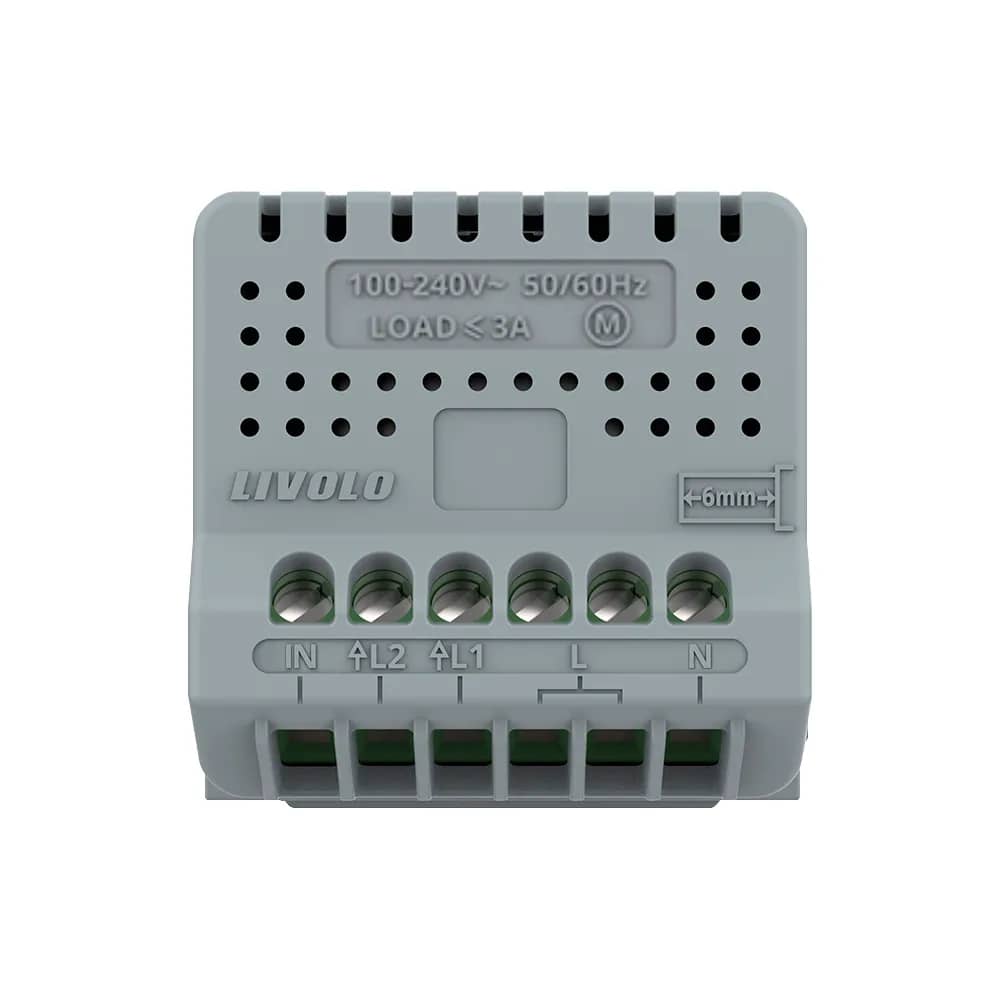

Livolo Touch Curtain Switch Module – New Series (C7-VL-FC2NW-2G) — image 4
1/4
Livolo

Livolo Touch Curtain Switch Module – New Series (C7-VL-FC2NW-2G)

SKU: C7-VL-FC2NW-2G

AED 109

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo new-series touch curtain switch module to open and close electric curtains or garage doors with a single touch.

Product details

The Livolo touch curtain switch module from the new series is an improved, innovative product, the result of technology developed over years of study and research. You can lower and raise electric curtains or garage doors, with full control at a simple touch. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.

Highlights

Livolo Touch Curtain Switch Module – New Series (C7-VL-FC2NW-2G) – Livolo Touch Curtain Switch Module
01

Livolo Touch Curtain Switch Module

A touch switch module for operating curtains. Simple design, outstanding mechanism. Please note: the images are for illustration only – the Livolo glass panel is NOT included and must be purchased separately.

  • Operates curtains
  • Available panel colours shown: white, black, gold and grey (sold separately)
Livolo Touch Curtain Switch Module – New Series (C7-VL-FC2NW-2G) – Glass Panel Design
02

Glass Panel Design

The high-quality glass used for the panel resists scratches and high temperatures. It does not fade, so the elegant design stays intact.

  • Scratch-resistant glass
  • Resistant to high temperatures
  • Does not discolour
Livolo Touch Curtain Switch Module – New Series (C7-VL-FC2NW-2G) – Structure
03

Structure

  • Glass panel (not included)
  • Switch module (included)
  • Metal frame (not included)
  • Screw fixing system: 60 mm
Livolo Touch Curtain Switch Module – New Series (C7-VL-FC2NW-2G) – Technical Data
04

Technical Data

  • Voltage: 100-240V~ 50/60Hz
  • Load: ≤3A
  • Terminals: IN, L2, L1, L, N
  • Panel dimensions: 80 mm x 80 mm
  • Depth: 4 mm / 33 mm / 8 mm (as per diagram)
Livolo Touch Curtain Switch Module – New Series (C7-VL-FC2NW-2G) – Wiring Diagram
05

Wiring Diagram

Connect the phase (L) and neutral (N) to the module and the curtain motor as shown in the wiring diagram.

  • Phase: L
  • Neutral: N
  • Motor outputs: L1 and L2
Livolo Touch Curtain Switch Module – New Series (C7-VL-FC2NW-2G) – Installation Steps
06

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).
07

Certifications

Livolo products are sold worldwide and hold RoHS and CE certification, along with other international certificates.

In detail

Livolo Touch Curtain Switch Module – New Series (C7-VL-FC2NW-2G) – detail 1Livolo Touch Curtain Switch Module – New Series (C7-VL-FC2NW-2G) – detail 2

The Livolo touch panel in action

Official Livolo video
